Medical injection molding produces plastic components for medical devices, diagnostic equipment, and drug delivery systems. Successful projects depend on selecting a suitable resin, designing parts for consistent molding, and controlling dimensions that affect fit, sealing, and performance.
The most effective approach is to evaluate material, geometry, tooling, and inspection requirements together before production tooling begins. Early design for manufacturability (DFM) review can identify potential problems with shrinkage, warpage, assembly, and production cost.
Medical injection molding is a manufacturing process in which molten polymer is injected into a precision mold and cooled or solidified into a finished component.
It is widely used for disposable medical products, reusable instrument components, diagnostic cartridges, and fluid-handling parts. The process supports repeatable production of complex geometries, including thin walls, snap-fits, and integrated functional features.
However, medical device injection molding involves more than producing a part to its drawing. Material suitability, manufacturing consistency, traceability, and product-specific quality requirements must be considered throughout development.
The appropriate manufacturing controls depend on the component's intended use, patient-contact conditions, and the device manufacturer's requirements.

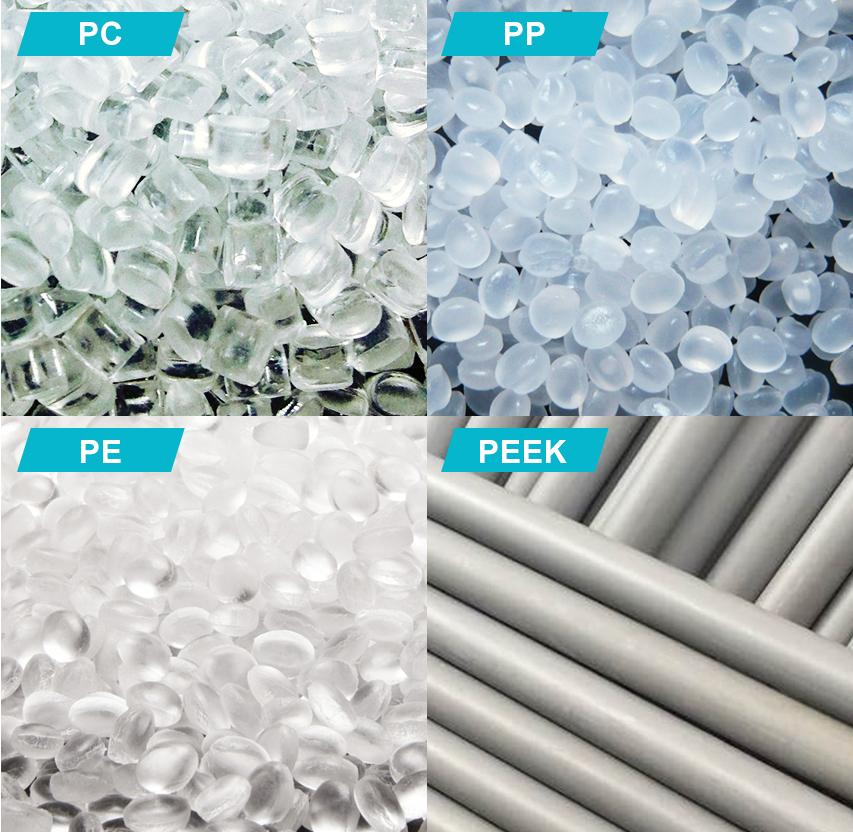

The right medical injection molding material must meet both functional and manufacturing requirements. Mechanical properties alone are not enough.
Material | Key properties | Typical applications |
Polypropylene (PP) | Chemical resistance, fatigue resistance | Disposable components, caps, fluid-handling parts |
Polycarbonate (PC) | Impact strength, transparency | Housings, transparent connectors |
Polyethylene (PE) | Chemical resistance, low moisture absorption | Containers, fluid-handling components |
ABS | Rigidity, impact resistance | Diagnostic equipment housings |
PEEK | High-temperature capability, chemical resistance | Specialized medical components |
TPE | Flexibility, elastic recovery | Seals, grips, flexible interfaces |
These are general material families, not universal specifications. Properties and processing behavior vary by grade and formulation.
1. Intended contact
Determine whether the component contacts skin, tissue, blood, medication, or another fluid. The required biological evaluation depends on the nature and duration of contact.
2. Sterilization method
Consider whether the product will undergo ethylene oxide (EtO), gamma irradiation, steam sterilization, or another process. Compatibility must be verified for the specific resin grade, exposure conditions, and number of cycles.
3. Mechanical and chemical performance
Evaluate stiffness, impact resistance, fatigue, creep, and exposure to cleaning agents or fluids. A rigid housing and a repeatedly flexed connector may require different material properties.
4. Documentation and supply
Confirm the exact resin grade, supplier documentation, lot identification, and material availability. A material change after design approval may require additional evaluation or validation.
A “medical-grade” designation alone does not establish that a finished device is suitable for every medical application.
Medical devices use molded housings, instrument handles, disposable components, and structural parts.
Important considerations include impact resistance, ergonomic design, dimensional stability, and reliable assembly. Snap-fits and threaded interfaces should be evaluated for retention and repeated use where applicable.

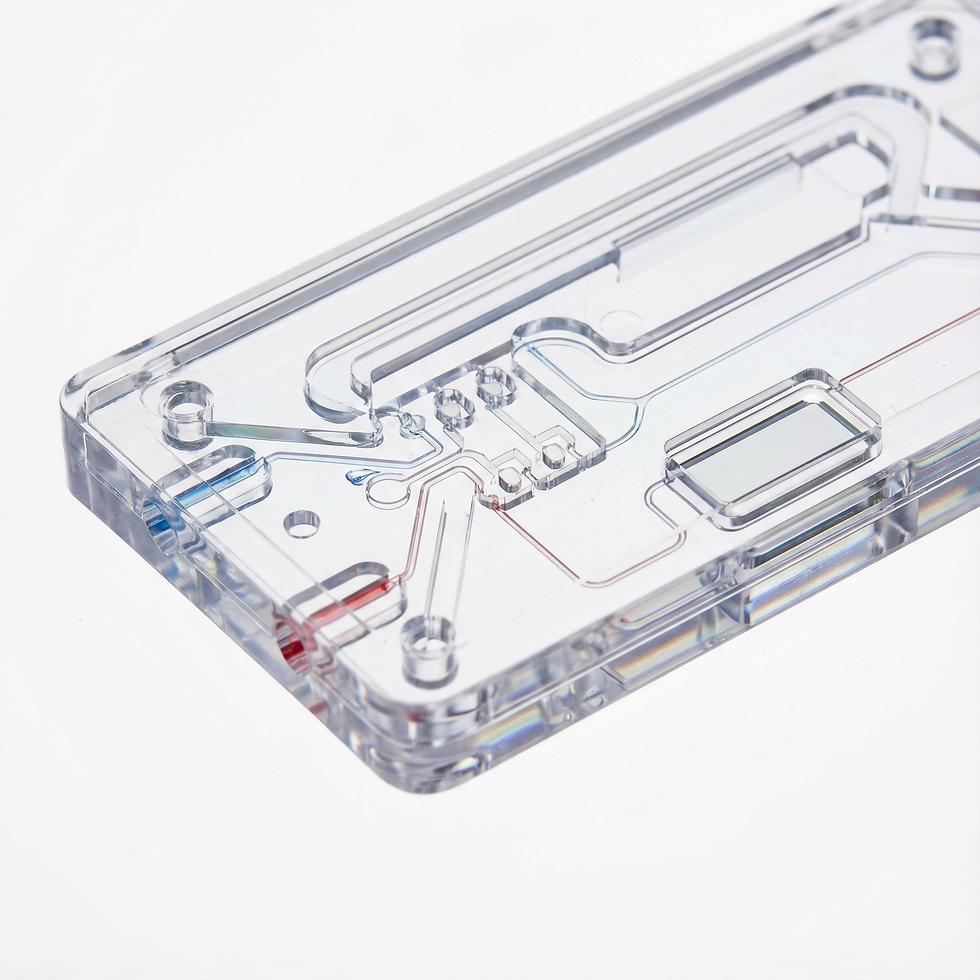

Diagnostic equipment may incorporate sample cartridges, instrument housings, fluid connectors, and precision plastic interfaces.
Critical requirements can include optical clarity, chemical compatibility, accurate alignment, and consistent internal geometry. Small dimensional changes may affect sample handling or the performance of connected components.
Drug delivery and fluid-handling systems may contain syringe components, valves, caps, and tubing connectors.
These parts often require controlled mating diameters, sealing surfaces, and internal flow paths. Functional testing is important when dimensional variation could affect leakage, connection security, or fluid delivery.
A successful CAD design must also be practical to mold, eject, inspect, and assemble.
Uniform wall thickness generally supports more predictable filling and cooling. Abrupt transitions between thick and thin sections can contribute to sink marks, differential shrinkage, and warpage.
Where thick sections are necessary, consider coring, gradual transitions, and carefully positioned ribs or bosses.
Draft allows molded parts to release from the tool with less friction. Deep walls, textured surfaces, and certain geometries may require additional draft.
Ejector locations should avoid critical sealing surfaces and important cosmetic areas whenever possible.
Gate position influences melt flow, packing, surface appearance, and dimensional consistency.
For transparent parts or components with critical flow paths, review whether weld lines, air traps, or flow marks could affect performance or inspection.
Mold-flow analysis may help evaluate complex filling behavior before tooling is finalized.
Not every dimension needs the same tolerance.
A sealing diameter or alignment feature may require tighter control than a non-functional outer surface. Overly tight tolerances can increase tooling complexity, inspection effort, and production cost without improving performance.
Define critical-to-function dimensions early and connect each one to its intended function and measurement method.
Medical injection molding projects often involve several connected manufacturing risks.
Challenge | Engineering solution |
Shrinkage and warpage | Review resin shrinkage, cooling balance, packing conditions, and dimensional results after stabilization. |
Tight mating or sealing features | Identify critical dimensions, establish realistic tolerances, and verify actual assembly performance. |
Thin walls and internal channels | Review gate position, venting, core strength, and filling balance before tooling. |
Process variation | Establish a suitable process window and monitor critical molding variables and part quality. |
There is no universal injection temperature, pressure, or cooling time for medical components. Appropriate settings depend on the resin grade, geometry, mold design, and machine.
A practical process-development sequence includes:
1. Confirm the resin grade and supplier processing recommendations.
2. Establish suitable melt and mold temperature ranges.
3. Optimize injection speed and pressure for complete filling.
4. Determine packing pressure and time to manage shrinkage.
5. Adjust cooling time to reduce deformation during ejection.
6. Measure critical dimensions and verify functional performance.
7. Document the approved process conditions and inspection requirements.
For critical interfaces, dimensional inspection should be supported by assembly or functional testing. The objective is not simply to achieve a tight tolerance on paper, but to demonstrate repeatable performance.
This case illustrates why tooling accuracy and functional requirements must be considered together.

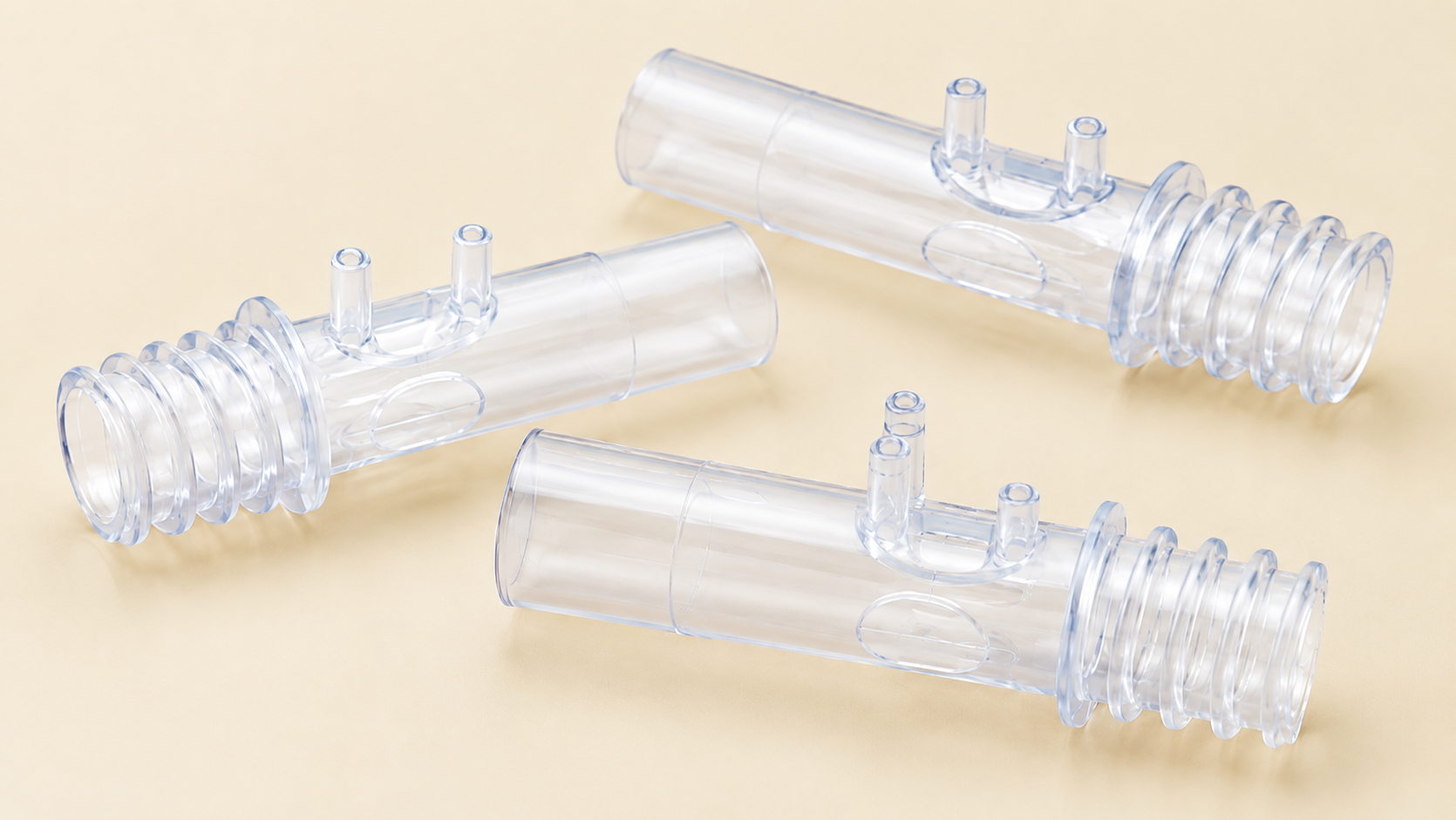

The referenced case describes a molded medical connector with precision interfaces and functional geometry. For this type of component, the main engineering concerns include dimensional consistency, mating fit, sealing performance, and the effects of molding variation.
A connector may appear acceptable visually while still presenting an assembly problem if a critical diameter or alignment feature falls outside its functional range.
A structured engineering approach includes:
· Identifying critical dimensions before mold manufacturing.
· Reviewing resin shrinkage and anticipated dimensional changes.
· Evaluating gate position, cooling, and mold geometry.
· Establishing inspection methods for critical features.
· Checking the molded part against its actual mating component.
· Making controlled tooling or process adjustments based on trial results.
The broader lesson is that medical injection molding should be evaluated against the component's intended function, not only its appearance or individual dimensions.
For engineers developing similar parts, early agreement on critical features and functional acceptance criteria can reduce avoidable tooling changes.
Medical injection molding projects benefit from early coordination between product design, tooling, manufacturing, and quality teams.
Dawang Precision has 27 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers. Our precision machining and mold-making capabilities support projects involving complex tooling features and demanding dimensional requirements.
For medical plastic components, the engineering review should align the specified resin, part geometry, tooling strategy, inspection plan, and production requirements before manufacturing begins.
Cleanroom conditions, documentation, and validation activities should be defined according to the product and project requirements.
Both processes use injection molding technology. Medical projects may require additional material documentation, traceability, cleanliness controls, and validation depending on the device and its intended use.
Common choices include PP, PC, PE, ABS, PEEK, and TPE. The appropriate resin depends on mechanical performance, chemical exposure, sterilization, patient contact, and manufacturing requirements.
No. Cleanroom manufacturing is determined by the product's contamination-control requirements and intended use. The required environment should be established with the device manufacturer rather than assumed for every medical component.
There is no single tolerance that applies to all molded medical parts. Achievable tolerances depend on material, geometry, tooling, process stability, and measurement methods. Critical dimensions should be reviewed individually during DFM.
Not always. A prototype may demonstrate basic function without fully representing production tooling, process variation, or long-term dimensional consistency. Production readiness should be assessed through tooling trials, inspection, and appropriate validation.
Cost can be reduced by reviewing wall thickness, avoiding unnecessary tight tolerances, simplifying tooling where possible, and identifying critical features early. Material availability, production volume, inspection requirements, and expected tooling life should also be considered.
Medical injection molding requires coordinated decisions about material, design, tooling, and process control.
For medical devices, diagnostic equipment, and drug delivery components, the most important priorities are selecting a suitable resin, identifying critical functional dimensions, managing shrinkage and warpage, and verifying assembly performance.
Early DFM review helps identify manufacturing risks before tooling begins and supports a more predictable transition from design to production.
