Cleanroom Injection Molding for Medical Devices: Precision Manufacturing and Quality Control

Cleanroom injection molding produces plastic components in a controlled environment designed to reduce contamination risks. In medical device manufacturing, it is used for products such as pipette tips, syringe barrels, and pharmaceutical device enclosures where cleanliness, dimensional consistency, and process reliability are important.

However, a controlled production environment alone does not guarantee reliable parts. Material selection, precision mold design, injection parameters, cooling, and dimensional inspection must work together to achieve consistent results.

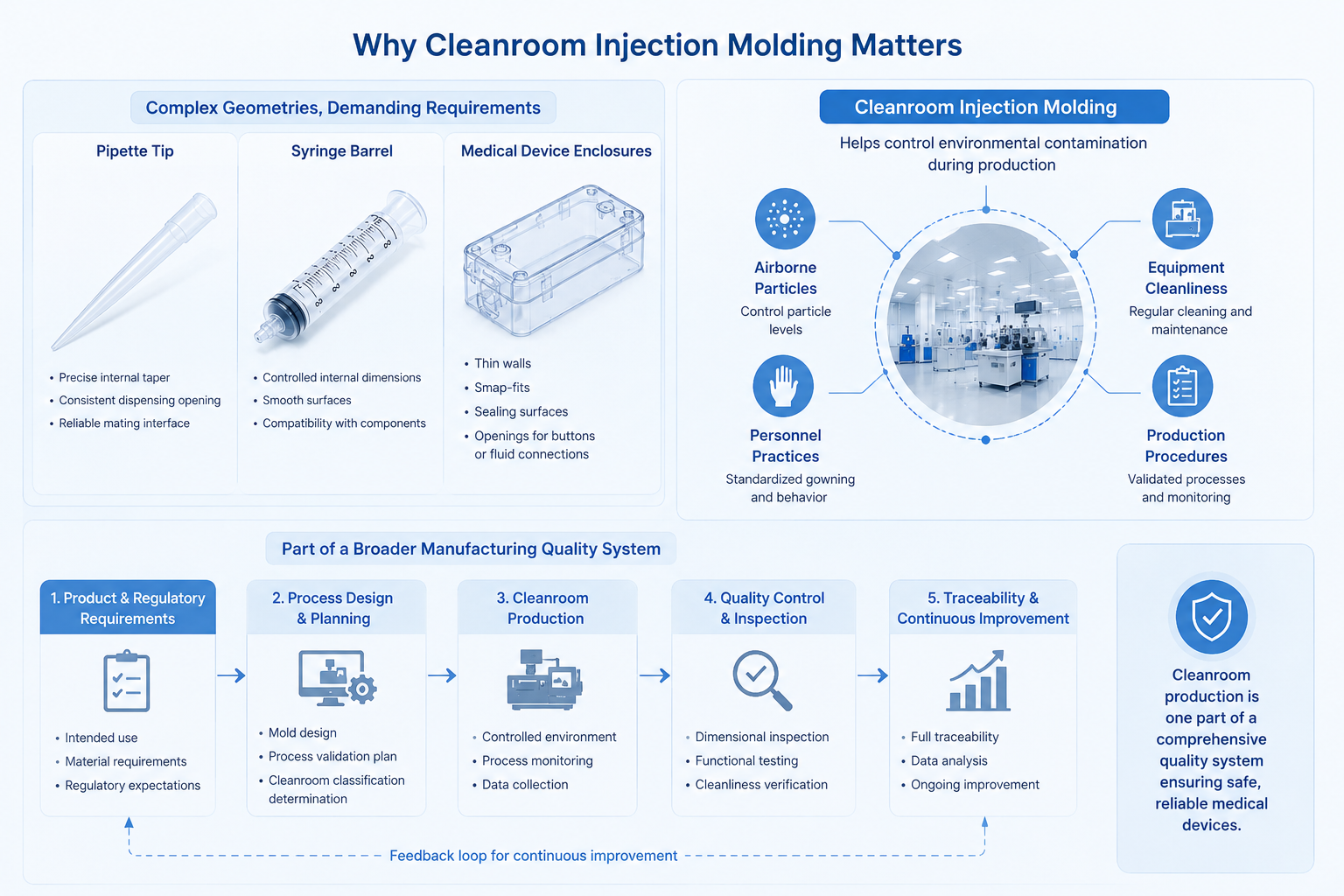

Why Cleanroom Injection Molding Matters

Medical consumables and pharmaceutical devices often combine complex geometries with demanding production requirements. A pipette tip may require a precise internal taper, consistent dispensing opening, and reliable mating interface.

A syringe barrel may need controlled internal dimensions, smooth surfaces, and compatibility with other components.

Medical device enclosures present different challenges, including thin walls, snap-fits, sealing surfaces, and openings for buttons or fluid connections.

Cleanroom injection molding helps control environmental contamination during production. Depending on the product and applicable requirements, manufacturers may need to manage airborne particles, personnel practices, equipment cleanliness, and production procedures.

The specific cleanroom classification and quality requirements should be determined according to the product, manufacturing process, and applicable regulatory expectations. Cleanroom production is therefore one part of a broader manufacturing quality system.

Key Manufacturing Challenges

1. Material Selection and Dimensional Stability

Medical consumables and enclosures may be produced from thermoplastics such as PP, PE, PC, ABS, and other application-specific materials. The appropriate material grade depends on mechanical requirements, chemical compatibility, sterilization conditions, and applicable regulatory requirements.

Each material has different shrinkage characteristics, flow behavior, processing temperatures, and mechanical properties. Material selection must therefore consider both final product performance and actual molding behavior.

2. Thin Walls and Complex Features

Many medical consumables are designed to minimize material usage while maintaining functional performance. This can result in thin walls, narrow flow paths, deep cavities, and small internal features.

Pipette tips are a typical example. Their long, narrow internal passage and small dispensing opening can increase the risk of incomplete filling, dimensional variation, and difficult ejection.

Medical device enclosures may also contain ribs, bosses, snap-fits, and sealing features. These structures must provide sufficient strength without creating excessive wall-thickness variation.

3. Tight Tolerances and Functional Interfaces

Dimensional accuracy is particularly important when a plastic component must assemble with another part or control a fluid path.

For example:

· A pipette tip must fit securely onto the corresponding pipette interface.

· A syringe barrel must maintain the required relationship between its internal diameter and mating components.

· A medical enclosure must maintain alignment between internal components and sealing features.

Not every dimension requires the same tolerance. Critical interfaces should be controlled according to their functional requirements, while non-critical features can use more practical tolerances to avoid unnecessary tooling costs.

4. Shrinkage, Warpage, and Cooling Variation

Plastic parts contract during cooling, and shrinkage depends on material, geometry, processing conditions, and mold temperature.

Uneven cooling can create differential shrinkage and warpage, particularly in long, thin components, flat enclosure panels, and parts with thick bosses or ribs.

For medical consumables, dimensional changes may affect fit or fluid handling. For enclosures, warpage can influence assembly alignment, sealing, and cosmetic quality.

Technical Solutions for Reliable Production

1. Design for Manufacturability Before Mold Making

A reliable injection molding process begins with a manufacturable part design.

During DFM review, engineers should evaluate:

· Nominal wall thickness

· Wall-thickness transitions

· Draft angles

· Rib and boss design

· Parting-line location

· Ejection strategy

· Gate location

· Venting requirements

· Cooling-channel layout

For deep or narrow features, insufficient draft can increase ejection force and cause scratches or deformation. For thin-wall components, flow paths and gate locations must be considered carefully to reduce filling risks.

Early DFM review helps identify potential manufacturing problems before they become expensive mold modifications.

2. Optimize Injection and Packing Parameters

Important process variables include:

· Melt temperature

· Mold temperature

· Injection speed

· Injection pressure

· Packing pressure

· Packing time

· Cooling time

For thin-wall medical components, injection speed and melt temperature must be balanced to achieve reliable filling without excessive shear or material degradation.

Insufficient packing may lead to dimensional shrinkage, while excessive packing can increase internal stress. The goal is to establish a stable process window that consistently produces parts within the required dimensional and functional limits.

3. Control Mold Temperature and Cooling

Cooling is one of the most important factors in dimensional consistency.

A well-designed cooling system should provide balanced heat removal across the mold. This is especially important for long components, flat enclosures, and parts with uneven wall thickness.

For example, a medical enclosure with a thick boss and a thin surrounding wall may cool at different rates. Without appropriate cooling design, this can contribute to sink marks, warpage, or dimensional deviation.

Mold temperature should be controlled according to the material and product requirements, while cooling time should be sufficient to reduce deformation during ejection.

4. Use Precision Mold Manufacturing for Critical Features

The quality of an injection molded part depends heavily on mold accuracy. Critical features may include internal diameters, sealing surfaces, thin-wall cavities, small openings, and snap-fit interfaces.

At Dawang Precision, our mold manufacturing capabilities include advanced CNC machining and precision machining processes for complex mold components. With 26 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers, we support the production of complex mold geometries and precision features.

Five-axis machining can be particularly useful for complex mold geometries, deep cavities, and difficult-to-access surfaces. Depending on the feature, EDM and other precision machining processes may also be used to achieve the required geometry and surface finish.

5. Establish Practical Tolerance Control

Tolerance control should be based on product function, material behavior, and manufacturing capability.

A practical approach includes:

1. Identify critical dimensions.

2. Define functional requirements.

3. Consider material shrinkage and process variation.

4. Establish realistic mold tolerances.

5. Validate the molded part through inspection and assembly testing.

For example, the internal diameter of a syringe barrel may require tighter control than a non-functional external surface. Similarly, a sealing interface may require more attention than a cosmetic enclosure feature.

This approach helps balance precision, reliability, and production cost.

What Should Medical Device Manufacturers Consider When Choosing a Supplier?

When selecting a cleanroom injection molding supplier, manufacturers should evaluate more than cleanroom availability.

Important considerations include:

· Material processing experience: Can the supplier work with the required material grade and processing conditions?

· Mold manufacturing capability: Can the supplier produce complex features and maintain critical dimensions?

· Dimensional inspection: Can the supplier verify functional interfaces and production consistency?

· Process stability: Can the supplier establish and maintain a repeatable molding process?

· DFM support: Can the supplier identify potential molding and tolerance issues before tooling begins?

Early engineering collaboration can reduce the risk of costly mold modifications and improve the transition from product design to production.

Conclusion

For medical device manufacturers, cleanroom injection molding is not simply about producing plastic parts in a controlled environment. Reliable production also requires careful material selection, precision mold design, stable injection parameters, balanced cooling, and practical tolerance control.

By addressing these factors early, manufacturers can reduce production risks, improve dimensional consistency, and develop more reliable medical consumables and enclosures.

At Dawang Precision, we combine 26 years of manufacturing experience with advanced machining capabilities to support precision mold manufacturing and injection molding projects.

Send your STEP or PDF drawings to our engineering team for a free DFM evaluation. We will review your design and provide feedback within 24 hours.
