Quick Answer: ABS CNC machining is a cost-effective option for precision housings, electronic enclosures, robot components, fixtures, and functional prototypes that need good impact resistance and a clean machined finish. For a production-ready ABS part design, start with walls of 1.5 mm or more, apply tight tolerances only to functional features, favor through-holes where possible, and use threaded inserts for repeat-use or high-load joints.
ABS is easy to machine, but its lower rigidity and sensitivity to heat require walls, pockets, and fastening features to be designed around machining forces and workholding.

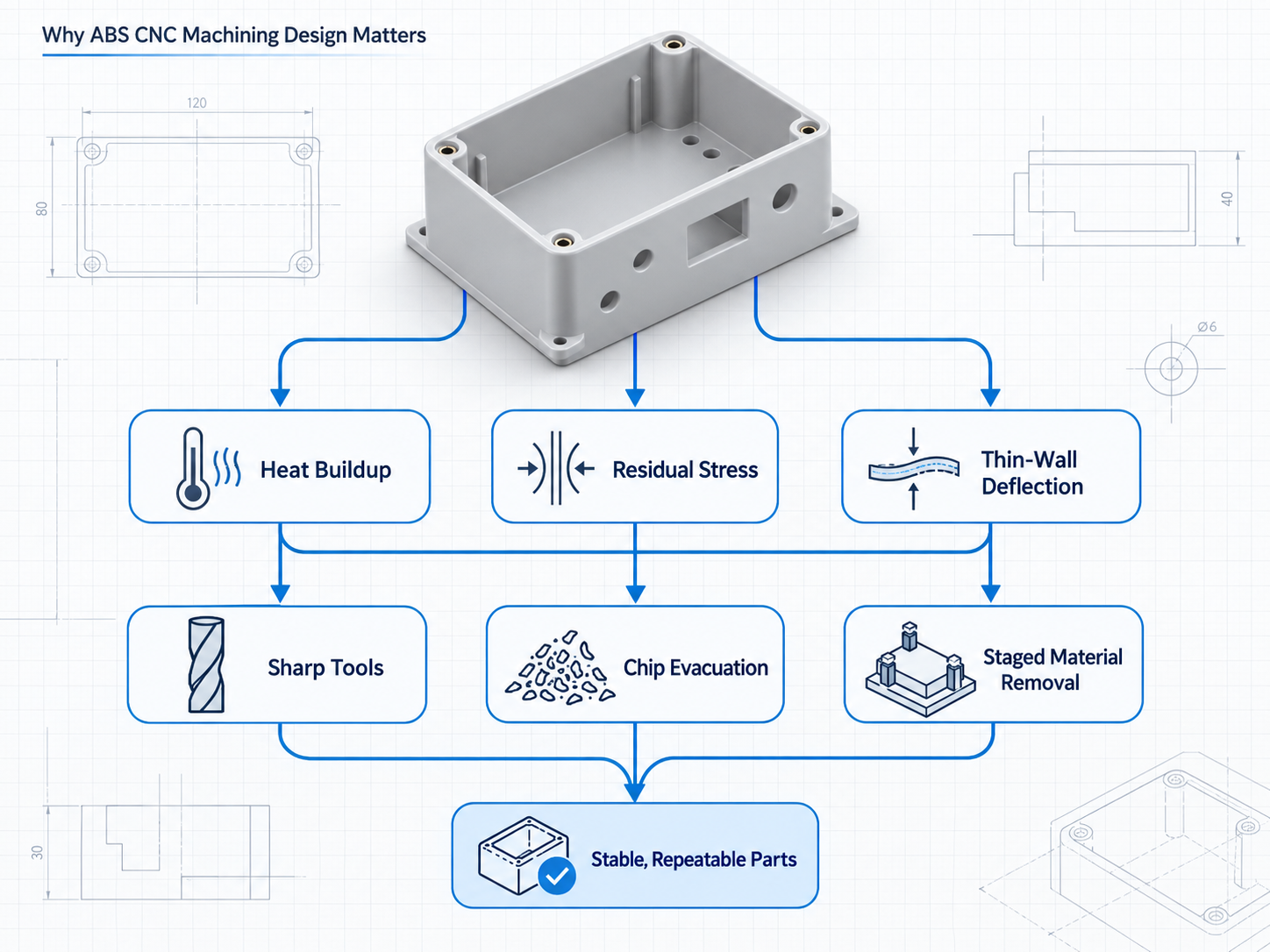

ABS (acrylonitrile butadiene styrene) balances toughness, appearance, and cost, making it well suited to low-volume parts before injection molding is justified. Heat buildup, residual stress, and thin-section deflection are controlled through sharp tools, chip evacuation, staged material removal, appropriate workholding, and light final passes on critical faces.
Design feature | Practical starting point | Why it matters |
Wall thickness | ≥ 1.5 mm where practical | Reduces vibration and deformation |
General tolerance | Around ±0.10 mm for non-critical features | Controls cost and inspection effort |
Blind-hole depth | Prefer ≤ 4 × nominal diameter | Improves tool access and chip evacuation |
Thread engagement | Usually ≤ 3 × nominal diameter | Avoids unnecessary cycle time |
Internal corner radius | Use the largest radius function allows | Supports larger, more rigid cutters |
Repeat-use threads | Use metal inserts | Improves pull-out and wear resistance |
These are DFM starting points, not universal guarantees. Achievable tolerances depend on the ABS grade, part size, feature height, fixture design, machining orientation, inspection method, and production quantity. Critical requirements should always be reviewed against the actual model and drawing.
Over-tolerancing is one of the most common avoidable cost drivers in ABS CNC machining. Many exterior dimensions, non-mating pockets, and cosmetic details do not need the same accuracy as locating bores, sealing faces, or assembly interfaces.
For non-critical features, a general tolerance of approximately ±0.10 mm is often a sensible planning value. Tighter ABS machining tolerances can be achieved on localized, well-supported features, but they demand more controlled machining and inspection. Specify tighter tolerances only where they control fit, movement, sealing, electrical clearance, or final assembly.
For example, a precision enclosure may need controlled connector-hole position and a flat gasket land, while exterior cosmetic surfaces can remain under a general tolerance. Define functional datums on the PDF drawing.
For most ABS CNC parts, maintain a minimum wall thickness of 1.5 mm wherever possible. Long or tall walls, large cover panels, and walls adjacent to deep cavities may need additional thickness, ribs, or gussets. A nominally thin wall may be manufacturable, but it is not necessarily stable enough for consistent production.
Keep section thickness reasonably uniform and use ribs to increase stiffness where space permits. Avoid deep pockets next to thin cosmetic walls. Deep, narrow pockets require less-rigid long cutters, so keep them as shallow and wide as function allows. Milling cutters are round: use the largest internal radius your mating condition permits, or add a dog-bone relief where a square corner is essential.
Standard drill diameters and through-holes are generally the most efficient choice. Through-holes improve chip evacuation and eliminate concerns about the conical drill point at the bottom of a blind feature.
When a blind hole is necessary, design around usable depth rather than a theoretical flat bottom. A blind-hole depth of up to roughly four times the nominal diameter is a practical starting point; deeper features require a specific manufacturability review. Leave adequate clearance beneath any thread, screw, or locating pin so it does not bottom out in the drill point.
Keep holes away from exterior walls, pocket edges, and adjacent holes to prevent breakout. For repeated patterns, define position from functional datums so assembly is controlled by true position, not only individual diameters.
Directly tapped ABS threads can be appropriate for light-duty, limited-use assemblies. For repeated assembly, high clamp loads, vibration, or higher pull-out resistance, metal threaded inserts are usually the better choice.
Avoid unnecessarily deep threads: engagement beyond about three times nominal diameter often adds time without meaningful strength. Use standard sizes; M3 and above is generally a practical starting point. For robust designs, consider heat-set, ultrasonic, or press-fit inserts and adequate boss diameter with surrounding ribs.
Consider another material for prolonged UV exposure, sustained high temperatures, aggressive chemicals, low-friction sliding, or repeated high-load fastening. Polycarbonate may suit transparent impact parts; POM/Delrin low-friction components; PEEK high-temperature service; and aluminum higher structural loads.
Yes, on localized and well-supported critical features. Tolerance capability must be reviewed against the part geometry, material condition, workholding, and inspection requirement.
Use tapped threads for light-duty or limited assembly cycles. Choose inserts for repeated fastening, higher torque, vibration, or more reliable long-term performance.
Start at 1.5 mm or more. Taller walls, large panels, and deep-pocket designs often need ribs, gussets, or greater thickness.
