CNC Machining ABS Plastic: Process, Tolerances, Tools & Design Guide

Quick Answer:

CNC machining ABS plastic is well suited to functional prototypes, housings, brackets, fixtures, and low-volume production parts that require good impact resistance, clean surface finish, and stable dimensions. For well-supported features, general tolerances of ±0.05 mm are commonly achievable. Tighter requirements should be evaluated according to part geometry, material grade, workholding, and thermal sensitivity.

ABS CNC machining is widely used in industrial equipment, electronics, automotive, robotics, and rapid prototyping because it delivers production-like parts without the tooling cost and lead time of injection molding.

At Dawang Precision, we support custom plastic CNC machining from prototype to production. With 26 years of experience, 400+ advanced machine tools, and high-performance Röders and Mazak 5-axis CNC machines, our team helps customers manufacture complex machined ABS parts with controlled quality and practical DFM support.

Why Choose CNC Machining for ABS Plastic?

ABS, or Acrylonitrile Butadiene Styrene, is an engineering thermoplastic valued for its toughness, impact resistance, electrical insulation, machinability, and cost efficiency. Machine-grade ABS sheet, rod, plate, and block stock are generally preferred for precision ABS machining because they provide more consistent chip formation and dimensional stability.

Typical applications include:

· Industrial equipment: machine covers, jigs, fixtures, and operator panels

· Electronics: enclosures, PCB supports, test fixtures, and brackets

· Automotive: interior prototypes, trim parts, and inspection fixtures

· Robotics: sensor mounts, grippers, lightweight guards, and custom brackets

· Rapid prototyping: functional parts requiring better accuracy and surface finish than many 3D-printed components

CNC machining is especially effective for low-volume parts, design validation, and bridge production. It allows engineers to revise CAD models quickly without changing expensive tooling.

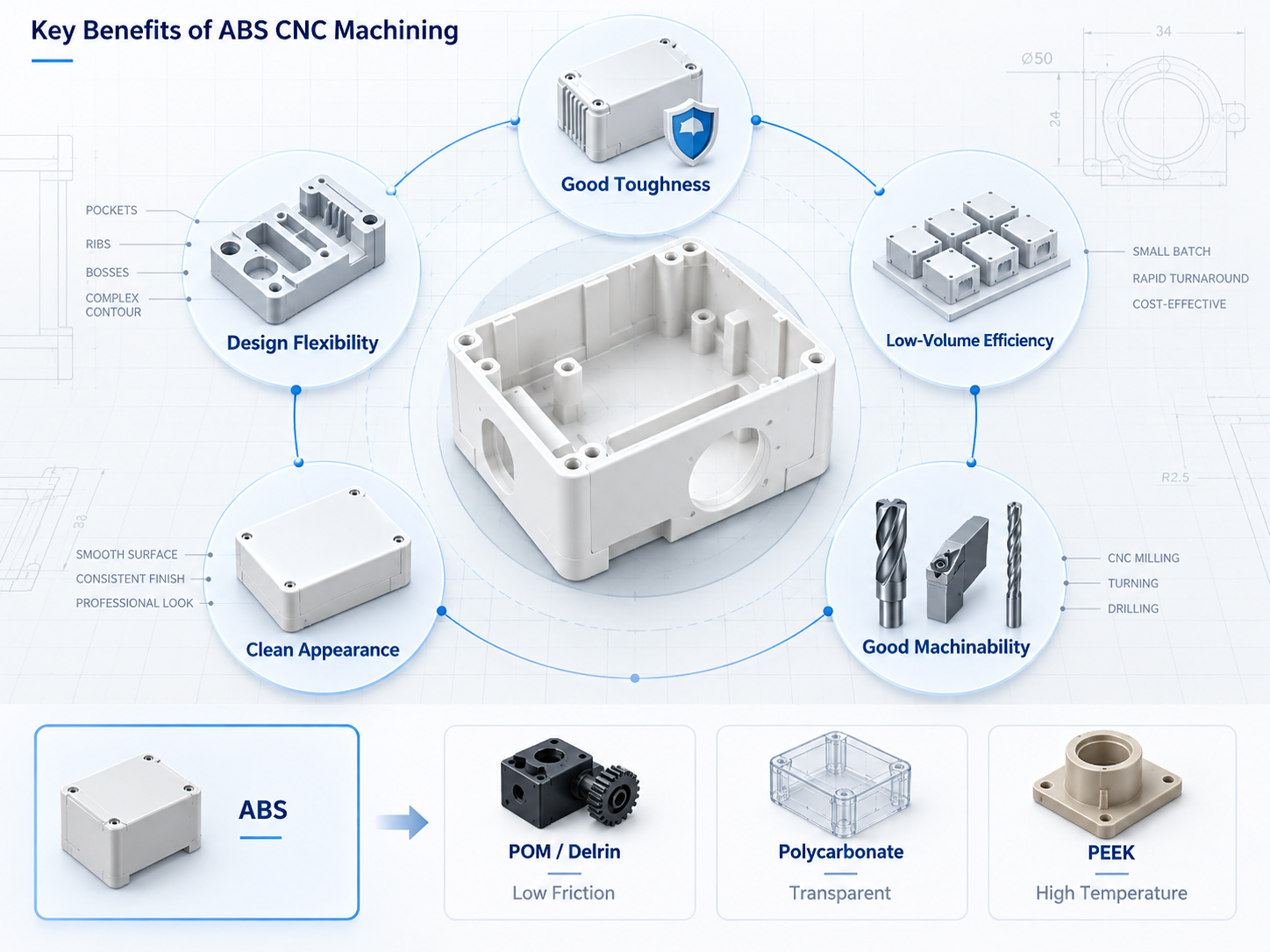

Key Benefits of ABS CNC Machining

For projects with different performance needs, compare ABS with [POM/Delrin CNC machining], [polycarbonate CNC machining], or [PEEK CNC machining]. These materials may be better for low-friction, transparent, or high-temperature applications.

ABS Machining Challenges and Solutions

The primary challenge in CNC machining ABS plastic is heat control. ABS has relatively low thermal conductivity, so cutting heat can build up near the tool edge. Excessive heat may cause softening, smearing, warping, poor surface finish, or dimensional drift after cooling.

For parts with thin walls, deep pockets, or datum-critical features, DFM review is essential. At Dawang Precision, our engineers evaluate workholding, tool access, and stress-release risks before machining begins.

Tools, Parameters, and Process Control

Sharp, polished carbide tools are commonly used for ABS machining. The goal is to create clean chips rather than generate friction. Worn tools can rub the material, increase heat, and leave glossy or scratched surfaces.

There is no universal parameter set for every ABS part. Tool diameter, wall thickness, stock condition, and finish requirements all affect the final cutting strategy. However, reliable ABS CNC machining follows these principles:

· Maintain sufficient feed to cut rather than rub.

· Balance spindle speed and chip load to control heat.

· Use moderate stepdowns for thin walls and deep pockets.

· Use stable finish passes after roughing.

· Avoid dwell time near the part.

· Use air blast, mist cooling, or plastic-compatible coolant to remove heat and chips.

For deep cavities, chip evacuation is particularly important. Re-cutting warm chips can damage the surface and cause localized melting.

Tolerances and Design Guidelines

For stable, well-supported ABS features, ±0.05 mm is a practical general tolerance. Tighter tolerances may be achievable on localized features with appropriate fixturing, machining sequence, and inspection.

To reduce cost and improve quality, clearly identify critical dimensions such as PCB mounting holes, mating faces, locating features, sealing areas, and insert locations. Avoid applying tight tolerances to every dimension unless they are functionally necessary.

Good DFM for machined ABS parts includes:

· Keep wall thickness practical and avoid long unsupported sections.

· Add internal corner radii to improve tool access and reduce stress concentration.

· Avoid deep, narrow pockets where possible.

· Use threaded inserts or through-fasteners for repeated assembly or higher loads.

· Mark cosmetic surfaces so they can be protected during workholding and finishing.

CNC Machined ABS vs. Other Processes

FAQ

Is ABS plastic good for CNC machining?

Yes. ABS offers a practical balance of toughness, machinability, cost efficiency, and surface quality for prototypes and functional CNC plastic parts.

Does ABS warp during machining?

It can warp when heat, internal stress, or excessive clamping are not controlled. Proper tools, cutting conditions, workholding, and machining sequence reduce this risk.

Can ABS parts use threaded inserts?

Yes. For repeated assembly or higher thread strength, heat-set or mechanically installed inserts are often recommended.
