ABS Plastic Sheet: Types, Thickness, Properties & CNC Machining Guide

By Dawang Precision Engineering Team | Technical content reviewed by our manufacturing engineers

Quick answer: ABS plastic sheet is a cost-effective engineering thermoplastic for CNC-machined enclosures, covers, automotive parts, fixtures, and prototypes. It provides good impact resistance, electrical insulation, easy machining, and a paint-ready finish. Reliable results depend on grade, thickness, heat control, and fixturing.

Choose ABS plastic sheet when you need an opaque, durable, easy-to-machine material for low- to medium-load components where cost, finish quality, and fast iteration matter.
Avoid standard ABS when your part requires optical clarity, prolonged outdoor UV exposure, continuous high-temperature performance, or resistance to strong solvents such as acetone.

What Is ABS Plastic Sheet?

ABS is an amorphous thermoplastic made from three monomers:

· Acrylonitrile adds rigidity and chemical and thermal stability.

· Butadiene improves toughness and impact resistance.

· Styrene supports processability and a smooth, attractive surface.

ABS sheet is normally opaque and available in black, white, natural, and custom colors. It offers a strong balance of price, machinability, paintability, and appearance. Confirm grade-specific thermal, flammability, regulatory, and chemical requirements against the selected material data sheet.

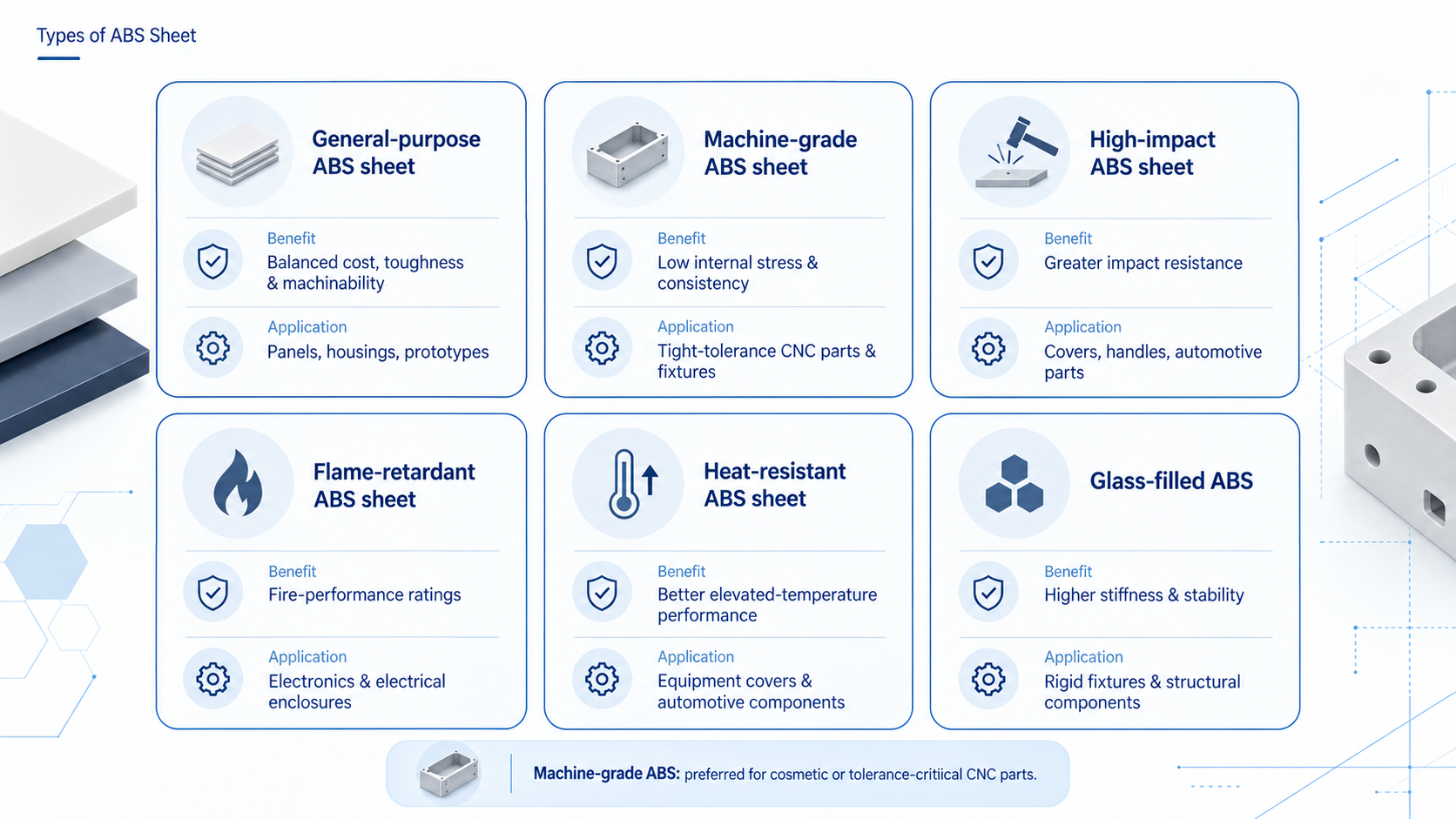

Types of ABS Sheet

Machine-grade stock is often preferred for cosmetic or tolerance-critical CNC parts because it helps reduce stress release and supports cleaner finishes.

ABS Sheet Thickness: How to Choose

Common ABS sheet thicknesses range from approximately 1 mm to 25 mm. Select thickness around the unsupported span, fastening method, finished wall thickness, and machining depth—not only material price.

· 1–2 mm: lightweight covers, cosmetic skins, and panels. Require careful support to reduce vibration and distortion.

· 3–6 mm: a versatile range for electronics enclosures, brackets, control panels, and functional prototypes.

· 8–12 mm: suitable for industrial fixtures, machine covers, mounting plates, and parts with deeper pockets or threads.

· 15 mm and above: useful for robust jigs, supports, and thick-walled components.

Keep walls reasonably uniform. On broad panels, ribs, pockets, and standoffs can increase stiffness without adding unnecessary material or cycle time.

Key ABS Plastic Plate Properties

Low thermal conductivity concentrates heat near the tool; rubbing can soften, smear, or burn the surface.

Why CNC Machine ABS Sheet?

CNC machining delivers accurate dimensions, clean edges, threaded features, and better surface quality than FDM printing—without injection-mold tooling.

Typical CNC ABS sheet applications include:

· Electronics enclosures: battery boxes, instrument housings, and control panels.

· Machine covers: guards, access panels, and protective covers.

· Automotive components: bezels, trim prototypes, and display surrounds.

· Industrial fixtures: assembly nests, inspection aids, and drill guides.

· Functional prototypes: parts requiring accurate holes, flatness, and threads.

ABS Sheet Machining Challenges

Heat buildup and edge melting

Excessive speed, dull tools, poor chip evacuation, or light rubbing cuts can cause melted chips, smeared edges, and dimensional variation.

Warping after unclamping

Residual stress can cause thin walls and large flat areas to move after unclamping.

Clamp marks and deformation

Over-clamping can compress the material; parts may move after removal.

Burrs, chatter, and cosmetic defects

Stringy chips and unsupported thin features can damage edges and visible surfaces.

Dawang Precision’s CNC ABS Sheet Solution

Dawang Precision brings 26 years of precision-manufacturing experience and 400+ advanced machine tools, including Röders and Mazak 5-axis machining centers. We plan each ABS part around its functional requirements, not a one-size-fits-all parameter sheet.

We evaluate material condition, thickness, geometry, datum surfaces, and critical interfaces. Low-pressure soft jaws, vacuum workholding, or supported fixtures control movement without clamp damage. For thin plates, balanced two-sided machining can reduce stress release.

Sharp, polished carbide tools minimize friction and produce clean chips. Conditions are selected around tool diameter, geometry, thickness, and machine rigidity:

· True chip formation with moderate speeds

· Controlled engagement on thin walls

· Air blast or plastic-compatible cooling

· Stable finishing for cosmetic and critical faces

Tolerance and DFM Guidance

For general ABS sheet machining, ±0.10 mm is a practical target. With stable machine-grade stock, controlled fixturing, and geometry-specific processing, ±0.05 mm may be achievable on critical features. Assign tighter tolerances only where they affect assembly or performance.

To reduce machining risk:

· Apply tight tolerances to mating, sealing, locating, and functional features only.

· Use internal corner radii that match practical cutter sizes.

· Avoid very thin unsupported walls and large deep pockets where possible.

· Identify cosmetic surfaces separately from functional datum surfaces.

· Consider thermal expansion when ABS parts assemble with metal components.

For optical clarity or exceptional impact resistance, consider [polycarbonate CNC machining]. For low-friction moving components, [POM CNC machining] may be a better fit.

FAQ

Can ABS plastic sheet be CNC machined?

Yes. ABS machines well with sharp tools, controlled heat, and appropriate fixturing. It is widely used for prototypes, enclosures, covers, and fixtures.

What ABS sheet thickness is best for an electronics enclosure?

For many housings, 3–6 mm is a practical starting range. Final thickness depends on mounting points, span, impact needs, and internal features.

Does ABS sheet warp during machining?

It can, particularly with thin walls, large flat areas, or stressed stock. Balanced machining, low-pressure workholding, and proper process planning reduce this risk.

Is ABS better than polycarbonate for CNC machining?

ABS is generally easier and more economical to machine for opaque parts. Polycarbonate is preferred when transparency or higher impact performance is essential.
