CNC Aluminum Prototyping for UAV Structural Frameworks and Drone Motor Mounts

Quick Answer

CNC aluminum prototyping is an effective manufacturing solution for UAV structural frameworks, drone motor mounts and other functional aerospace components that require low weight, mechanical strength, accurate interfaces and repeatable dimensions. 6061 aluminum is widely considered for general structural prototypes because of its machinability and balanced properties, while 7075 aluminum is often selected when higher strength is required.

For UAV structural prototype machining, the major manufacturing challenges are not simply cutting the CAD geometry. Engineers must control thin-wall deformation, material removal, workholding, mounting-hole position, surface accuracy and inspection requirements. Dawang Precision combines CNC milling, 5-axis machining, DFM engineering and dimensional inspection to support aerospace startups from prototype development through low-volume production.

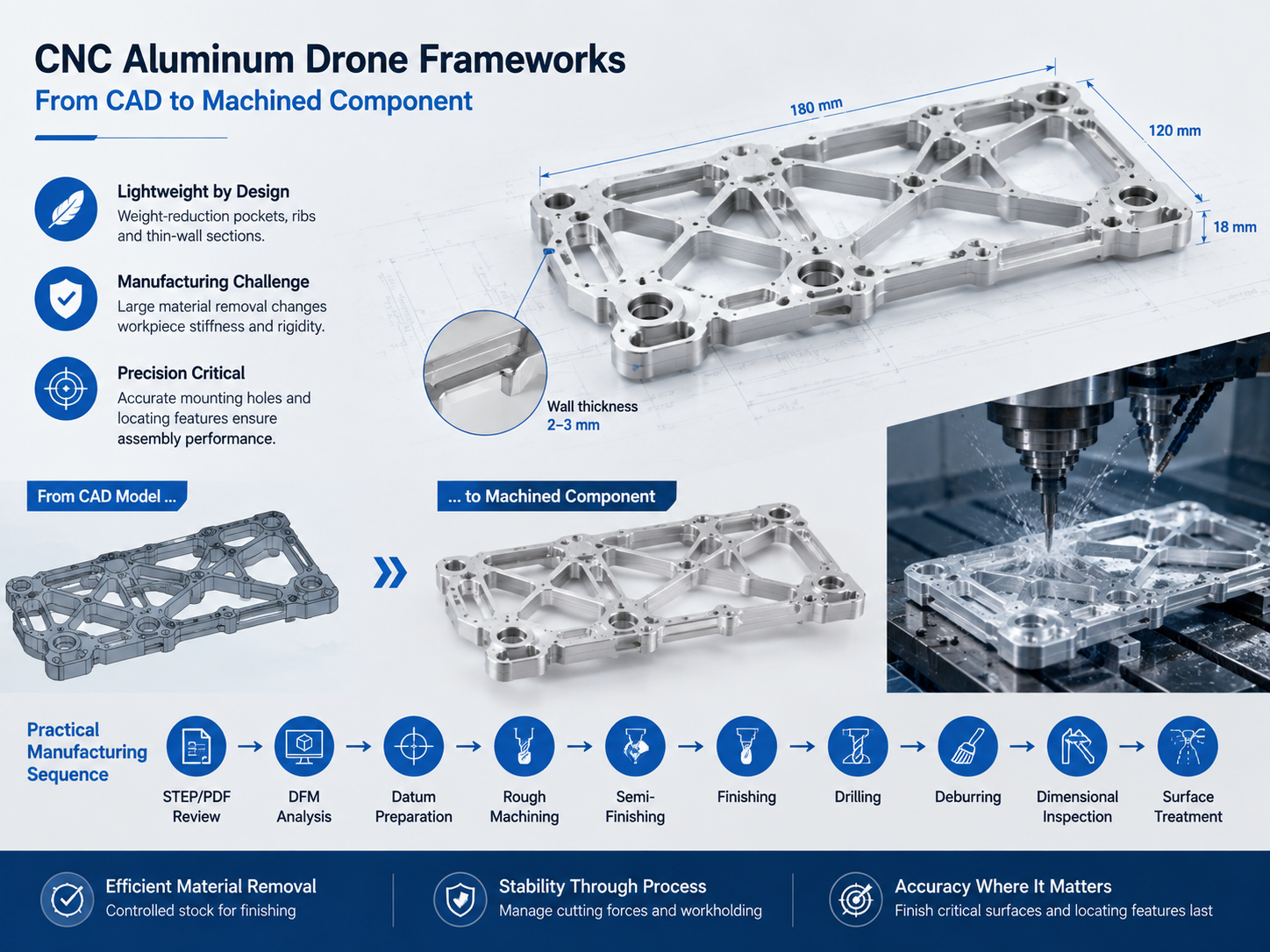

CNC Aluminum Drone Frameworks: From CAD to Machined Component

UAV structural frameworks often contain weight-reduction pockets, ribs, mounting holes, stepped surfaces and thin-wall sections. These features create a manufacturing challenge because removing a large amount of material changes the stiffness of the aluminum workpiece during machining.

Consider an illustrative aluminum UAV structural plate measuring approximately 180 × 120 × 18 mm. After pocketing, some structural walls may be reduced to around 2–3 mm. The part may look straightforward in CAD, but the machining process must account for the changing rigidity of the component.

A practical manufacturing sequence can include:

STEP/PDF review → DFM analysis → datum preparation → rough machining → semi-finishing → finishing → drilling → deburring → dimensional inspection → surface treatment

During roughing, the objective is efficient material removal while retaining controlled stock for finishing. As the component becomes thinner, cutting engagement and machining forces need to be managed more carefully. Critical mounting surfaces and locating features are typically finished after major material removal to improve dimensional stability.

This is why CNC aluminum drone framework machining should be planned around the final functional geometry rather than simply the amount of material that needs to be removed.

How Do You Prevent Thin-Wall Deformation?

Thin-wall deformation is one of the most important considerations when machining lightweight UAV structures.

A practical strategy may involve:

· Establishing stable datums before deep pocketing

· Maintaining sufficient supporting material during roughing

· Leaving controlled stock for finishing

· Adjusting tool engagement as walls become thinner

· Using appropriate workholding

· Finishing critical surfaces in a controlled sequence

· Inspecting wall thickness and positional accuracy after machining

Cutting speed, feed rate, stepdown and tool engagement should not be copied from a generic machining chart. They depend on alloy temper, cutter diameter, tool geometry, machine rigidity, coolant strategy and actual part geometry.

For aerospace prototype work, the goal is not simply maximum material-removal rate. The goal is stable, repeatable geometry after the component is released from the fixture.

Precision CNC Machined Drone Motor Mounts

Drone motor mounts have a different set of priorities.

A typical motor mount may include a center bore, motor bolt pattern, mounting holes, locating shoulders and a flat structural interface.

For example, an illustrative 7075 aluminum motor mount measuring approximately 70 × 55 × 16 mm may require the relationship between the center bore and bolt pattern to be controlled more carefully than its overall outside dimensions.

This is where functional tolerancing becomes important.

Critical features may require control of:

· Hole diameter

· Hole position

· Flatness

· Parallelism

· Locating diameter

· Profile or positional relationships

Not every dimension needs an ultra-tight tolerance. Applying unnecessarily tight tolerances to non-functional features can increase machining time, inspection requirements and overall prototype cost without improving the UAV assembly.

A good CNC drone motor mount manufacturer should therefore review the drawing from an assembly perspective rather than simply quoting the dimensions exactly as supplied.

6061 vs. 7075 Aluminum for UAV Components

The choice between 6061 and 7075 should be based on the application.

6061 aluminum is a practical option for many UAV frameworks, brackets, mounting plates and general prototypes where machinability and balanced performance are important.

7075 aluminum can be considered for higher-load components such as motor mounts, structural connectors and other applications where strength-to-weight performance is more demanding.

UAV structures may also combine CNC aluminum components with carbon fiber sheets. Carbon fiber can provide lightweight structural sections, while machined aluminum provides accurate mounting interfaces, threaded holes, locating features and motor connections.

The interface between aluminum and carbon fiber should be considered during DFM because hole position, fastener clearance, contact surfaces and assembly sequence can influence the final structure.

When Should UAV Components Use 5-Axis CNC Machining?

Not every UAV prototype requires 5-axis machining.

Simple plates and brackets may be efficiently produced using 3-axis CNC machining. More complex structural components with angled surfaces, compound geometry or difficult-to-access faces may benefit from 5-axis machining.

Dawang Precision operates advanced Röders and Mazak 5-axis machining centers.

Depending on the geometry, 5-axis machining can reduce setups, improve tool access and maintain more consistent relationships between multiple surfaces.

The correct machining method should be determined by part geometry, tolerance, quantity, inspection requirements and production cost, rather than choosing 5-axis machining simply because it is technically available.

UAV Prototype Machining Process

For aerospace startups, prototype machining should be viewed as part of the product-development cycle.

A typical workflow is:

1. CAD / STEP Review
Check geometry, material, tolerances and functional features.

2. DFM Analysis
Identify thin walls, deep pockets, difficult tool access, workholding risks and unnecessary tolerances.

3. Process Planning
Select machines, cutters, fixtures, machining sequence and inspection methods.

4. CNC Machining
Perform roughing, semi-finishing and final finishing according to the component geometry.

5. Inspection
Verify critical dimensions, mounting interfaces and functional features.

6. Assembly Validation
Check fit with motor, frame, fasteners or mating components.

7. Design Revision
Use prototype feedback to improve the next engineering iteration.

8. Low-Volume Production
Optimize fixtures, tooling and inspection for repeat manufacturing.

This prototype-to-production workflow is particularly useful for aerospace startups that may need several design iterations before finalizing a UAV platform.

CNC Machining vs. 3D Printing for UAV Prototypes

3D printing is useful for early concept models, form validation and rapid design iterations.

CNC machining becomes more attractive when the prototype needs to represent a functional aluminum component.

The key question is not simply which technology is “better,” but what the prototype needs to validate.

Free DFM Review for Your UAV Prototype

Dawang Precision has 26 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak 5-axis machining centers.

Our engineering team can review your UAV component for:

· Material selection

· Thin-wall machining risks

· Tolerance requirements

· Tool accessibility

· Workholding

· Inspection requirements

· Prototype and low-volume production feasibility

Send your STEP, PDF or CAD drawing to the Dawang Precision engineering team for a free DFM evaluation.

Send your drawing today. Our engineering team will review your project and respond within 24 hours.
