CNC Machining vs. Sheet Metal Prototyping: How to Choose the Right Process

Quick Answer

CNC machining is best for prototypes with complex 3D geometry, precision holes, threads, and tight-tolerance interfaces. Sheet metal prototyping is generally more cost-effective for thin-walled brackets, panels, and enclosures made by cutting and bending sheet stock. The right process depends on your part design, functional testing requirements, production quantity, and long-term manufacturing plan.

For some products, combining CNC machining with sheet metal fabrication delivers a better balance of precision, weight, and cost.

CNC Machining vs. Sheet Metal Prototyping: Key Differences

CNC machining removes material from solid metal or plastic using programmed cutting tools. Sheet metal fabrication starts with flat metal stock that is cut, bent, and assembled into the required shape.

Neither process guarantees a specific tolerance or delivery time. Actual results depend on the drawing, material, part size, and manufacturing requirements.

When Should You Choose CNC Machining?

CNC machining for prototypes is a strong choice when the component must accurately reproduce critical geometry or mechanical interfaces.

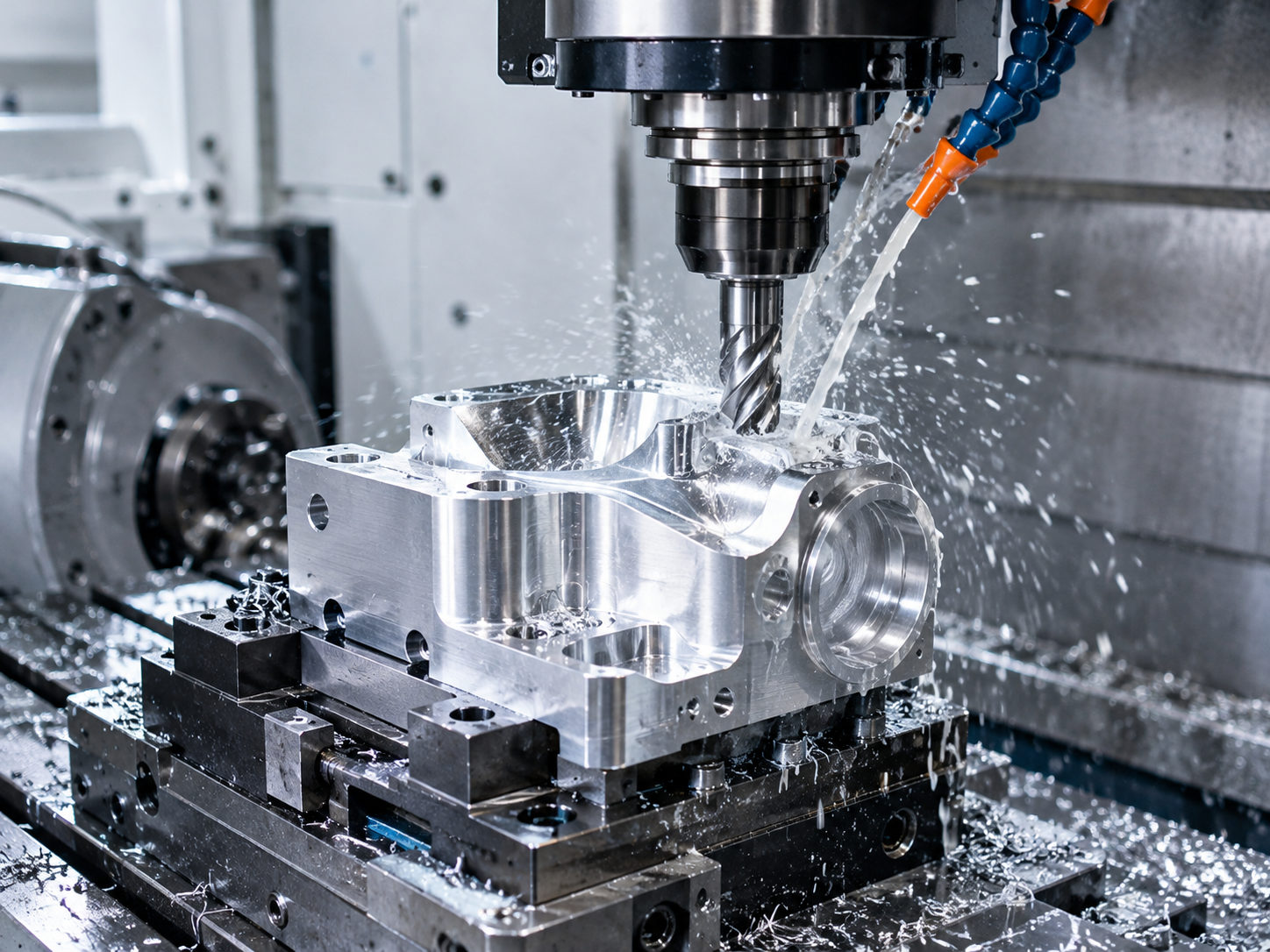

Complex 3D parts: Deep pockets, angled holes, curved surfaces, and features across multiple faces can be difficult to produce through sheet metal forming. Multi-axis CNC machining can access complex geometries while reducing the need for repeated setups.

Precision assembly: Bearing seats, threaded holes, sealing faces, and alignment features often require controlled dimensional relationships. CNC machining allows engineers to specify critical tolerances and inspect features against the drawing.

Functional material testing: Machining from solid stock is useful when a prototype needs to represent a selected engineering material. Aluminum 6061 is commonly used for general-purpose machined parts, while 7075 may be appropriate for higher-strength applications. The final choice should reflect the actual load, environment, and performance requirements.

CNC machining is not automatically the cheapest option. Deep narrow cavities, very thin walls, difficult tool access, and excessive material removal can increase machining time and cost.

When Is Sheet Metal Prototyping Better?

Sheet metal prototyping is generally preferable when a component is defined primarily by its thickness, flat profile, and bends.

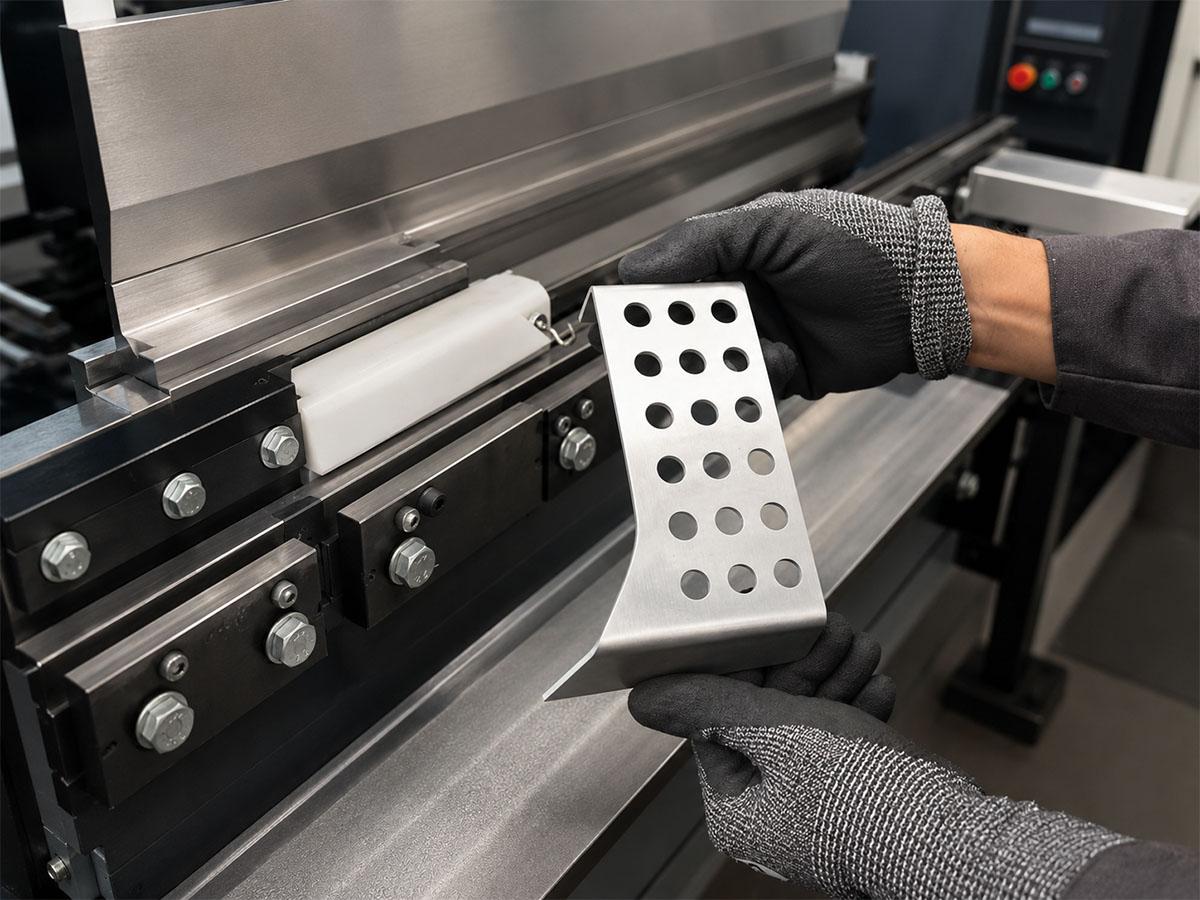

Brackets and mounting structures: L-brackets, support plates, equipment guards, and lightweight frames can often be produced through laser cutting and bending. This avoids machining an entire component from solid stock.

Electronic and industrial enclosures: Sheet metal fabrication is well suited to chassis, control boxes, access panels, and protective covers. Connector openings, ventilation slots, mounting holes, and flanges can be incorporated into the flat pattern.

Weight and material efficiency: Properly designed bends can increase stiffness without requiring a thick solid part. For suitable geometries, sheet metal can reduce material consumption and finished-part weight.

Designers must account for bend radius, bend allowance, springback, hole-to-bend clearance, and assembly access. These details influence the finished dimensions and may require adjustments after the first prototype.

Sheet metal becomes less suitable when a part requires intricate internal cavities, numerous precision interfaces, or extensive secondary machining.

How Do Cost, Accuracy, and Lead Time Affect the Choice?

The lowest unit price is not necessarily the lowest total development cost.

Cost: CNC machining avoids dedicated forming dies and suits complex, low-volume parts, but substantial material removal can be expensive. Sheet metal often uses material more efficiently for thin-walled structures.

Accuracy: CNC is generally better suited to tightly controlled 3D features. Sheet metal can achieve accurate cut profiles, but bend results depend on material properties, thickness, tooling, and forming conditions.

Lead time: A simple machined part may be quicker than a complex fabricated assembly. Conversely, a straightforward laser-cut and bent bracket may be faster and less expensive than machining it from a solid block.

Production planning: CNC machining can support prototypes, bridge production, and low-volume manufacturing. Sheet metal can transition into repeatable batches; higher volumes may eventually justify stamping or other production methods.

For an effective comparison, request quotations based on the same drawing revision, material, quantity, tolerances, finish, and inspection requirements.

Engineering Case: Rethinking an Aluminum Sensor Housing

A published aluminum prototyping case，as described below.

An automation application required a compact sensor housing near moving conveyor belts. The component needed to fit a restricted space, secure the sensor, and provide a suitable cable route.

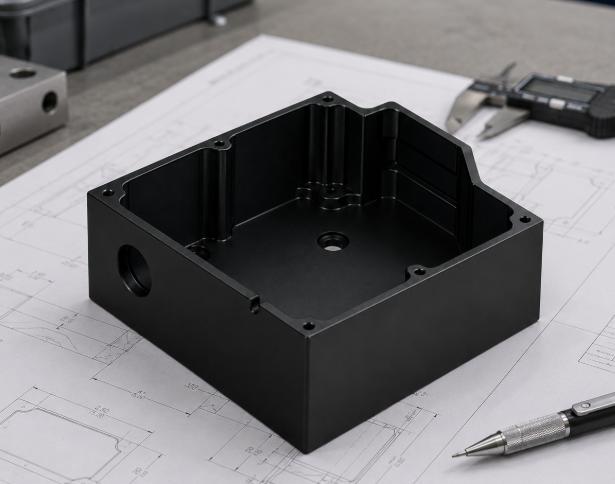

Initial prototype: The housing was CNC-machined from 6061 aluminum. The process produced a sensor pocket, threaded mounting holes, and a cable passage, allowing the team to evaluate fit, alignment, and installation.

Issues identified: Testing revealed insufficient cable-bending space and more weight than expected. These findings showed that passing an initial dimensional check does not necessarily mean a design is ready for use. Cable routing, clearance, weight, and serviceability also matter.

Design revision:Reducing the housing wall thickness from approximately 5 mm to 1 mm and revising the cable path. The team then considered combining CNC machining and sheet metal fabrication to reduce future batch-production costs while retaining precision where required.

The engineering lesson is straightforward: choose a process based on what the prototype needs to prove. CNC machining can validate precision interfaces, while sheet metal may be more suitable for lightweight walls and covers. A hybrid approach can make sense when one process alone is not the best fit.

Which Process Fits Your Industry?

Automotive: CNC machining for precision mounting interfaces, sensor housings, and functional mechanical prototypes; sheet metal for brackets, shields, and enclosures.

Industrial Equipment: CNC machining for alignment features and complex mechanical parts; sheet metal for machine guards, control cabinets, and access panels.

Electronics: CNC machining for precision housings and heat sinks; sheet metal for chassis, EMI shielding, and thin-walled enclosures.

Robotics: CNC machining for joint housings and actuator interfaces; sheet metal for protective covers and lightweight structural components.

A Practical Selection Checklist

Before requesting a quote, answer these five questions:

· What must the prototype validate: fit, strength, thermal performance, or appearance?

· Which dimensions and interfaces are functionally critical?

· How many parts are needed for testing and design iterations?

· Will the part remain CNC-machined, transition to sheet metal, or eventually use stamping or casting?

· Have finishing, assembly, inspection, and potential redesign costs been included?

These answers help engineering and procurement teams compare processes on a consistent basis.

Frequently Asked Questions

Q1:Is CNC machining more expensive than sheet metal prototyping?

Not always. CNC machining may be more economical for a small number of complex parts, while sheet metal is often less expensive for simple brackets, panels, and enclosures. The result depends on geometry, material usage, finishing, and quantity.

Q2:Which process is better for tight tolerances?

CNC machining is generally better suited to precision bores, threaded holes, and complex 3D interfaces. Sheet metal can achieve accurate cut features, but bend-related tolerances must also be considered. Specify tight tolerances only where function requires them.

Q3:Can sheet metal prototyping be used for functional testing?

Yes. It is suitable for evaluating enclosure fit, mounting, access, cable routing, and structural behavior. If testing depends on precision machined interfaces or complex internal geometry, CNC machining or a hybrid design may be more appropriate.

Q4:Which materials are commonly used for metal prototypes?

CNC-machined prototypes commonly use aluminum 6061, aluminum 7075, stainless steel, and other metals selected for the application. Sheet metal prototypes often use formable grades such as aluminum 5052 and stainless steel. Material suitability depends on strength, formability, corrosion resistance, and the intended environment.

Q5:Should I use the same process for prototyping and mass production?

Not necessarily. CNC machining and sheet metal fabrication can both support low-volume production. Once the design stabilizes and volumes increase, stamping, casting, or other production methods may reduce unit cost. Validate the design and critical interfaces before committing to expensive tooling.

Conclusion

CNC machining and sheet metal prototyping solve different engineering problems. CNC machining is better suited to complex 3D geometries and precision interfaces, while sheet metal fabrication often offers a more efficient route for lightweight brackets, panels, and enclosures.

The right choice depends on the prototype's purpose, critical dimensions, quantity, and production roadmap—not simply the lowest initial quote.
