CNC machined ABS parts are a cost-effective option for electronic enclosures, automotive development components, industrial fixtures, robot covers, and functional prototypes. ABS combines impact resistance, stiffness, electrical insulation, and good machinability. Reliable results depend on correct material selection, heat control, low-stress fixturing, practical wall thickness, and tolerances matched to part function.
ABS, or Acrylonitrile Butadiene Styrene, is widely used when a project needs functional plastic components without the upfront tooling cost of injection molding. CNC machining produces parts directly from ABS sheet, plate, rod, or block, making it ideal for engineering validation, low-volume production, and design iterations.
For hardware engineers and procurement managers, the key benefit is flexibility: mounting features, connector openings, wall thicknesses, and assembly interfaces can be revised without modifying a mold.

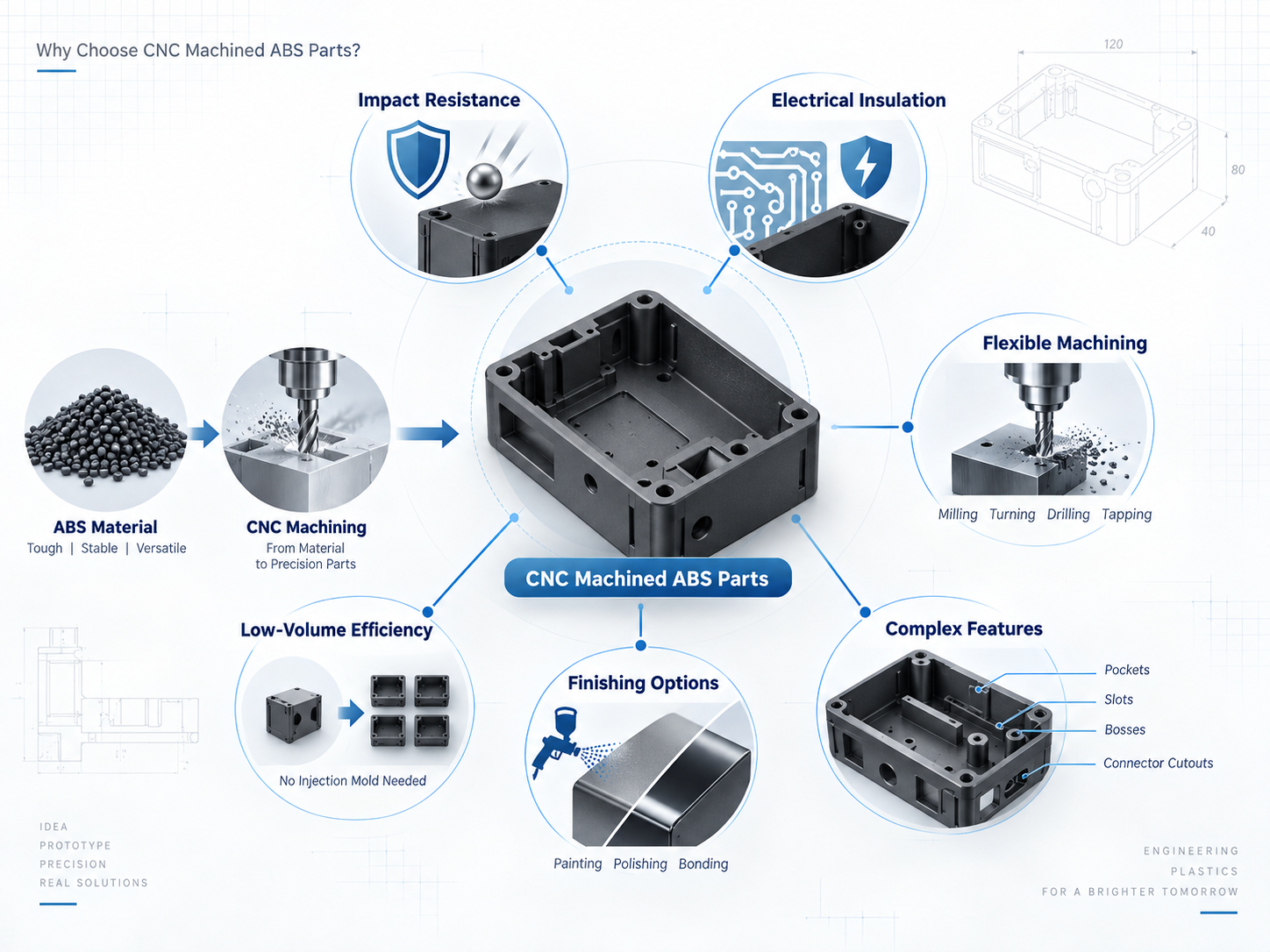

ABS offers a balanced combination of toughness, rigidity, surface quality, and cost. Compared with injection molding, CNC machining eliminates dedicated tooling and supports faster changes. Compared with 3D printing, CNC machined ABS can provide more consistent bulk material properties, accurate critical features, and a production-representative finish.
Key advantages include:
· Good impact resistance for housings and protective covers
· Electrical insulation for many electronic assemblies
· Efficient milling, turning, drilling, tapping, and engraving
· Support for complex pockets, slots, bosses, and connector cutouts
· Cost-effective prototypes and low-volume production
· Good compatibility with painting, light polishing, and bonding

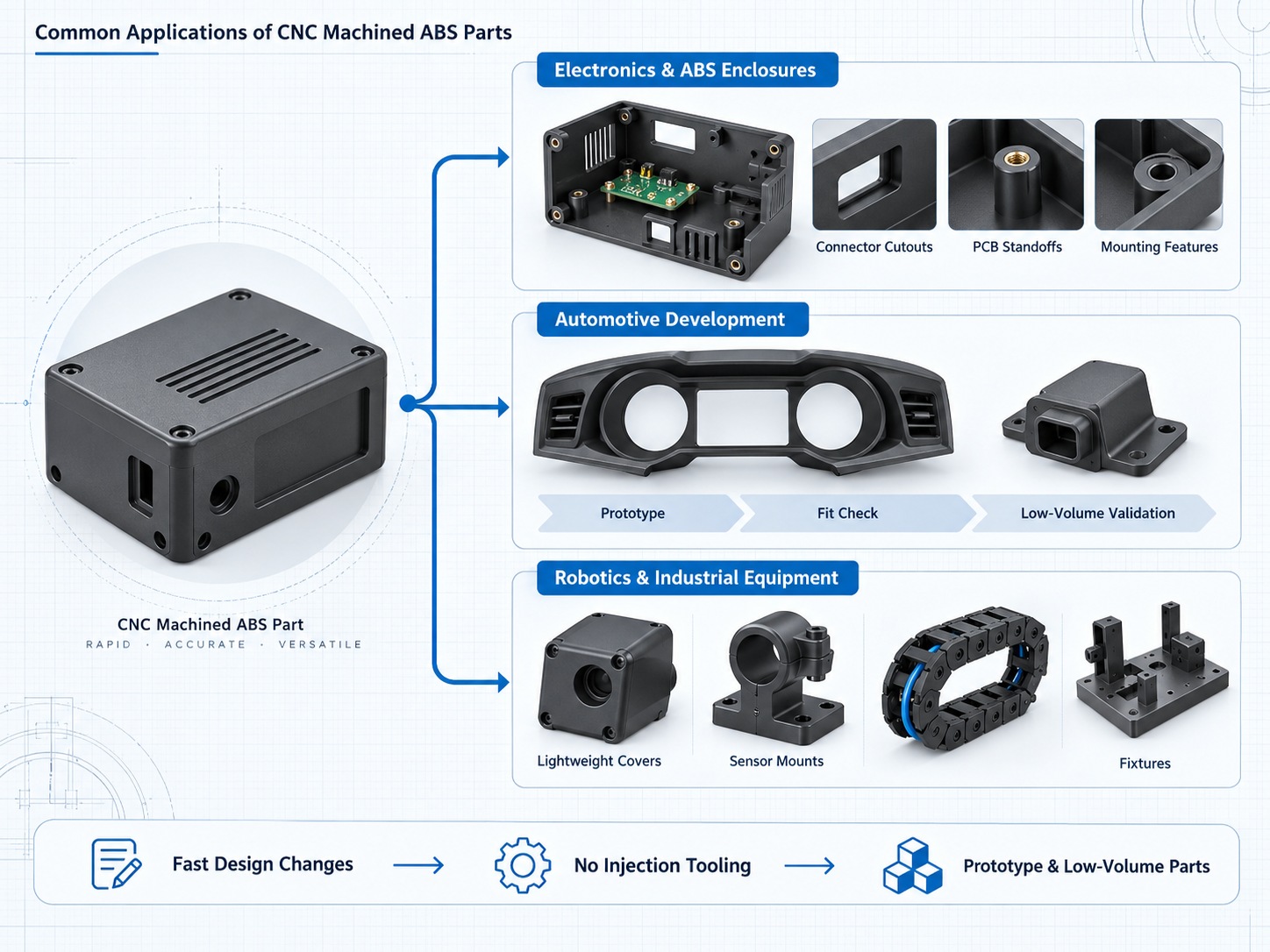

An ABS enclosure is one of the most common CNC applications. ABS can be machined with precise openings for connectors, displays, switches, vents, and cables while supporting internal PCB standoffs, screw bosses, and mounting features.
Typical examples include PCB housings, sensor covers, test fixtures, battery enclosures, instrument panels, cable-management components, and control-box covers.
For electronics assemblies, the enclosure should be designed around the PCB, connector geometry, fastener locations, thermal requirements, and final coating thickness. These factors directly affect part fit and assembly efficiency.
ABS automotive parts are often used for interior trim prototypes, instrument-cluster surrounds, center-console features, sensor housings, test fixtures, and custom protective covers.
CNC machining is particularly useful before injection tooling is approved. Engineers can validate form, fit, assembly access, and appearance on prototype or low-volume vehicle programs. Standard ABS is generally more suitable for interior or controlled environments; heat exposure, UV exposure, vibration, and flame requirements should be reviewed before material approval.
ABS is suitable for lightweight robot covers, sensor mounts, cable guides, industrial equipment panels, inspection fixtures, and consumer-electronics prototypes. It is especially useful when the design may change frequently or when part quantities do not justify molding.
For repeated-use components, threaded metal inserts can improve fastener durability. For cosmetic parts, machining marks and finishing requirements should be reviewed before production.
Project requirement | Is ABS a good fit? | Alternative when needed |
Electronic housing or PCB enclosure | Yes | Flame-retardant ABS for specific fire-performance needs |
Functional prototype before molding | Yes | 3D printing for very early visual models |
Indoor industrial cover or fixture | Yes | POM for low-friction mechanisms |
Transparent enclosure | No | Polycarbonate or acrylic |
Continuous high-temperature service | Usually no | PEEK or other high-temperature polymers |
Long-term outdoor UV exposure | Limited | UV-stabilized ABS or another outdoor-grade plastic |
Sliding or wear component | Limited | POM Delrin or nylon |
ABS is relatively easy to machine, but poor process control can cause melting, warping, burrs, rough edges, or dimensional drift.
ABS can soften when heat accumulates at the cutting edge. Dull tools, poor chip evacuation, overly high spindle speed, low feed rates, and deep aggressive cuts can cause the tool to rub instead of form clean chips.
Common symptoms include glossy cut surfaces, smeared edges, plastic buildup on the cutter, and rough pocket walls. Sharp carbide tools, effective chip removal, and balanced cutting parameters are essential.
ABS stock can retain stress from extrusion, cooling, and storage. If machining removes a large amount of material from one side, the stress may release and cause the part to bow or twist after unclamping.
Large flat panels, deep pockets, thin floors, frames, and asymmetrical housings require extra attention. For these parts, staged roughing and finishing is more reliable than machining directly to final dimensions in one setup.
A vise can compress thin ABS parts during machining. Once released, the part may spring back, affecting flatness, hole position, and assembly fit. Use soft jaws, custom nests, broad support surfaces, or vacuum fixtures for suitable flat parts. Apply only the clamping force required for stable cutting.
For precision ABS components, use a controlled machining process:
1. Select consistent ABS stock suited to the required environment and stability.
2. Use sharp polished carbide cutters, often with one or two flutes for chip evacuation.
3. Use air blast or another compatible chip-control method to limit local heat buildup.
4. Rough-machine the main shape while leaving uniform finish stock.
5. Allow larger or stress-sensitive parts to stabilize before final machining.
6. Re-fixture with minimal, evenly distributed clamping force.
7. Finish critical datums, holes, threads, and mating features.
8. Inspect after the part has returned to stable room temperature.
Dawang Precision can support CNC milling, turning, drilling, tapping, engraving, and five-axis machining for custom ABS components. For tight-tolerance projects, our engineering review considers tool access, part rigidity, heat-sensitive features, fixture strategy, and inspection requirements before production begins.
Design feature | Practical starting point | Engineering value |
Unsupported wall thickness | ≥ 1.5 mm where practical | Reduces vibration and deformation |
Internal corners | Use the largest practical radius | Enables more rigid tools and cleaner surfaces |
Deep pockets | Use gradual step-downs and maintain floor thickness | Reduces heat and pocket-floor movement |
General tolerance | Around ±0.10 mm for non-critical features | Balances cost and manufacturability |
Critical features | Place on rigid, well-supported areas | Improves repeatability |
Repeated-use threads | Use brass or stainless steel inserts | Increases thread life |
Surface finishing should be defined before tolerance approval. Painting, bead blasting, polishing, and texture machining can affect appearance, surface roughness, and mating dimensions.
1Q：What are CNC machined ABS parts used for?
A：They are commonly used for electronic housings automotive prototypes robot covers industrial fixtures control panels and consumer-product components.
2Q：Can ABS hold tight CNC machining tolerances?
A：Yes. Tight tolerances are most reliable on small rigid and well-supported features. Geometry material condition and fixturing must be reviewed for thin-wall or large parts.
3Q：Can ABS parts be painted after CNC machining?
A：Yes. ABS is suitable for painting and coating, but coating thickness and cosmetic requirements should be considered during DFM review.
4Q：Is ABS better than polycarbonate for enclosures?
A：ABS is often more cost-effective and easier to machine. Polycarbonate is preferable when transparency or higher impact and heat resistance are required.
