Neither a hot runner nor a cold runner system is universally better. A hot runner system can reduce runner waste, support shorter molding cycles, and improve gate-control options for stable, high-volume programs. A cold runner system usually requires a lower initial tooling investment and can be more practical for lower-volume production, frequent color changes, or resins that are sensitive to long residence times.
The correct decision should not be based on a generic shot-count threshold. It should be calculated for each project using runner weight, resin price, cavity count, target cycle time, annual volume, part-quality requirements, color-change frequency, and expected maintenance.
For injection molding projects, the choice between hot runner vs. cold runner systems is one of the most important mold-design decisions. It affects mold making cost, material use, molding stability, maintenance requirements, and the quality of every molded part.

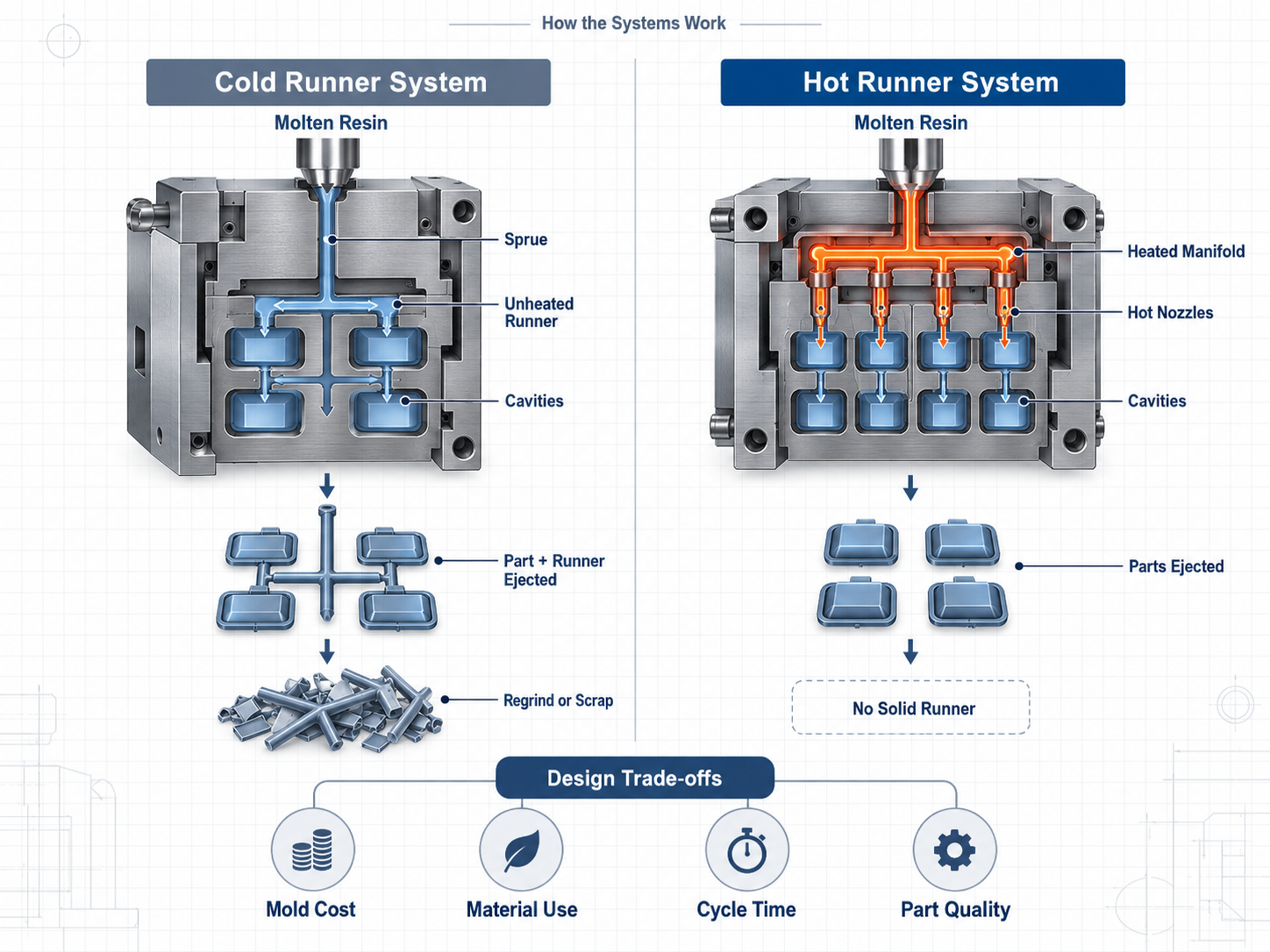

In a cold runner mold, molten resin flows from the sprue through unheated runner channels to the cavities. After molding, the runner solidifies with the parts and is ejected. Depending on the material and quality requirements, the runner may be reground, reused in a controlled percentage, or treated as scrap.
In a hot runner system, a heated manifold and nozzles keep the polymer molten from the machine nozzle to the gate. The runner is not ejected with the part, which can reduce material loss and remove runner cooling from the molding cycle.

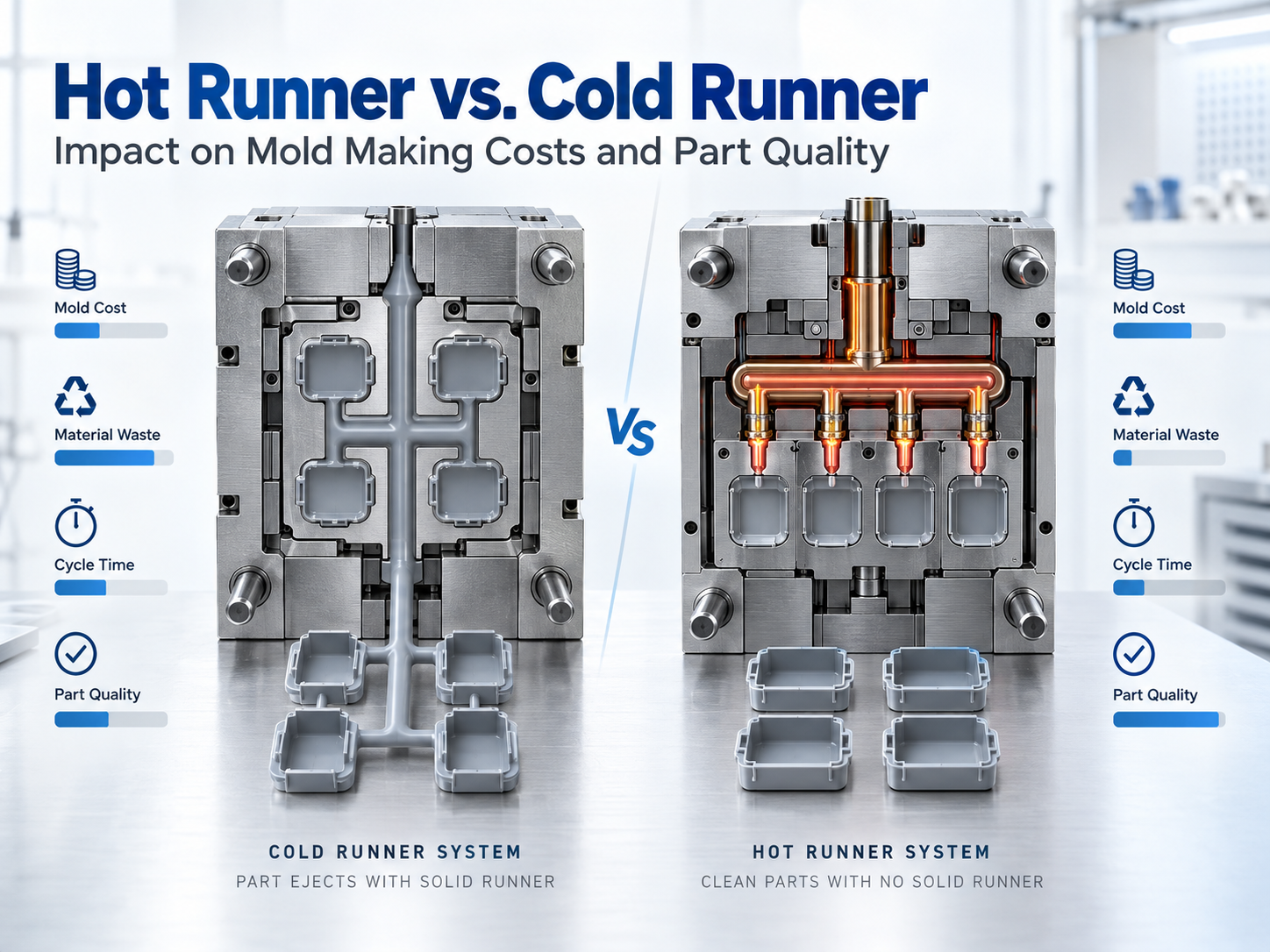

This basic difference creates the cost and quality trade-offs that matter during mold design.

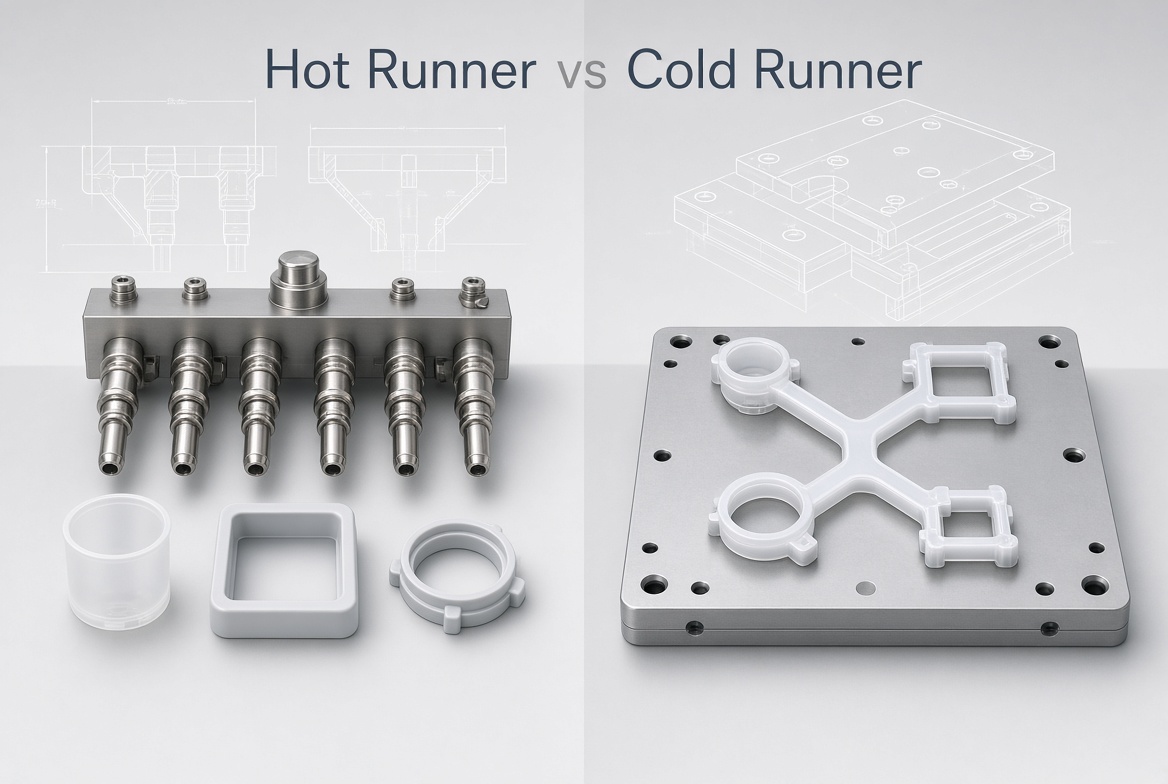

[Insert Image 1: Hot Runner vs. Cold Runner Comparison]
Alt Text: Hot runner vs cold runner injection molding systems comparing runner design, material use, cycle time, and mold cost.

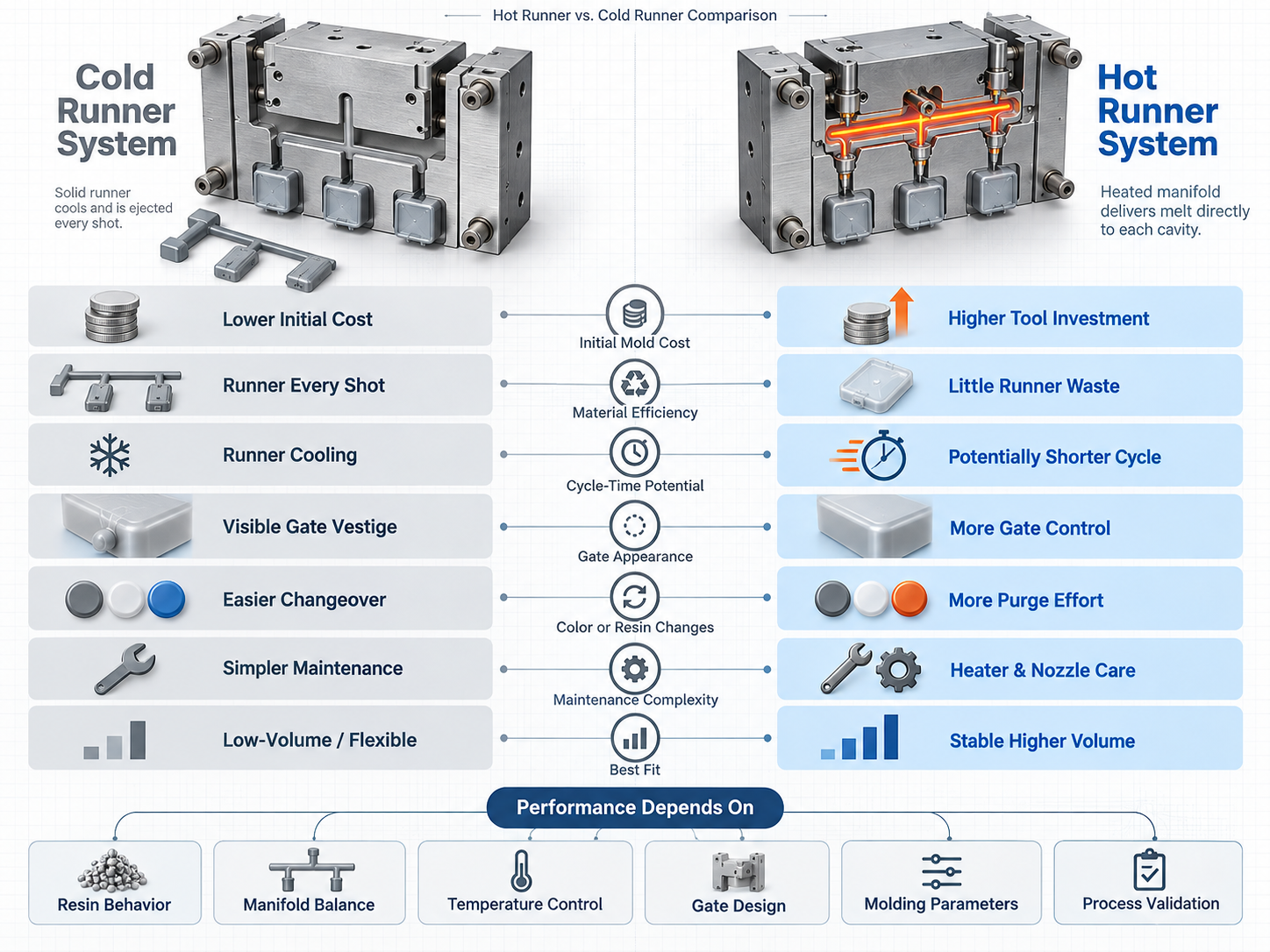

Factor | Hot Runner System | Cold Runner System |
|---|---|---|
Initial mold making cost | Higher due to manifold, nozzles, heating, and controls | Lower due to simpler mold construction |
Material efficiency | Little or no runner waste during normal production | Runner is produced with every shot |
Cycle-time potential | May reduce cycle time by removing runner cooling | Runner cooling can influence the overall cycle |
Gate appearance | Greater gate-control options; valve gates can minimize vestige | Gate vestige is typically more visible |
Color or resin changes | More purge effort may be required | Usually simpler to change and clean |
Maintenance complexity | Higher; requires heater, nozzle, and leak-path management | Lower; fewer specialized components |
Best fit | Stable, higher-volume programs with material or cycle-time sensitivity | Lower-volume, flexible, or frequently changing programs |
A well-designed hot runner system does not automatically make better parts. Its benefits depend on resin behavior, manifold balance, temperature control, gate design, molding parameters, and process validation. Likewise, a correctly designed cold runner mold can produce highly consistent and cosmetically acceptable parts.
Cold runner molds are mechanically simpler. Runner channels are machined directly into the mold plates, reducing the need for heated components, electrical connections, thermal insulation, and specialized assembly. This often makes cold runner tooling a practical starting point for early-stage, low-volume, or frequently changing programs.
Hot runner molds require greater upfront engineering. The mold must accommodate a heated manifold, nozzles, temperature-control zones, wiring, thermal insulation, and sealing interfaces. Gate location, resin flow behavior, manifold layout, and service access must be resolved before steel is cut.
However, initial tool price is only one part of the decision. The total-cost model should consider:
Runner weight as a percentage of total shot weight
Resin cost and whether regrind is acceptable
Annual production volume
Cavity count and production hours
Expected cycle-time improvement
Color-change or material-change frequency
Scrap rate and process stability
Planned maintenance and spare-part strategy
For an expensive engineering resin or a small part with a relatively heavy runner, material savings can become significant. For a lower-volume product with several color variants, the added hot-runner cost and purge effort may outweigh those savings.
The break-even point should therefore be calculated from the actual part and production plan—not assumed from a standard number of shots.

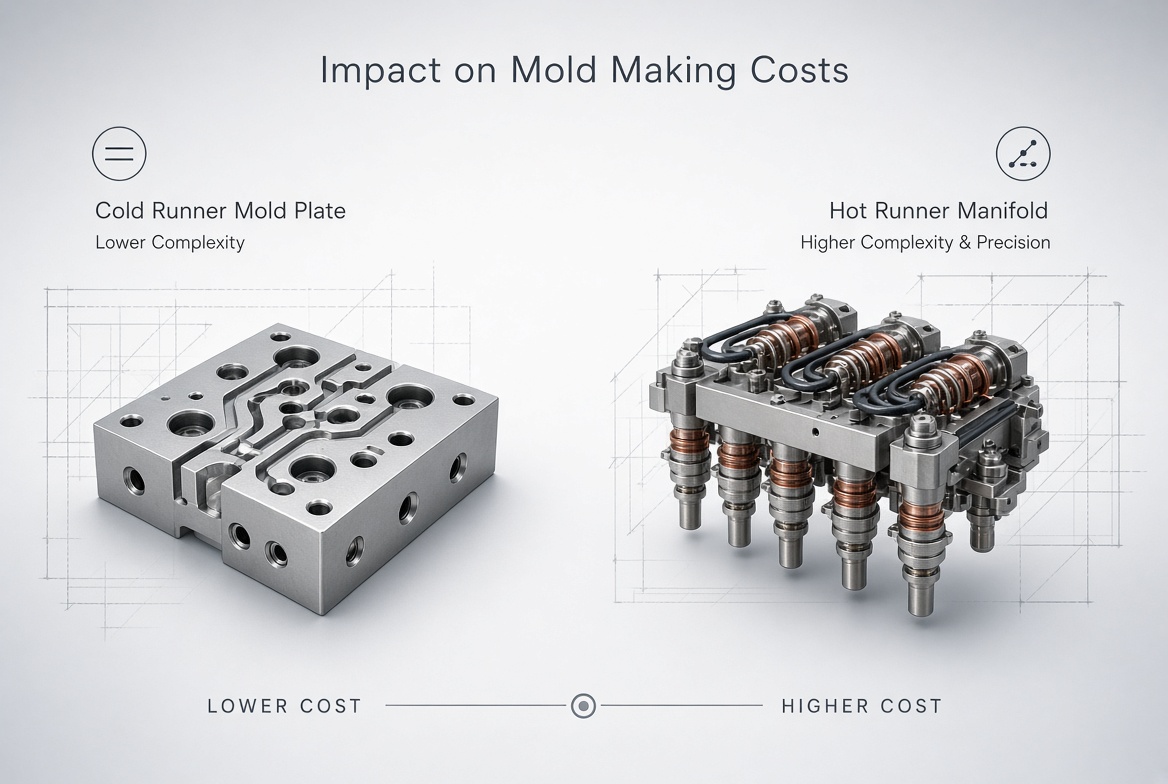

[Insert Image 2: Impact on Mold Making Costs]
Alt Text: Injection mold cost analysis comparing hot runner investment, cold runner material waste, and total production cost.
A properly balanced hot runner system can help maintain more consistent melt delivery to each cavity. This may improve cavity-to-cavity filling consistency, gate appearance, and process repeatability, particularly in multi-cavity production molds. Valve gates can also provide greater control over gate vestige and can support gate locations that would be difficult to use with a conventional cold runner.
But hot runners require careful engineering. Poor temperature control, uneven manifold balance, unsuitable gate design, or excessive residence time can create defects such as stringing, discoloration, degradation, leakage, or inconsistent filling.
Cold runner molds can also produce high-quality parts when runner dimensions, gate geometry, cooling, and process settings are properly controlled. They remain a strong option for products that require frequent color changes, have uncertain demand, or use materials that are difficult to hold at elevated temperature for extended periods.
The decision should be based on the part’s functional and cosmetic requirements:
Are gate marks visible to the end user?
Is cavity-to-cavity consistency critical?
Is the part made from high-cost resin?
Is regrind permitted for the application?
Does the product require frequent color changes?
Are there sensitive cosmetic surfaces or tight assembly interfaces?
Both systems require precise mold manufacturing, but the critical features are different.
For cold runner molds, runner geometry, parting-line alignment, gate consistency, and surface finish influence pressure loss and filling balance. Full-round or trapezoidal runner profiles are commonly used according to the mold layout and resin-flow requirement. Accurate matching across the parting line helps prevent flash, flow imbalance, and excessive pressure loss.
Hot runner molds require additional control over manifold sealing faces, nozzle-to-gate alignment, heater and thermocouple pockets, thermal isolation, and melt-channel balance. These features directly affect temperature stability, leak prevention, gate performance, and long-term serviceability.
At Dawang Precision, tooling projects begin with DFM review and production-risk evaluation:
STEP Review → DFM → Runner System Selection → Mold Design → CNC/EDM Machining → Assembly → Trial Molding → Inspection
For complex mold components, Röders and Mazak five-axis machines can reduce repeated setups and help control the positional relationship between critical mold features. During inspection, the engineering team verifies dimensions that influence runner alignment, gate location, shutoff integrity, and cavity consistency.
Before production release, trial molding should confirm:
Cavity filling balance
Gate appearance and vestige
Dimensional variation between cavities
Cooling performance and cycle stability
Color-change behavior, where applicable
Evidence of stringing, drool, degradation, or leakage
Assembly fit and cosmetic acceptance
The goal is not simply to make parts during a trial. It is to establish a process window that can be repeated in production.
A hot runner system is often worth evaluating when:
Production demand is stable and expected to remain high.
Runner weight is significant relative to part weight.
The resin is expensive or regrind use is limited.
Cycle time is a major production-cost driver.
The mold has multiple cavities and requires balanced filling.
Gate appearance is highly visible or cosmetically sensitive.
A valve-gated solution can improve the part’s structural or cosmetic design.
For these projects, a hot runner can reduce material use and provide more process-control options. The final choice should follow a documented cost and risk review.
A cold runner system is often the more practical choice when:
Production volume is limited or uncertain.
The product may change after initial production.
The program includes frequent color or material changes.
Simpler maintenance is important.
Resin behavior makes long heated residence time undesirable.
Initial tooling budget is the primary constraint.
The runner can be reused without affecting part performance or compliance.
Cold runner tooling should not be viewed as a lower-quality option. For many products, it is the most efficient and reliable system when matched to the actual production strategy.
A hot runner is worth evaluating when material savings, cycle-time improvement, gate appearance, or multi-cavity consistency can offset the higher initial tooling and maintenance cost. Calculate the return using actual runner weight, resin cost, annual volume, and expected production time.
It can eliminate the solid runner that is ejected with each shot, but it does not eliminate all production waste. Start-up scrap, purging material, rejected parts, and maintenance-related losses may still occur.
In some applications, yes. However, resin quality, contamination risk, melt history, color requirements, and supplier processing recommendations must be evaluated. The material supplier and molding engineer should confirm suitability.
No. Some materials are more sensitive to residence time or temperature exposure. Resin-specific processing guidance should be reviewed during DFM before selecting a hot runner system.
A thermal gate relies on temperature control at the nozzle tip. A valve gate uses a mechanically actuated pin to open and close the gate, offering greater control over gate vestige, flow timing, and cosmetic appearance.
Yes. With proper gate placement, runner design, cooling, mold finish, and process control, a cold runner mold can produce high-quality cosmetic parts. The gate mark and runner separation method must be considered during part design.
Compare the complete production model: tool price, runner weight, resin price, annual volume, cycle time, scrap allowance, regrind policy, color-change needs, maintenance, and the required part quality.
With 26 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis platforms, Dawang Precision supports both hot runner and cold runner mold projects.
