Successful ABS plastic CNC machining requires control of material stress, cutting heat, clamping force, and stock removal balance. Sharp tools, efficient chip evacuation, low-stress fixturing, staged machining, and realistic tolerances help prevent ABS warping, melting, and dimensional drift.
ABS is widely used for precision plastic parts, thin-wall components, electronic housings, fixtures, and industrial prototypes. It offers toughness, good machinability, and cost efficiency for low-volume production. However, ABS does not behave like metal: heat remains concentrated near the cutting edge, vise pressure can distort the part, and internal stress may release as stock is removed.
For engineers and procurement managers, the goal is not simply to hit dimensions in the machine. The part must remain stable after unclamping, cooling, inspection, and assembly.

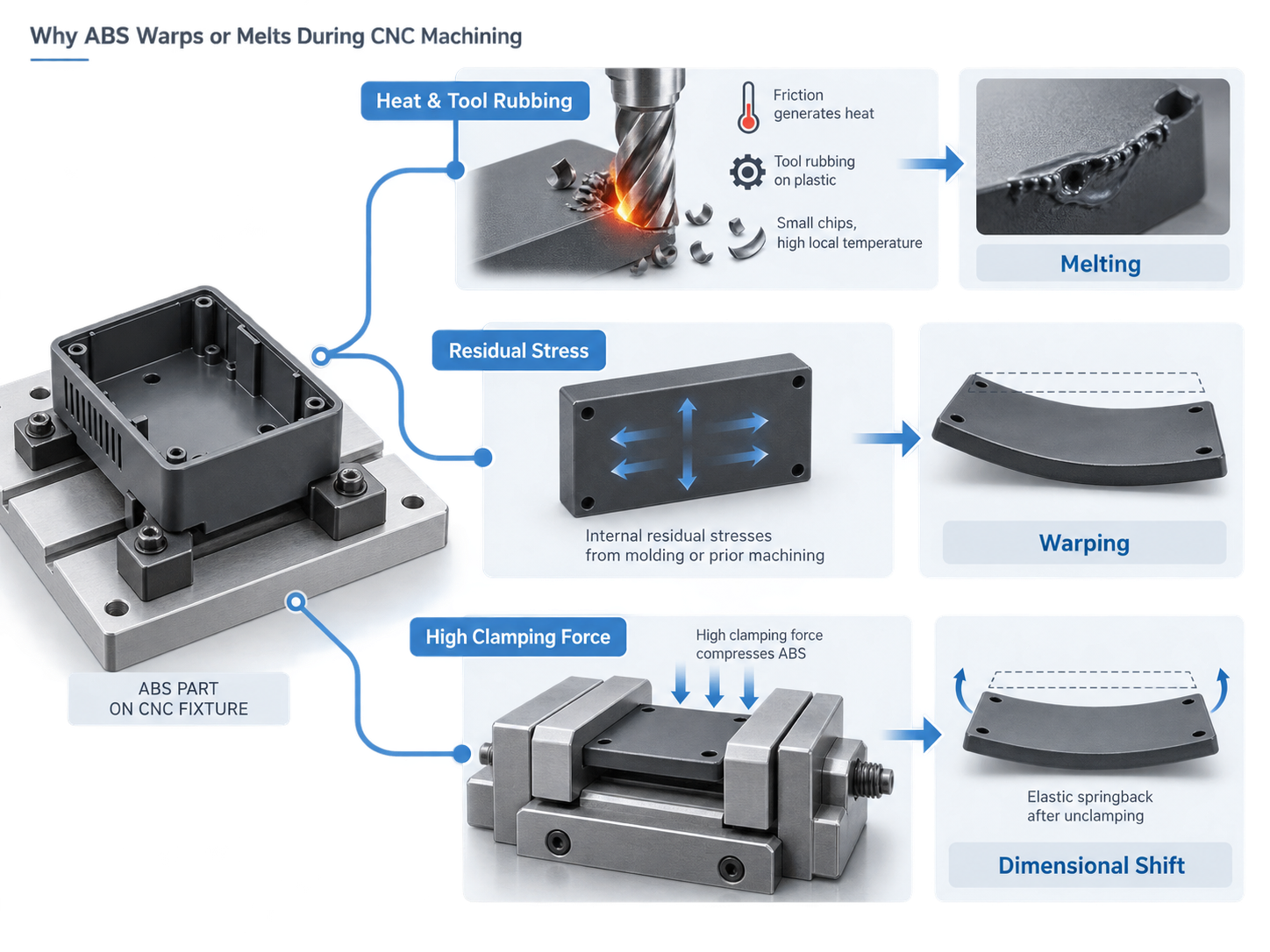

ABS melting occurs when the tool rubs instead of forming clean chips. Typical causes include dull cutters, incorrect spindle speed and feed, poor chip evacuation, excessive engagement, and repeated cutting in the same area.
Warning signs include glossy surfaces, smeared or melted edges, plastic buildup on the tool, burrs, and rough pocket walls. Slowing the feed does not always solve the problem. If feed is too low for the spindle speed, friction rises and the material can soften.
ABS sheet, plate, and block may retain stress from extrusion, cooling, and storage. Removing significant material from only one side can release that stress and cause a part to bow, twist, or curl.
Risk increases with large flat panels, deep pockets, thin floors, frames, and asymmetrical housings. Some parts may appear correct during machining but move after unclamping or stabilizing at room temperature.
ABS is softer and more flexible than metal. A vise can compress or bend the workpiece, so the machine cuts features into a temporarily distorted part. When clamps are released, elastic recovery can affect flatness, parallelism, and hole position.
Thin plates, rings, tubes, and long-wall housings require distributed support and controlled clamping pressure.

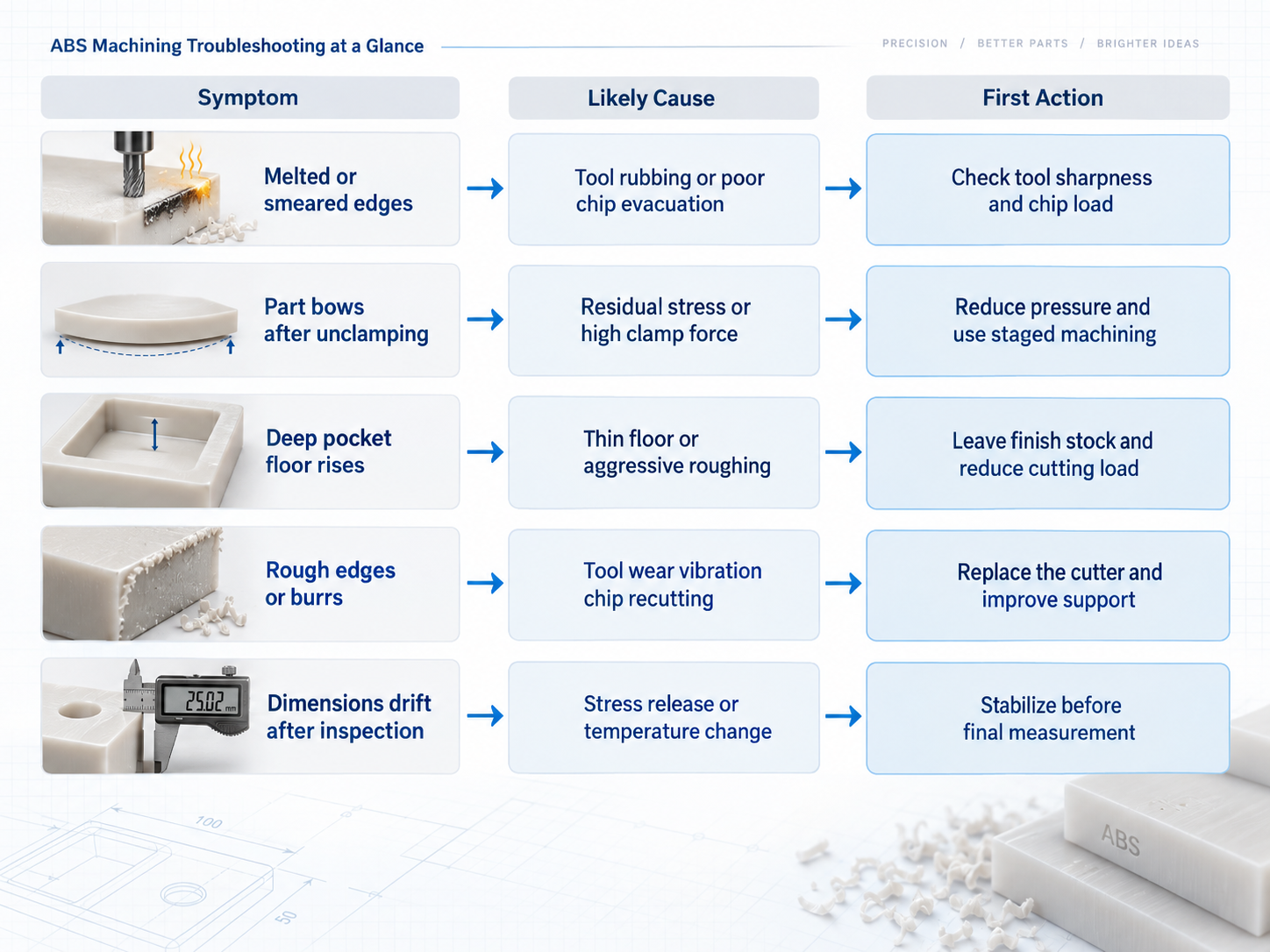

Symptom | Likely cause | First action |
Melted or smeared edges | Tool rubbing or poor chip evacuation | Check tool sharpness and chip load |
Part bows after unclamping | Residual stress or high clamp force | Reduce pressure and use staged machining |
Deep pocket floor rises | Thin floor or aggressive roughing | Leave finish stock and reduce cutting load |
Rough edges or burrs | Tool wear vibration chip recutting | Replace the cutter and improve support |
Dimensions drift after inspection | Stress release or temperature change | Stabilize before final measurement |
For general prototypes, standard ABS stock may be sufficient. For tight-tolerance, large, or thin-wall parts, select consistent machine-grade or lower-stress stock when available.
Material review should include stock form, supplier consistency, wall thickness, environmental exposure, cosmetic requirements, and dimensional stability. Different ABS grades can respond differently to heat and internal stress.
Sharp carbide cutters with polished flutes reduce friction and help prevent chip adhesion. One-flute or two-flute cutters are often effective because they provide room for chip evacuation.
Process factor | Practical starting approach |
Cutting tool | Sharp polished carbide end mill |
Flute count | One or two flutes for chip removal |
Cooling | Air blast to clear chips and limit heat |
Roughing | Leave uniform stock for finishing |
Thin walls | Use shallow passes and full support |
Inspection | Measure after room-temperature stabilization |
These are starting principles rather than fixed settings. Final feeds, speeds, and depths should be validated based on tool diameter, part rigidity, ABS grade, wall thickness, and finish requirements.
The cutter should produce chips that carry heat away from the workpiece. Excessive spindle speed, low feed, and dull tooling create rubbing and melt risk.
Use multiple controlled passes for deep pockets and thin walls instead of one heavy cut. Monitor for sticky chips, glossy cut edges, material buildup, and poor surface quality. These signs show that the cutting zone is becoming too hot.
For high-stability parts, do not machine directly to final dimensions in one setup.
1. Rough machine the main geometry and leave uniform finish stock.
2. Allow the material to stabilize after stress release.
3. Re-fixture with minimal force and full support.
4. Finish-machine critical datums, holes, threads, and mating surfaces.
This approach is especially valuable for large ABS panels, deep-pocket parts, thin-wall housings, and components with flatness or position requirements.
Use soft jaws, wide support surfaces, vacuum fixtures for suitable flat parts, custom nests, or sacrificial fixture plates. For thin-wall housings, machine internal features while surrounding stock still supports the part, then finish the outer profile in the final operation.
Maintain consistent wall thickness where possible. For many unsupported ABS walls, 1.5 mm or more is a practical starting point, although larger or tighter-tolerance parts may need thicker walls or reinforcing ribs.
Use the largest practical internal corner radii. Small cutters are less rigid and can generate heat in deep corners. Avoid unnecessarily deep pockets and very thin floors; use ribs, open sections, or multiple shallower cavities when design function allows.
Tolerances should match part function. For non-critical features, ±0.10 mm is often a practical ABS starting point. Tighter tolerances are more reliable on small, well-supported local features. Flatness, parallelism, hole position, and assembly datums should be reviewed separately.
· Choose POM Delrin for lower friction and improved dimensional stability.
· Choose polycarbonate for transparent impact-resistant housings.
· Choose nylon for wear-resistant parts when moisture effects can be managed.
· Choose PEEK for high-temperature or high-performance applications.
1Q：Why does ABS melt during CNC machining?
A：ABS melts when friction creates excessive heat. Common causes include dull tools poor chip evacuation and an incorrect speed-to-feed balance.
2Q：Can ABS warp after CNC machining?
A：Yes. Residual stress uneven stock removal heat and excessive clamping force can cause movement after unclamping or cooling.
3Q：Can CNC machined ABS hold tight tolerances?
A：Yes, particularly on well-supported features. Tolerance feasibility depends on geometry material condition fixturing and stabilization time.
4Q：What cutter is best for ABS plastic CNC machining?
A：Sharp polished carbide cutters with one or two flutes are commonly effective for reducing heat and clearing chips.
