Precision CNC Turning: How to Achieve Tight Tolerances and Consistent Quality

Quick Answer

Precision CNC turning achieves tight tolerances by controlling variation across the entire manufacturing process. Machine stability, workholding, tool wear, cutting forces, thermal growth, material behavior, and measurement uncertainty all affect final accuracy.

For critical shafts, valve components, medical parts, aerospace fittings, and robotic components, the real challenge is not producing one accurate part. It is maintaining the required diameter, runout, geometry, and surface finish consistently throughout production.

A reliable process follows a closed loop:

Plan → Machine → Measure → Compensate → Verify

What Determines CNC Turning Accuracy?

In precision CNC turning, machine accuracy alone does not determine part accuracy. The finished component reflects the combined effects of the machine, cutting tool, fixture, material, temperature, and inspection system.

This is why tight tolerance turning should be treated as a controlled manufacturing system rather than simply a high-accuracy CNC operation.

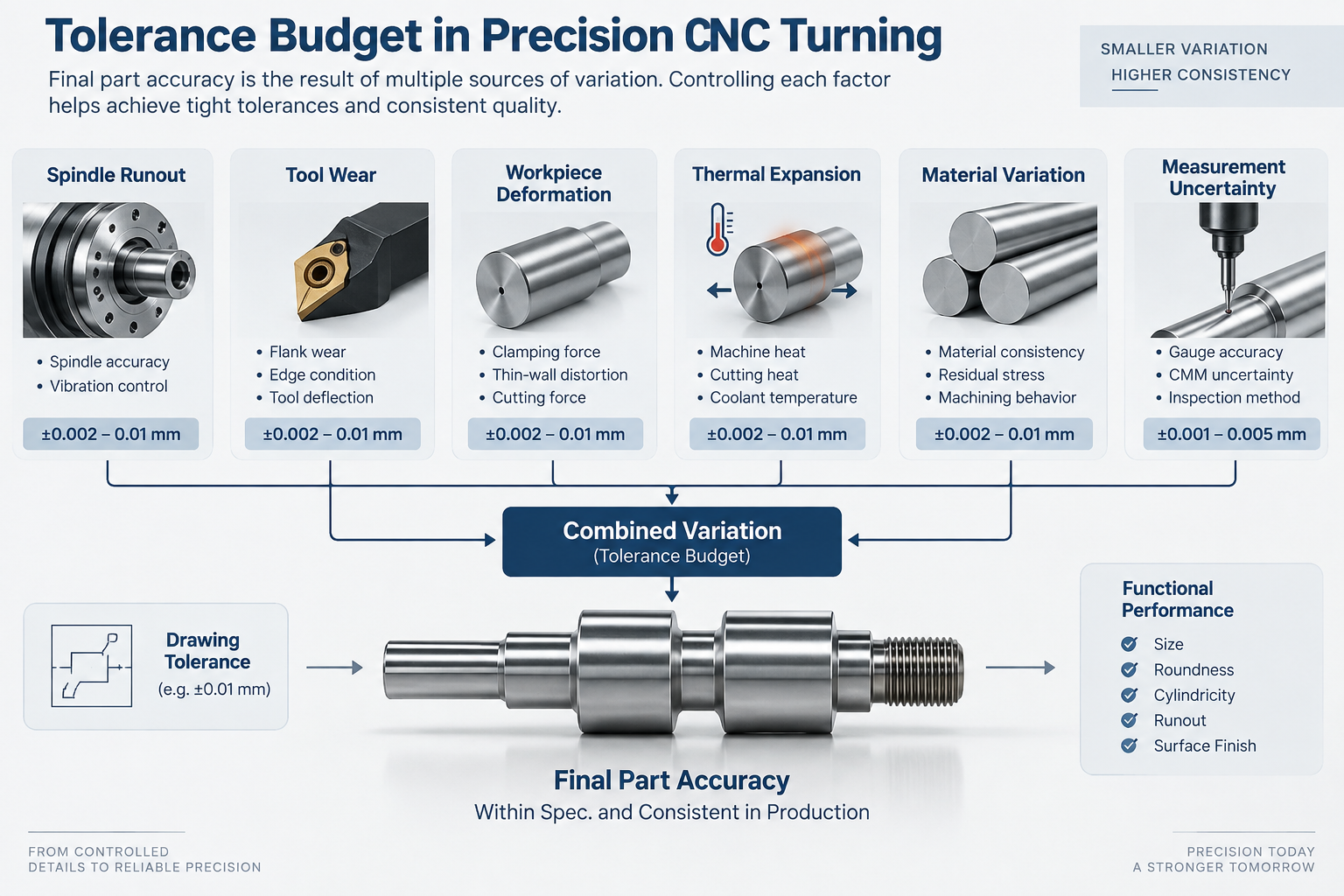

Think in Terms of a Tolerance Budget

For high-precision components, it is useful to treat the drawing tolerance as an error budget.

A narrow diameter tolerance must accommodate several potential sources of variation:

· Spindle and tool runout

· Tool wear and deflection

· Workpiece deformation

· Clamping distortion

· Thermal expansion

· Material stress release

· Measurement uncertainty

As the specified tolerance becomes tighter, the allowable contribution from each source becomes smaller.

This explains an important distinction in precision manufacturing: achieving a dimension once is not the same as maintaining it across hundreds or thousands of parts.

The production goal is to keep normal process variation comfortably within specification rather than repeatedly machining close to the tolerance limits.

Key Challenges in Tight Tolerance CNC Turning

Thermal Drift

Heat from the spindle, cutting zone, coolant, and machine structure can change both machine and workpiece dimensions.

The effect becomes more significant as tolerance bands narrow, particularly during long production runs when machine temperature changes from startup to thermal equilibrium.

Common controls include machine warm-up, stable coolant conditions, consistent finishing cycles, and temperature-aware inspection. Critical parts may also need to stabilize before final measurement.

Tool Wear and Dimensional Drift

Cutting tools change continuously during machining. Flank wear can gradually shift a diameter, while edge degradation and excessive tool overhang can increase cutting forces and deflection.

Instead of waiting for a dimension to fail inspection, critical production processes can use:

Tool-life limit → Scheduled measurement → Offset compensation → Preventive tool change

This helps correct predictable dimensional drift before parts move outside tolerance.

Workholding and Part Deflection

Workholding must provide rigidity without distorting the component.

Thin-wall sleeves and rings can deform under excessive chuck pressure, while long shafts may bend under cutting forces. In both cases, a part can appear correct during machining but change after the cutting or clamping force is removed.

Depending on geometry, solutions may include soft jaws, collets, controlled chuck pressure, tailstocks, steady rests, balanced stock removal, and lower-force finishing passes.

Runout and Datum Control

A component can meet individual diameter tolerances and still fail functionally if related features are misaligned.

Bearing journals, sealing diameters, valve spools, motor shafts, and precision couplings often depend on runout and coaxial relationships.

Where possible, critical features should be machined from a common datum in the same setup. Reducing re-clamping minimizes datum-transfer error and improves feature-to-feature consistency.

How to Achieve Tight Tolerances in Precision Turning

1. Define Functional Tolerances

Not every dimension requires the tightest possible tolerance.

DFM should first identify the features controlling fit, sealing, rotation, alignment, bearing location, or assembly. GD&T can then define runout, cylindricity, perpendicularity, and datum relationships more effectively than applying unnecessarily tight bilateral tolerances everywhere.

This matters for cost as well. The cost of precision depends not only on how tight a tolerance is, but also on how many features require it and how difficult those features are to manufacture and inspect.

2. Separate Roughing and Finishing

A stable precision turning strategy often uses:

Roughing → Semi-finishing → Finishing

Roughing removes most of the stock. Semi-finishing creates uniform material allowance and can reveal deformation or residual-stress effects. Finishing then produces the final dimension under more predictable cutting conditions.

This staged approach is particularly useful for stainless steel, titanium, hardened steel, nickel alloys, and low-rigidity components.

3. Control the Final Finishing Pass

The final pass has a direct influence on size, geometry, and surface quality.

Important variables include:

· Tool edge condition and nose radius

· Cutting speed and feed

· Radial depth of cut

· Tool overhang

· Coolant stability

· Material spring-back

An extremely light cut is not always better. In some materials, insufficient engagement can cause rubbing rather than stable cutting.

The objective is therefore a repeatable finishing condition with predictable cutting forces, not simply the smallest possible depth of cut.

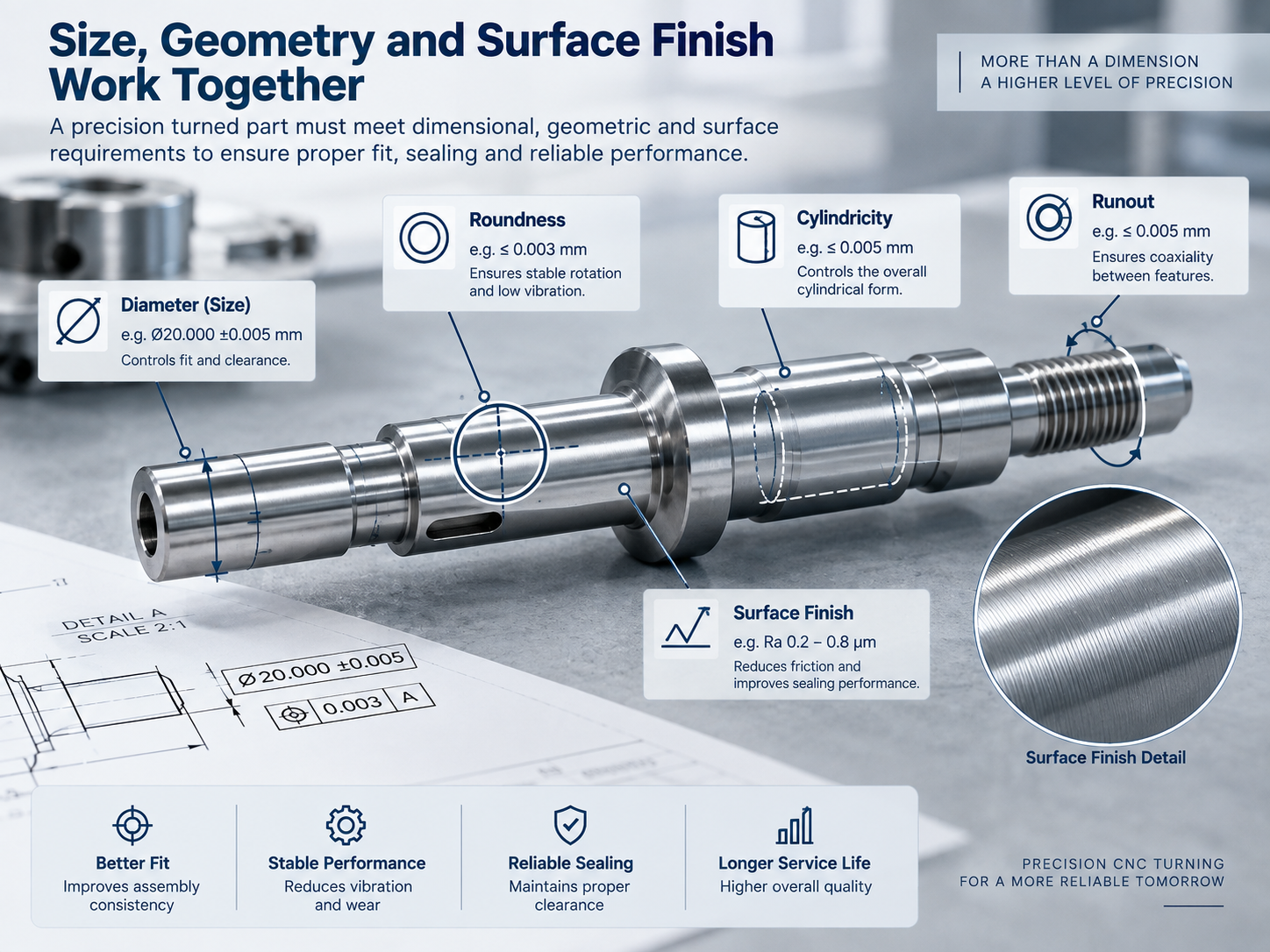

Size, Geometry, and Surface Finish Must Work Together

A precision turned part can meet its nominal diameter and still perform poorly.

For bearing journals, valve spools, sealing surfaces, and sliding components, functional performance may depend on several characteristics:

Size + Roundness + Cylindricity + Runout + Surface Finish

For example, a hydraulic valve component may meet its diameter tolerance but still create inconsistent clearance if roundness or surface condition is poor.

This is why engineering drawings should define the characteristics that actually control function rather than relying only on a tight ± dimensional tolerance.

Account for Tolerance After Surface Treatment

Another common source of error is failing to define whether the final tolerance applies before or after surface treatment.

Plating, anodizing, electroless nickel, electropolishing, grinding, or polishing can alter final dimensions and surface condition.

For critical shafts, threads, sealing diameters, and bearing interfaces, process planning should work backward:

Final Dimension → Finishing Allowance → CNC Turning Target → Surface Treatment → Final Inspection

This prevents a component from passing machining inspection but failing assembly after finishing.

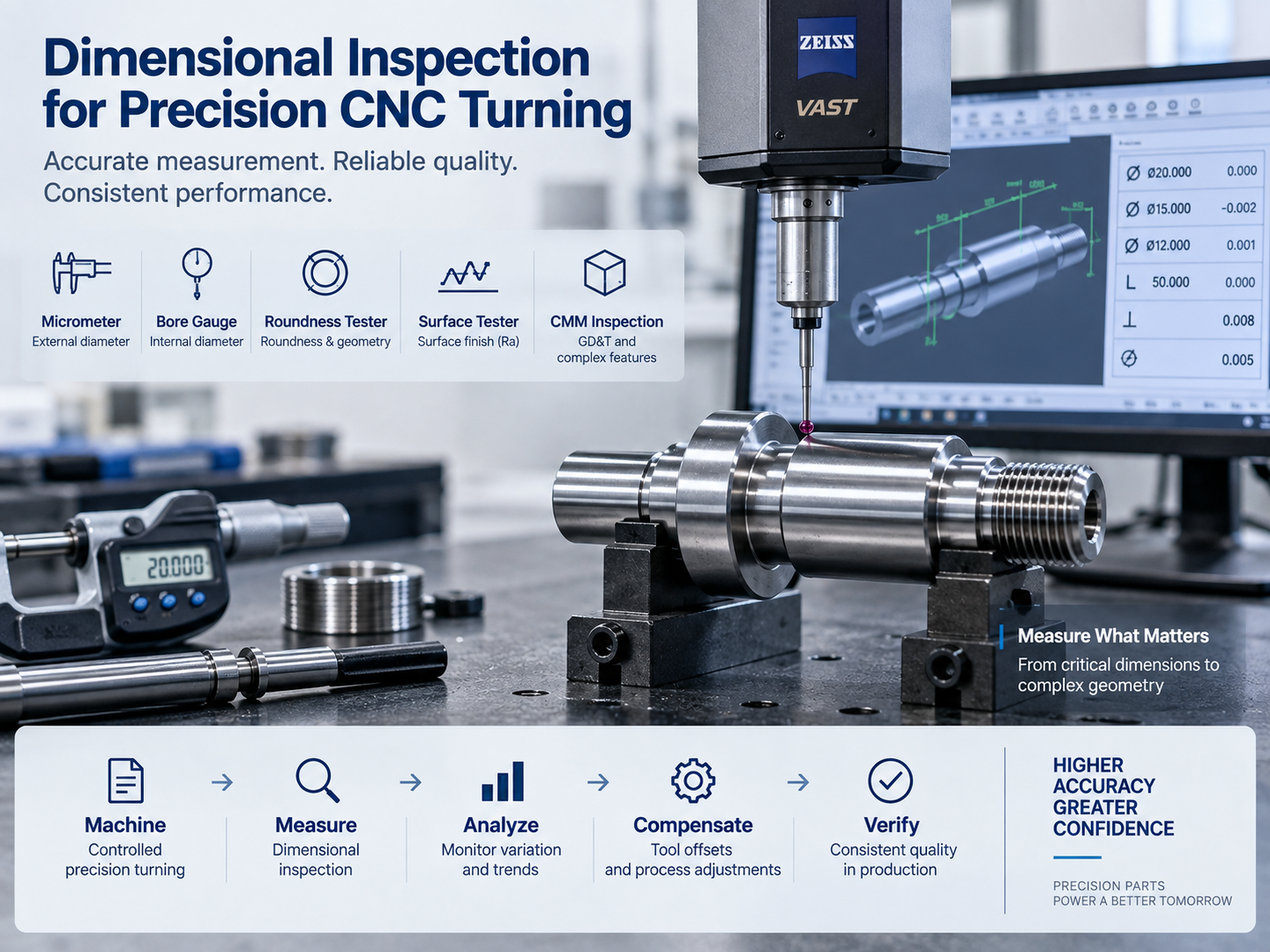

Dimensional Inspection: Close the Quality Loop

Precision machining requires an inspection method appropriate to the characteristic being controlled.

First Article Inspection confirms that the setup, tooling, offsets, machining sequence, and measurement plan can produce the drawing requirements before full production.

For production runs, critical dimensions should also be measured at defined intervals. These measurements can reveal tool wear, thermal drift, fixture movement, or material variation before nonconforming parts are produced.

This creates the quality-control loop:

Machine → Measure → Analyze → Compensate → Verify

CMM Inspection and Measurement Uncertainty

CMM inspection is valuable for complex GD&T and relationships between features referenced to common datums, but every measurement system has uncertainty.

Equipment accuracy, probe configuration, calibration, part temperature, fixturing, and measurement strategy can all influence the result.

As tolerance becomes tighter, measurement uncertainty consumes a larger percentage of the available tolerance window. The inspection system must therefore be capable of distinguishing actual machining variation from measurement variation.

For recurring precision production, Measurement System Analysis or Gauge R&R can help verify inspection repeatability.

A CMM is also not automatically the best tool for every feature. A calibrated micrometer or dedicated gauge may be more efficient for a simple production diameter.

The measurement method should match the tolerance and geometry.

From Prototype Accuracy to Production Consistency

One conforming prototype shows that a process can achieve the required dimension. Production must prove that the process can maintain it.

A batch may contain acceptable parts while the process gradually moves toward one tolerance limit because of tool wear, thermal drift, or material variation.

For repeat production, engineers should therefore evaluate dimensional trends, not only individual inspection results.

Where production volume and component criticality justify it, Statistical Process Control (SPC) and capability metrics such as Cp and Cpk can help evaluate whether critical dimensions remain stable and centered within specification.

This is especially relevant for aerospace, medical, robotics, hydraulic valves, and other precision mechanical components where part-to-part variation can affect assembly or functional performance.

FAQ About Precision CNC Turning

Q1:What tolerance can precision CNC turning achieve?

There is no universal tolerance for every turned component. Achievable CNC turning accuracy depends on material, diameter, geometry, workholding, machine condition, tooling, thermal stability, and inspection method. Critical features may reach ±0.01 mm, ±0.005 mm, or tighter under suitable controlled conditions.

Q2:What is the difference between accuracy and repeatability?

Accuracy describes how closely a machined feature matches its specified value. Repeatability describes how consistently the process reproduces that result across multiple parts. Reliable precision production requires both.

Q3:How are tight tolerances maintained during production?

Stable production typically combines controlled workholding, optimized cutting parameters, thermal management, tool-life monitoring, scheduled dimensional inspection, trend analysis, and controlled offset compensation.

Q4:Why is CMM inspection used for precision turned parts?

CMM inspection is useful for verifying GD&T and complex relationships between features referenced to common datums. Simple diameters may be measured more efficiently with micrometers, bore gauges, or dedicated gauges.

Q5:Why can a turned part meet its diameter tolerance but still fail in assembly?

Diameter alone does not define functional quality. Runout, roundness, cylindricity, surface finish, datum relationships, and tolerance stack-up can also affect fit, sealing, rotation, and alignment.

Q6:Should tolerances apply before or after surface treatment?

Critical dimensions should clearly state whether they apply before or after coating, plating, polishing, or other finishing processes because these operations can change both dimensions and surface condition.

Build Precision Into the Process

Reliable precision CNC turning comes from controlling the complete error chain rather than relying on final inspection.

Machine stability, workholding, tooling, cutting parameters, thermal behavior, surface condition, dimensional inspection, and CMM inspection must operate as one controlled system.

For production parts, the strongest measure of precision is not the tightest dimension achieved once—it is how consistently critical dimensions remain within specification over time.

Developing a tight-tolerance turned component?

Send your STEP or PDF drawings to the Dawang Precision engineering team for a free DFM evaluation. We can review tolerances, material, geometry, machining strategy, surface treatment, and inspection requirements and respond within 24 hours.
