Views: 0 Author: Linda Publish Time: 2026-09-30 Origin: Site
Thin-wall injection molding produces lightweight plastic components with relatively thin walls and demanding flow paths. Successful production depends on material selection, wall thickness, gate design, cooling, and process control.
For electronic housings, the main challenge is achieving complete filling while maintaining dimensional stability, surface quality, and reliable assembly. Early design for manufacturability (DFM) review and mold-flow analysis help identify risks before tooling begins.
Thin-wall injection molding is a specialized molding process used to manufacture lightweight plastic components with thin sections or high flow-length-to-wall-thickness ratios.
There is no universal thickness threshold. A 1 mm wall may be easy to mold in a small component but difficult in a larger housing with a long flow path.
Thin-wall molding is widely used in consumer electronics, industrial electronics, medical devices, and automotive electronics. Typical applications include compact enclosures, battery covers, connector housings, and lightweight structural components.
The process can reduce material consumption and component weight while supporting compact product designs. However, thinner walls also increase flow resistance and may make molding more sensitive to material, tooling, and process variations.
The goal is not simply to make a part thinner. It is to achieve the required strength, function, and appearance at a wall thickness that can be manufactured consistently.

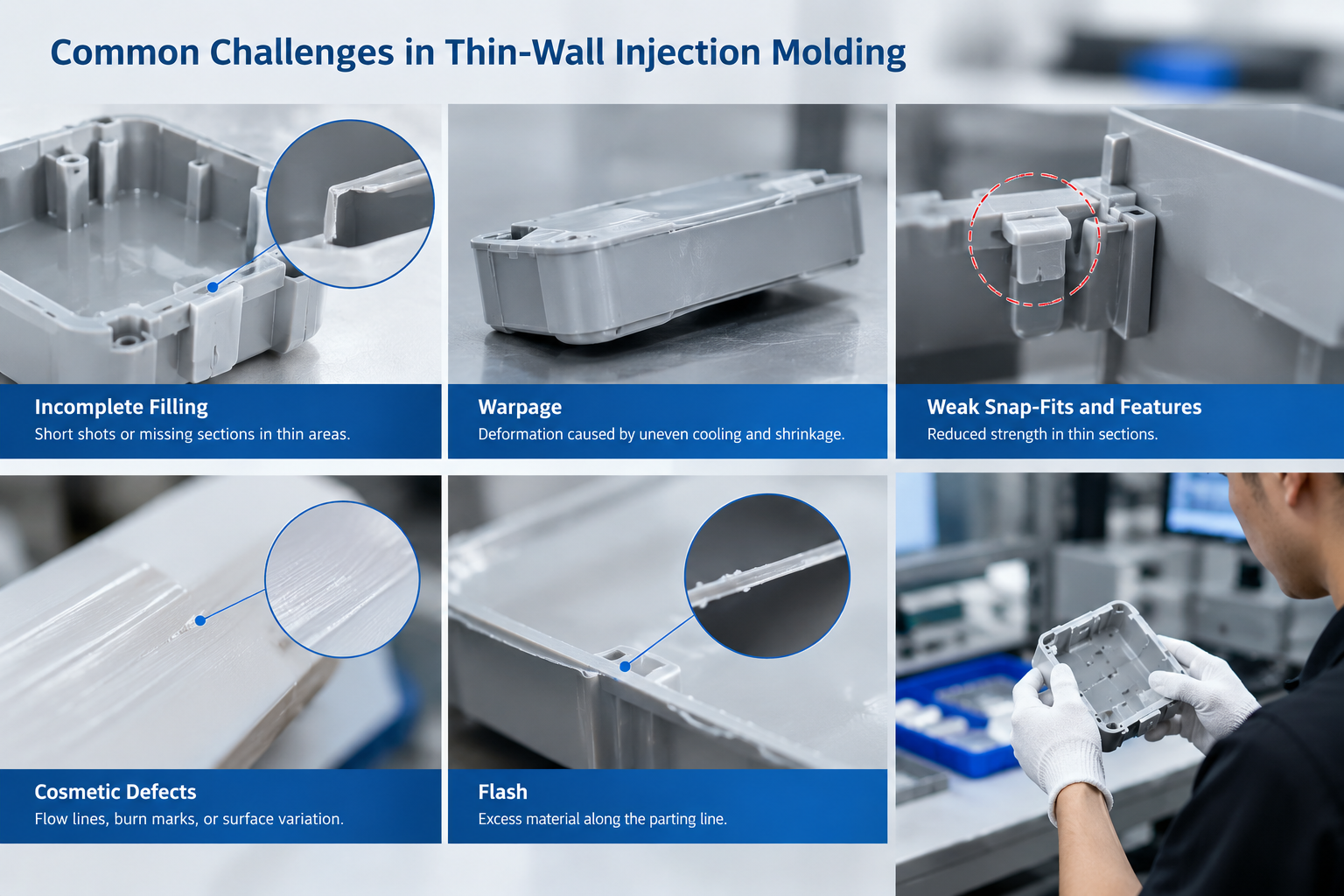

Molten plastic cools as it travels through a thin cavity. If the flow front solidifies too early, the part may develop short shots or incompletely formed features.
Long flow paths, narrow gates, and abrupt thickness changes increase this risk.
Engineering solution: Review the flow path during DFM, optimize gate location and dimensions, and evaluate venting. Mold-flow analysis can help identify filling imbalance and pressure requirements.
Uneven wall thickness causes differences in cooling and shrinkage. This can produce residual stress, bending, or twisting.
For electronic enclosures, deformation may affect PCB positioning, connector alignment, sealing, or lid closure.
Engineering solution: Maintain reasonably uniform wall thickness, use gradual transitions, and optimize cooling around thicker features. Inspect critical dimensions after the parts have cooled and stabilized.
Weak Snap-Fits and Functional Features
Thin walls provide limited material for supporting snap-fits, hinges, screw bosses, and mounting features. Excessive local thickness may create sink marks or uneven shrinkage.
Engineering solution: Optimize rib and boss geometry, use radiused transitions, and validate snap-fit engagement through dimensional inspection and assembly testing.
High-speed filling, poor venting, or unsuitable process conditions can contribute to burn marks, flow lines, and flash.
These defects are particularly important for consumer electronics with visible exterior surfaces.
Engineering solution: Review venting, gate placement, mold surface requirements, and clamping conditions together. Establish cosmetic acceptance criteria before tooling.

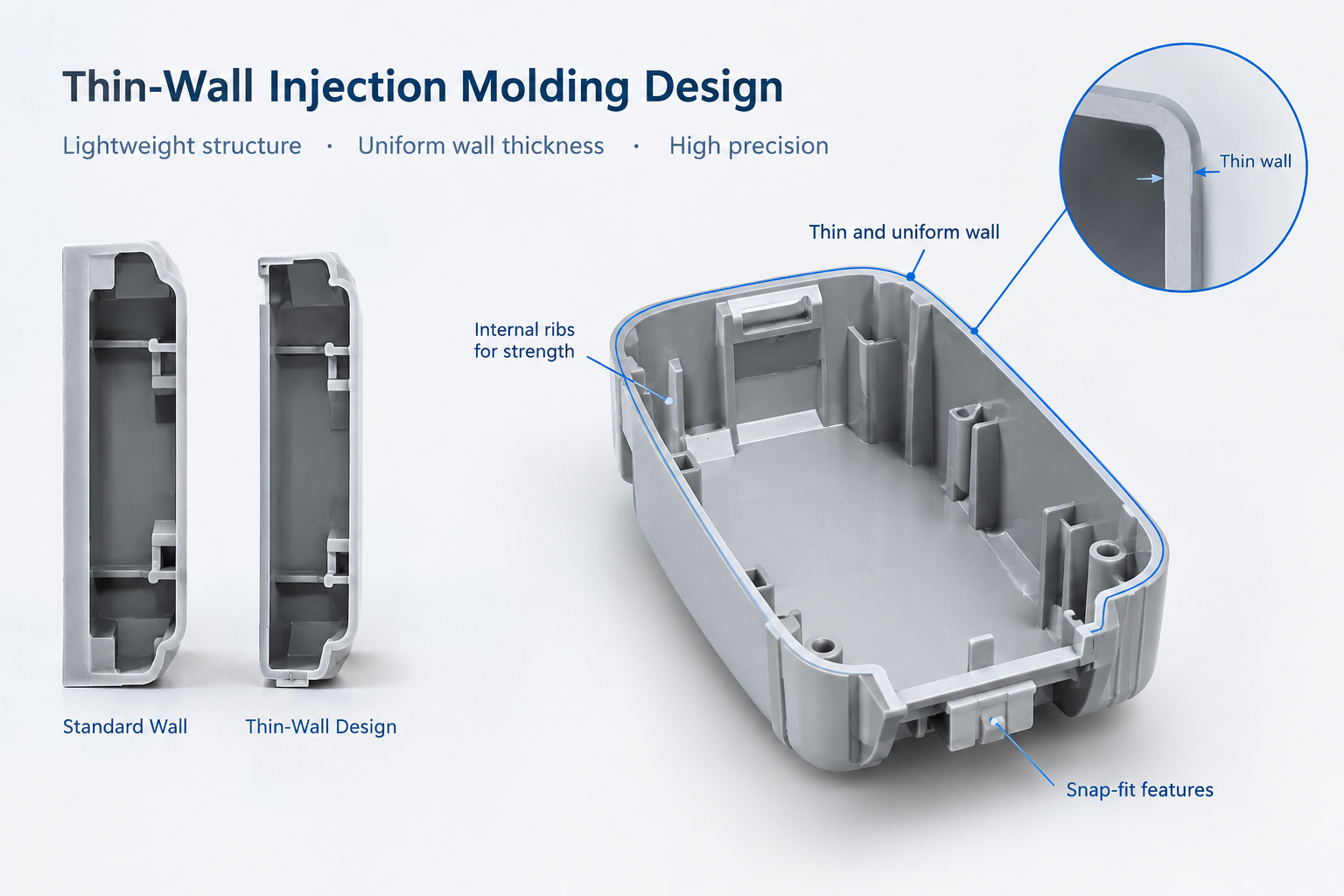

For many small electronic housings, approximately 0.8–1.5 mm can serve as an initial design reference. This is not a universal manufacturing limit.
Feasible wall thickness depends on resin grade, flow length, geometry, machine capability, and mechanical requirements. A 0.9 mm PC/ABS housing may be feasible with suitable tooling and process conditions, but the same thickness cannot automatically be applied to every part.
Design factor | Engineering consideration |
Wall thickness | Balance filling, stiffness, weight, and material performance. |
Thickness transitions | Use gradual changes to reduce uneven cooling. |
Ribs and bosses | Reinforce critical areas without excessive local thickness. |
Gate location | Support balanced filling and protect cosmetic surfaces. |
Draft angle | Allow reliable ejection without damaging the part. |
Tolerances | Focus tighter limits on functional interfaces. |
Material | Typical applications |
PC/ABS | Electronic housings requiring impact resistance, stiffness, and surface quality. |
ABS | General-purpose consumer electronics enclosures. |
PP | Lightweight parts and selected flexible components. |
PC | Applications requiring impact resistance and dimensional performance. |
PA (Nylon) | Functional components requiring strength and wear resistance. |
Material selection should consider mechanical properties, heat resistance, cosmetic requirements, and processing behavior.
For flame-retardant electronic housings, confirm the required flammability classification and evaluate how the selected resin grade affects flow, appearance, and mechanical performance.
Before tooling, review wall thickness, flow length, gate locations, ribs, bosses, and assembly-critical features.
Mold-flow analysis can help evaluate filling balance, pressure requirements, weld-line locations, and potential air traps. It is particularly useful for complex parts with long flow paths and thin sections.
Hot-runner systems can reduce runner waste and help maintain melt temperature. Valve gates may provide additional control over filling sequence and gate vestige.
Their suitability depends on cavity layout, resin, production volume, cosmetic requirements, and tooling cost.
Cooling design should account for local geometry, especially around bosses, hinges, and thick transitions.
For electronic housings, critical inspection dimensions may include:
· Overall dimensions and flatness.
· Hinge alignment and snap-fit engagement.
· PCB locating features and connector openings.
· Lid closure and assembly gaps.
Tolerance requirements should reflect actual functional needs and be validated against molding capability.
Thin-wall molding often requires rapid filling, but excessive injection speed or pressure can introduce flash, material degradation, or other defects.
The process window should cover melt temperature, mold temperature, injection speed, pressure limits, holding conditions, and cooling time.
Actual settings must be established through resin supplier recommendations, mold design, machine capability, and trial-mold results. No single pressure or cycle time guarantees success for every thin-wall part.

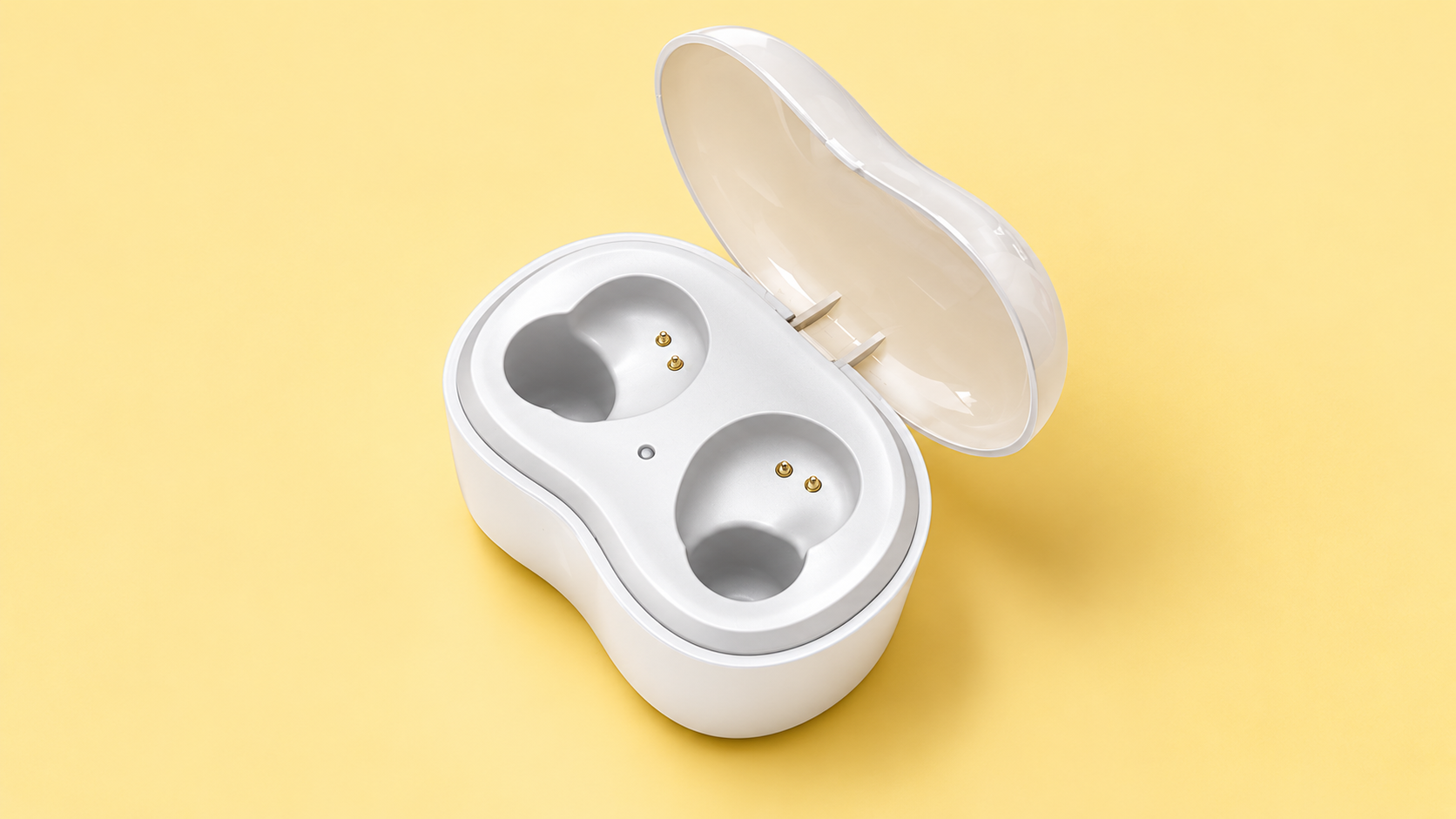

Part: Wireless earbuds charging case housing
Material: PC/ABS, flame-retardant grade
Process: Custom mold development and injection molding
Wall Thickness: 0.9 mm nominal
Application: Consumer electronics and wireless audio devices
The charging case required a lightweight housing with consistent appearance and reliable assembly.
The main requirements were uniform thin-wall filling, reduced warpage, accurate hinge and snap-fit features, consistent cosmetic quality, and reliable lid closure.
At a nominal wall thickness of 0.9 mm, the hinge and snap-fit areas required particular attention because local geometry could affect both filling and final assembly.
1. Uniform thin-wall filling
Challenge: The thin cavity created demanding flow conditions, increasing the risk of incomplete filling.
Solution: DFM review and mold-flow analysis were used to evaluate flow paths, filling balance, and pressure requirements.
2. Warpage and dimensional variation
Challenge: Uneven cooling and shrinkage could affect housing fit and lid closure.
Solution: Cooling-channel placement and temperature balance were reviewed around thin walls and functional features to support dimensional consistency.
3. Hinge and snap-fit accuracy
Challenge: Misalignment or dimensional variation could affect opening, closing, and assembly.
Solution: Critical functional dimensions were identified during DFM and included in trial-mold inspection and assembly validation.
4. Cosmetic surface quality
Challenge: Flow marks and gate vestige could affect the visible exterior.
Solution: Hot-runner and valve-gate design were evaluated to support controlled filling and reduce unwanted gate-related cosmetic effects.
5. Reliable assembly
Challenge: Variation across the housing and hinge features could create inconsistent assembly gaps.
Solution: Trial molding was used to evaluate housing fit, hinge alignment, snap-fit engagement, and lid closure. Process settings were refined based on observed part performance.
Validation Requirements
Before production release, the project should establish acceptance criteria for housing dimensions, hinge alignment, snap-fit engagement, lid closure, and cosmetic appearance.
The selected flame-retardant resin must also meet the project's specified material requirements.
This case demonstrates that achieving a nominal 0.9 mm wall thickness is only one part of thin-wall injection molding. Filling consistency, dimensional stability, and functional assembly must be evaluated together.
Thin-wall molding supports compact and lightweight designs across several industries.
· Consumer Electronics: Earbuds charging cases, wearable-device housings, portable electronics, and compact enclosures.
· Industrial Electronics: Control-unit housings, sensor enclosures, connector covers, and protective components.
· Medical Devices: Selected disposable device housings and lightweight components, subject to material and regulatory requirements.
· Automotive Electronics: Sensor housings, electronic control enclosures, connector components, and compact electronic assemblies.
For electronic enclosure injection molding, engineers must balance weight reduction with dimensional stability, connector alignment, assembly fit, and performance under operating conditions.
There is no universal minimum. It depends on resin grade, flow length, geometry, gate design, and machine capability. A 0.9 mm PC/ABS housing may be feasible, but the design should be reviewed before tooling.
The best material depends on mechanical, thermal, cosmetic, and regulatory requirements. PC/ABS is commonly considered for electronic housings, while ABS, PP, PC, and PA may suit other applications.
Maintain reasonably uniform wall thickness, avoid abrupt transitions, optimize cooling, and control molding conditions. Critical dimensions should be verified through inspection and assembly testing.
No. Thinner walls can reduce material usage, but may increase filling difficulty, tooling complexity, or process sensitivity. Total cost depends on material, cycle time, tooling, scrap risk, and production volume.
A DFM review should cover wall thickness, flow length, material grade, gate location, ribs and bosses, draft, cooling, critical tolerances, and assembly requirements. Mold-flow analysis may be appropriate for demanding geometries.
Thin-wall injection molding enables lightweight, compact plastic components, but consistent production requires careful coordination of material selection, geometry, mold design, cooling, and process validation.
For thin-wall electronic housings, early DFM review and clearly defined functional requirements can help reduce tooling risk, improve assembly reliability, and support repeatable production.
