Industry: Industrial Pumps and Fluid Handling

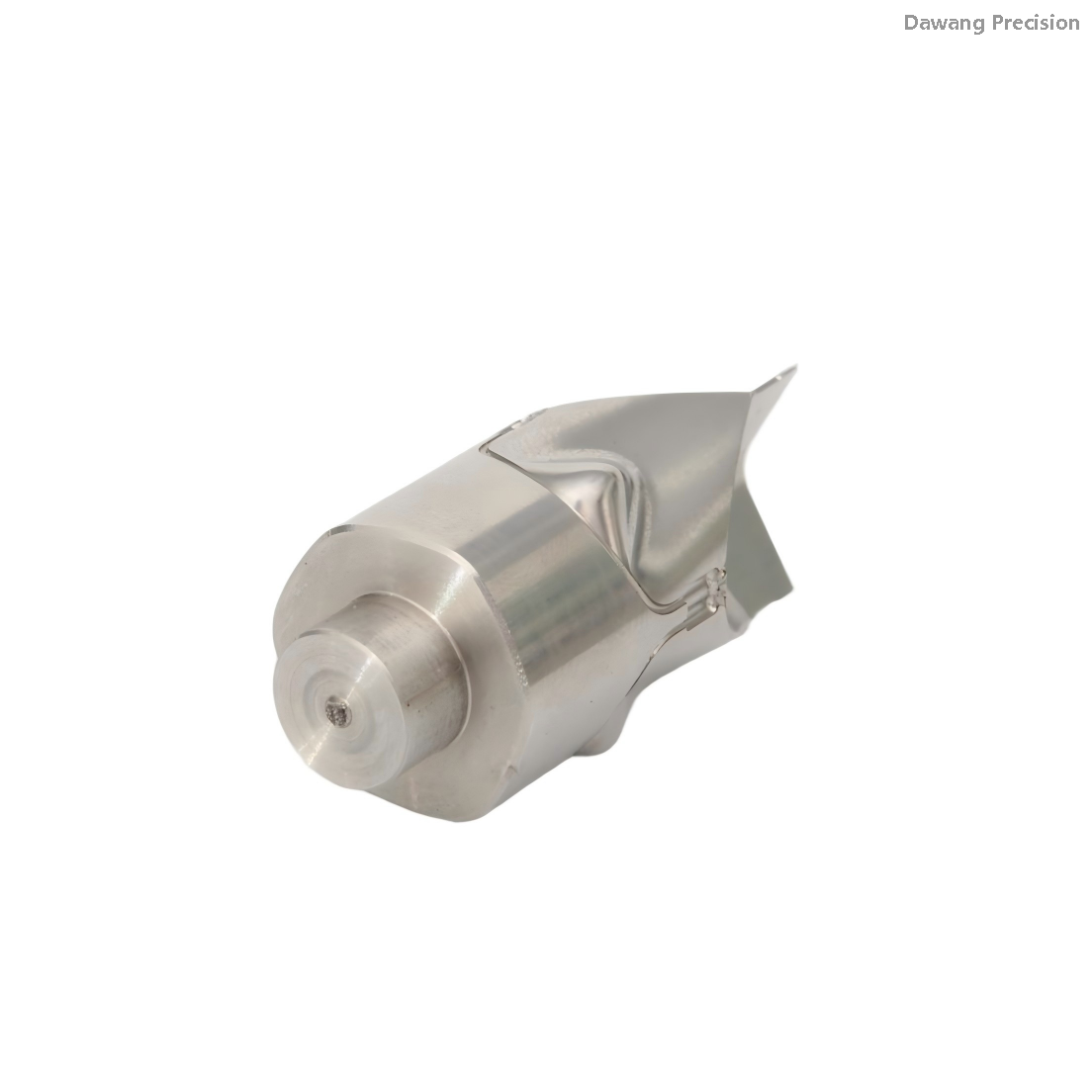

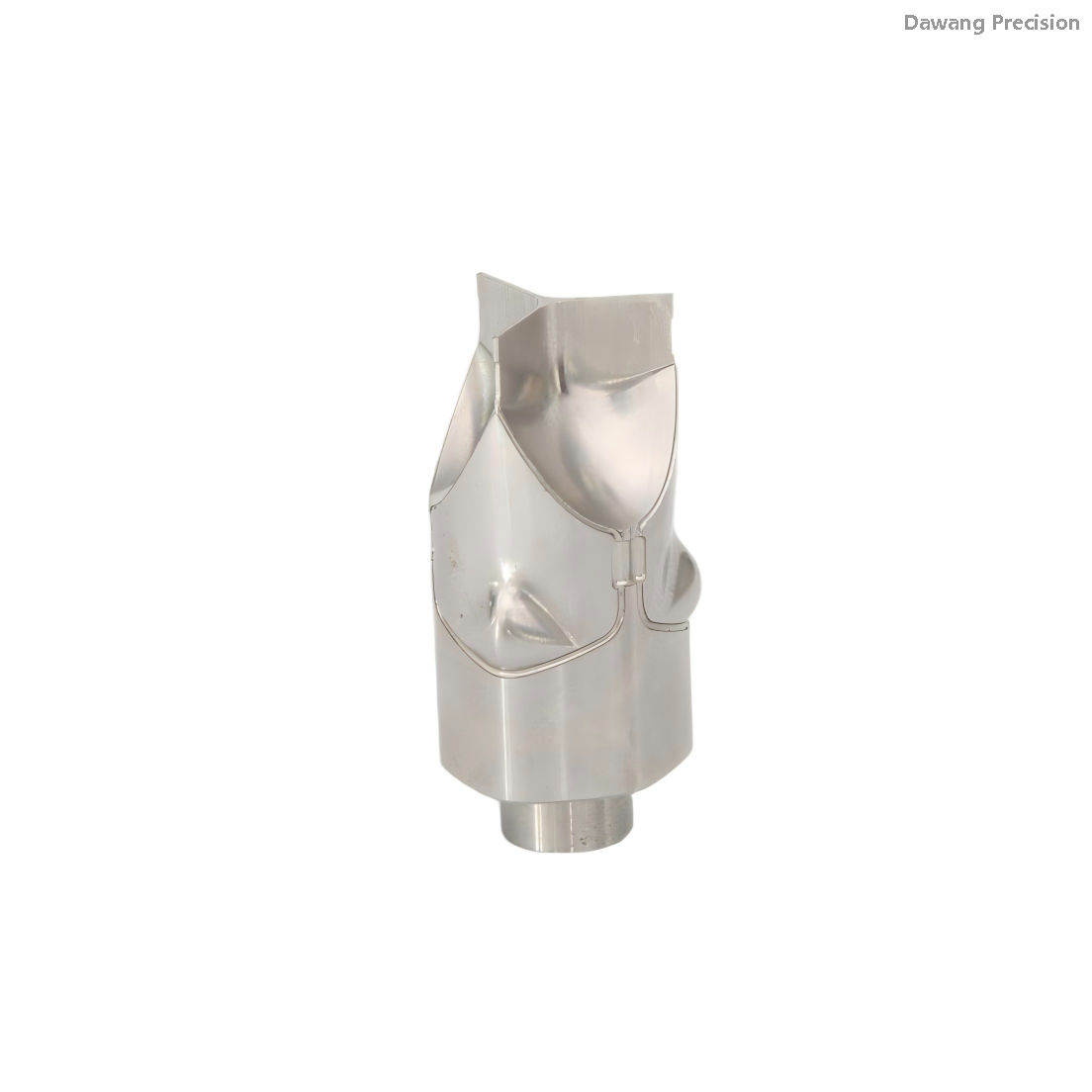

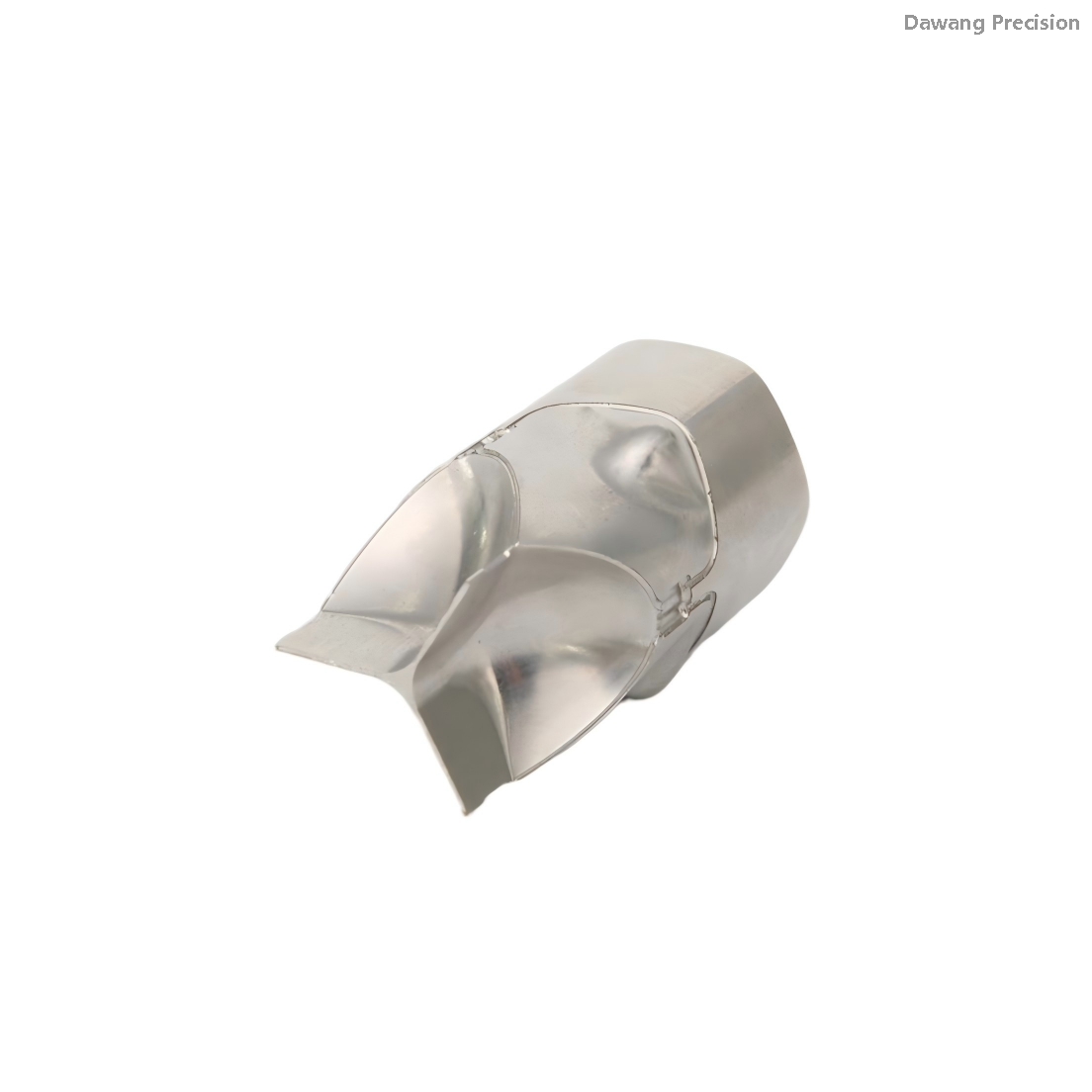

Component: Three-Blade Pump Inducer Rotor
Application: Centrifugal Pump Inlet Stage
Material: AISI 316L Stainless Steel
Starting Stock: Ø90 × 165 mm Round Bar
Finished Size: Ø78 × 142 mm
Finished Weight: Approximately 2.4 kg
Manufacturing Process: CNC Turning and Simultaneous 5-Axis Machining
Production Type: Prototype and Low-Volume Production
Initial Batch: 6 Pieces
Minimum Blade Thickness: 1.6 mm
Blade Profile Tolerance: ±0.05 mm
Flow-Surface Finish: Ra 0.4 μm
Inspection: ZEISS CMM, Runout Inspection and Dynamic Balancing
The inducer is installed at the inlet side of a centrifugal pump, immediately before the main impeller. Its helical blades guide the incoming liquid, create an initial pressure rise, and improve the suction conditions before the liquid enters the main pumping stage.
Blade profile, leading-edge geometry, surface condition, and rotational accuracy directly influence fluid movement through the inducer. Manufacturing errors may produce uneven flow, vibration, reduced pumping efficiency, or an increased risk of cavitation.
For this reason, the component was manufactured and inspected from its functional shaft axis rather than being treated only as a complex external shape.
Each of the three blades changes in angle and curvature from the inlet to the outlet. The surfaces could not be accurately produced through conventional three-axis machining or multiple indexed positions.
Simultaneous 5-axis tool motion was required to maintain a continuous cutting direction through the complete blade profile and reduce visible toolpath transitions on the fluid-contact surfaces.
The minimum blade thickness was only 1.6 mm. Because 316L stainless steel has relatively low thermal conductivity and a strong tendency to work-harden, excessive cutting force or local heat could deform the blade edges.
Material therefore had to be removed progressively while maintaining balanced stock around all three blades.
The spaces between the blades created narrow, curved flow passages. Tool access became more limited as machining approached the blade roots and internal transition surfaces.
Long tool overhang could increase vibration and reduce profile accuracy, so the toolpath, tool length, spindle orientation, and collision limits had to be verified before machining.
The blade geometry had to remain concentric with the Ø30 h6 shaft interface. Errors introduced during reclamping could increase radial runout and create an unbalanced rotor.
The shaft axis was therefore used as the primary datum throughout precision machining and final inspection.
Before production, our engineering team reviewed the 3D model and 2D drawing for tool accessibility, blade thickness, blade-root transitions, datum consistency, surface requirements, and inspection access.
We selected a combined CNC turning and simultaneous 5-axis machining route. Turning first established the shaft interface, reference faces, and primary rotational centerline. The part was then located from the machined shaft datum in a dedicated 5-axis fixture.
The three blades were roughed in an alternating sequence. Instead of completing one blade before starting the next, material was removed evenly around the rotor to maintain balanced cutting forces and reduce local distortion.
Approximately 0.6 mm of material was retained during rough machining and 0.2 mm after semi-finishing. The part was allowed to stabilize before the final blade and flow-passage surfaces were machined.
The project started with an Ø90 × 165 mm AISI 316L stainless steel round bar in the solution-annealed condition. The material grade and heat number were checked against the material certificate before production.
Positive material identification can also be performed when required for pump, chemical-processing, or other fluid-contact applications.
CNC turning established the Ø30 h6 shaft interface, reference faces, outside diameter, and preliminary rotor geometry.
These features created the primary datum system for the subsequent 5-axis operation and provided the reference surfaces required for runout inspection.
Initial 5-axis roughing removed material from the three blade passages in an alternating sequence. High-pressure coolant and sharp carbide tools were used to improve chip evacuation and reduce work hardening of the 316L stainless steel.
The roughing operation retained uniform stock around the blades and blade roots to provide support during later machining.
Semi-finishing established the main helical geometry while leaving approximately 0.2 mm of finishing allowance on the blade and flow surfaces.
The remaining material was kept consistent across all three blades to reduce variations in cutting force during the final passes.
Simultaneous 5-axis machining completed the twisted blade profiles, leading edges, blade roots, and internal flow passages.
The finishing toolpaths maintained a consistent tool contact position and cutting direction. This helped control the blade profile while minimizing tool marks on the fluid-contact surfaces.
Critical blade and hub surfaces were completed without reclamping the component, reducing accumulated positioning error between the blades and shaft axis.
After machining, the flow surfaces were carefully polished to achieve an Ra 0.4 μm finish. Special attention was given to the blade leading edges and root transitions so that polishing would not change the designed profile.
The component was then cleaned and passivated to restore the corrosion-resistant surface condition of the 316L stainless steel.
Final inspection covered the shaft diameter, overall dimensions, blade profile, blade position, minimum blade thickness, radial runout, axial runout, and surface roughness.
The completed inducer was also dynamically balanced to ISO 21940 G2.5 at a test speed of 8,000 rpm.
ZEISS CMM inspection was aligned to the machined shaft datum so that the blade profiles and rotor body could be evaluated from the functional rotational centerline.
The maximum measured blade-profile deviation was 0.043 mm against a ±0.05 mm requirement. Radial runout measured 0.016 mm, while axial runout measured 0.012 mm.
The Ø30 h6 shaft interface measured between 29.991 mm and 29.996 mm across the initial batch. Surface roughness on the polished flow passages reached Ra 0.36 μm.
All six components passed dimensional inspection and the specified G2.5 dynamic balancing requirement.
The completed 316L pump inducers met the specified requirements for blade profile, shaft fit, rotational runout, surface roughness, and dynamic balance.
Machining the blades and flow passages from one solid billet eliminated welded joints between the blades and hub. It also provided continuous material through the blade roots and allowed the complete rotor geometry to be controlled from a common shaft datum.
The manufacturing route is suitable for prototypes and low-volume inducer components that require complex helical blades, corrosion-resistant materials, controlled rotational accuracy, and documented inspection.
Five-axis machining from solid billet is particularly suitable for:
Prototype pump inducers
Low-volume turbomachinery rotors
Stainless steel axial-flow components
High-integrity rotors where welded blade joints are not preferred
Components with continuously twisted blades
Projects requiring CMM profile inspection and dynamic balancing
For larger production quantities, alternative processes such as investment casting followed by finish machining may be more economical. The final manufacturing route should be selected after reviewing the part size, annual quantity, blade geometry, material, operating speed, and inspection requirements.
316L provides good corrosion resistance, weld-free material integrity, and suitability for many fluid-handling environments. The final material selection should still consider the pumped medium, operating temperature, pressure, and applicable industry standards.
The blade angle and curvature change continuously along the rotor axis. Simultaneous 5-axis machining allows the cutting tool to follow these changing surfaces while maintaining tool clearance and a consistent cutting direction.
The achievable blade thickness depends on blade height, material, profile tolerance, surface requirements, and available tool access. Thin blades require a controlled roughing sequence and sufficient support during finishing.
Available documents can include the material certificate, dimensional inspection report, ZEISS CMM report, surface roughness record, positive material identification result, passivation record, and dynamic balancing report.
Send your STEP file and 2D drawing with the material, quantity, operating speed, critical tolerances, surface-finish requirements, pumped medium, and balancing specification.
A Dawang Precision engineer will review the blade geometry, tool accessibility, deformation risks, inspection requirements, and proposed manufacturing route before quotation.
