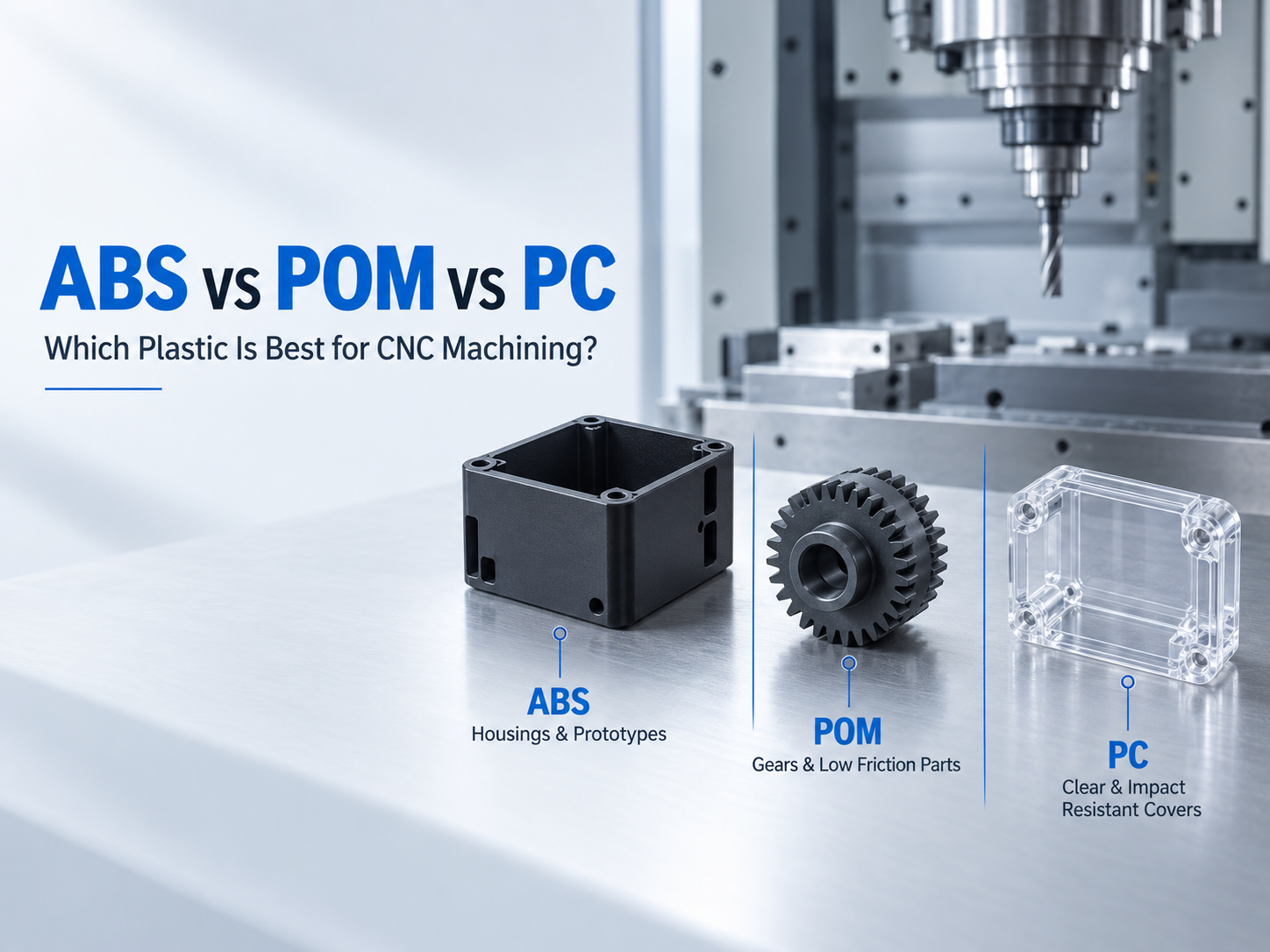

ABS vs POM vs PC: Which Plastic Is Best for CNC Machining?

Quick answer:

There is no single best plastic for every CNC project. Choose ABS for cost-effective housings, prototypes, and opaque cosmetic parts. Choose POM Delrin for low-friction, wear-resistant components such as gears, bushings, and precision mechanisms. Choose polycarbonate (PC) for transparent guards, impact-resistant covers, and applications requiring stronger heat performance. The right material depends on part function, operating environment, tolerance requirements, surface expectations, and machining risk.

For engineers and procurement managers, material selection is more than comparing a data sheet. The wrong plastic can increase machining time, scrap risk, finishing cost, and long-term failure risk. This guide compares ABS vs POM vs PC from a practical CNC machining perspective.

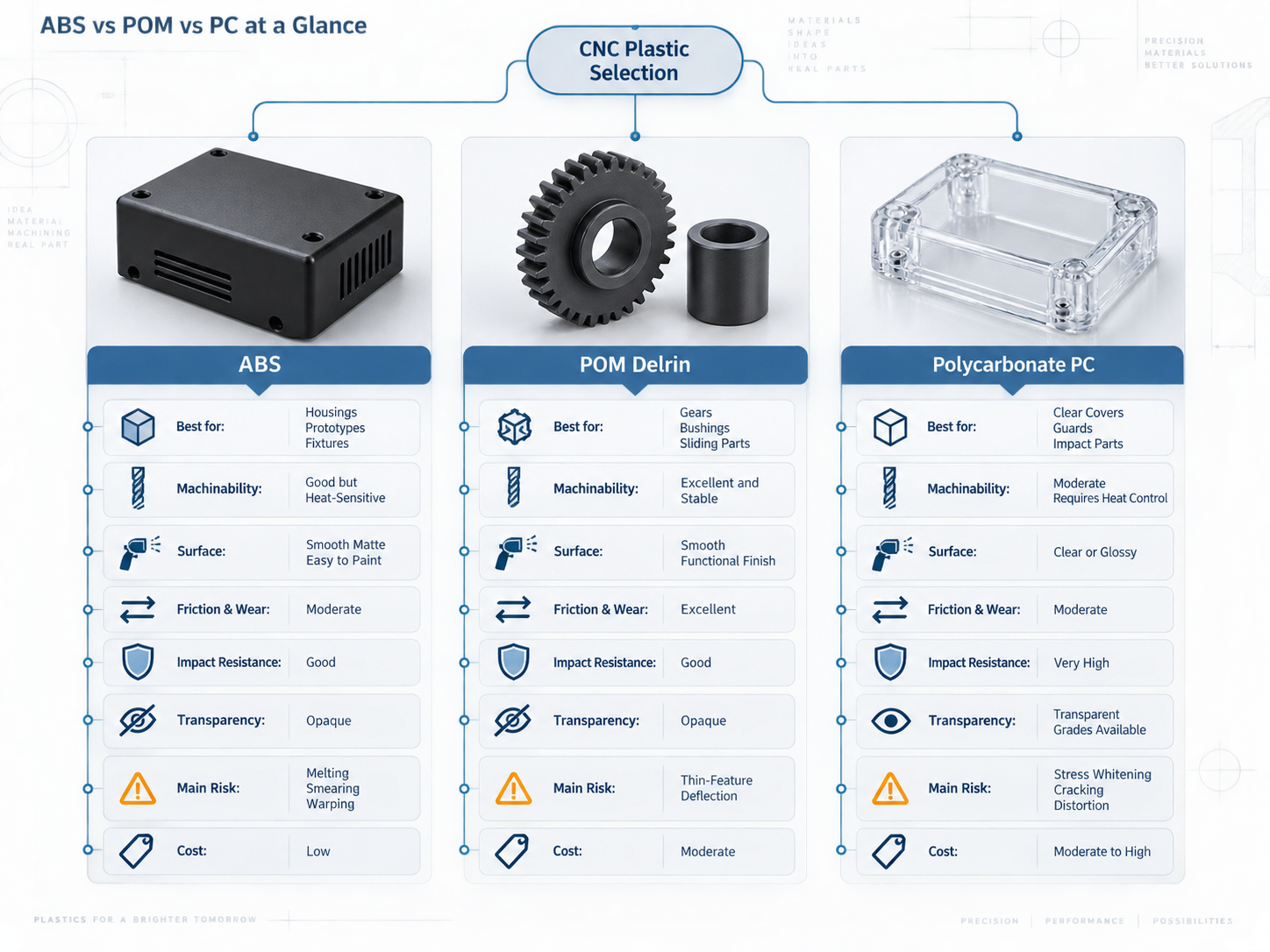

ABS vs POM vs PC at a Glance

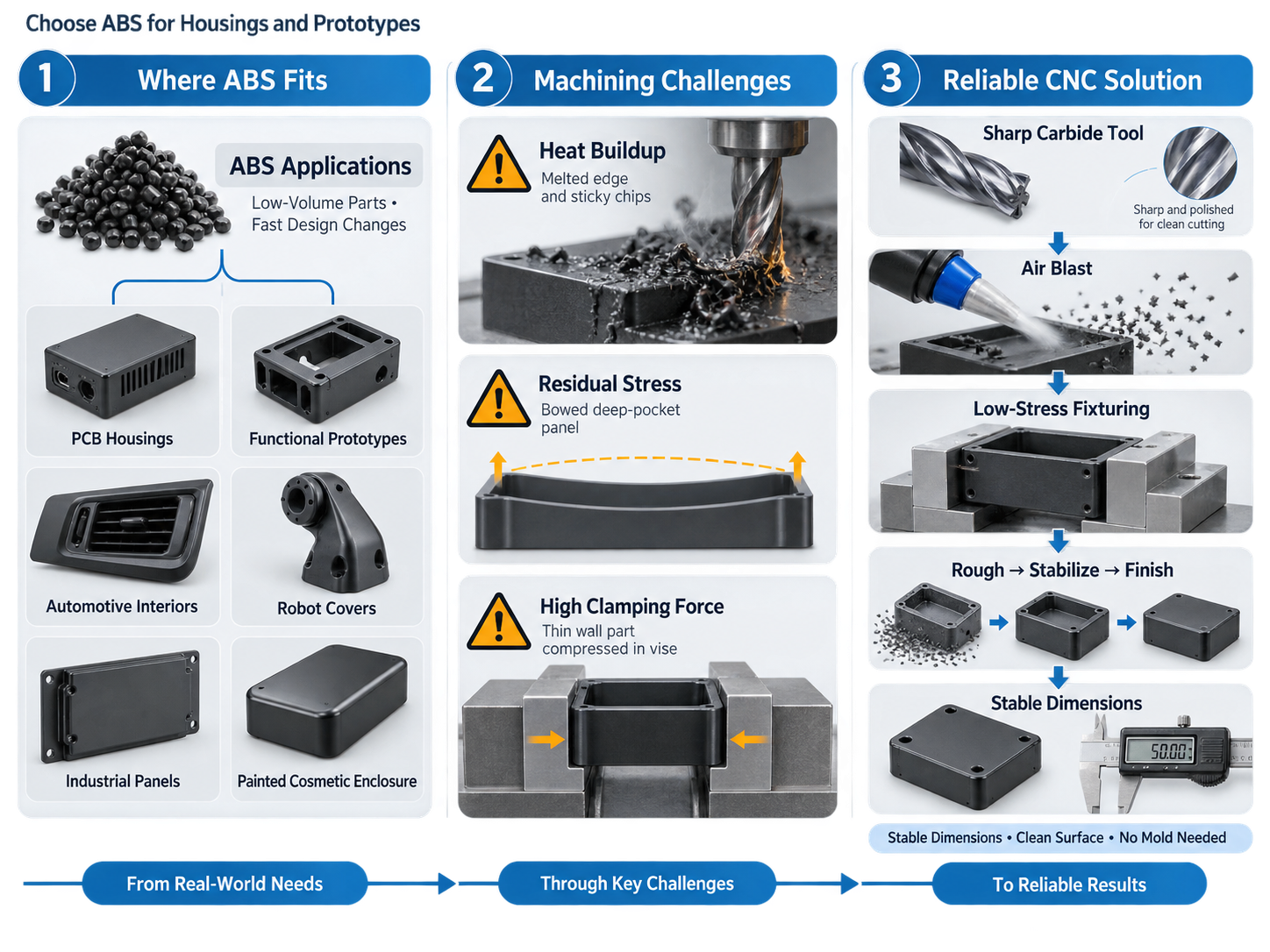

Choose ABS for Housings and Prototypes

ABS is a versatile engineering plastic for electronic enclosures, automotive interior prototypes, industrial covers, robot housings, fixtures, and consumer-product components. It balances impact resistance, stiffness, electrical insulation, surface quality, and low material cost.

When ABS is the right choice

Choose ABS for:

· PCB housings and electronic enclosures

· Functional prototypes before injection molding

· Automotive interior development parts

· Lightweight robot covers and cable-management parts

· Industrial panels and protective covers

· Cosmetic parts requiring painting, engraving, or texture

· Low-volume production with frequent design changes

CNC machining ABS eliminates dedicated injection tooling, so engineers can update connector locations, mounting features, wall thicknesses, vents, and assembly interfaces without changing a mold.

ABS machining challenges

ABS can soften or melt if heat builds up at the cutting edge. Dull tools, low feed rates, poor chip evacuation, and excessive tool engagement can cause smearing, glossy edges, burrs, and plastic buildup.

Large flat parts, deep pockets, and thin-wall housings may also warp after machining because of residual stock stress or excessive clamping force.

ABS machining solution

Use sharp polished carbide tools, efficient air blast, stable workholding, and balanced cutting parameters. For larger or tight-tolerance components, rough-machine the part first, allow it to stabilize, then re-fixture with low force for final machining.

Choose POM Delrin for Precision Motion Parts

In an ABS vs Delrin comparison, POM is usually the better choice for mechanical components that need low friction, wear resistance, stiffness, and dimensional stability.

When POM is the right choice

POM Delrin is commonly used for:

· Gears and sprockets

· Bushings and bearing-like components

· Rollers and guide blocks

· Valve parts

· Precision spacers and locating components

· Robotic joints and motion-control parts

· Sliding mechanisms and industrial wear parts

POM machines cleanly and is well suited to precise functional features. Its low moisture absorption also makes it more stable than nylon when humidity changes.

POM machining challenges

POM is generally forgiving during CNC machining, but thin ribs, long unsupported walls, and slender features can still move under cutting pressure. It also has a low-surface-energy finish, making painting and adhesive bonding more difficult than with ABS.

For parts requiring repeated fastening, use brass or stainless steel thread inserts instead of relying on directly tapped plastic threads.

Choose POM over ABS when friction, wear, precision motion, and long-term dimensional stability are more important than paintability, low material cost, or cosmetic finishing.

Choose Polycarbonate for Clear and High-Impact Parts

In an ABS vs polycarbonate comparison, PC is the preferred material when transparency, high impact resistance, or stronger heat performance is essential.

When PC is the right choice

Polycarbonate is commonly used for:

· Transparent machine guards and safety shields

· Inspection windows and display covers

· Clear protective covers and light diffusers

· Medical equipment housings requiring visibility

· High-impact electronic enclosures

· Automotive protective components

· Durable consumer-product covers

PC is often the only practical choice when users need to see through the part while maintaining protective performance. ABS cannot provide the same optical clarity.

PC machining challenges

Polycarbonate requires more process control than ABS or POM. It is sensitive to localized heat, sharp internal corners, aggressive clamping, and high cutting pressure. Poor machining can create stress whitening, scratches, edge cracks, or post-machining distortion.

Clear PC parts also have stricter cosmetic requirements because tool marks and handling scratches are highly visible. Use sharp tools, controlled chip evacuation, conservative cutting depths, larger internal radii, and low-stress fixturing.

Choose PC over ABS when transparency or high impact resistance is a non-negotiable requirement.

Select Materials by Application

CNC Machining Challenges and Technical Solutions

Heat and chip control

All three plastics react differently to cutting heat:

· ABS: May smear or melt when the tool rubs instead of forming clean chips.

· POM: Usually machines cleanly but can deflect in unsupported thin sections.

· PC: Can develop internal stress, whitening, or cracks if heat and cutting pressure are excessive.

Use sharp carbide cutters, short tool overhang, effective chip evacuation, and material-specific feeds, speeds, and depths of cut. Air blast is often useful because it clears chips and limits local heat buildup.

Fixturing and clamping

Plastic parts can deform while clamped. Machining a compressed workpiece may produce a part that moves after release and fails flatness, hole position, or assembly requirements.

Use soft jaws, custom nests, broad support surfaces, sacrificial fixture plates, or vacuum fixtures for suitable flat parts. Apply only the minimum clamping force required for stable cutting.

Tolerance and DFM guidance

Reserve tight tolerances for functional interfaces, locating features, bearing locations, sealing surfaces, and assembly datums. Tight tolerances everywhere increase machining time, inspection cost, and scrap risk without necessarily improving part performance.

For large flat or stress-sensitive parts, final measurement should be performed after the component has stabilized at controlled room temperature.

Consider Total Cost, Not Only Material Price

The lowest-cost raw material is not always the lowest-cost finished part. Total cost includes material price, machining cycle time, fixturing, scrap risk, finishing, inspection, and future design changes.

ABS is often the most economical choice for opaque housings and prototypes because it machines efficiently and supports easy cosmetic finishing. POM may cost more but can reduce wear and failure risk in motion components. PC may require slower machining and additional finishing, but it is necessary when clear visibility or high impact resistance is required.

FAQ

1Q：Is POM better than ABS for CNC machining?
A：POM is better for gears bushings sliding components and wear parts. ABS is often better for cost-effective housings prototypes and painted cosmetic parts.

2Q：Is polycarbonate harder to machine than ABS?
A：Yes. Polycarbonate requires more careful heat control fixturing and finishing because it is more prone to stress whitening cracking and visible scratches.

3Q：Which plastic is best for CNC machined gears?
A：POM Delrin is often the best choice because of its low friction wear resistance and dimensional stability.

4Q：Which material is better for electronic enclosures ABS or PC?
A：ABS is usually the practical choice for standard opaque enclosures. Choose PC when transparency or higher impact resistance is required.
