CNC Machined Pump Components: Shaft Alignment, Interfaces, and Inspection Planning

Views: 0     Author: Site Editor     Publish Time: 2026-11-19      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Industrial pump system failures often trace back to a single, invisible culprit. Shaft misalignment and interface irregularities silently compromise mechanical integrity before operators even notice an issue. Left unchecked, these minor flaws rapidly compound during daily operation. They inevitably lead to premature bearing wear, sudden mechanical seal failure, and catastrophic unplanned downtime. High-precision manufacturing acts as a frontline risk-mitigation strategy rather than just another procurement line item. It ensures rotating equipment runs smoothly under immense stress. Engineering exactness directly dictates your operational reliability. We will explore how strict engineering tolerances transform fluid system longevity. You will discover a clear framework for evaluating interface requirements. We also outline crucial inspection protocols you must demand when sourcing machined pump components.

Key Takeaways

  • Alignment Dictates Lifespan: Precision interfaces reduce angular and offset misalignment, directly extending the Mean Time Between Failures (MTBF).

  • Machining Mitigates Risk: Utilizing multi-axis CNC machining for critical components ensures the concentricity and perpendicularity required by API 610 and ISO standards.

  • Verification is Mandatory: A robust inspection plan—including Coordinate Measuring Machine (CMM) data and strict Standard Operating Procedures (SOPs)—is the only reliable way to validate component integrity before assembly.

The Cost of Misalignment: Framing the Component Problem

Micro-deviations in pump components compound aggressively during active operation. A shaft offset of just a few thousandths of an inch generates massive centrifugal forces. These forces translate directly into high vibration signatures. High vibration accelerates wear on bearings and mechanical seals. Thermal expansion complicates this operational reality further. As pump housings heat up, metal expands. Minor alignment errors at room temperature become severe binding issues at operating temperatures. You cannot ignore these thermal dynamics.

Industry standards provide strict baselines to prevent these failures. Frameworks like API 610 for centrifugal pumps mandate rigorous vibration and alignment tolerances. Standard-compliant alignment is entirely impossible if you rely on sub-par foundation components. If a bearing housing lacks perfect flatness, tightening the mounting bolts distorts the frame. Engineers call this a soft foot condition. It introduces angular misalignment before the pump ever turns on. Your procurement strategy must focus on eliminating these baseline errors.

Successful component procurement looks very specific in practice. It guarantees predictable installation on the factory floor. Assembly technicians experience eliminated field-fitting. They do not need to shim or modify parts during assembly. Components deliver verifiable dimensional accuracy straight from the crate. This level of precision removes guesswork from the build phase. It ensures the final pump assembly meets all API and ISO compliance metrics effortlessly.

Establishing Baselines for Custom CNC Machined Parts in Fluid Systems

Material selection dictates how a component behaves during cutting and throughout its lifecycle. Sourcing custom CNC machined parts requires deep metallurgical understanding. Duplex stainless steel and titanium are highly popular in fluid systems. They resist harsh chemicals and marine environments brilliantly. However, they carry significant internal stresses. Machining removes outer layers of metal. This removal releases trapped stresses, causing the material to warp. Engineers must specify stress-relieving thermal cycles between roughing and finishing operations. This maintains dimensional stability.

Geometric Dimensioning and Tolerancing (GD&T) removes ambiguity from technical drawings. It controls exactly how features relate to one another. Concentricity is absolutely critical for shafts and impellers. If the centerlines of rotating mass do not align, the component wobbles. This imbalance destroys bearings rapidly. Perpendicularity and flatness govern static components. Mounting bases and bearing housings require perfectly flat planes. Without them, you invite structural distortion during installation.

Surface finish, often denoted as Ra (Roughness Average), requires equal attention. Roughness limits dictate the success of mechanical seals and O-ring grooves. Fluid bypass occurs if a mating surface is too rough. High-pressure fluids easily find microscopic scratch marks. These leak paths cause pressure drops and environmental hazards. You must specify exact Ra values for all sealing interfaces.

Critical GD&T Features for Pump Components

GD&T Feature

Component Application

Primary Function

Concentricity

Shafts, Impellers

Maintains rotational balance and prevents vibration.

Perpendicularity

Flange faces, Bearing housings

Ensures mating parts sit flush without distortion.

Flatness

Mounting bases, Pump casings

Eliminates soft foot conditions during bolt down.

Runout (TIR)

Coupling areas, Seal fits

Limits radial deviation on rotating elements.

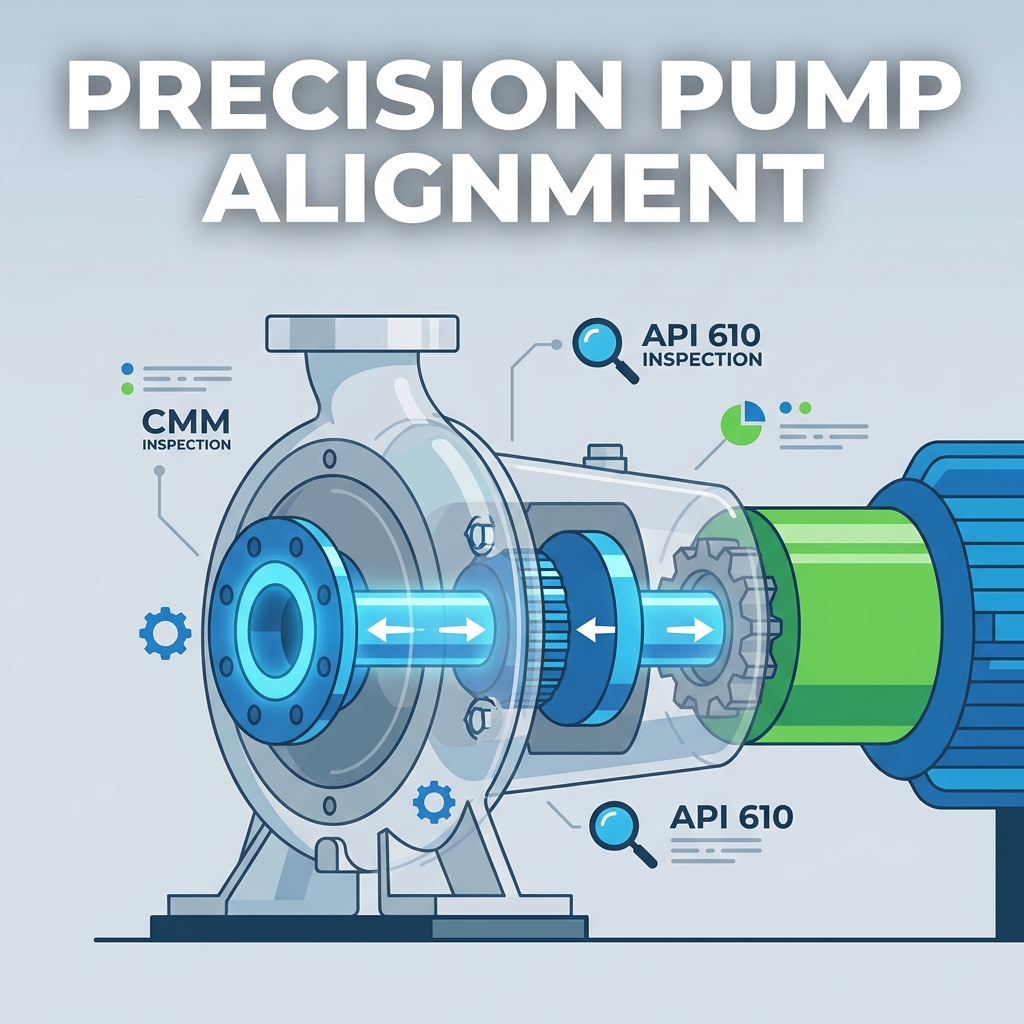

CNC Machined Pump Components

CNC Machining for Pump Shaft Flange Connectors and Interfaces

Fluid systems rely heavily on robust coupling mechanisms. Pump shaft flange connectors act as the critical transfer point for torque. They also dictate final angular alignment between the motor and the pump. If a flange face is slightly angled, the connected shaft will bow. This bow creates massive fatigue cycles every single rotation. Precision here is non-negotiable.

Advanced CNC machining provides the exact capabilities needed for these interfaces. Manufacturers utilize 5-axis milling and live-tooling lathes to produce complex geometries. These machines complete multiple operations in a single setup. Reducing setup changes eliminates stack-up errors. Every time a machinist removes a part and re-clamps it, minute deviations occur. Live-tooling lathes carve out bolt circles and alignment dowel holes while the part remains perfectly centered. Precise CNC turning achieves strict Total Indicator Reading (TIR) tolerances. Low TIR ensures the shaft rotates in a true, unvarying circle.

Implementation carries specific manufacturing risks. Heavy material removal generates intense friction and heat. This heat induces warpage in long shafts or thin-walled flanges. Inexperienced shops often cut too fast to save time. Experienced machinists avoid this through careful tool path sequencing. They balance cutting forces by alternating machining sides. They use high-pressure coolant strategies to evacuate chips and control thermal buildup.

Developing a Defensible Inspection Plan and QA SOP

Visual checks and basic hand tools belong in the past. Standard caliper measurements are insufficient for decision-stage evaluation of pump internals. Calipers rely heavily on operator feel. They cannot measure complex 3D spatial relationships. You need definitive proof of compliance before accepting expensive parts into inventory.

A defensible inspection plan segments validation into distinct phases.

  1. In-Process Inspection: Operators verify rough dimensions before heat treatment or stress relief. This catches major deviations early.

  2. First Article Inspection (FAI): The vendor produces one complete part. Quality engineers verify every single dimension on the drawing. Mass production halts until FAI approval.

  3. CMM Verification: Coordinate Measuring Machines touch the part with ruby-tipped probes. They generate a 3D point cloud. This validates bolt-hole true positions and complex impeller geometries flawlessly.

  4. Final Output Audit: Inspectors review surface finish data and final TIR runout logs before packaging.

Documentation and traceability act as your legal and operational safety net. You must establish strict requirements for Material Test Reports (MTRs). MTRs prove the metal's chemical composition and mechanical yield strength. Heat lot traceability links every machined flange back to the exact batch of raw steel. Regulatory compliance demands this level of proof. If a pump fails in a hazardous refinery, investigators will audit these exact documents.

Supplier Evaluation: Shortlisting Your Machining Partner

Evaluating vendors requires distinguishing between capability and capacity. Capacity means they own the machines. Capability means they actually understand fluid dynamic requirements. A shop might excel at making automotive brackets but fail miserably at API 610 pump shafts. You need partners who grasp why a 0.0005-inch runout matters to a mechanical seal.

Look for concrete evidence of engineering expertise. Excellent suppliers push back on bad designs. They provide Design for Manufacturability (DFM) feedback. They will challenge drawing tolerances to improve manufacturability. Sometimes, engineers over-tolerance non-critical areas. A capable partner suggests relaxing those areas while tightening critical mating surfaces. This improves alignment outcomes without compromising API standards or inflating costs.

  • Request an audit of their metrology lab. Verify their CMM calibration records are current.

  • Review their tool life management systems. Dull tools create surface stress and ruin Ra requirements.

  • Initiate a targeted pilot run. Require a comprehensive QA jobsheet that maps directly to your specific pump alignment SOPs.

  • Assess their supply chain for raw materials. Ensure they buy from certified mills, not gray-market metal brokers.

Conclusion

  • Prioritize precision interfaces to drastically reduce system vibration and extend mechanical seal lifespans.

  • Mandate thermal stress relief and strict GD&T controls during the manufacturing phase to guarantee perfect alignment out of the box.

  • Audit your vendors based on their metrology capabilities and their willingness to provide DFM feedback.

  • Implement comprehensive QA SOPs requiring CMM data and full material traceability for every critical rotating component.

  • Submit your current technical drawings to a specialized manufacturing partner for a thorough manufacturability review today.

FAQ

Q: What are the most critical GD&T callouts for pump shaft components?

A: Focus on runout, concentricity, and perpendicularity to ensure rotational balance and strict alignment during dynamic operation.

Q: How does CNC machining improve pump shaft alignment compared to traditional casting?

A: Machining eliminates draft angles, void risks, and surface inconsistencies, providing the exact mating surfaces necessary for laser-precision alignment during installation.

Q: What should be included in a supplier's quality inspection report for pump flanges?

A: It must include material certifications, a dimensional layout correlating to the original print, surface finish validation, and a signed First Article Inspection (FAI) document.

Q: Can we use aluminum for custom CNC machined pump components?

A: Only for specific low-pressure, non-corrosive applications. Most industrial pump components require 316SS, Duplex, or specific carbon steels to withstand torque, pressure, and chemical wear.
