CNC Machined Surgical Robot Joint Housings: Precision Bearing Bores and Reliable Assembly

Quick Answer

CNC machined surgical robot joint housings connect bearings, motors, reducers, and robotic arm sections. Their value lies in maintaining the relationships between these components through machining, finishing, and assembly. Reliable production requires functional datums, controlled material removal, accurate bearing seats, and inspection that verifies geometry as well as size. CNC machining offers a flexible route for prototypes and low-volume production, particularly when joint designs are still being refined.

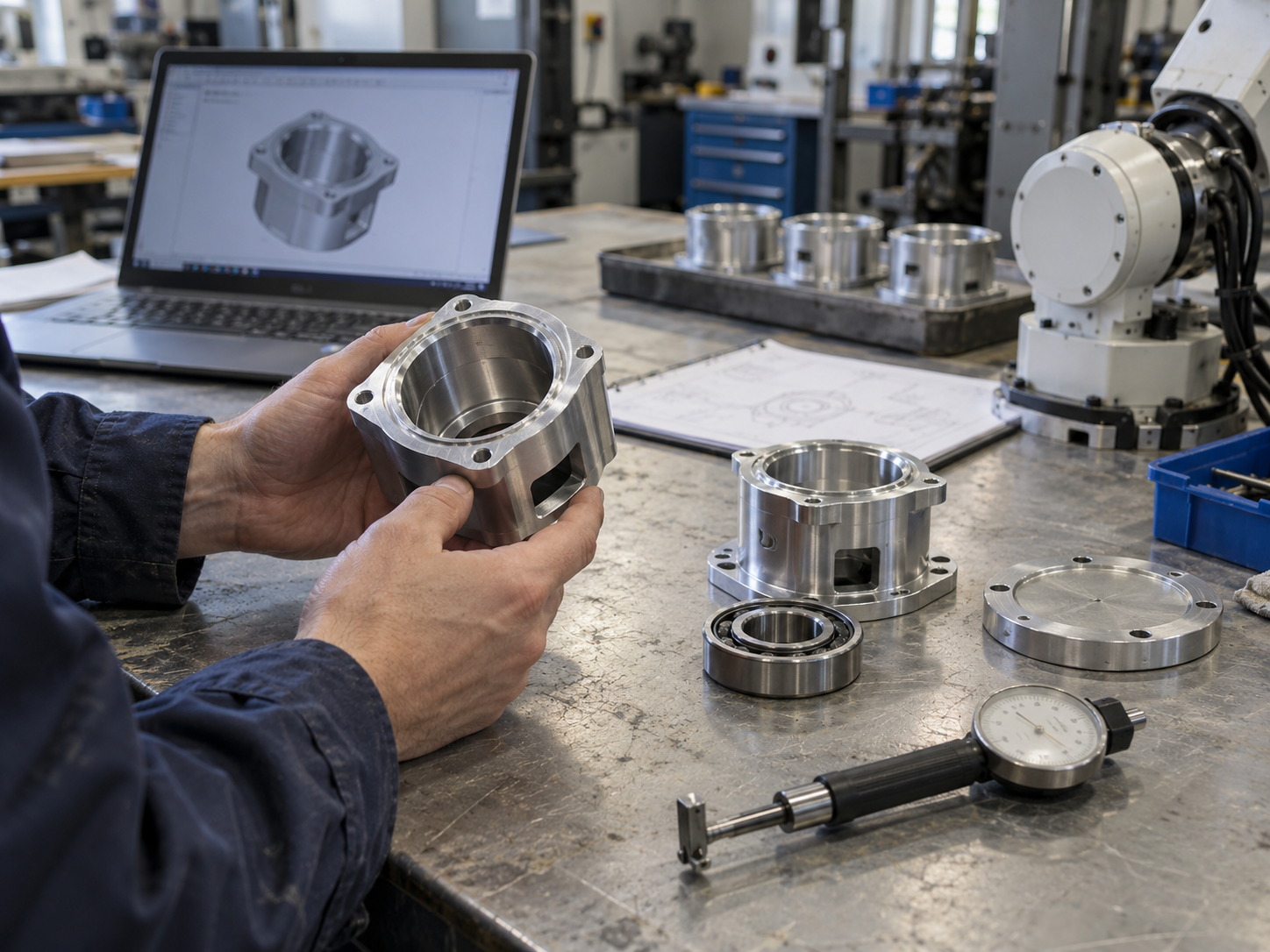

 Medical Device Development Is  Changing the Demand for Precision Parts

Surgical robot development puts several competing requirements into one joint: structural stiffness, compact packaging, low moving mass, and repeatable assembly. Changes to a motor, reducer, bearing arrangement, or cable route can require another housing revision. A component that worked in an early prototype may need substantial changes before production.

For hardware engineers, the problem is obtaining representative parts quickly enough to evaluate the whole mechanism. Visual models cannot establish bearing fit, fastener behavior, or the stiffness of a finished metal housing. Protolabs identifies CNC machining as a way to test multiple medical-device designs using engineering-grade materials with properties representative of the final part.

For procurement managers, the challenge is securing small batches without paying for unnecessary tooling or accepting inconsistent quality. Development schedules become difficult to manage when prototypes require hand fitting, inspection reports miss functional features, or finishing changes dimensions unexpectedly.

CNC machining changes this workflow by providing a direct route from revised CAD data to testable components. It supports design iteration and subsequent small-batch production, provided revisions, material requirements, and acceptance criteria remain controlled.

 Typical Joint Housings and Related Components

Related custom surgical robot components include bearing retainers, end covers, mounting plates, and precision shafts. Reviewing mating components together can reveal tolerance-stack problems that an isolated housing drawing may not show.

 Machining Challenges That Determine Assembly Quality

Bearing Fit, Form, and Shoulder Alignment

Precision bearing bore machining must address diameter, taper, roundness, and shoulder geometry. A bore can meet a two-point size measurement while still failing its form requirement.

Fit selection depends on the bearing, loading, housing material, temperature, and intended clearance or preload. SKF’s guidance distinguishes standard seat recommendations from application-specific requirements and notes different considerations for light-metal housings. Applying H7 indiscriminately can therefore be inappropriate.

Distortion in Thin-Wall Housings

Deep pockets and thin walls increase sensitivity to stock stress and clamping force. If the fixture compresses a bearing seat during finishing, that seat may become oval after release.

Robot joint bearing seat machining must therefore account for both the supported machining condition and the specified inspection condition. Tightening clamps further does not necessarily improve the finished result.

Errors Between Functional Axes

Bearing bore coaxiality control depends on maintaining a consistent reference through all relevant operations. Re-clamping can shift the relationship between opposed bearing seats, motor pilots, and mounting faces.

A surgical robot housing GD&T review should distinguish axis position, surface form, and runout. Each controls a different aspect of the component and requires a suitable inspection method.

Finishing and Edge Quality

Anodizing affects finished dimensions. Bearing seats, locating pilots, and threaded features need defined masking or machining allowances. Burrs at bore entrances and cable passages can also obstruct assembly or damage adjacent components.

 Technical Solutions and a Published Manufacturing Case

Build the Process Around Functional Datums

Select datums according to how the housing is located in the assembly. Depending on the design, a mounting face, main bearing bore, and clocking feature may form the reference system. Confirm this hierarchy before fixture design and programming.

The following values are illustrative drawing-review targets, not universal requirements or guaranteed Dawang capabilities:

Separate Roughing from Final Fit Control

Remove most material before finishing the bearing seats. Balance pocket machining where possible, retain support around thin sections, and re-establish the part after major stock removal.

An initial planning allowance might leave 0.3–0.5 mm radial stock after roughing and 0.05–0.15 mm before finish boring. These values must be adjusted to measured distortion, tool access, and the finishing process.

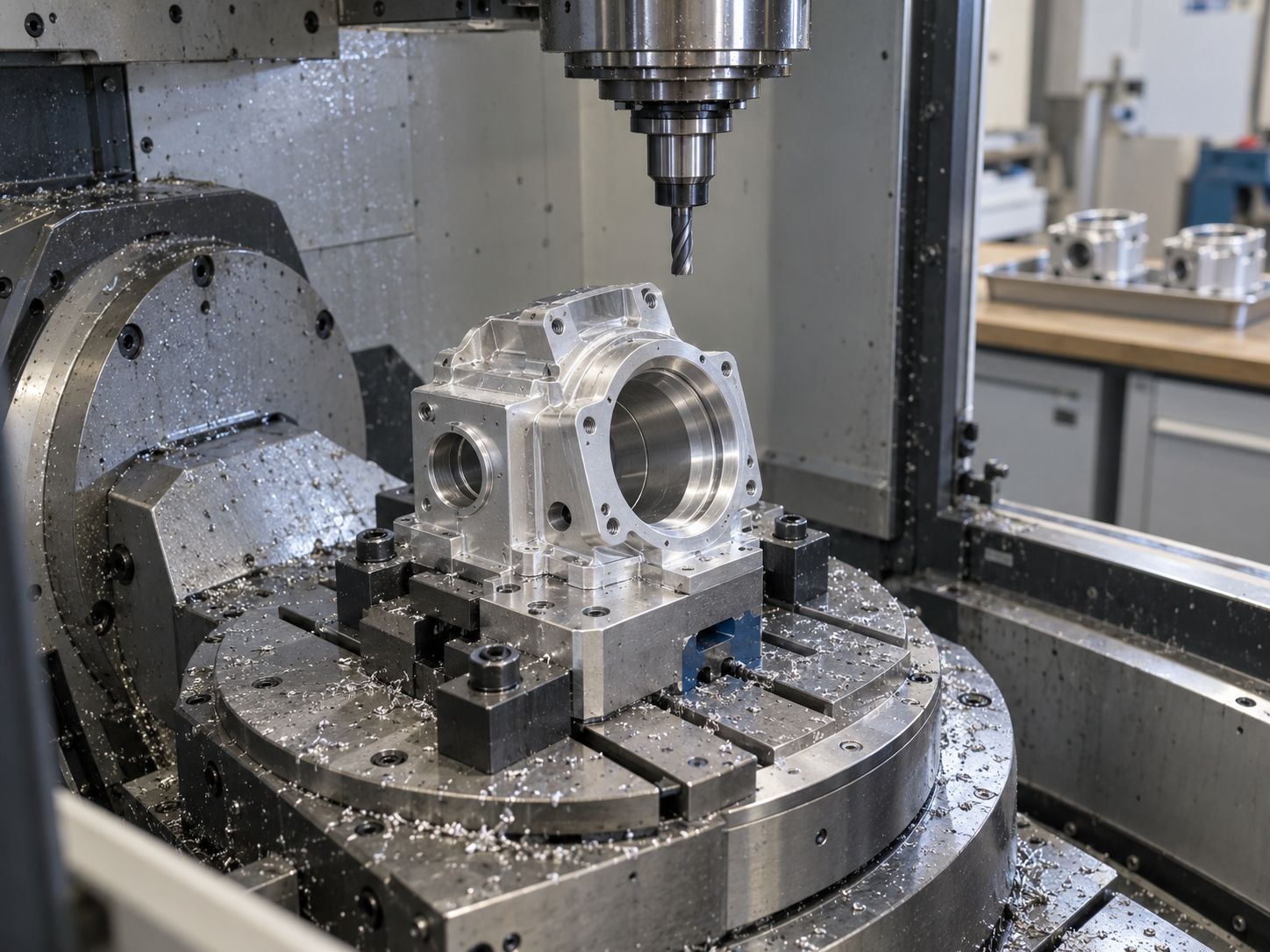

Use supported locating pads or dedicated soft jaws, directing clamping loads into robust features. Finish related bores and shoulders in one setup wherever practical.

Validate Cutting Data on the Actual Setup

For a worked planning example, a 10 mm, three-flute carbide end mill cutting 6061-T6 at 300 m/min gives approximately 9,550 rpm. At 0.04 mm per tooth, the calculated table feed is approximately 1,146 mm/min.

These follow the standard relationships n = 1,000Vc/(πD) and vf = n × z × fz. They are calculation examples, not validated settings for every housing. Tool-supplier recommendations, engagement, overhang, wall stiffness, and chip evacuation govern the final parameters.

Published Case: Datum Transfer and Inspection Access

WayKen describes a surgical robot transmission component with demanding runout requirements. Its published account reports a special fixture that limited transfer deviation to within 0.01 mm. It also describes inspection-access difficulties that required a smaller Renishaw STAR probe. The company reports successful delivery and customer testing.

This is a third-party case involving a transmission component, not a Dawang housing project. Its relevance to housings is the engineering lesson: establish the functional datum early, control fixture transfers, and confirm measurement access before machining. A feature that can be cut accurately still needs a credible acceptance method.

For joint housings, apply that lesson by measuring bores at multiple depths, verifying datum-related relationships, and evaluating critical form independently when required. Agree whether final acceptance occurs before or after surface treatment.

 Dawang Precision: Capacity Matched to the Manufacturing Route

Dawang Precision has 26 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers.

This equipment base provides options when evaluating complex robotic surgical arm housings. Efficient supply starts with selecting the appropriate process: turning for accessible cylindrical interfaces, milling for pockets and mounting features, and five-axis machining where access or setup reduction justifies it.

Our engineering team can review datum strategy, tool access, fixture requirements, finishing allowances, and inspection needs before quotation. Identifying these issues early helps reduce avoidable programming changes and assembly rework.

For procurement, the quotation should define material, quantity, drawing revision, finish, critical-feature inspection, and delivery milestones. Available capacity, fixture preparation, and outside finishing must be considered together when confirming lead time. Prototype learning should carry into the batch process through controlled manufacturing and inspection requirements.

 Send Your STEP and PDF Drawings for a Free DFM Review

Planning CNC machined surgical robot joint housings? Send your STEP model and PDF drawing to Dawang Precision’s engineering team for a free DFM assessment.

Include bearing specifications, material grade, surface treatment, critical GD&T, prototype and production quantities, and your target delivery date. We will respond within 24 hours with manufacturing feedback and the information needed to prepare a quotation.
