CNC Machining Surgical Drill Housings: Precision Bores, Lightweight Design and Reliable Assembly

A surgical drill housing positions bearings, supports the motor and transmission, accommodates controls, and defines the handpiece’s grip. Its quality depends on the relationship between these features. A correctly sized bearing bore can still cause assembly problems if its axis or shoulder position is wrong.

CNC machining surgical drill housings provides a practical route to functional prototypes and low-volume production. It allows engineers to manufacture defined interfaces in specified materials while retaining flexibility for design changes.

For engineers and procurement managers, the priorities are clear: control critical geometry, manage thin-wall distortion, verify finished dimensions, and establish a repeatable manufacturing process.

Industry Changes and Development Challenges.png

Industry Changes and Development Challenges

Compact Designs Create Competing Requirements

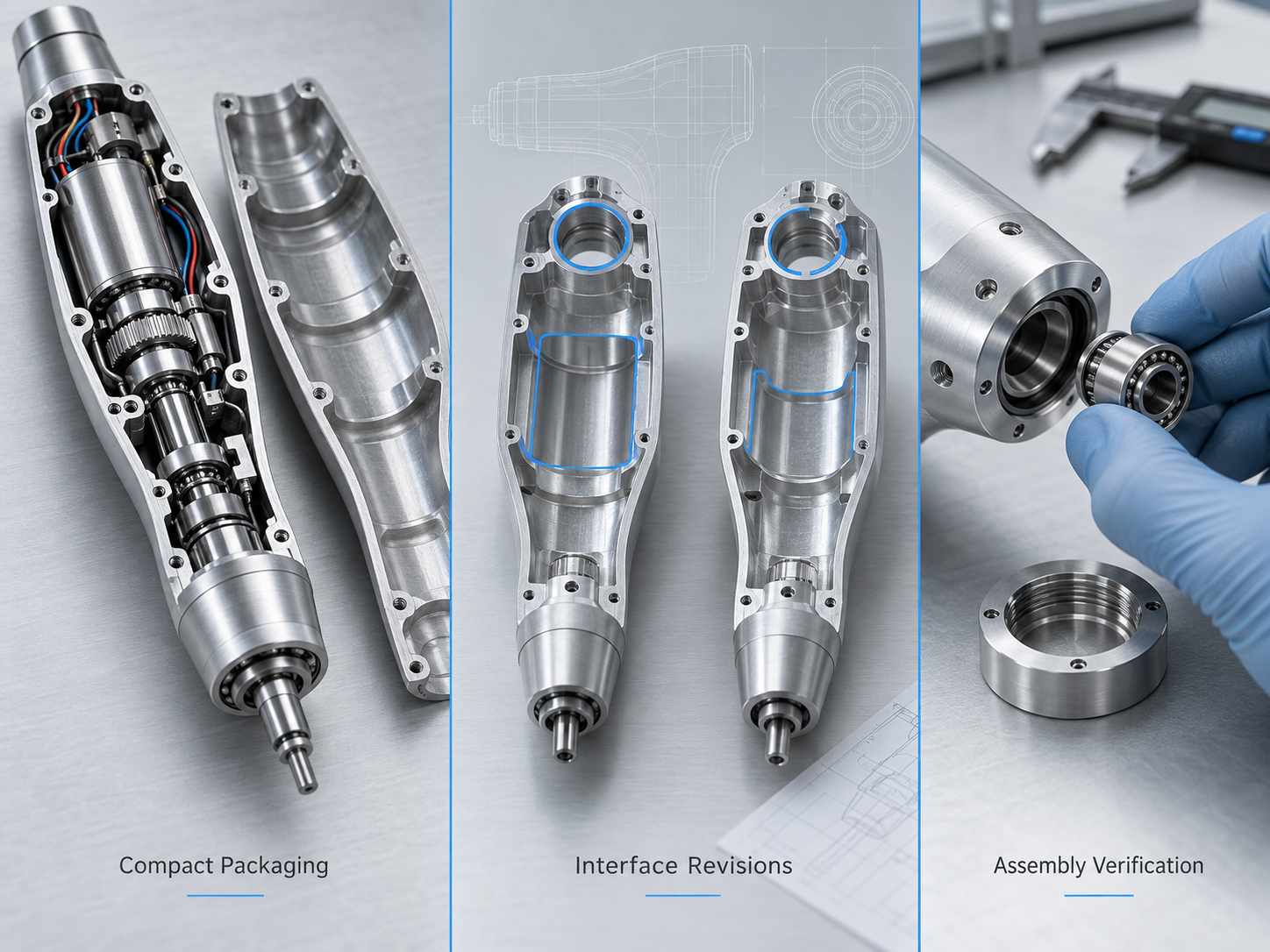

Battery-powered systems, smaller motors, and interchangeable attachments place more components inside limited space. Housing designers must balance internal clearance, stiffness, weight, and assembly access.

Enlarging a motor pocket may weaken the surrounding wall. Adding reinforcement increases weight. Moving a switch can affect wiring clearance or machining access. These decisions need to be evaluated together.

Design Changes Affect Multiple Interfaces

During development, changes to motors, bearings, or attachment mechanisms frequently affect the housing. A new bearing may require adjustments to its seat, shoulder, and retaining feature. A motor revision can change the pocket, mounting arrangement, and cable openings.

CNC machining supports these revisions through updated CAD models and programs. Tooling, fixtures, and inspection requirements still need review, but changes can often proceed without modifying a mold.

Prototypes Must Demonstrate Mechanical Fit

Appearance models cannot fully verify bearing installation, motor seating, or attachment engagement. Development teams need functional prototypes with representative assembly interfaces.

Procurement teams also need controlled drawing revisions, clear acceptance criteria, and appropriate inspection records. These requirements help prevent delays when parts arrive for assembly.

 Why CNC Machining Fits Surgical Drill Housings

 Why CNC Machining Fits Surgical Drill Housings

Control of Functional Features

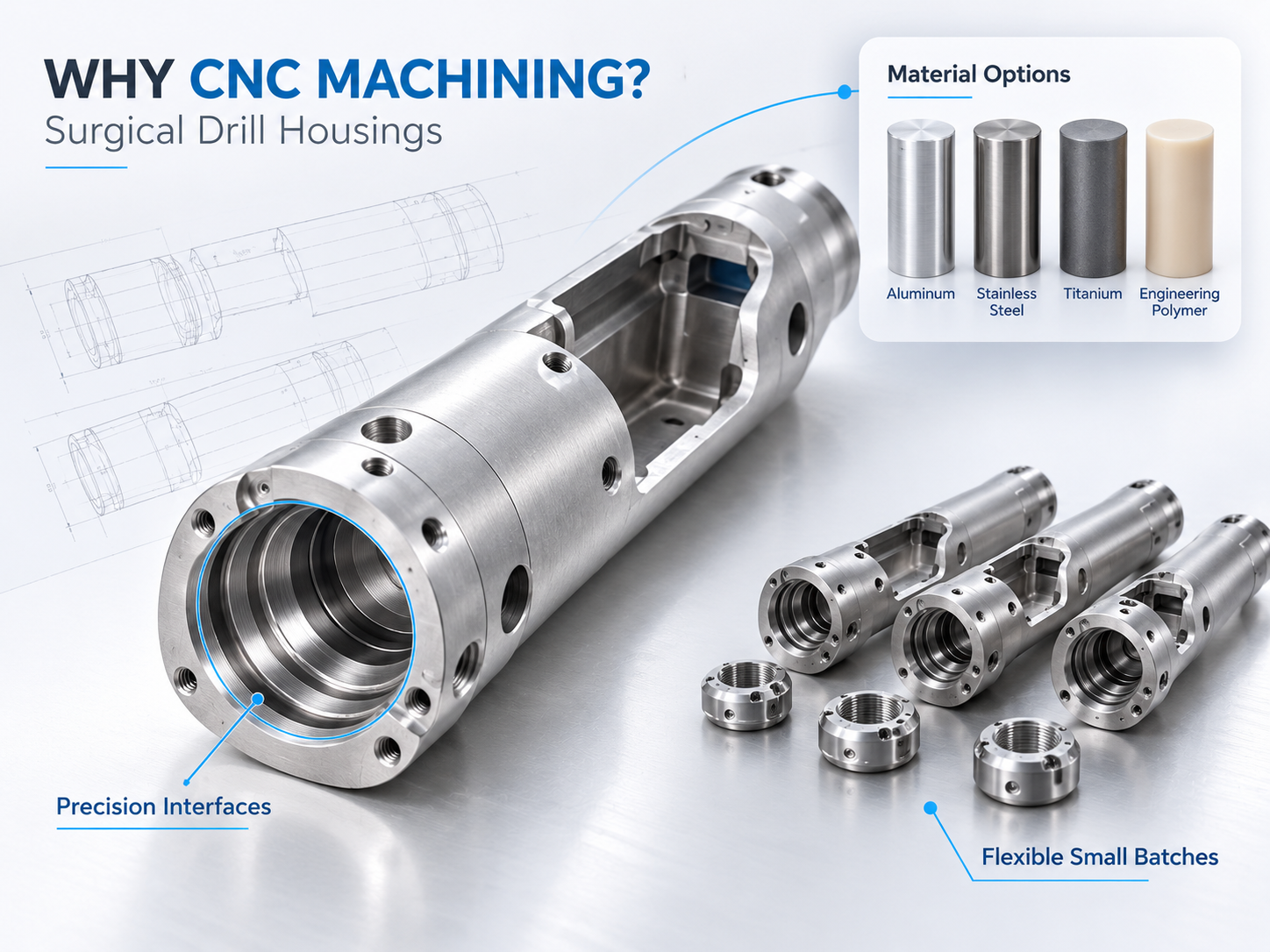

Surgical drill housing machining can produce precision bores, shoulders, internal pockets, threads, slots, and external contours within a coordinated process.

Features with tight relationships can be manufactured from common references where practical. This helps maintain alignment between bearing seats, motor locating surfaces, and attachment interfaces.

Specified Materials for Evaluation

CNC machining enables mechanical evaluation in available metal or engineering plastic stock.

Aluminum alloys may suit lightweight housings. Stainless steels can be considered for selected load-bearing sections and connection components. Titanium alloys or engineering polymers may address particular design requirements.

Material selection must account for surface treatment, cleaning agents, and intended reprocessing conditions. A material grade alone does not establish suitability for a reusable medical device.

Flexibility for Lower Volumes

Surgical drill housing prototyping allows internal and external geometry to change without dedicated molding tools.

For low volume medical device machining, CNC can reduce initial tooling investment. The economic decision should still consider setup, material removal, finishing, inspection, quantity, and design stability.

Typical CNC Machined Components

CNC machined surgical drill housings include the main body and several related components.

Component

Function

Critical features

Main handpiece housing

Supports components and defines the grip

Pockets, contours, mounting features

Motor housing

Locates and supports the motor

Locating diameters, shoulders, cable openings

Gearbox housing

Supports transmission components

Bearing seats, clearances, retaining features

Front attachment housing

Connects interchangeable attachments

Precision bores, locking slots, mating faces

Battery interface housing

Positions the battery connection

Locating features, latch interfaces, contact clearances

End cap or bearing carrier

Closes the assembly or positions bearings

Threads, bores, shoulders, mating surfaces

These components serve orthopedic drills, small bone systems, craniofacial handpieces, high-speed drills, and modular surgical power tools.

Tolerances should follow function. Applying tight requirements to every surface increases cost without necessarily improving assembly.

Machining Challenges That Affect Assembly

Bearing Bores and Axis Relationships

Precision bearing bore machining requires control of size, form, and location.

Two bores can meet their diameter tolerances while their axes remain incorrectly aligned. Shoulder spacing can also affect axial positioning and the intended bearing arrangement.

Drawings should define functional datums and appropriate geometric controls, such as position, runout, perpendicularity, or cylindricity.

Thin-Wall Distortion

Lightweight surgical instrument housings often combine deep cavities with thin walls. Clamping can temporarily deform the part, while material removal can release residual stress.

The housing may therefore change shape after unclamping. Reduced stiffness also increases the risk of vibration and surface waviness.

Wall thickness must be assessed together with wall height, unsupported span, curvature, and material.

Restricted Tool Access

Recessed shoulders, angled openings, narrow slots, and deep pockets can restrict tool access.

Long cutters may deflect, while small internal radii can require slower machining or additional operations. Early DFM review should identify features that unnecessarily complicate production.

Burrs and Finishing Allowances

Intersecting holes, threads, and narrow slots can retain burrs. These areas require accessible deburring methods and suitable inspection.

Surface treatment may also change bearing fits, locating diameters, and mating surfaces. Drawings should identify finished dimensions and any masking requirements.

Technical Solutions: An Illustrative Aluminum Housing

The following hypothetical 6061-T6 housing demonstrates a process that could be discussed during a Dawang Precision DFM review. These are proposed engineering targets, not completed-project results or manufacturing guarantees.

Define the Critical Requirements

The example includes a motor cavity, bearing seats, and a front attachment interface.

Item

Illustrative target

Overall dimensions

Approximately 145 × 42 × 38 mm

Main wall thickness

1.5–2.0 mm

Reinforced sections

2.5–3.0 mm

Bearing seat

Nominal Ø22 mm; 0.010 mm total size tolerance, with limits determined by fit

Specified bore-axis position

Ø0.02 mm relative to drawing datums

Mating-face perpendicularity

0.02 mm relative to the datum axis

Critical bore roughness

Ra ≤0.8 μm

End-cover face flatness

0.03 mm

Actual requirements depend on bearing selection, loads, material, retention method, and operating conditions.

Establish Assembly-Based Datums

The datum system should reflect how components locate in the finished assembly. For this example, references could include a functional bore, an axial face, and a clocking feature.

Critical bores and attachment interfaces should be finished from common references where practical. Turn-mill machining may suit rotational features, while five-axis machining can improve access to angled openings and complex contours.

The benefit of 5 axis surgical instrument machining depends on workholding, tool reach, and inspection planning.

Manage Stock Removal and Clamping

Rough machining should retain enough material to support vulnerable sections. Internal cavities and external contours can then be machined progressively.

Where necessary, the part should be released and checked for movement before finishing critical features. Shaped soft jaws or dedicated supports can distribute clamping forces and reduce localized distortion.

Develop Cutting Parameters Through Trials

Cutting speed, feed, engagement, tool length, and coolant delivery must match the actual setup.

For illustration, a 6 mm, three-flute cutter at 250 m/min gives approximately 13,300 rpm. At 0.03 mm per tooth, the calculated feed is approximately 1,200 mm/min.

These values illustrate calculation only. Actual parameters require tooling recommendations and trials. Thin-wall finishing may need reduced engagement or a different cutting sequence.

Verify Final Geometry and Fit

Bearing seats can be evaluated for fine boring or another suitable finishing process. Diameter should be checked at multiple positions and orientations; geometric requirements need appropriate measurement methods.

If anodizing is specified, confirm masking and whether dimensions apply before or after treatment.

With customer-supplied mating parts and agreed criteria, trial assembly can assess bearing installation, motor seating, cover closure, and attachment engagement. This helps establish the process before production.

Manufacturing Support from Dawang Precision

Dawang Precision brings 26 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers.

This equipment base provides options for matching surgical power tool housings to suitable machining routes. Early engineering review can identify tool-access restrictions, thin-wall risks, critical interfaces, and opportunities to reduce repeated setups.

Supply efficiency begins with clear requirements. Controlled drawing revisions, agreed finishing specifications, and defined inspection criteria help reduce clarification delays and unnecessary reprocessing.

For prototype and production enquiries, our review focuses on assembly-critical dimensions, workholding, finishing allowances, and required inspection records. Production schedules are assessed against the actual material, geometry, quantity, surface treatment, and documentation requirements.

Send Your Drawings for a Free DFM Review

Developing a surgical drill housing, motor enclosure, or gearbox housing?

Send your STEP models and PDF drawings to Dawang Precision’s engineering team for a free DFM assessment.

Include the material, quantity, surface treatment, critical tolerances, and intended service environment. Our team will review machining access, thin-wall features, precision interfaces, and manufacturing options—and respond within 24 hours.
