Minimally invasive surgical instrument machining involves manufacturing compact, high-precision components for endoscopy, laparoscopic tools, and other MIS devices. These parts often require tight functional tolerances, miniature holes and micro-precision slots, thin walls, burr-free edges, controlled surface finishes, and stringent cleanliness.
CNC milling, turning, 5-axis machining, micro-machining, EDM, grinding, and precision finishing can be combined to manufacture components such as custom endoscope components, surgical jaws, shafts, pivots, housings, and articulation mechanisms.
For medical OEMs, successful CNC production depends on more than machine accuracy. The manufacturing process must connect DFM, material selection, machining parameters, tolerance control, finishing, inspection, and cleanliness from prototype to production.
MIS instruments operate within extremely limited spaces. A relatively small component may contain multiple functional surfaces, miniature holes, narrow slots, thin sections, and moving interfaces.
Three manufacturing issues typically require the most attention.
Features such as pivot holes, precision bores, narrow slots, and articulation surfaces can directly affect assembly and mechanical movement.
As feature size decreases, tool runout, vibration, tool deflection, fixture accuracy, and thermal variation have a greater influence on dimensional stability.
Not every feature needs an ultra-tight tolerance. A better approach is to identify critical-to-function dimensions and apply tighter tolerances only where they affect alignment, motion, sealing, or assembly.
This reduces unnecessary machining and inspection costs while improving process stability.
Burrs around drilled holes, slots, intersections, and thin-wall features can interfere with assembly and functional movement.
For this reason, surgical component machining should treat deburring as part of the manufacturing process rather than a final cosmetic operation.
MIS components may contain angled surfaces, deep pockets, compound curves, and features distributed across multiple faces.
Depending on the geometry, 3-axis, 3+2, or 5-axis machining can be selected. The goal is to minimize unnecessary setups and maintain accurate relationships between critical features.

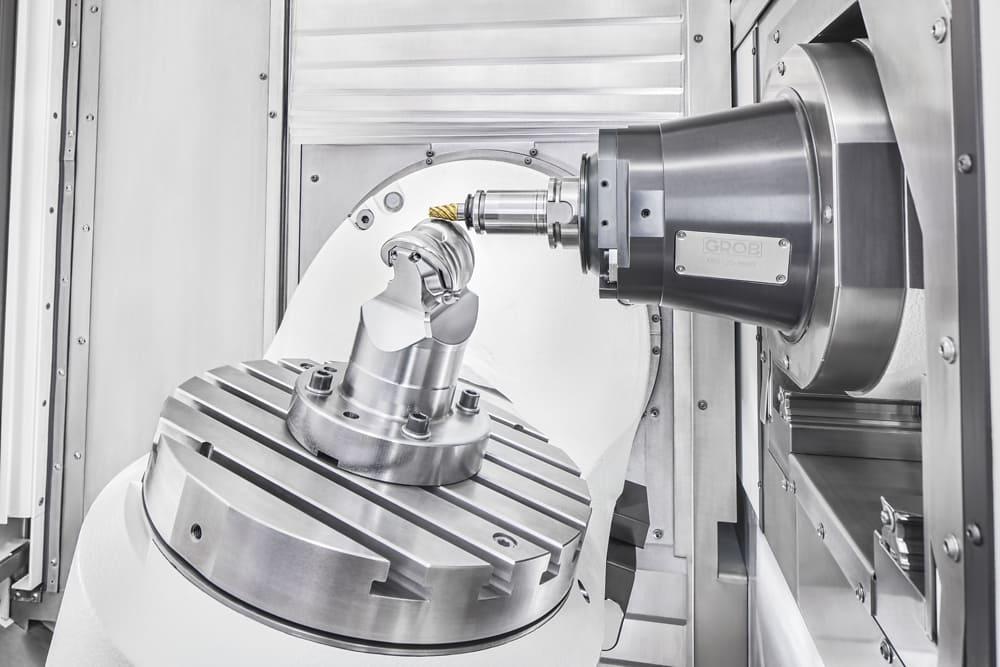

5-axis CNC machining is useful for components containing compound surfaces, angled features, or multiple critical features that would otherwise require several setups.
Reducing setups can minimize datum-transfer errors and improve positional consistency between related surfaces.
However, 5-axis machining should not be selected simply because it is more advanced. For straightforward components, 3-axis or 3+2 machining may provide a more economical solution.
The correct strategy is the one that provides the required accuracy with a stable and repeatable process.

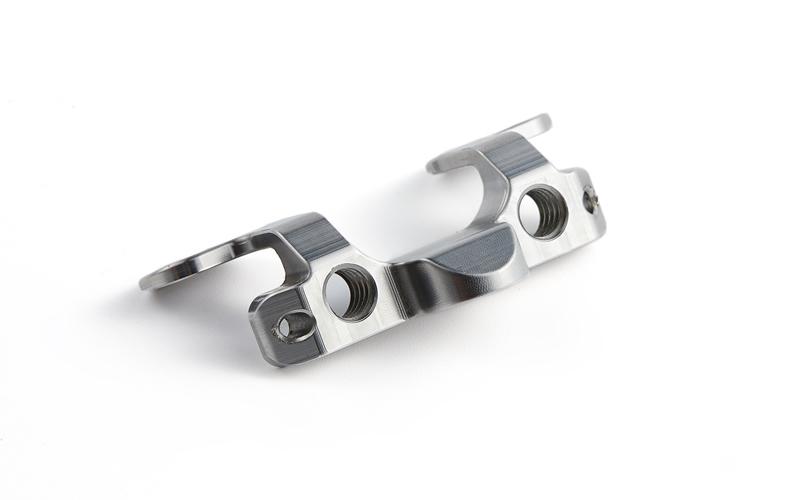

Producing micro-precision slots requires more than a small cutting tool.
Engineers must control:
· Tool diameter and runout
· Tool stick-out
· Spindle speed
· Feed rate and chip load
· Cutting depth
· Workholding rigidity
· Vibration
· Chip evacuation
A typical process sequence is:
Roughing → Semi-finishing → Precision finishing → Micro-feature machining → Deburring → Cleaning → Inspection

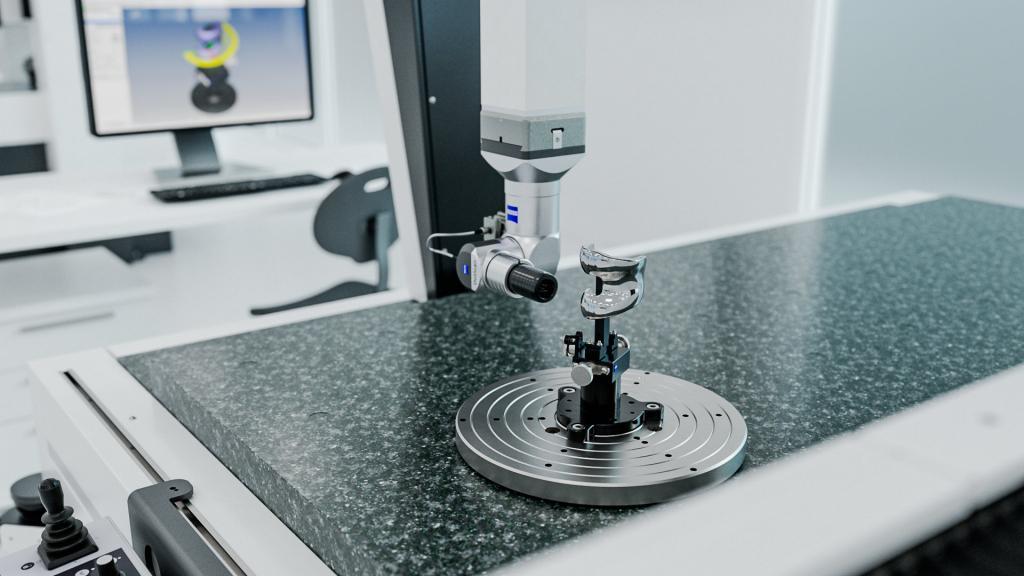

For very small features, optical measurement or other suitable high-resolution inspection methods may be required instead of conventional handheld measurement tools.
Material selection affects machinability, corrosion resistance, dimensional stability, surface treatment, and application suitability.
Material | Typical Use | Machining Considerations |
316L Stainless Steel | Surgical instruments, shafts, housings | Work hardening and heat control |
17-4 PH Stainless Steel | High-strength mechanisms | Material condition and heat treatment |
Titanium Alloys | Lightweight components | Low thermal conductivity and heat management |
PEEK | Low-friction or insulating parts | Thermal expansion and deformation |
Aluminum Alloys | Housings and structural components | Machinability and surface treatment |
The material grade should be defined according to the device specification and intended application. For medical projects, material certification and traceability may also be required.
A reliable medical CNC process begins with the engineering drawing.
Critical features may include:
· Shaft and bore fits
· Jaw alignment
· Pivot locations
· Articulation interfaces
· Sealing surfaces
· Concentricity
· Critical slot widths
These features should receive appropriate dimensional tolerances and GD&T controls.
When tolerances become especially demanding, secondary processes such as grinding, honing, lapping, or EDM may be considered instead of forcing every requirement into a single CNC operation.
Surface finish should also be specified according to function. Sliding interfaces, articulation surfaces, and components requiring intensive cleaning may require finer finishes than non-functional external surfaces.
Depending on the material and application, finishing may include CNC finishing, polishing, electropolishing, or passivation.
Medical CNC machining requires control of both dimensional accuracy and contamination.
Potential contamination sources include:
· Cutting fluids
· Metal chips
· Abrasive particles
· Tool residues
· Handling
· Packaging
This is particularly important for custom endoscope components and laparoscopic parts containing narrow internal passages or miniature features.
A controlled workflow should therefore integrate:
Machining → Deburring → Cleaning → Inspection → Controlled Handling → Packaging
Quality documentation may include material certificates, dimensional inspection reports, certificates of conformity, and other customer-specific records.
For medical OEMs, supplier evaluation should therefore consider not only CNC equipment, but also the manufacturer's quality system, traceability, inspection capability, and process controls.
Endoscopic systems require compact components that fit within highly constrained assemblies.
CNC machining can be used for:
· Precision housings
· Optical mounts
· Articulation components
· Miniature brackets
· Shafts and connectors
· Mechanical interfaces
Dimensional relationships between these features are often critical because limited installation space leaves little room for assembly variation.

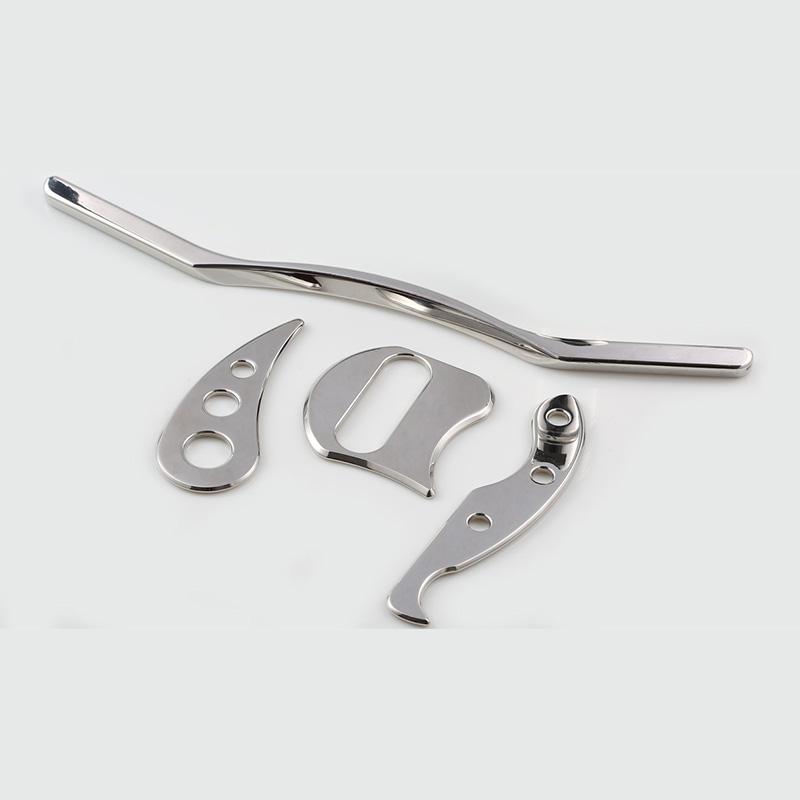

Laparoscopic instruments typically combine long, narrow structures with miniature mechanical mechanisms.
Typical CNC-machined components include:
· Surgical jaws
· Precision shafts
· Pivot components
· Handles
· Locking mechanisms
· Articulation components
· Grasper and scissor components
The objective is not simply to make the smallest possible part, but to achieve reliable movement, alignment, strength, and repeatable assembly.
A DFM review can identify manufacturing risks before CNC programming and production begin.
For MIS components, engineers should review:
Geometry: thin walls, deep cavities, undercuts, internal radii, tool accessibility, and micro-features.
Tolerances: critical dimensions, GD&T, datum strategy, tolerance stack-up, and inspection feasibility.
Material: grade, heat-treatment condition, machinability, certification, and traceability.
Finishing: surface roughness, deburring, polishing, passivation, and cleaning requirements.
Production: prototype quantity, low-volume requirements, batch consistency, inspection plans, and secondary operations.
A practical DFM review can prevent unnecessary tight tolerances and identify features that may require a different machining or finishing process.
CNC machining can support the development cycle from initial prototype to low-volume production:
STEP/PDF Drawing → DFM Review → Prototype → Inspection → Design Iteration → Production
This allows engineering teams to validate fit, function, surface quality, and manufacturability before increasing production volume.
For procurement teams, the same process also helps evaluate whether a supplier can provide consistent production rather than simply producing a one-off prototype.
If you are developing custom endoscope components, laparoscopic tools, surgical mechanisms, or other minimally invasive medical components, Dawang Precision can review your design before production.
Send our engineering team your STEP 3D model and/or PDF 2D drawing. We can review:
· Material selection
· Critical tolerances and GD&T
· Micro-precision slots and holes
· Tool accessibility
· Machining strategy
· Surface finish
· Deburring
· Inspection requirements
· Cleanliness considerations
Dawang Precision operates under an ISO 13485 medical device quality management system and provides precision CNC milling, turning, 5-axis machining, and inspection for medical components.
Our medical manufacturing approach emphasizes biocompatible material control, traceability, precision machining, and stringent cleanliness control.
Send your STEP/PDF drawings today for a free DFM evaluation. Our engineering team aims to respond within 24 hours.
It is the precision CNC manufacturing of components used in minimally invasive surgical instruments, including endoscopic and laparoscopic systems. Processes may include CNC milling, turning, 5-axis machining, micro-machining, EDM, and precision finishing.
Yes. CNC micro-machining can produce narrow slots and miniature features when tool runout, vibration, cutting parameters, workholding, and inspection are properly controlled.
Common options include 316L stainless steel, 17-4 PH stainless steel, titanium alloys, PEEK, and aluminum alloys. The appropriate material depends on the component's function and applicable specifications.
Yes. CNC machining can produce precision housings, optical mounts, articulation components, shafts, brackets, connectors, and other custom endoscope components.
What should I provide for a DFM review?
A STEP 3D model and PDF 2D drawing are preferred. Material, quantity, tolerances, surface finish, and special inspection or cleanliness requirements should also be provided when available.
