A CNC machined EV battery enclosure is a practical route for prototype, validation, and low-volume programs that need design flexibility, controlled sealing interfaces, and traceable dimensional inspection before committing to production tooling. CNC machining is especially valuable when a battery tray has thin walls, dense mounting patterns, cooling features, or frequent engineering changes.
At Dawang Precision, 26 years of machining experience and more than 400 advanced machine tools—including Röders and Mazak five-axis systems—support the manufacture of complex aluminum EV components from DFM review through first-article inspection.

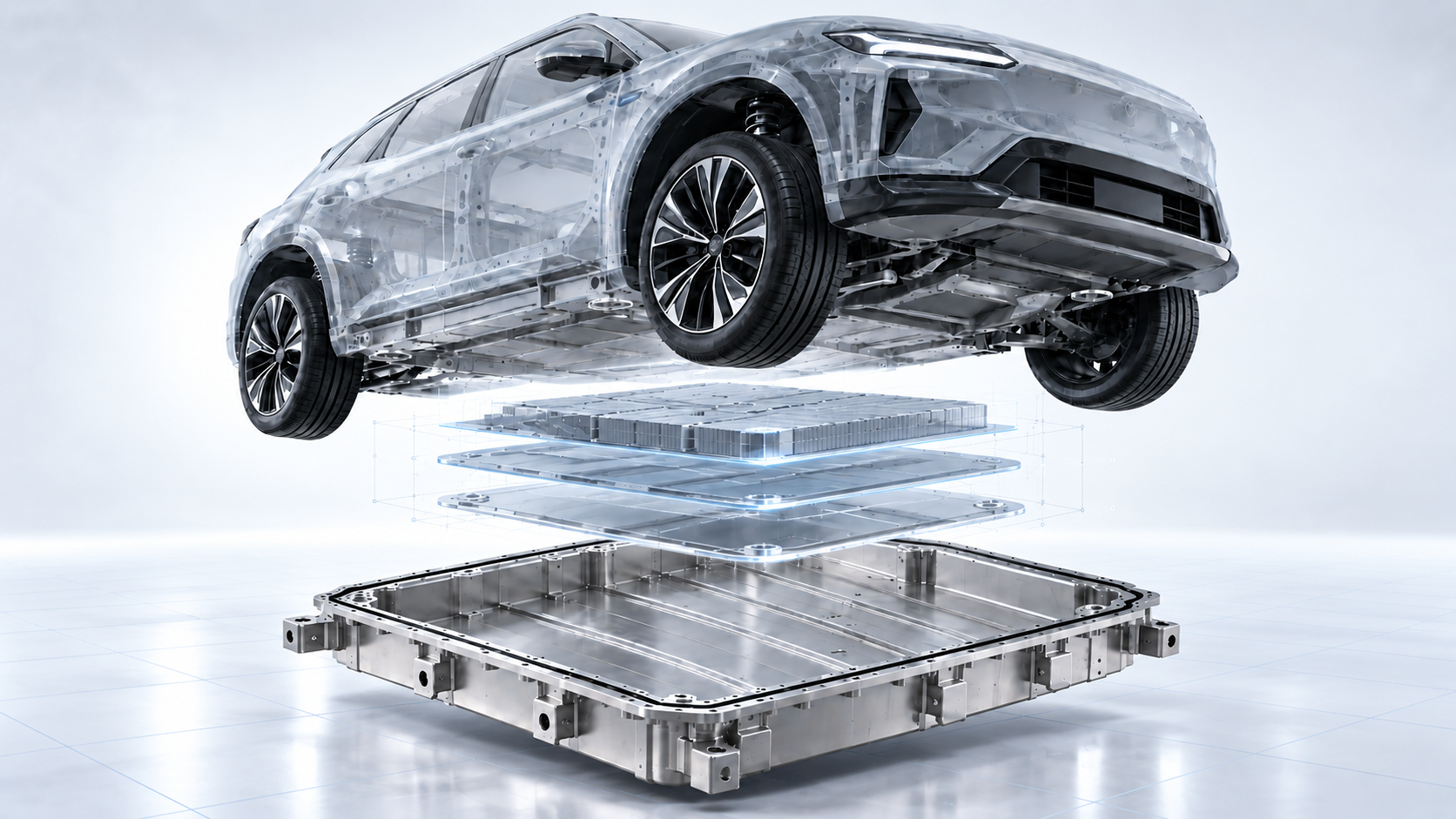

An EV battery enclosure is not simply a large aluminum box. It is a structural and functional interface between the battery modules, vehicle body, cooling system, high-voltage connections, and sealing system. Engineering teams need it to protect cells, control water and dust ingress, manage thermal architecture, and assemble repeatably without adding unnecessary mass.
These requirements create a difficult development window. The enclosure design often continues to evolve after the first prototype is built: module locations may move, connector cutouts may change, a rib may need reinforcement, or the sealing strategy may be revised after vehicle-level testing. Tooling-first processes can be efficient once geometry is stable, but every early design change can introduce cost and delay.
For this reason, a CNC machined EV battery enclosure is commonly selected during EV development and limited production. It lets product teams manufacture directly from the current CAD model, revise the design without reworking a casting or stamping tool, and inspect the exact datum relationships that control vehicle assembly. The same advantages matter to an aluminum car parts manufacturer supporting OEM, Tier 1, motorsport, and specialized vehicle programs.
Program requirement | Recommended route | Why it fits |
Functional prototype or 5–10 part validation batch | CNC machining | No hard tooling; dimensions can be checked and revised quickly. |
Repeated changes to ribs, ports, or module interfaces | CNC machining | CAD changes are implemented through the machining program and fixture strategy. |
Complex sealing flanges and multi-face features | Five-axis CNC machining | Fewer re-clamps help protect datum relationships. |
Stable, high-volume geometry | Casting, extrusion, or stamping may be evaluated | Dedicated tooling can lower unit cost after design validation. |
CNC is not intended to replace every mass-production method. Its value is to reduce engineering risk before that tooling decision, and to provide a controlled route for low-volume custom automotive aluminum parts.

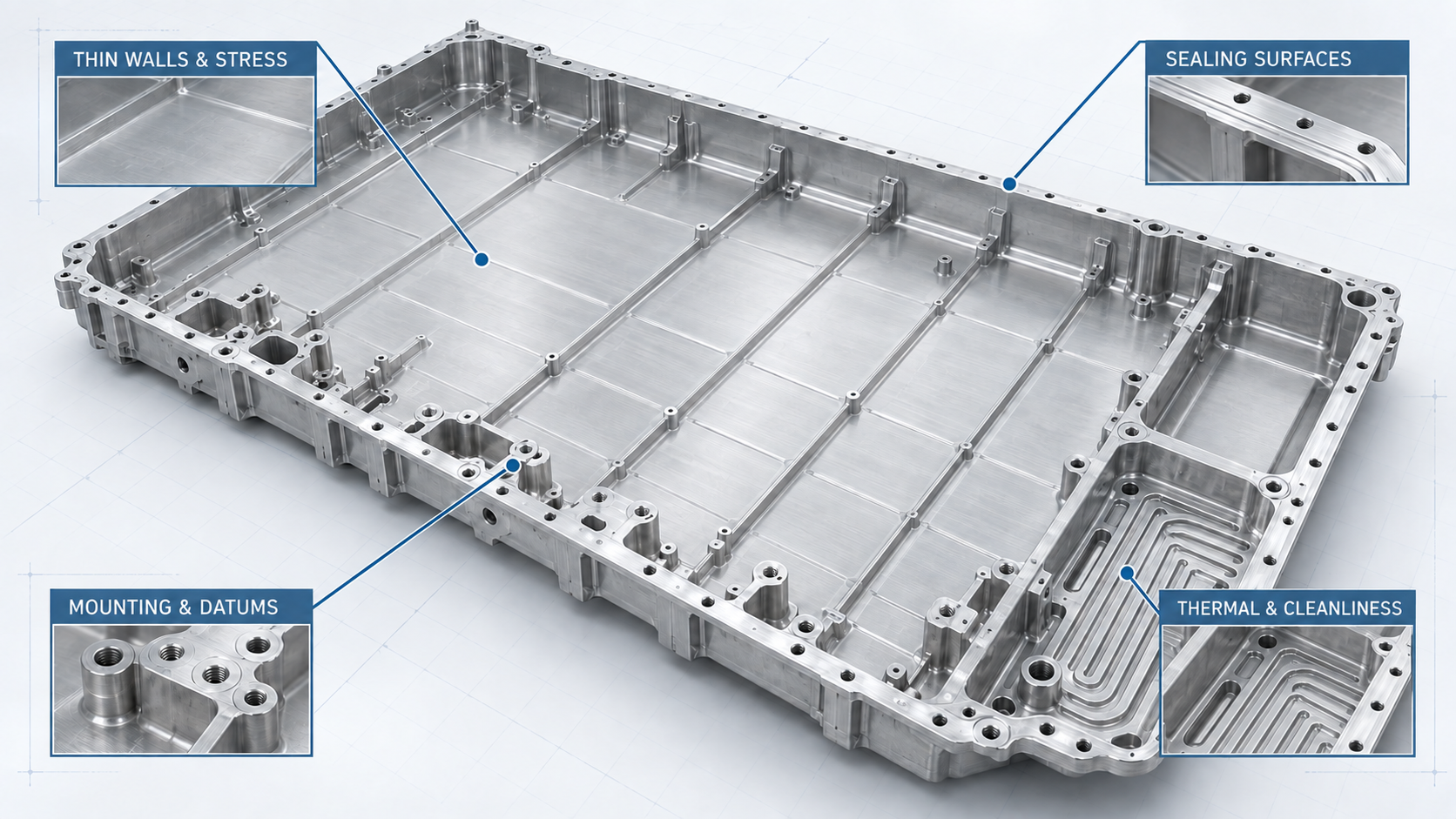

Large battery trays frequently start from a thick aluminum plate or near-net blank, yet the finished floor may be only a few millimeters thick. Removing substantial material can release residual stress. If the part is clamped too aggressively or machined in the wrong sequence, the base can distort after unclamping. That affects module fit, sealing compression, and vehicle mounting.
The cover-to-tray interface needs more than an attractive machined finish. The sealing flange must be controlled relative to the functional datums, with consistent flatness and a clean gasket land. Burrs, local deformation, tool marks, and corner transitions can all compromise sealing validation.
A tray can contain hundreds of drilled or threaded features for modules, busbars, brackets, covers, and body attachment points. The critical issue is not the accuracy of one hole in isolation; it is the positional relationship among holes, sealing surfaces, and the vehicle mounting datum scheme. GD&T must therefore be planned together with the workholding and inspection strategy.
Where coolant passages, machined pockets, or thermal interfaces are included, the design must account for tool access, chip evacuation, deburring, and inspection. Sharp internal corners, inaccessible channels, and insufficient tool clearance can add avoidable lead time or create features that are difficult to validate.
Before programming, the engineering team should identify the functional datums: typically vehicle mounting planes, key module interfaces, and the perimeter sealing surface. A DFM review checks tool access, corner radii, minimum wall thickness, tolerance stack-up, thread specifications, inspection access, and whether a feature is genuinely critical to function.
This step is where many cost and risk reductions occur. For example, adjusting an inaccessible internal corner radius or separating a cosmetic tolerance from a functional tolerance can simplify the process without weakening the design intent.
For a plate-machined tray, material selection, grain direction where relevant, stock allowance, and fixture support should be decided together. Dawang's engineers can use a custom vacuum fixture with supplemental mechanical supports to spread holding force across the base. Temporary support zones are retained until late in the cycle rather than allowing a thin floor to move prematurely.
Instead of removing most material from one side at once, staged roughing distributes material removal across both sides of the blank. This controlled sequence helps release residual stress progressively. Rest machining is then used to clear remaining pockets and rib areas without overloading thin walls.
Röders and Mazak five-axis machines are well suited to the multiple orientations found in EV enclosures: sealing flanges, connector openings, side interfaces, deep pockets, and angled mounting features. Reducing re-clamping is important because each additional setup can introduce datum transfer error and handling risk.
After the main machining stages, the component is released or lightly supported as appropriate before finishing the sealing flange, module location features, and other critical interfaces. Low-load finishing passes and controlled toolpaths help protect surface quality and reduce the chance of local deflection.
Precision automotive machining includes the finishing work that is easy to underestimate: thread-entry cleanup, edge breaks on sealing grooves, chip removal from pockets, and inspection-ready cleaning. These details should be defined on the drawing or in the quality plan rather than left to assumption.
For a battery enclosure, a supplier's quality claim should be supported by a defined measurement plan—not only a general statement about machine capability. The following evidence is useful during supplier evaluation and first-article approval:
Critical characteristic | Typical verification method | Why it matters |
Perimeter sealing-plane flatness | CMM scan or mapped measurement against specified datums | Supports consistent gasket compression and sealing tests. |
Module and vehicle mounting-hole positions | CMM measurement against the approved datum reference frame | Prevents cumulative assembly mismatch. |
Thin-wall thickness and key rib sections | Thickness measurement and section-specific inspection | Confirms stiffness and weight targets are being machined as designed. |
Cooling-channel geometry, where applicable | CMM, depth measurement, and visual/cleanliness checks | Helps verify thermal-interface fit and feature accessibility. |
Threads, burrs, and surface condition | Go/no-go gauges, visual inspection, and documented workmanship checks | Reduces assembly damage and loose contamination risk. |
The first-article package should tie results to the drawing revision and critical datums. Material certification, programmed inspection points, CMM reports, and photos of relevant fixture or setup conditions can give both hardware engineers and purchasing managers clearer evidence than a generic tolerance statement.
Program brief. A compact EV platform requires a CNC-machined aluminum battery tray for early vehicle and battery-module integration. The part combines a thin floor, internal stiffening ribs, a perimeter sealing flange, and interfaces for both the vehicle body and battery modules.
Material and representative geometry. The tray is machined from 6061-T6 aluminum. Its overall envelope is approximately 1,960 × 1,450 × 180 mm. The nominal floor thickness is 3.0 mm, while rib and flange sections range from 4.0–6.0 mm. The design includes 168 drilled or threaded mounting features and 32 battery-module locating interfaces.
Engineering targets. The perimeter sealing plane is specified at ≤0.20 mm flatness. Critical installation-hole location is controlled to ±0.05 mm relative to the primary datum system. If cooling channels are integrated, channel depth is controlled to ±0.10 mm. Sealing grooves and thread entrances require complete burr removal.
Main risks identified in DFM. The team identifies three linked risks: residual-stress release after deep pocketing, local distortion from conventional clamping, and tolerance accumulation between module interfaces, the seal flange, and body mounting points. The prototype program must also leave room for changes to ribs, connector openings, and mounting locations after initial assembly feedback.
Proposed manufacturing route. The process uses a clear 3-2-1 datum strategy, staged symmetric roughing on both faces, and a vacuum fixture with additional supports beneath the thin base. Temporary supports remain until final machining. Five-axis machining completes multi-face features and connector openings with fewer setups; after controlled release from the primary fixture, the seal flange and key interfaces receive low-load finishing passes.
Validation plan and development value. A 5–10 part prototype batch is inspected with CMM checks of the sealing plane, module points, body mounts, and major profiles. Wall thickness, threads, burr condition, and material documentation are reviewed in parallel. This data-driven loop enables vehicle-level assembly and sealing validation before investment in die-casting or stamping tools, while exposing any needed changes to wall thickness, rib layout, tolerance allocation, sealing compression, or installation interfaces.
The same process thinking applies to motor housings, end plates, inverter housings, structural covers, and other CNC machined aluminum automotive parts. Motor housings may require concentric bearing interfaces and thermal-management surfaces. End plates can require parallelism, sealing lands, and accurate fastener patterns. In each case, the most effective route starts with functional datums and a realistic inspection plan—not merely a machine-time estimate.
For programs that need an aluminum car parts manufacturer capable of responding to changing designs, the ability to combine five-axis machining, stable workholding, and documented verification is often more valuable than quoting the tightest nominal tolerance alone.
Yes. It is particularly suitable for prototypes, engineering-validation builds, pilot lots, and other low-volume programs where avoiding hard tooling and accommodating design changes have high value.
6061-T6 is a common choice because it offers a useful balance of machinability, corrosion resistance, and mechanical performance. The final alloy should be selected against the vehicle's structural, corrosion, joining, and thermal requirements.
It can support controlled sealing interfaces when datum selection, workholding, finishing sequence, burr control, and CMM verification are planned together. Final sealing performance still needs validation at assembly level.
Consider tooling-based processes when geometry has stabilized, annual volumes justify the tooling investment, and prototype validation has confirmed the function of the sealing, mounting, and structural interfaces.
Provide the STEP model and PDF drawing, material and temper, drawing revision, critical GD&T, surface and deburring requirements, expected quantities, and any inspection or material-documentation requirements.
If you are developing a CNC machined EV battery enclosure, battery tray, motor housing, or other custom automotive aluminum parts, send your STEP model and PDF drawing to the Dawang Precision engineering team. We will provide a free DFM review covering manufacturability, datum and fixture considerations, material-removal risk, and inspection approach—and respond within 24 hours.
