Views: 0 Author: Linda Publish Time: 2026-10-22 Origin: Site

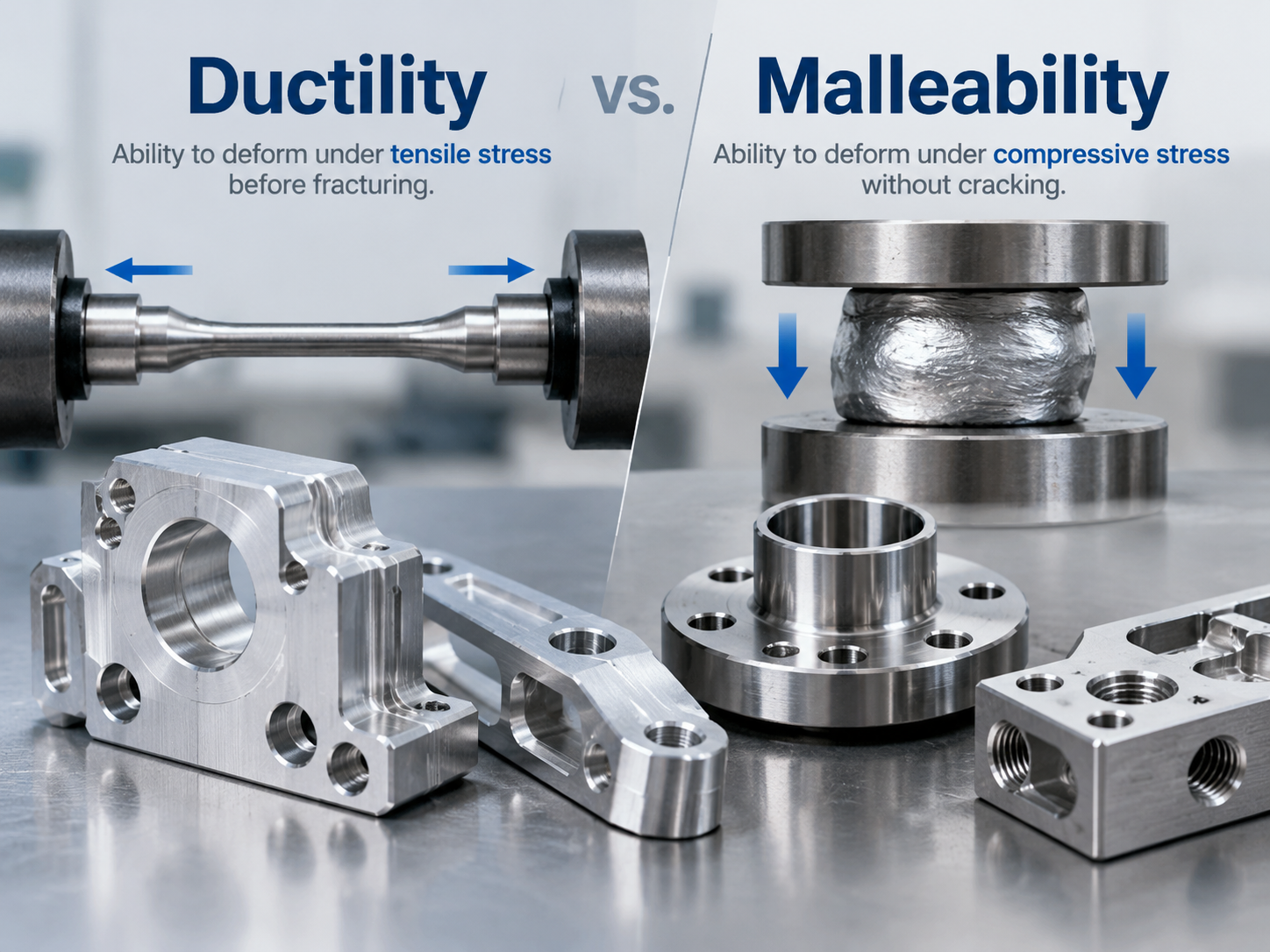

Ductility is a material’s ability to undergo plastic deformation under tensile stress before fracturing. Malleability is its ability to deform plastically under compressive stress without cracking.
In CNC machining, material ductility influences deformation behavior, chip formation, and burr formation, while malleability is more relevant to forming operations. Neither property alone determines machinability or part quality. Engineers must also consider strength, toughness, hardness, material condition, and dimensional stability when selecting CNC machining materials.
For precision parts, the right material must withstand operating loads while maintaining critical dimensions, reliable assembly, and consistent manufacturing quality.
Material ductility describes how much permanent deformation a material can withstand under tension before fracture. Engineers commonly evaluate it using elongation at break and reduction of area from tensile testing.
Higher ductility can help a component accommodate localized strain, but it does not necessarily mean higher strength or better machining performance.
During CNC machining, ductile metals may produce continuous chips, built-up edges, and burrs around holes or slots. These effects depend on alloy composition, material condition, tool geometry, and cutting parameters.
For precision components, engineers should evaluate ductility alongside the part’s geometry, service loads, and dimensional requirements.
Malleability describes a material’s ability to undergo plastic deformation under compression without cracking. It is particularly important in forging, rolling, and stamping. For components machined directly from solid stock, strength, machinability, and dimensional stability are often more important.
Toughness describes a material’s ability to absorb energy before fracturing. It is especially relevant to components exposed to impact, vibration, or repeated loading.
Property | Definition | Importance in CNC parts |
Ductility | Plastic deformation under tension | Overload behavior and deformation |
Malleability | Plastic deformation under compression | Subsequent forming operations |
Toughness | Energy absorbed before fracture | Impact and crack resistance |
Strength | Resistance to yielding or failure | Load-bearing performance |
Hardness | Resistance to localized indentation | Wear resistance and tool wear |
Machinability | Ease of machining to required quality | Tool life, burrs, finish, and cost |
These properties are related but not interchangeable. A hard material is not necessarily tough, and a ductile material may still deform permanently under excessive loads.
Ductile metals can deform around cutting edges, producing burrs at drilled holes, milled slots, and component edges. Sharp tooling, suitable cutting parameters, effective chip evacuation, and controlled deburring help improve edge quality.
Thin walls and narrow slots can lose stiffness as material is removed. Cutting forces, residual stress, and excessive clamping pressure may cause deformation during machining or springback after unclamping.
Balanced material removal, appropriate workholding, and separate finishing passes help maintain dimensional stability.
Precision bores, mounting holes, and threaded features must maintain their specified relationships. Tool deflection and workpiece movement can affect bore diameter, hole position, and alignment.
A clear datum strategy and appropriate GD&T requirements help ensure that critical features meet assembly and functional needs.
Material selection should consider operating loads, wear, corrosion, weight, machining difficulty, and required tolerances—not ductility alone.
Material | Key characteristics | Typical applications |
Aluminum 6061-T6 | Lightweight, machinable, moderate strength | Automation brackets and housings |
Aluminum 7075-T6 | High strength-to-weight ratio | Structural and robotic components |
Stainless steel 304 | Corrosion resistance and ductility | General industrial hardware |
Stainless steel 17-4 PH | Heat-treatment-dependent strength and hardness | Loaded precision components |
Alloy steel 4140 | Strength and toughness depend on heat treatment | Clamping blocks and mechanical parts |
Brass | Generally good machinability | Fittings and precision hardware |
The final choice depends on the specific grade and material condition. For example, aluminum may reduce moving mass in robotics, while hardened alloy steel may better suit a clamp exposed to frequent loading and wear.
Engineers should confirm the required strength, toughness, hardness, corrosion resistance, and allowable deformation before approving a material.

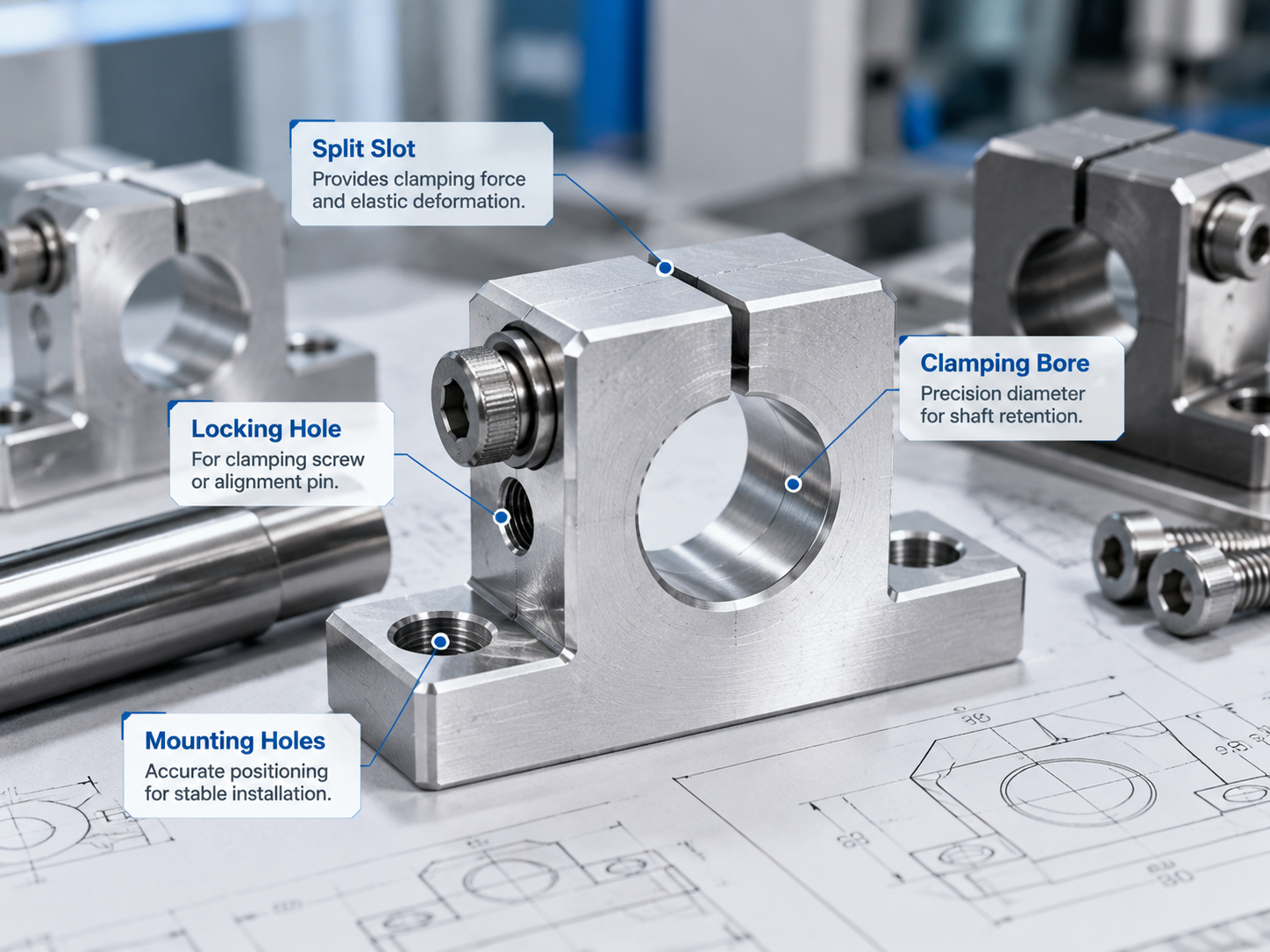

A split clamp block is used in applications such as industrial automation fixtures, shaft positioning, and equipment mounting. Its key features typically include a clamping bore, split slot, locking hole, and mounting holes.
The following analysis examines the engineering considerations associated with this published product design. It is not presented as a component manufactured by Dawang Precision.
The clamp may experience screw-generated clamping force, axial or lateral loads from the retained shaft, and repeated loading during operation.
It needs sufficient elastic compliance to grip the shaft without excessive permanent deformation. Material selection should therefore balance yield strength, ductility, toughness, and wear resistance.
The split slot reduces local stiffness, making the component more sensitive to cutting forces and workholding pressure. Poor machining sequences may cause slot-width variation or bore distortion.
Misalignment between the bore, locking hole, and mounting holes can also affect clamping consistency and assembly.
A stable fixture, balanced roughing, controlled material removal, and precision finishing help preserve these functional relationships.
Different materials suit different operating conditions:
· Aluminum 6061-T6: Suitable for lightweight applications when strength, thread performance, and wear requirements are satisfied.
· Stainless steel: Useful where corrosion resistance is important, subject to the selected grade and load requirements.
· Heat-treated alloy steel: Worth considering for higher loads or repeated clamping where strength and wear resistance are priorities.
The material must satisfy the complete performance requirement. Greater ductility does not automatically provide higher load capacity, better fatigue resistance, or longer service life.
The drawing should specify the clamping-bore diameter and fit, slot width, locking-hole position, mounting-hole locations, and relevant mounting-face tolerances.
Material grade and heat-treatment condition should also be documented.
Inspection may include bore gauges, micrometers, and CMM measurement for hole positions and geometric relationships. Critical dimensions should be checked after unclamping, with suitable stabilization where necessary, to identify springback or residual-stress effects.
For high-cycle applications, dimensional inspection may need to be supplemented by clamping-force, retention, or durability testing.
Industrial Automation: Clamp blocks, positioning fixtures, guide-rod supports, and sensor mounts require repeatable positioning and reliable retention.
Automotive: Brackets, transmission interfaces, and sensor supports must withstand application-specific loads, vibration, and environmental exposure.
Robotics: Joint housings, actuator mounts, and shaft supports require a balance of low weight, stiffness, wear resistance, and precise alignment.
Across these applications, successful material selection begins with functional requirements and continues through process planning and inspection.
Dawang Precision brings 27 years of manufacturing experience and more than 400 advanced machines, including Röders and Mazak five-axis machining centers, to custom precision-part projects.
Our engineering approach considers material suitability, workholding, machining sequence, functional tolerances, and inspection requirements. Five-axis machining can reduce setups for complex components where multi-face access and datum consistency are important.
A DFM review helps identify potential machining difficulties, unnecessary tolerances, and design changes that may improve manufacturability without compromising function.
Ductility describes plastic deformation under tension, while malleability describes plastic deformation under compression without cracking.
No. Machinability also depends on alloy composition, hardness, tool geometry, cutting parameters, and chip formation.
Toughness is a material’s ability to absorb energy before fracture. The relevant measurement depends on the test method and application.
Aluminum, stainless steel, and alloy steel may be suitable depending on clamping loads, wear, corrosion, and dimensional requirements.
Appropriate workholding, balanced roughing, controlled cutting forces, and finishing after rough machining help improve stability.
Bore diameter and fit, slot width, locking-hole alignment, mounting-hole positions, and functional face geometry are common priorities.
No. It can reduce setups and help maintain feature relationships, but accuracy also depends on tooling, fixturing, machine condition, process control, and inspection.
Material ductility and malleability describe different deformation behaviors, but neither property alone determines CNC part quality. Strength, toughness, hardness, machinability, material condition, and tolerance requirements must be evaluated together.
