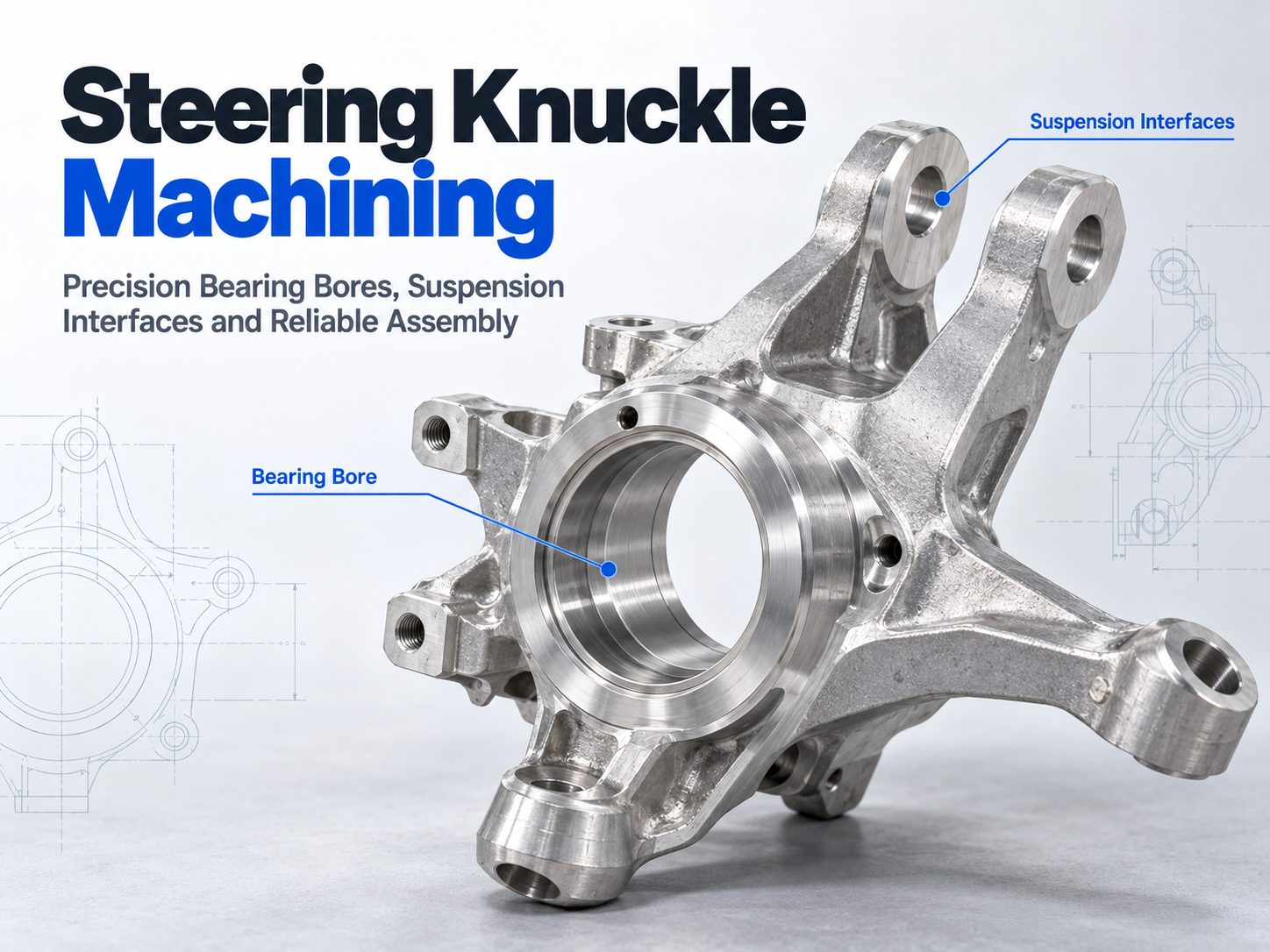

Steering Knuckle Machining: Precision Bearing Bores, Suspension Interfaces And Reliable Assembly

A steering knuckle can meet its individual dimensions and still create assembly problems. A hub mounting face may sit at the wrong angle, a ball-joint connection may be incorrectly positioned, or a caliper mount may shift the brake assembly relative to the disc.

Steering knuckle machining requires coordinated control of the interfaces connecting the wheel, suspension, steering, and brake systems. The objective is to produce accurate features within a datum system that reflects how the component functions.

For engineers developing prototypes and procurement teams sourcing small production batches, the manufacturing plan should define material condition, machining references, inspection methods, and acceptance criteria before cutting begins.

Quick Answer: Steering knuckle machining uses CNC milling, boring, drilling, and related operations to produce bearing or hub interfaces, suspension connections, steering attachments, and brake mounting features. Critical requirements include feature size, geometric accuracy, and position relative to assembly datums. The appropriate process depends on the approved design, material, and production quantity.

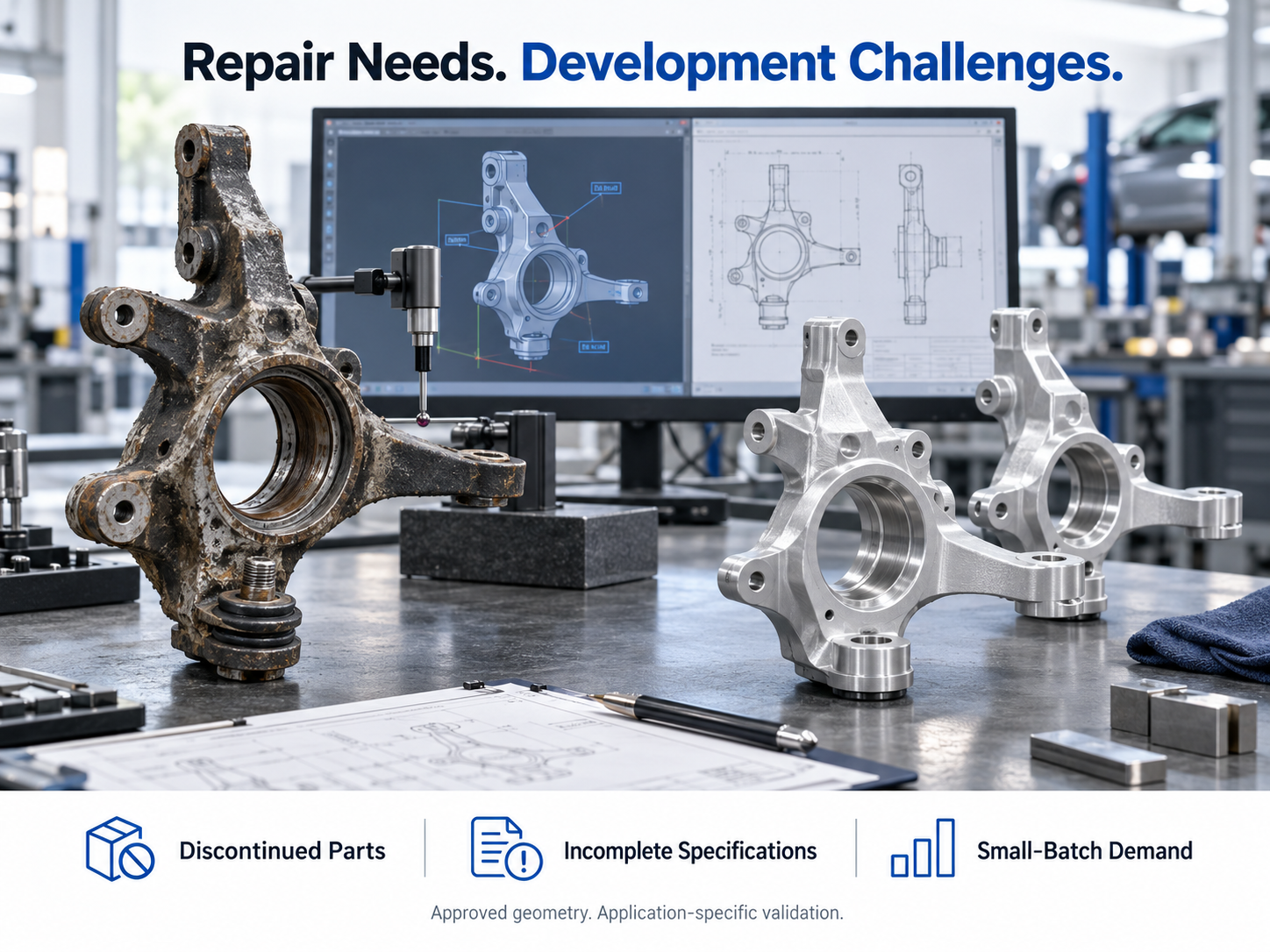

Industry Changes and Pain Points in Automotive Repair and Development

Automotive repair and aftermarket businesses encounter discontinued components, modified suspensions, and specialist vehicles that cannot always use standard replacement parts. Development teams face a related challenge: obtaining functional components before casting or forging tooling is available.

A restoration project may need a replacement for an unavailable knuckle. A suspension engineering team may require four prototypes to evaluate revised hub and brake interfaces. An aftermarket supplier may need a limited batch before committing to production tooling.

These projects share several difficulties.

Original technical information may be incomplete. A used component can provide reference geometry, but bearing-seat wear, corrosion, or collision damage may obscure the intended dimensions. Scanning captures shape; it does not establish original tolerances or material properties.

Small quantities also limit manufacturing options. Dedicated tooling may be difficult to justify, while interfaces can continue changing during development.

CNC machining supports production directly from approved models and drawings, making design revisions and small batches more practical. However, a replacement or modified knuckle still requires an engineering specification and validation appropriate to its intended use.

Why CNC Machining Fits Steering Knuckle Projects

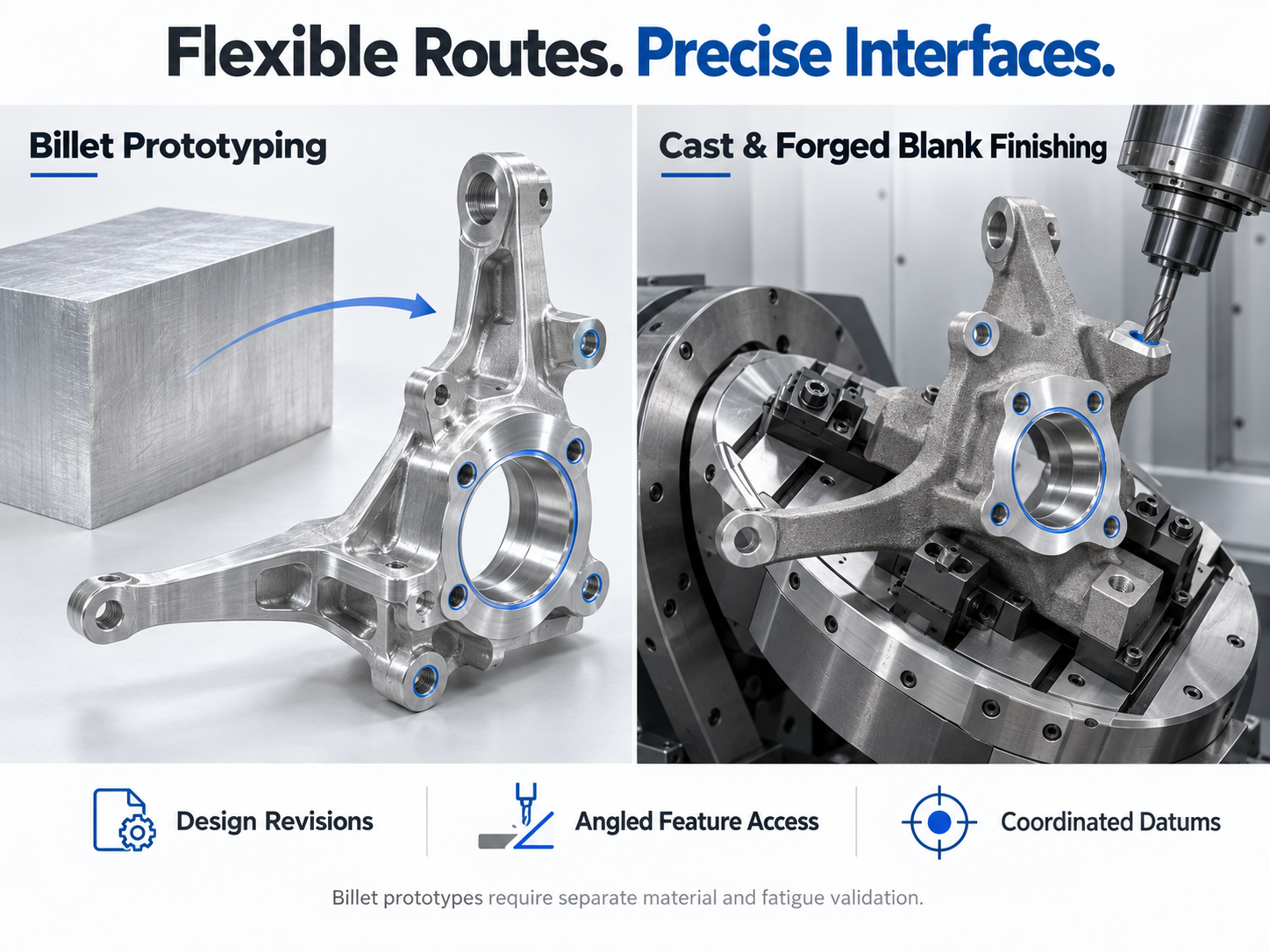

CNC steering knuckle machining supports complete billet prototypes and the finish machining of cast or forged blanks.

Billet machining allows engineers to evaluate mounting geometry, clearances, and assembly access before production tooling is ready. Changes to sensor locations, brake interfaces, or suspension connections can be incorporated through revised CAD models and machining programs.

For mature designs, near-net-shape blanks generally reduce material removal. Machining can then concentrate on the interfaces that require controlled dimensions and surface conditions.

Five-axis machining can improve access to angled features and permit shorter tools where geometry allows. Finishing related features in fewer setups may also reduce datum-transfer error.

The manufacturing route must remain consistent with the development objective. A billet prototype can support packaging and assembly evaluation, but it does not automatically reproduce the properties or fatigue behavior of a production casting or forging.

Typical Components and Functional Interfaces

Precision steering knuckle manufacturing serves passenger vehicles, electric vehicles, commercial vehicles, motorsport, and custom suspension development.

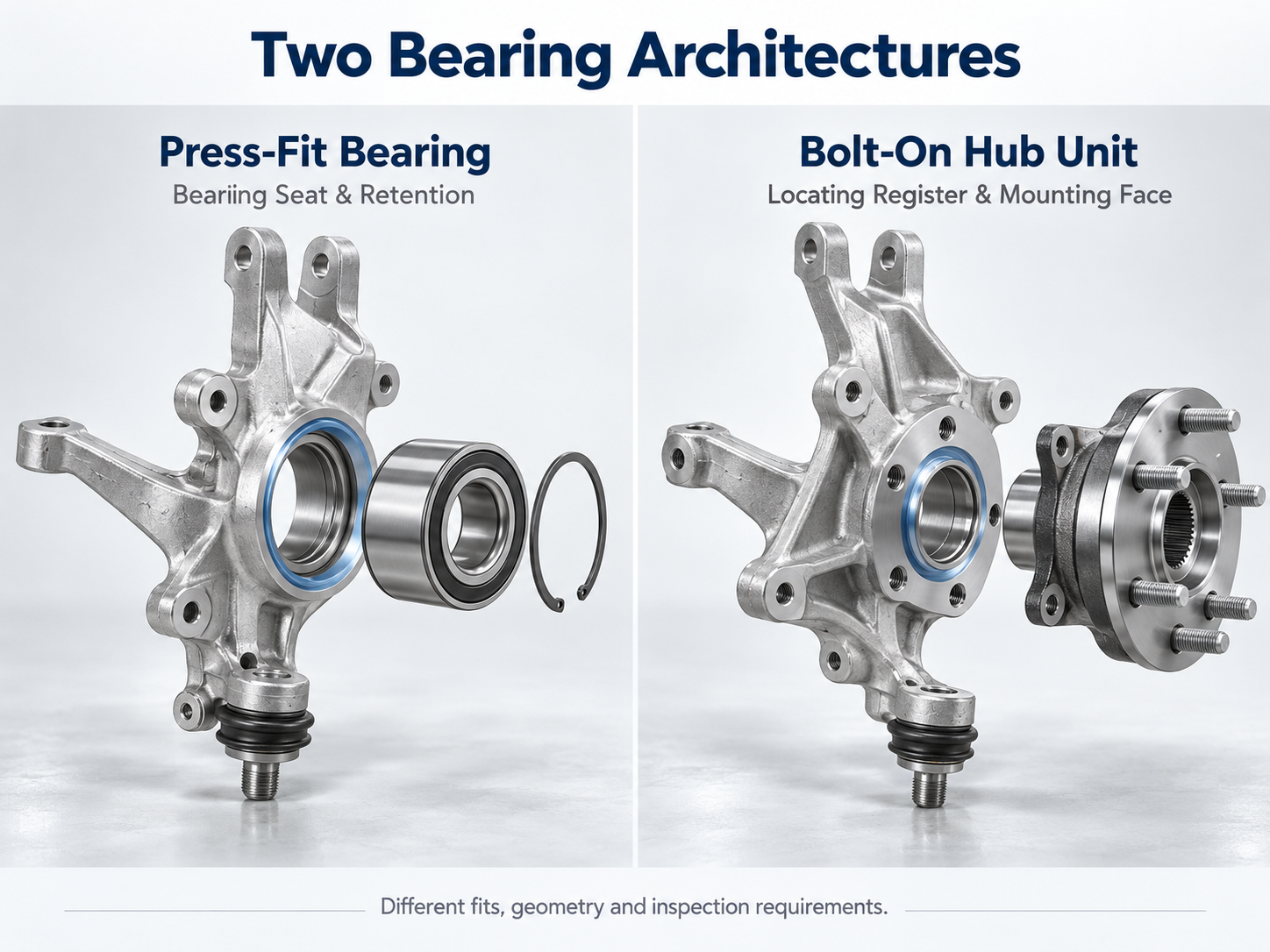

The most important distinction is often the wheel-bearing architecture. Some knuckles directly retain a press-fit bearing. Others locate a bolt-on hub unit. These arrangements require different fits, geometries, and inspection methods.

Defining these interfaces early helps prevent inappropriate tolerances from being carried over between different designs.

Machining Challenges That Affect Assembly

Bearing-seat diameter is only one part of the requirement. Roundness, cylindricity, shoulder geometry, and position also influence how the bearing is supported. A bore can pass a diameter check at one section while remaining tapered elsewhere.

Bearing fits must follow the selected bearing arrangement, loading, housing material, and operating temperature. H7 should not be applied automatically to every wheel-bearing seat.

Ball-joint and tie-rod interfaces present different challenges. Where a tapered connection is used, acceptance depends on taper angle, size at a defined reference plane, and seating limits. A single diameter measurement cannot establish correct engagement.

Brake mounting features require control relative to the hub interface. Correct hole spacing alone does not confirm that the caliper will occupy its intended position.

Workholding adds another source of variation. Projecting arms and uneven sections complicate support, while excessive clamping can distort the component. Aluminum steering knuckle machining may also release residual stress during substantial material removal.

Deep or angled features can require extended tools, increasing the risk of deflection and chatter. Tool access, fixture clearance, and machining sequence must therefore be considered together.

Technical Solutions and an Application Example

A reliable process begins with the approved functional datum system. Depending on the design, the hub mounting face, locating register, and clocking feature may establish the principal references.

Fixtures should locate repeatably and support cutting loads through sufficiently stiff regions. Adjustable supports must stabilize projecting sections without lifting the component from its primary locators.

Where substantial material is removed, roughing may be followed by release and dimensional assessment before critical finishing. Associated features should be finished from common references where practical.

Prototype Knuckles for a Bolt-On Hub Assembly

The following example illustrates proposed project requirements and process planning. Its data are illustrative and do not represent verified Dawang customer results.

A suspension engineering team requires four front steering knuckles—two left-hand and two right-hand—for packaging and bench assembly evaluation. The design uses a bolt-on hub unit, a pinch-clamp ball-joint connection, and dedicated caliper mounting pads.

The proposed material is 6061-T651 aluminum billet. Suitability for vehicle operation requires separate design approval and structural validation.

The removal ratio makes movement assessment important. Initial roughing allowances are approximately 0.5–0.8 mm on critical faces and 0.3–0.5 mm radially on locating bores, subject to adjustment after first-piece inspection.

The proposed references are hub mounting face A, locating-register axis B, and clocking feature C. The formal drawing must define their implementation.

These are proposed targets, not universal specifications.

After roughing, the first component is released and inspected for movement. Semi-finishing establishes stable references, followed by coordinated finishing of the hub, suspension, and brake interfaces.

Cutting conditions follow the selected tool, alloy, engagement, and setup rigidity. Short, rigid tooling and stable finishing stock are prioritized over a single generic speed-and-feed recipe.

Final inspection separates size verification from geometric verification. Bench assembly then checks hub seating, joint engagement, fastener access, caliper location, and sensor clearance.

Passing these checks confirms the agreed dimensional and assembly requirements. It does not replace fatigue, impact, or vehicle-level validation.

Dawang Precision’s Capabilities and Supply Efficiency

Dawang Precision has 27 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machines.

For steering knuckle prototype machining and low-volume production, effective scheduling connects equipment selection with workholding, tooling, inspection, and documentation.

A complete quotation package reduces uncertainty. Approved STEP models and PDF drawings should identify material condition, functional datums, critical tolerances, surface treatment, quantity, and required inspection records.

Surface treatments should be reviewed before machining. Bearing seats, tapered connections, clamp bores, and threads may require masking or specified dimensional allowances.

For repeat orders, controlled revisions and agreed acceptance criteria help maintain consistency. Delivery commitments should reflect the complete scope, including material procurement, outside processing, and inspection.

Common Engineering and Purchasing Questions

Does every steering knuckle require a bearing bore?
No. Some directly retain a bearing, while others use a bolt-on hub unit. The selected architecture determines the machining requirements.

Can a billet prototype replace a forged production knuckle?
Dimensional compatibility alone is insufficient. Material properties, structural behavior, and the required validation must be assessed separately.

Which features need the closest control?
The drawing determines this. Common priorities include the bearing or hub interface and its relationship to suspension connections and brake mounts.

What is needed for a machining quotation?
Provide controlled CAD and drawings, material and condition, quantity, critical interfaces, surface treatment, inspection requirements, and target delivery date.

Send Your Drawings for a Free DFM Review

Whether you are developing an aftermarket component, evaluating a custom suspension, or preparing a small production batch, reliable manufacturing starts with clearly defined interfaces and measurable requirements.

Send your STEP model and PDF drawing to Dawang Precision’s engineering team for a free DFM assessment. Include mating-component details and the intended validation scope.

We will respond within 24 hours with initial engineering feedback and the next steps toward a quotation.
