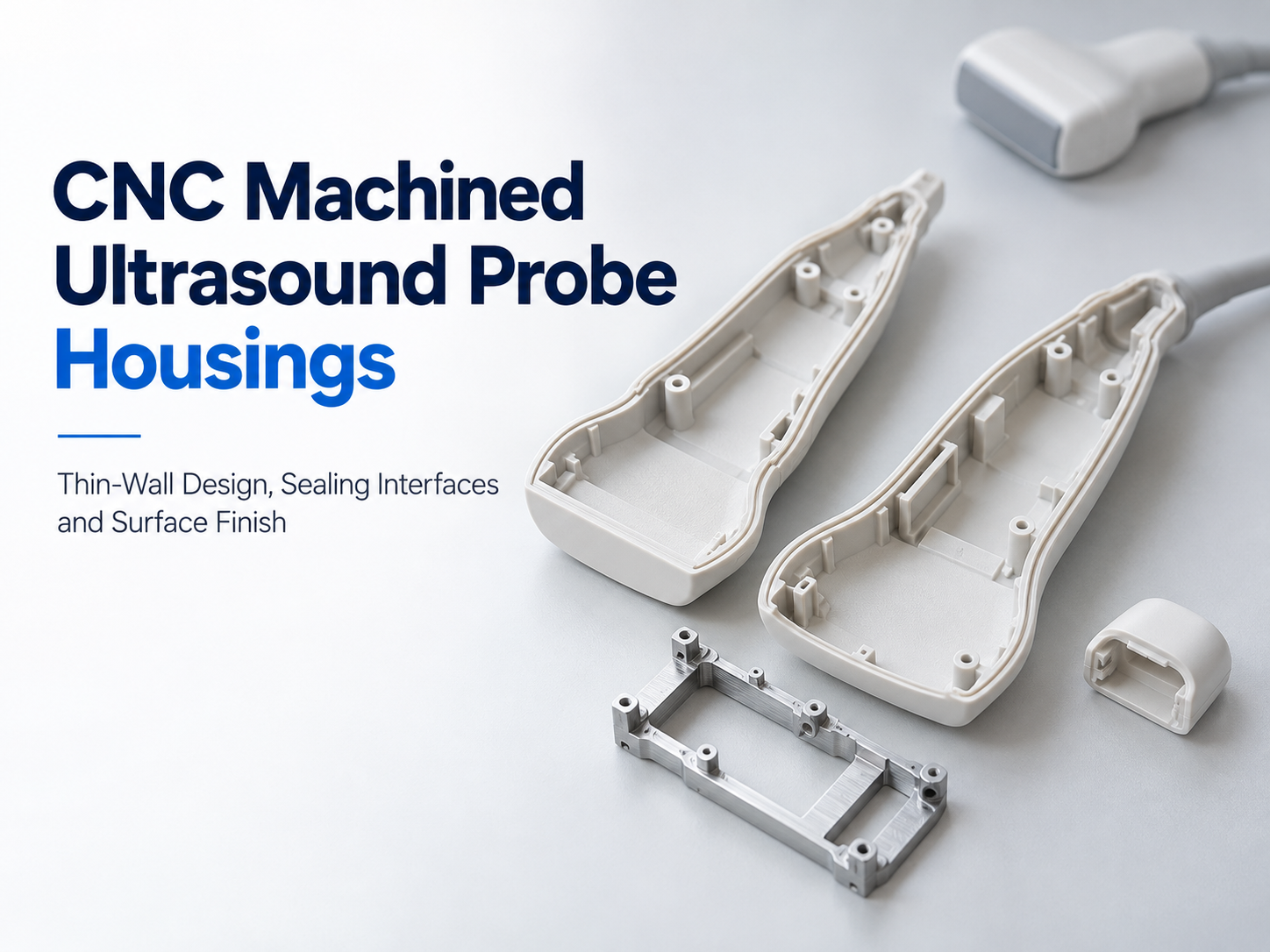

CNC Machined Ultrasound Probe Housings: Thin-Wall Design, Sealing Interfaces and Surface Finish

Quick Answer

CNC machined ultrasound probe housings provide functional shells, rear covers, cable-entry components, and internal supports for prototype and low-volume programs. Reliable assembly depends on wall stability, mounting alignment, controlled seam geometry, and a finishing process that preserves critical dimensions. Specify the exact material grade, sealing method, inspection condition, and intended cleaning exposure before machining. The structural housing is separate from the acoustic lens and matching layers; machining accuracy alone does not establish acoustic performance or finished-device suitability.

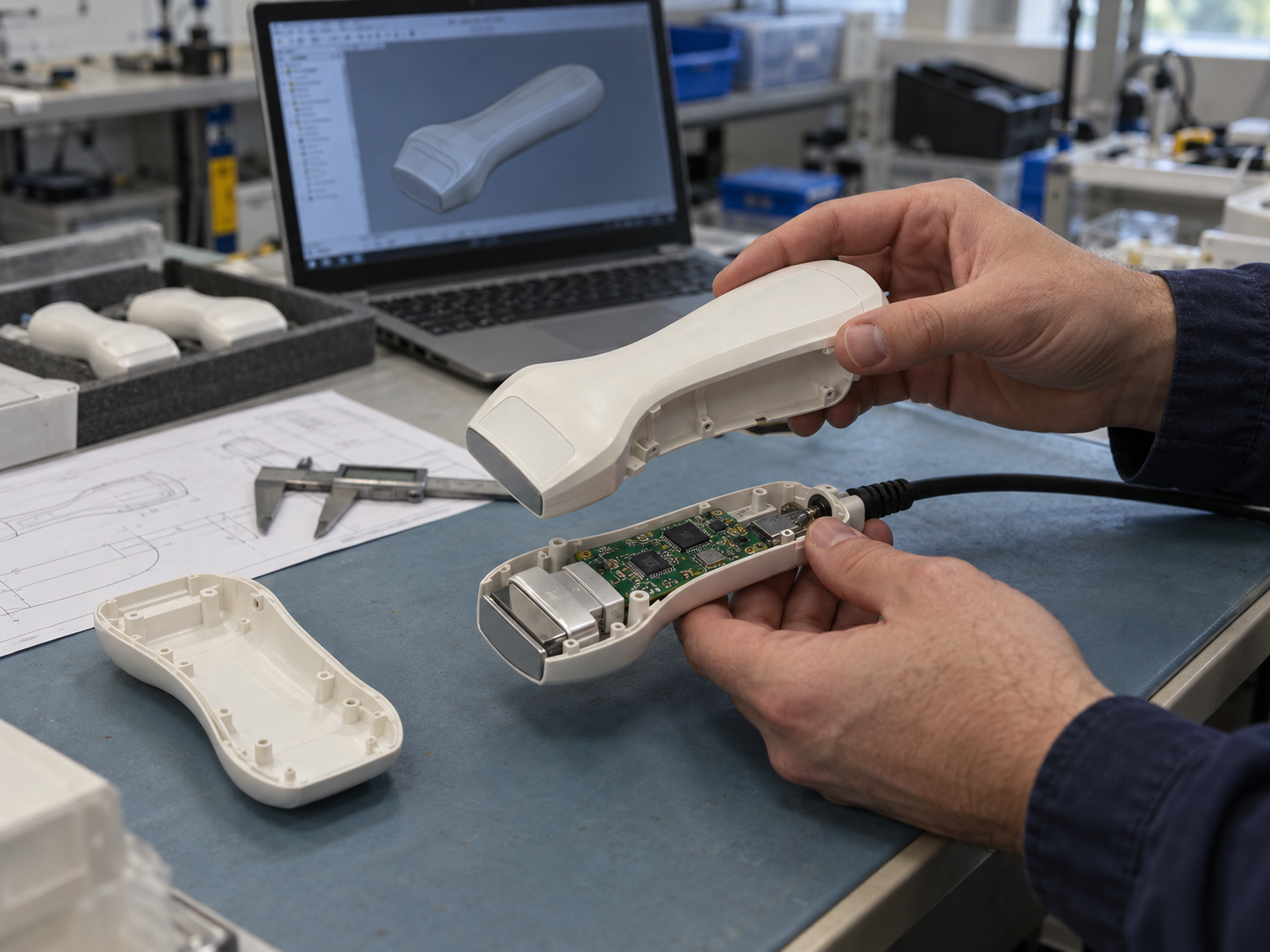

 Compact Probe Development Creates New Manufacturing Demands

Handheld ultrasound designs bring electronics, transducer supports, cable connections, and thermal interfaces into a restricted enclosure. Engineers must preserve stiffness and comfortable handling while making room for the internal assembly.

Changes to a circuit board, support frame, or cable termination can require another shell revision. A useful prototype must therefore represent more than the outside shape: its locating features, mating surfaces, and material behavior must suit the test being performed.

For procurement teams, committing to molds before those interfaces stabilize can create expensive revisions. Poorly controlled machined prototypes introduce another cost: hand fitting, inconsistent seam gaps, and repeated assembly checks.

CNC machining offers a flexible path from revised CAD data to testable components. Its value comes from identifying assembly problems before production tooling, while controlling drawing revisions and acceptance criteria between batches.

Understand What a CNC Prototype Can Validate

CNC prototypes can support packaging, fit, and selected mechanical evaluations. They are not automatically equivalent to molded production parts.

Select the test objective before deciding whether a machined prototype is representative enough.

 Typical Housings and Related Components

Custom ultrasound transducer housings vary with probe architecture, electronics, and assembly method.

CNC machined ultrasound probe mounting features should be reviewed alongside mating components. A correctly machined shell can still create interference if the support frame and cover use inconsistent reference dimensions.

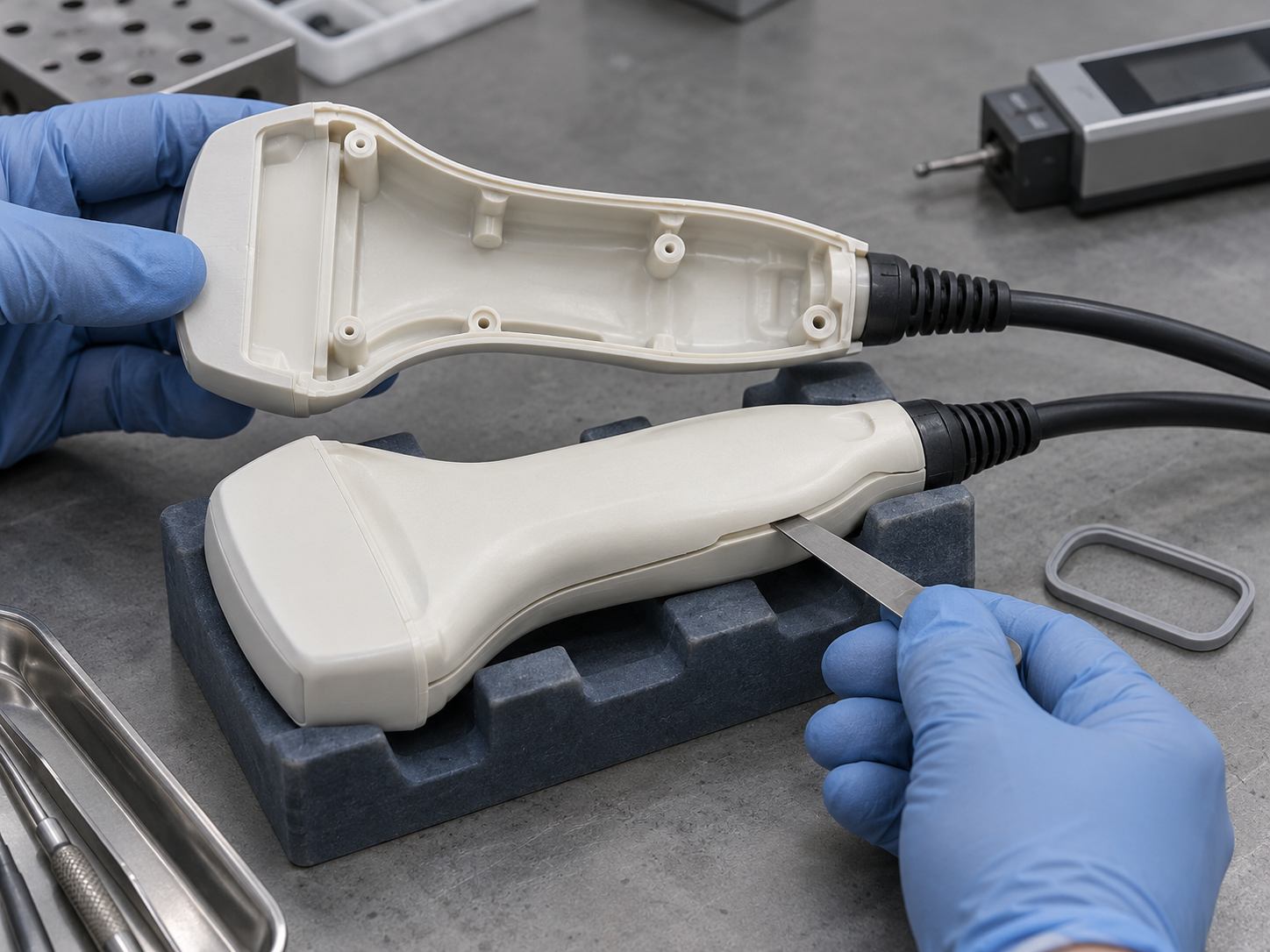

 Machining Challenges That Affect Assembly

Thin-Wall Distortion

Thin-wall ultrasound probe housings can deform under clamping and cutting loads. Internal material removal may release stock stress, changing the shell after unclamping.

Wall thickness is only part of the assessment. Unsupported span, wall height, curvature, and polymer stiffness also affect stability. Specify whether acceptance applies in the free state or under defined assembly restraint.

Sealing and Cable Interfaces

Ultrasound probe sealing interfaces may use adhesive bonds, gaskets, O-rings, or geometry intended for later welding. Each requires its own joint design and surface preparation.

Adhesive joints need a controlled bond gap. Gaskets require appropriate compression and mating geometry. O-ring grooves must be designed around the selected seal. Groove dimensions alone cannot establish leak-tight performance.

Ultrasound probe cable entry machining must accommodate the cable and strain relief without sharp edges or excessive assembly stress. Review the cable jacket, retention arrangement, and sealing material together.

Surface Quality and Cleaning Exposure

Ultrasound probe housing surface finish must distinguish cosmetic surfaces, bonding areas, sealing lands, and locating features. Polishing a cosmetic surface must not round a functional edge or change a mating dimension.

Roughness alone does not establish cleanability. Cleaning-agent compatibility depends on the exact material, coatings, adhesives, exposure duration, and repeated cycles. Evaluate the finished assembly under the intended conditions.

 Technical Solutions: Materials, Machining, and Verification

Compare Materials by Application

For machined plastic ultrasound probe housings, specify the grade, stock form, color, and required documentation. The following table supports initial discussion; it does not establish medical suitability.

A readily machinable material should not replace the intended grade simply to shorten procurement. Material substitutions can change the validity of mechanical and assembly tests.

Support Thin Sections and Separate Roughing from Finishing

Locate the shell against stable features and apply clamping loads through stronger sections. Use supported fixtures and sharp, material-appropriate tools.

Rough major cavities while retaining support around delicate walls. After substantial material removal, release and reassess the part before finishing critical interfaces. An initial trial may retain 0.2–0.4 mm of normal-to-surface finishing stock; adjust this to measured distortion and geometry.

For a calculation example, a 6 mm, two-flute end mill at 150 m/min gives approximately 7,960 rpm. A feed of 0.03 mm per tooth gives approximately 478 mm/min. These are planning inputs, not a qualified cutting recipe. Validate tool recommendations, engagement, chip evacuation, heat, and cutting-fluid compatibility on the actual setup.

Set Tolerances According to Function

The following values are illustrative drawing-review targets, not universal requirements or Dawang capability guarantees.

Inspect after deburring and finishing, once parts have stabilized under agreed environmental conditions. Define visual acceptance separately from dimensional and roughness requirements.

Engineering Example: Two-Piece Housing Seam Control

Consider a thin-wall polymer housing with an internal support, rear cable entry, and adhesive-bonded seam. This is an engineering example, not a documented Dawang customer case.

If the halves relax after machining, investigate free-state shape, fixture pressure, and material-removal sequence before changing the nominal seam geometry. Finish locating features from consistent datums, check the specified bond gap with representative mating parts, and evaluate cable retention and sealing after the intended joining process.

Acceptance requires dimensional evidence and customer-defined assembly tests. Yield or durability improvements should be reported only when actual records support them.

 Dawang Precision: Define the Supply and Acceptance Plan Early

Dawang Precision has 26 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers.

Our engineering team can review material availability, thin-wall support, tool access, datum selection, and finishing requirements before quotation. Five-axis machining can reduce transfers for complex contours; simpler geometries may be produced more economically with conventional milling.

For ultrasound probe housing prototypes and repeat batches, agree the delivery requirements before production:

· Material identification and required supporting documents.

· Critical dimensions and inspection-report scope.

· First-article approval, where required.

· Surface finish and visual acceptance criteria.

· Drawing revision, batch identification, and packaging requirements.

Confirm which documents and services are included in the quotation. Lead-time planning must account for stock procurement, fixtures, inspection, and external finishing rather than machine capacity alone.

 Send Your Drawings for a Free DFM Review

Developing CNC machined ultrasound probe housings? Send your STEP model and PDF drawing to Dawang Precision’s engineering team for a free DFM assessment.

Include the material grade, sealing method, critical tolerances, surface requirements, quantities, and target delivery date. We will respond within 24 hours with manufacturing feedback and the information needed to prepare a quotation.
