Author: Linda Publish Time: 2026-10-28 Origin: Site
In injection molding, the cavity typically forms the outer surfaces of a plastic part, while the core forms internal features such as holes, ribs, and recesses. Together, they define the molded geometry.
The distinction matters because core and cavity placement affects draft angles, parting lines, cooling, ejection, machining complexity, and tooling cost. Poor design can cause warpage, flash, sticking, or dimensional variation.
For engineers comparing the core vs cavity of mold, the priority is not simply identifying each mold half. It is designing both for reliable manufacturing, consistent part quality, and economical maintenance.

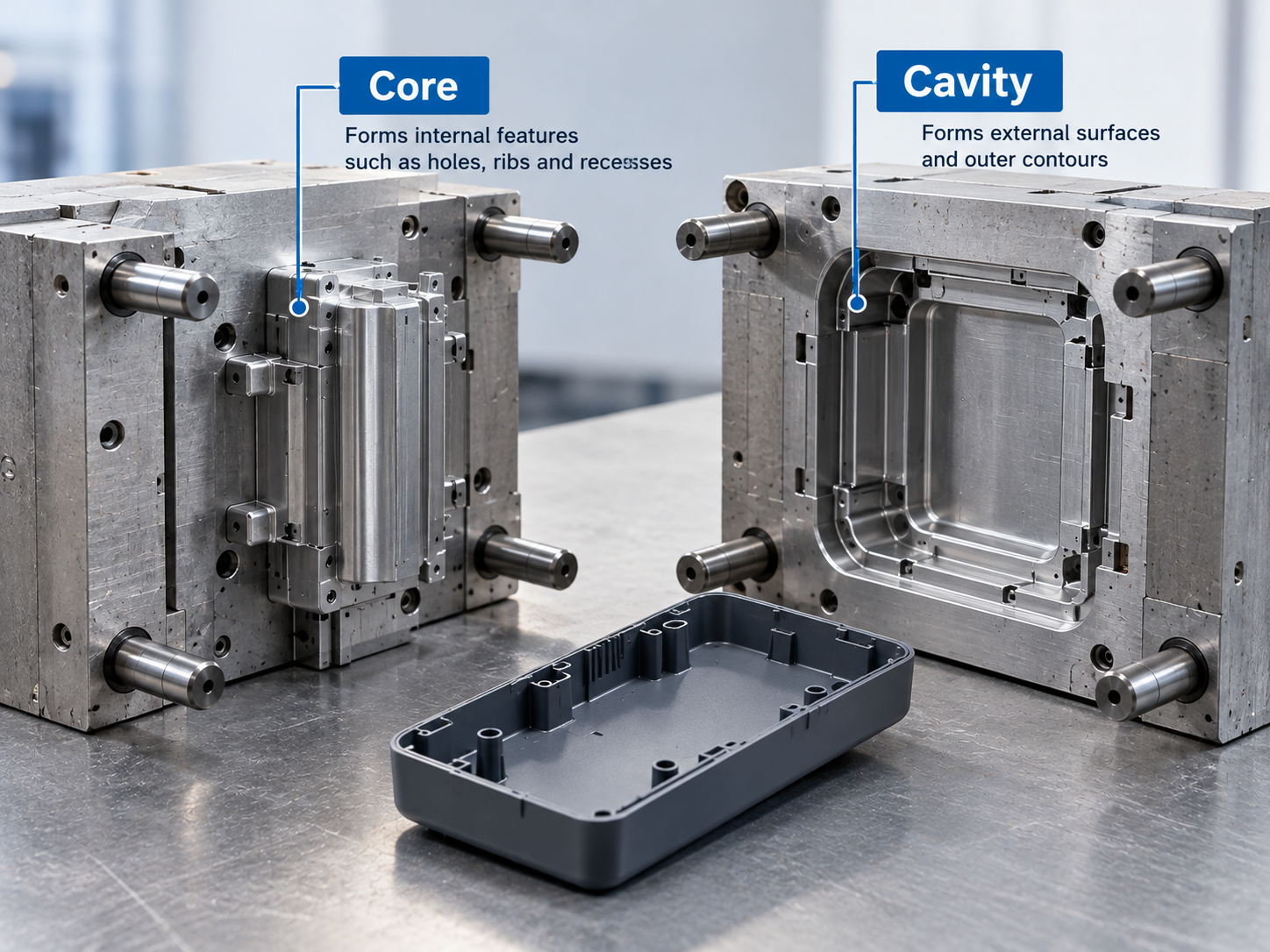

The cavity is the negative-shaped mold region that generally defines a part's exterior. The core creates internal geometry and often retains the molded component as the tool opens.
Feature | Mold Core | Mold Cavity |
Main function | Internal geometry | External geometry |
Typical features | Ribs, bosses, recesses | Outer contours, cosmetic surfaces |
Machining challenges | Deep pockets, narrow features | Complex contours, polishing |
Quality risks | Sticking, distortion | Flash, surface defects |
Key considerations | Draft, cooling, ejection | Finish, venting, parting lines |
These are typical arrangements, not fixed rules. Side actions and inserts may form features on either side.
A sound mold core and cavity design must account for how the steel is machined, how the plastic shrinks, and how the finished part leaves the mold.
Parting lines can create visible witness marks or flash where mold surfaces meet.
For consumer electronics housings, they should generally be positioned away from prominent cosmetic surfaces. Automotive and EV enclosures may require additional attention to sealing lands, mounting interfaces, and gasket contact areas.
Moving a parting line can improve appearance but introduce undercuts, additional inserts, or more complex machining.

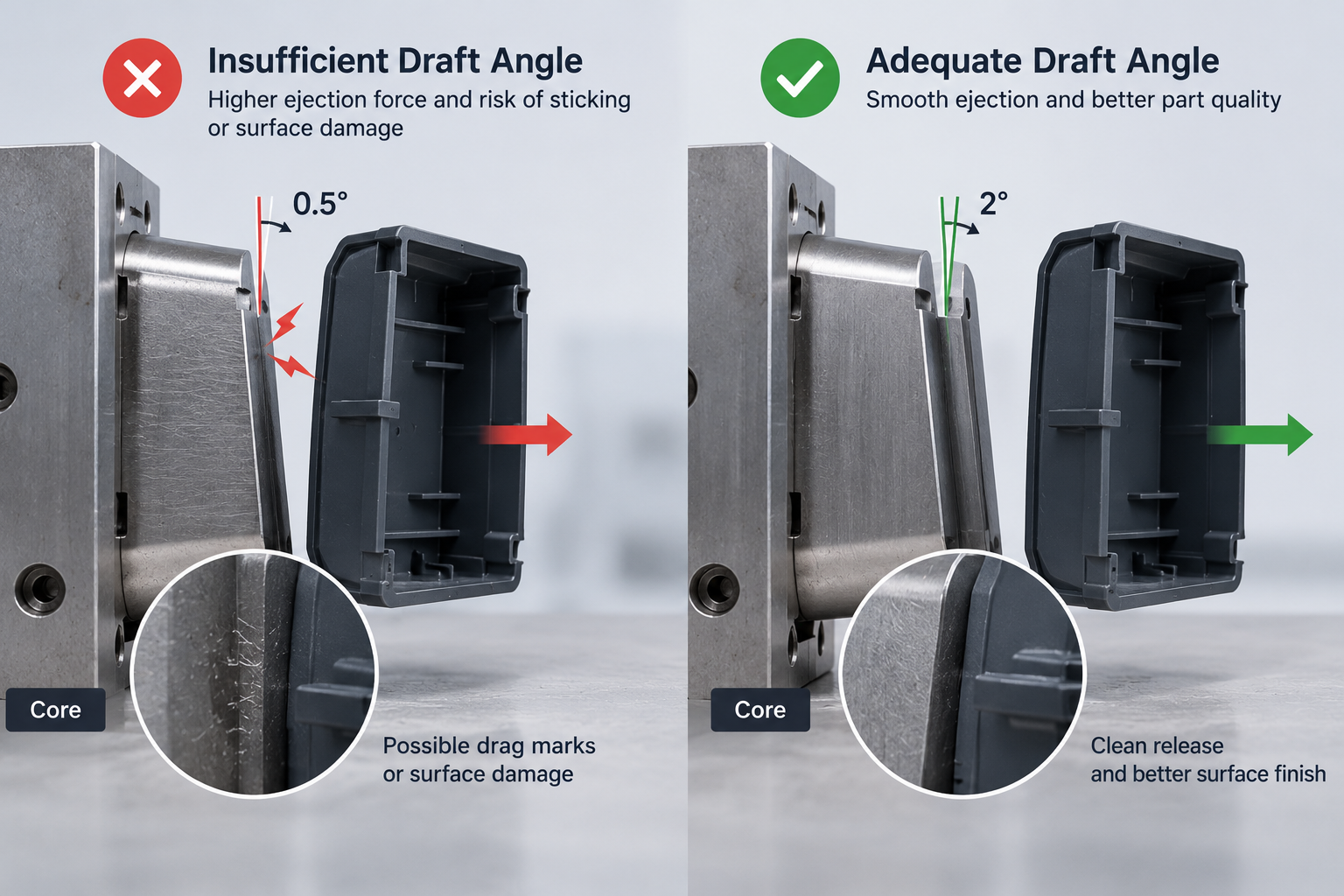

Plastic often shrinks around the core during cooling. Without sufficient draft, ejection forces may cause scratches, deformation, or sticking.
· Typical starting guidelines are:
· Smooth surfaces: approximately 1–2°.
· Textured surfaces: often 2–3° or more.
· Deep internal features: evaluated individually for material, depth, and release conditions.
Draft must be checked against assembly requirements. Adding draft to a locating surface without considering fit can create a different quality problem.
Uneven walls cool at different rates, increasing the risk of sink marks, warpage, and dimensional instability.
Uniform nominal walls, gradual transitions, and properly proportioned ribs help reduce these problems.
However, even a well-machined cavity cannot compensate for unsuitable gate placement or uncontrolled packing pressure.
A mold design that looks straightforward in CAD can become expensive when translated into steel.
Deep cavities, narrow slots, and high-aspect-ratio ribs may require long cutting tools. Tool deflection can affect surface finish, geometry, and machining time.
Five-axis CNC machining improves access to angled features and can reduce repositioning. EDM remains useful for sharp internal corners and features inaccessible to milling cutters.
Tall core features can deflect during machining. Removing substantial material may also release internal stresses, affecting final dimensions.
Staged roughing, controlled finishing allowances, and stress relief where appropriate help stabilize critical geometry.
Poor core-to-cavity alignment can cause flash, uneven walls, or inconsistent assembly dimensions.
Critical locating surfaces, shutoffs, and inserts should follow a coordinated datum strategy, with CMM inspection where required.
Injection mold design for manufacturability should connect tooling geometry with measurable production requirements.
Engineering factor | Practical solution | Quality or cost benefit |
Critical mold features | CNC finishing and CMM verification | Consistent geometry |
Deep corners | EDM or redesigned corner radii | Reduced machining difficulty |
Mold alignment | Precision locating and shutoff inspection | Lower flash risk |
Cooling | Balanced channels and thermal analysis | Reduced warpage and cycle time |
Ejection | Draft and distributed ejector support | Fewer damaged parts |
Tool steel | P20, H13, or suitable stainless grades | Appropriate durability and maintenance |
For selected precision tooling features, tolerances of ±0.01–0.02 mm may be appropriate, depending on geometry, steel condition, and machining capability. They should not be applied indiscriminately to an entire mold.
Molding parameters—including melt temperature, mold temperature, injection speed, packing pressure, and cooling time—must be established through trials for the selected resin.
Mold accuracy and molded-part accuracy are different specifications. Shrinkage, thermal behavior, and process variation must be considered when translating part tolerances into tool dimensions.
A published Dimud electronics housing project demonstrates how tooling design and process improvements can address dimensional instability.
Parameter | Requirement |
Materials | PC+ABS and ABS |
Main housing size | 175 × 82 × 38 mm |
Wall thickness | 1.8–3.0 mm |
Critical snap-fit tolerance | ±0.05 mm |
Drop resistance | 1.5 m onto concrete |
Tooling materials | S136 cavity inserts, P20 core blocks |
The previous supplier reported snap-fit dimensional variation reaching ±0.18 mm, leading to inconsistent housing engagement.
The engineering team revised snap-fit geometry, including increasing a deflection arm from 0.8 mm to 1.1 mm and introducing a 15° lead-in taper.
Textured grip surfaces originally had 0.5° draft. Increasing this to 2° helped address ejection-related surface defects.
The project also involved cooling improvements, side actions for undercut features, and process qualification to improve dimensional consistency.
Metric | Before | After |
Snap-fit dimensional variation | ±0.18 mm | ±0.04 mm |
First-pass acceptance | 91.8% | 99.4% |
Texture defect rate | 8–12% | Below 0.3% |
Drop-test pass rate | 93.8% | 100% of 60 tested units |
The supplier also reported a 9.2% reduction in annual housing-set cost, including tooling amortization. These are results from Dimud's published project, not Dawang Precision production data.
Key lesson: Dimensional problems often originate from interacting design and process decisions. Core geometry, draft, cooling, and molding conditions must be reviewed as one manufacturing system.
Tooling cost depends on more than mold size or steel selection.
Deep pockets increase machining time. Undercuts may require sliders or lifters. Difficult cooling layouts can extend molding cycles, while fragile features increase maintenance costs.
For purchasing teams, the important distinction is between initial tooling price and total production cost.
A replaceable core insert may cost more initially but simplify future repairs. Eliminating an unnecessary undercut may reduce machining, assembly, and maintenance expenses simultaneously.
Supplier quotations should therefore identify major tooling mechanisms, inspection requirements, expected maintenance provisions, and assumptions about production volume.

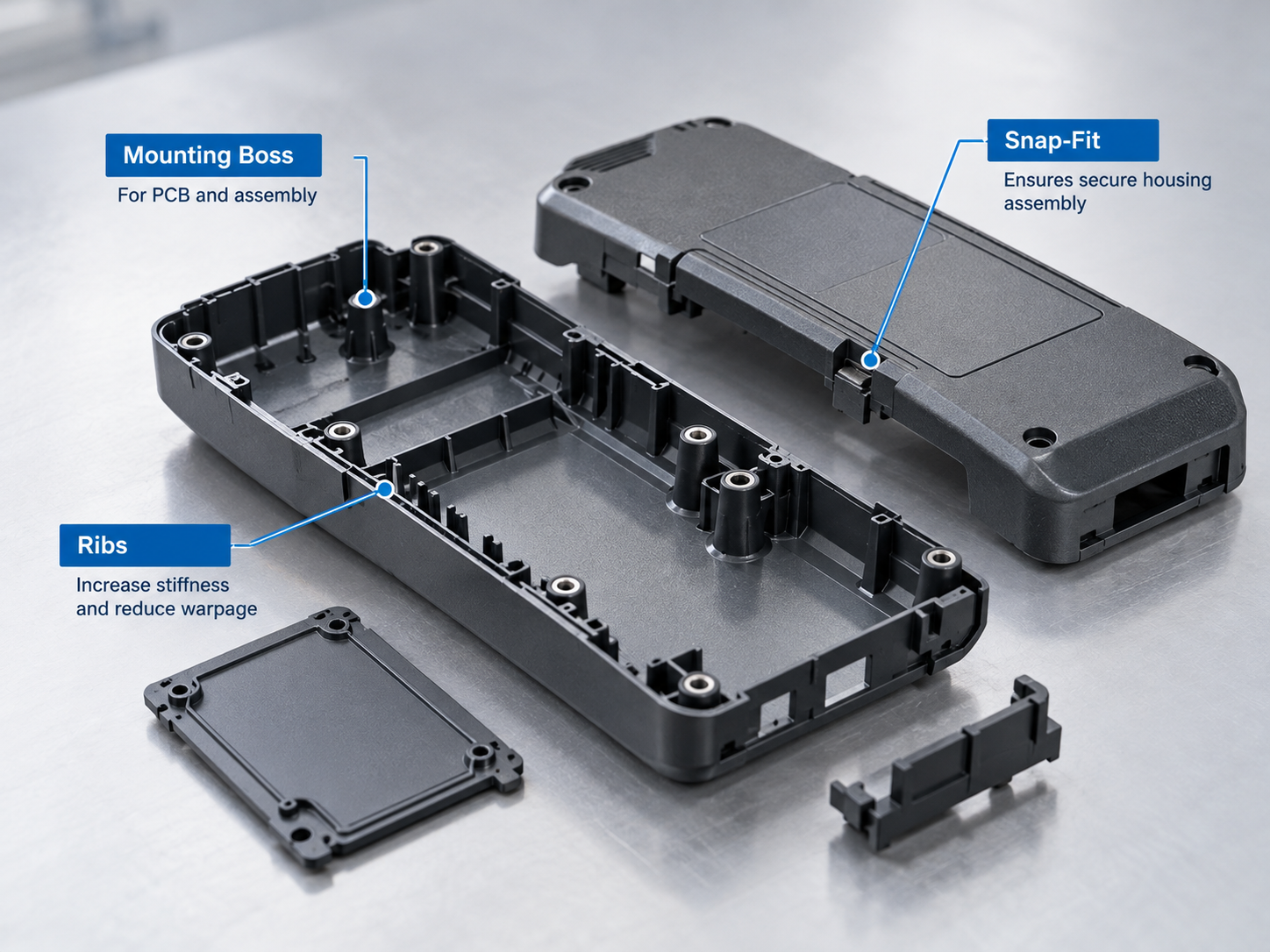

Consumer Electronics: Smartphone accessories, handheld devices, and electronic enclosures require controlled cosmetic surfaces, snap-fit geometry, PCB mounting features, and reliable assembly.
Automotive & EV: Sensor housings, connector covers, control module enclosures, and interior components demand consistent dimensional relationships. Depending on the application, sealing, vibration, thermal exposure, and material qualification may also be critical.
Both industries benefit from early review of parting lines, ejection direction, and tooling accessibility before mold steel is cut.
A supplier should be able to explain not only how a feature will be machined, but why the proposed tooling arrangement is suitable.
Before awarding a tooling or precision machining contract, request:
· A DFM review identifying undercuts, draft, parting lines, and machining constraints.
· A manufacturing plan covering CNC milling, EDM, and critical inserts.
· A datum and inspection strategy for important features.
· A clear distinction between mold machining tolerances and molded-part acceptance criteria.
· Defined responsibilities for tooling modifications and validation.
A low quotation without these details may conceal substantial engineering and production risk.
With 27 years of manufacturing experience and more than 400 advanced machine tools, Dawang Precision supports complex precision machining projects.
Its equipment includes Röders and Mazak five-axis machining centers, suitable for evaluating demanding mold core, cavity, and tooling component geometries.
For precision mold components, early review of tool access, material removal, critical datums, and inspection requirements helps identify manufacturing constraints before machining begins.
The core generally forms internal part features, while the cavity forms external surfaces. Their arrangement also determines how the part releases from the mold and which features require additional tooling mechanisms.
Plastic shrinkage can cause a part to grip the core during cooling. Insufficient draft, surface texture, or unsuitable ejection arrangements may increase release forces. Retention on the ejector side is often intentional.
Neither is inherently more expensive. Cost depends on geometry, depth, tool access, steel grade, surface finish, and EDM requirements. A complex core can cost more than a simple cavity, or vice versa.
Selected precision features may require ±0.01–0.02 mm tolerances, but achievable accuracy depends on feature size, geometry, material, and inspection conditions. Finished plastic-part tolerances must be evaluated separately.
Simplifying undercuts, improving machining access, using replaceable inserts, and designing reliable cooling and ejection can reduce tooling complexity, maintenance, scrap, and cycle time.
Review parting lines, draft, wall thickness, undercuts, ejection, cooling, critical tolerances, tool access, and inspection plans. These should be resolved through DFM before committing to final tooling.
The core vs cavity of mold decision affects more than the shape of a plastic component. It influences machining feasibility, dimensional consistency, ejection reliability, and production economics.
Early collaboration between product engineers, tooling specialists, and procurement teams helps prevent avoidable changes after machining begins.
