Rapid tooling mold making bridges the gap between prototypes and production molds by providing a faster, lower-investment way to validate injection molding before committing to full-scale tooling. Using aluminum molds, CNC machining, EDM, and DFM analysis, engineers can test real production materials, dimensions, tolerances, surface finish, assembly, and moldability. This makes rapid tooling especially useful for bridge tooling, product validation, pilot production, and low-volume runs.
A typical development path is:

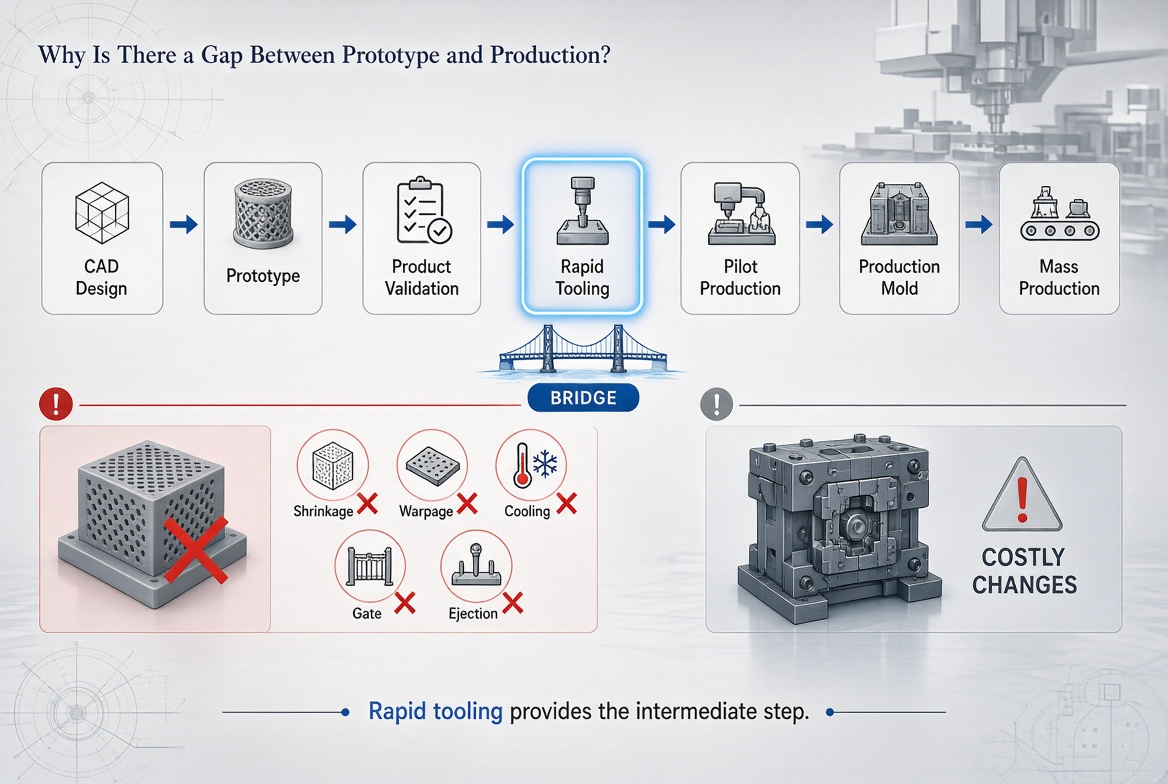

CAD Design → Prototype → Product Validation → Rapid Tooling → Pilot Production → Production Mold → Mass Production
A prototype can verify geometry, fit, and basic functionality, but it may not reproduce injection-molding behavior. Material shrinkage, warpage, cooling, gate location, ejection, and surface finish can only be properly evaluated through a realistic molding process.
Building a full production mold too early creates another problem: if the design changes after the first trial, expensive tooling modifications may be required.
Rapid tooling provides the intermediate step.
Rapid tooling is a mold-making strategy optimized for faster validation and shorter production runs rather than maximum tool life.
For suitable applications, aluminum molds can be machined efficiently because aluminum is highly machinable and requires less material-removal effort than many tool steels.
A typical rapid tooling mold making process includes:
DFM Review → Mold Design → CNC Roughing → Semi-Finishing → CNC Finishing → EDM → Polishing → Mold Assembly → Trial Injection → Inspection
The objective is not simply to make a mold quickly. It is to generate reliable molded parts that provide useful engineering feedback.

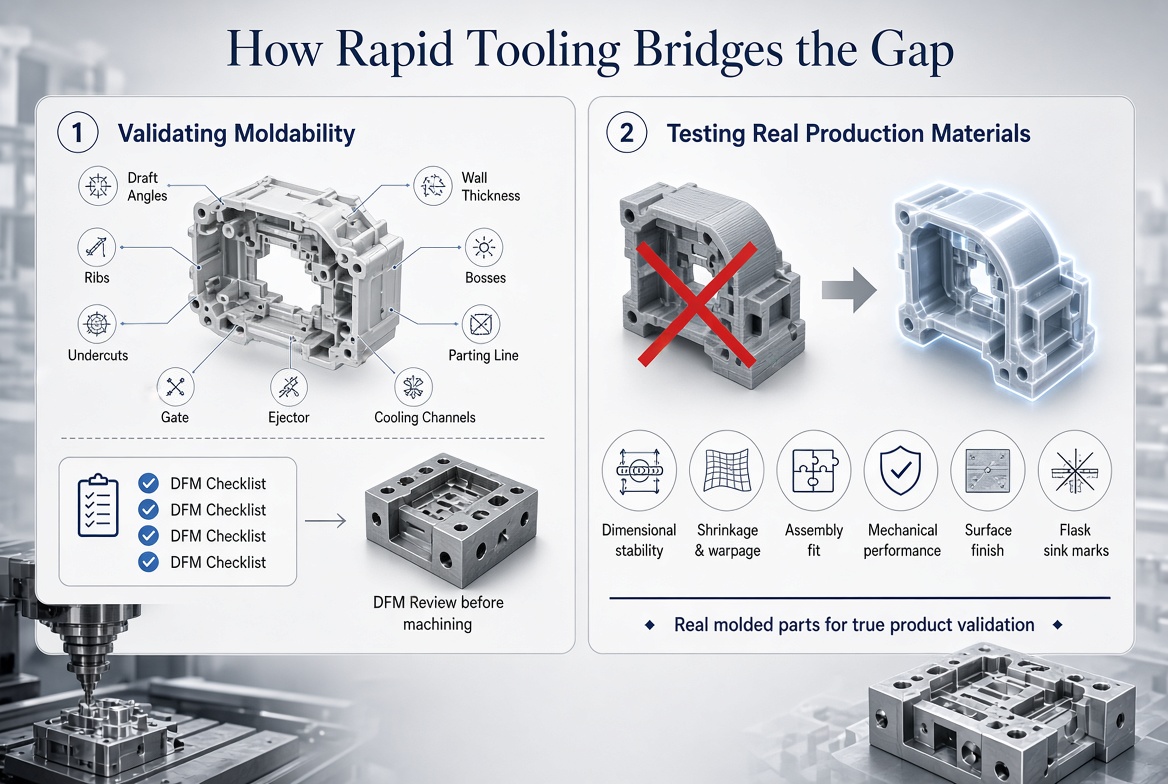

Before machining, engineers review draft angles, wall thickness, ribs, bosses, undercuts, parting lines, gates, ejectors, and cooling requirements.
For example, a plastic housing measuring approximately 85 × 45 × 30 mm may contain deep ribs, mounting bosses, and side undercuts. A small change in the parting line or gate position can affect mold complexity, machining access, and final part quality.
A DFM review identifies these risks before material is removed from the mold block.
3D-printed prototypes can validate geometry, but they do not necessarily reproduce the behavior of injection-molded ABS, PC, PA, POM, or PP.
Rapid tooling allows engineers to evaluate real molded parts for:
Dimensional stability
Shrinkage and warpage
Assembly fit
Mechanical performance
Surface finish
Flash and sink marks
This makes rapid tooling valuable for product validation before production tooling.
The main challenge is balancing lead time, accuracy, surface finish, and tooling stability.
During CNC roughing, engineers may leave a controlled machining allowance, often around 0.3–0.8 mm as a typical engineering example, depending on material, geometry, cutter size, and process conditions.
Semi-finishing then stabilizes the remaining stock before final finishing.
For complex surfaces, finishing parameters such as tool diameter, feed rate, spindle speed, step-over, tool stick-out, and tool orientation affect both machining time and surface quality. A smaller step-over can reduce scalloping, but excessive reduction increases machining time.
EDM can supplement CNC machining for deep narrow cavities, sharp internal features, and areas that are difficult to access with conventional cutters.
Not every mold feature requires the same tolerance.
For example, a critical insert interface may require an engineering target around ±0.05 mm, while a non-functional feature may allow a larger tolerance such as ±0.20 mm. These figures are examples, not universal specifications.
Critical dimensions should be controlled from consistent datums and verified using appropriate inspection methods, including CMM measurement where required.
Factor | Rapid Tooling | Production Tooling |
Main goal | Validation & low-volume production | Mass production |
Investment | Lower | Higher |
Lead time | Shorter | Longer |
Tool life | Limited to moderate | Long-term |
Design flexibility | Higher | Lower after completion |
Best use | Bridge tooling, pilot runs | High-volume production |
The key difference is purpose.
Rapid tooling prioritizes speed, validation, and flexibility. Production tooling prioritizes durability, repeatability, and long-term production efficiency.
Use rapid tooling when the design is mature enough for injection molding but not yet stable enough to justify a final production mold.
It is particularly suitable for:
Prototype-to-production transitions
Bridge tooling
Product validation
Low-volume injection molding
Pilot production
Designs that may still change
Projects with aggressive time-to-market requirements
For procurement teams comparing a rapid tooling supplier or prototype injection mold supplier, tooling price should not be the only consideration. DFM capability, machining capacity, inspection, trial molding, engineering support, and expected tool life can have a greater impact on total project cost.
Rapid tooling should not be viewed as a replacement for production molds. Its role is to create a controlled transition:
Prototype → Rapid Tooling → Validation → Optimization → Production Mold → Mass Production
The prototype asks:
Does the design work?
Rapid tooling asks:
Can the design be molded and manufactured reliably?
Production tooling asks:
Can the validated design be produced repeatedly at the required volume and cost?
That is why rapid tooling is a true manufacturing bridge.
Dawang Precision has 26 years of precision manufacturing experience and operates more than 400 advanced machine tools, including Röders and Mazak 5-axis machining centers.
Our engineering team evaluates part geometry, material, critical tolerances, surface requirements, tooling structure, and expected production volume before recommending a rapid tooling strategy.
Our engineering team provides a free DFM evaluation and responds within 24 hours.
