How to Choose a CNC Turning Manufacturer for Prototypes and Production

Quick Answer

To choose a CNC turning manufacturer, evaluate its experience with similar parts and materials, machine capability, tolerance control, inspection system, DFM support, production capacity, and technical communication—not just unit price.

For prototype machining, prioritize fast engineering feedback and design flexibility. For production machining, focus on repeatability, quality documentation, capacity, traceability, and delivery. The right CNC turning company should be able to support your parts from initial prototypes through low-volume and mass production.

What Should You Look for in a CNC Turning Manufacturer?

A supplier's equipment list alone does not prove it is suitable for your project. Engineers and procurement managers should evaluate whether its actual manufacturing system matches the part.

This provides a stronger basis for supplier selection than comparing price alone.

1. Start With a Complete CNC Turning RFQ

Before comparing suppliers, make sure they are quoting the same requirements.

Send both a 3D CAD model and PDF engineering drawing whenever possible. Your RFQ should specify:

· material and grade

· critical dimensions and tolerances

· GD&T requirements

· threads and fits

· surface roughness

· heat treatment or finishing

· prototype and production quantities

· inspection requirements

· required delivery date

This matters because apparently simple turned components may contain critical feature relationships.

For example, every diameter on a shaft may be within tolerance while the part still fails assembly because the bearing journals have excessive runout.

A capable custom CNC turning supplier should therefore understand which features control function—not simply machine every dimension to the drawing.

2. Match the Manufacturer's Equipment to Your Part

Different turned parts require different machine configurations.

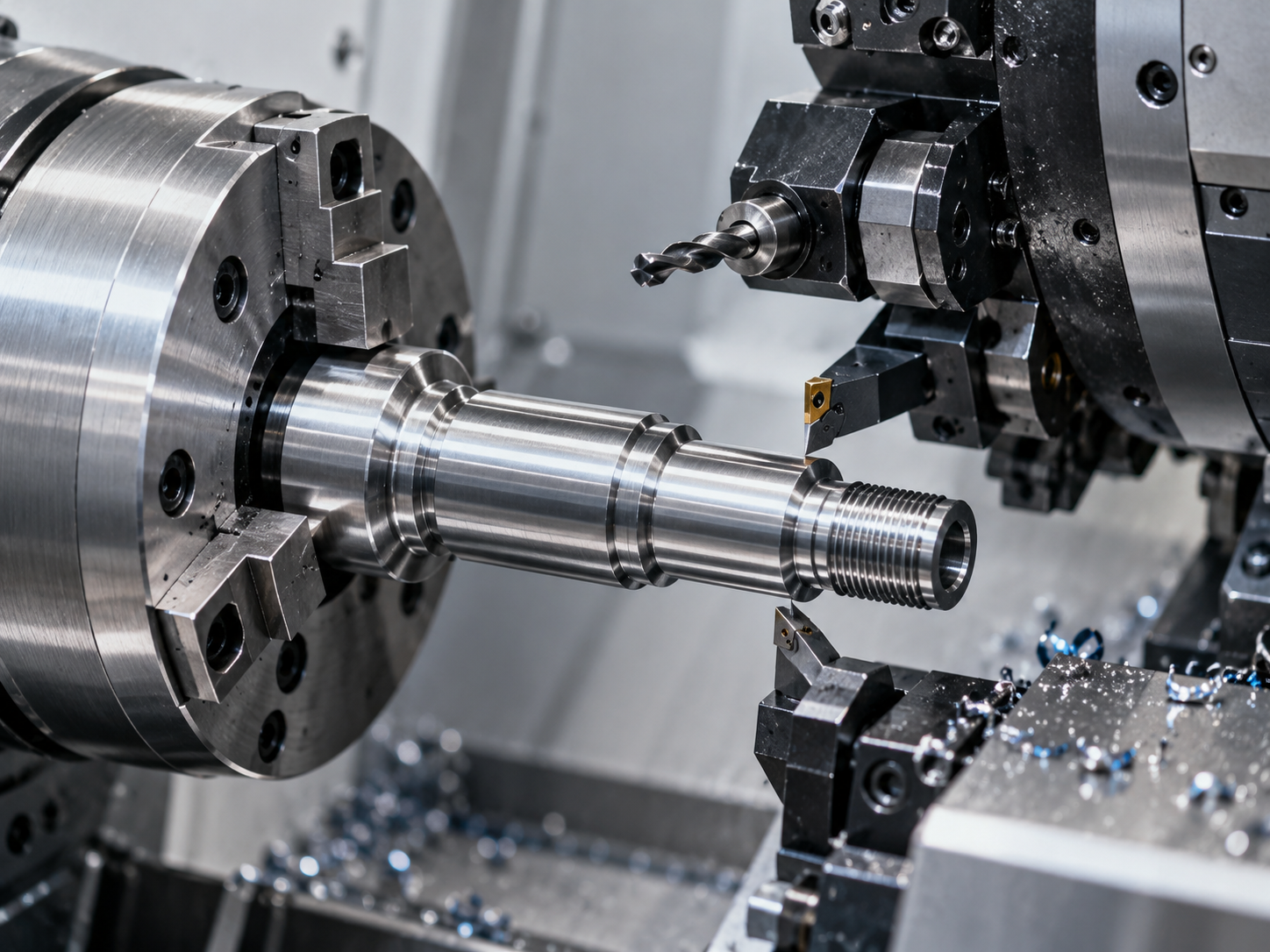

Standard CNC lathes may efficiently produce shafts, bushings, pins, spacers, and fittings. Parts containing cross holes, flats, slots, off-axis features, or multiple machined faces may benefit from live tooling, sub-spindles, Y-axis capability, or turn-mill equipment.

Consider a component requiring:

Turning → Threading → Cross Drilling → Milling → Parting

Completing more operations in one setup can reduce handling and datum transfers while improving process consistency.

Instead of asking only “What machines do you have?”, ask the CNC turning manufacturer:

“How would you manufacture this part?”

For production programs, also evaluate machine redundancy, bar-feeding or automation capability, tooling management, and available capacity. A supplier capable of making 10 prototypes may not necessarily be ready for 5,000 recurring parts.

3. Evaluate Tolerance and Quality Control

Do not choose a supplier based only on its tightest advertised tolerance.

The more useful question is:

How will you machine and inspect the critical features on my part?

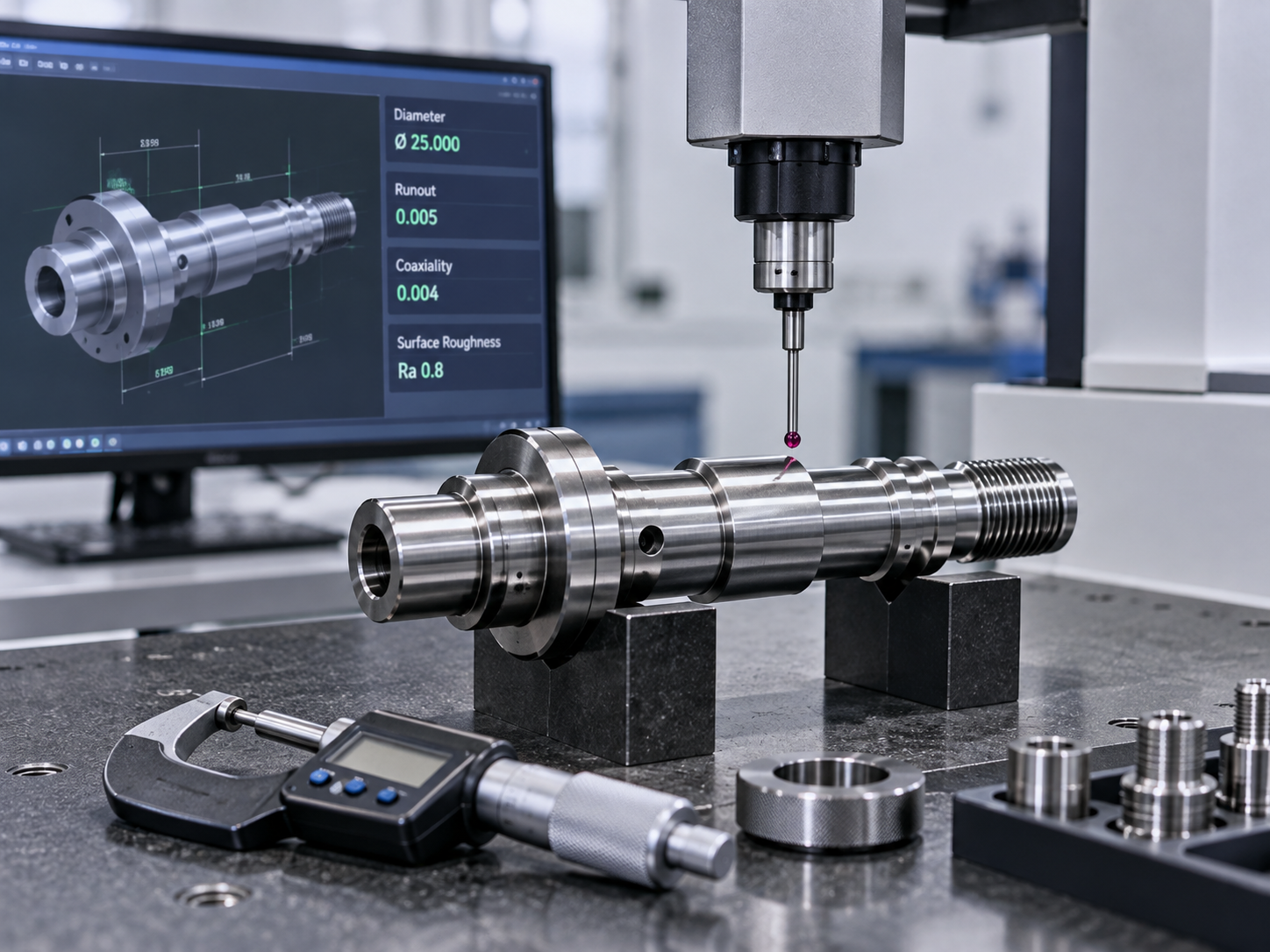

Common requirements for precision turned parts include:

· diameter tolerance

· concentricity and coaxiality

· circular or total runout

· thread accuracy

· mating fits

· surface roughness

Not every feature needs the same precision. Applying ±0.01 mm where ±0.05 mm satisfies function can increase machining time, inspection cost, and scrap risk without improving the product.

A capable turning supplier should identify critical-to-quality dimensions and match them with an appropriate inspection plan.

Depending on the component, inspection may include micrometers, bore gauges, thread gauges, optical measurement, CMM inspection, or surface-roughness measurement.

For recurring production or OEM supply, buyers should also confirm requirements for material certificates, first-article reports, lot traceability, dimensional records, calibration, and revision control.

4. Ask How the Supplier Handles CNC Turning Challenges

Precision turning becomes more difficult with slender geometry, thin walls, tight tolerances, and difficult-to-machine materials.

Long or Slender Shafts

Cutting forces can cause deflection, chatter, taper, and dimensional variation. Depending on the geometry, solutions may include tailstock or steady-rest support, suitable insert geometry, controlled depth of cut, and separate roughing and finishing passes.

Thin-Wall Components

Chuck pressure and cutting forces can deform thin cylindrical parts. Soft jaws, controlled clamping force, balanced stock removal, and light finishing cuts can help reduce distortion.

Difficult Materials

Stainless steel, titanium, hardened steels, and other demanding alloys can create heat, work hardening, chip-control problems, and accelerated tool wear.

A qualified manufacturer should select cutting speed, feed rate, depth of cut, insert geometry, coolant strategy, and tool-change intervals around the actual material and tolerance requirements.

For engineers, the key is whether the supplier can explain how these machining risks will be controlled—not simply claim that the material is machinable.

5. Check the Supplier's DFM Capability

A useful DFM review identifies manufacturing problems before machining begins.

For CNC turned parts, common DFM issues include:

· unnecessarily tight tolerances

· excessive thread depth

· deep or small-diameter bores

· thin walls

· difficult tool access

· excessive surface-finish requirements

· features requiring additional setups

For example, changing a non-critical tolerance from ±0.01 mm to ±0.05 mm may reduce finishing and inspection requirements when the wider tolerance still meets functional needs.

Good DFM is not about making every component easier to machine. It is about protecting function-critical features while removing unnecessary manufacturing cost and risk.

This is particularly valuable when moving from prototype machining into production.

6. Can the Manufacturer Scale From Prototype to Production?

Prototype and production programs require different strengths.

During product development, dimensions and features may change frequently. After design validation, priorities shift toward stable setups, tooling, inspection, cycle time, batch consistency, and cost.

A CNC turning manufacturer that supports both prototypes and production can retain knowledge of the part's critical features as quantities increase.

Production methods may change through dedicated fixtures, optimized tooling, bar feeding, or automation. The important point is that tolerance and quality requirements remain controlled during the transition.

7. Compare CNC Turning Quotes Beyond Unit Price

Two suppliers can quote the same drawing using different assumptions.

Before comparing prices, confirm that each quote includes the same:

A lower quote may reflect differences in material, tolerance interpretation, inspection, finishing, or production method.

For procurement managers, the better metric is total manufacturing cost and supply risk. Rework, rejected parts, late deliveries, assembly failures, and engineering time can quickly outweigh a small difference in piece price.

8. Evaluate Technical Communication

Communication is part of manufacturing capability.

Custom parts often require clarification about tolerances, threads, materials, finishes, drawing revisions, or DFM changes. A reliable CNC turning company should provide technically clear answers rather than simply confirming that a part is “machinable.”

For international OEM sourcing, responsive engineering communication also reduces errors between RFQ → prototype approval → production.

CNC Turning From Prototype to Production at Dawang Precision

Dawang Precision supports CNC machining projects from product development and prototypes through low-volume production, mass production, and recurring OEM supply.

With 27 years of precision manufacturing experience and more than 400 advanced machine tools, our manufacturing resources include CNC turning equipment as well as Röders and Mazak five-axis machining systems.

For prototypes, our engineering team focuses on DFM, manufacturability, critical dimensions, and design feedback. For production, the focus shifts toward stable processes, tolerance control, inspection planning, capacity, and repeatable batch quality.

Our goal is not only to produce an acceptable prototype, but to develop a practical manufacturing process that can scale with the project.

CNC Turning Manufacturer Selection Checklist

Before selecting a supplier, ask:

1. Have they machined similar materials and geometries?

2. How will critical tolerances be machined and inspected?

3. Do they provide DFM feedback before production?

4. Can capacity scale from prototypes to recurring production?

5. Can they maintain traceability, revision control, and technical communication?

These questions help engineers and procurement teams evaluate the manufacturing process behind the quotation—not just the quoted price.

Frequently Asked Questions

1. What should I send for a CNC turning quote?

Send a STEP file and PDF drawing with material grade, quantity, critical tolerances, GD&T, threads, surface finish, secondary treatments, inspection requirements, and delivery target. Providing both prototype and expected production quantities helps the supplier evaluate the appropriate manufacturing strategy.

2. What tolerances can a CNC turning manufacturer achieve?

Achievable tolerance depends on material, geometry, part size, feature relationships, machine setup, and inspection method. Instead of relying on a supplier's advertised minimum tolerance, identify critical-to-function dimensions and ask how each will be controlled.

3. Can one CNC turning supplier handle prototypes and mass production?

Yes, if the supplier combines flexible prototype machining with sufficient production capacity. Tooling, fixtures, cutting parameters, or automation may change as volume increases, but critical dimensions and quality requirements should remain controlled.

4. How should I compare CNC turning quotations?

Compare quotations using identical material, quantity, tolerance, finishing, inspection, and delivery requirements. Consider DFM support, manufacturing capability, quality control, capacity, and supply risk together with unit price.

5. How do I know if a CNC turning manufacturer is suitable for OEM production?

Look for repeatable machining processes, sufficient capacity, inspection capability, material and lot traceability, revision control, quality documentation, and reliable engineering communication. Also confirm that the supplier can maintain these controls as order volumes increase.

Choose a CNC Turning Manufacturer Based on Process Capability

Choosing a CNC turning manufacturer is not simply a price comparison. It is a decision about manufacturing capability, quality, scalability, and supply-chain risk.

For prototypes, prioritize DFM support and flexibility. For production, focus on repeatability, inspection, capacity, traceability, and delivery.

A practical supplier-selection path is:

Drawing Review → DFM → Process Planning → CNC Turning → Inspection → Production Scaling

Get a Free DFM Review

Planning a custom CNC turning, prototype, low-volume, or production project?

Send your STEP and PDF drawings to the Dawang Precision engineering team. We will review your part geometry, material, critical tolerances, machining risks, and production requirements and provide a free DFM evaluation within 24 hours.
