CNC Turning Machining for Complex Parts: Live Tooling, C-Axis & Mill-Turn Capabilities

Quick Answer

CNC turning machining for complex parts combines conventional turning with live tooling, C-axis control, Y-axis movement, and sub-spindle machining. These capabilities allow turning, drilling, tapping, milling, slotting, and back-working in fewer setups. For complex shafts, robot joints, fluidic components, automotive parts, and industrial assemblies, mill-turn machining can improve feature-to-feature accuracy by keeping critical operations referenced to consistent machining datums.

Modern CNC turning machining is no longer limited to producing round features. When a turned component also requires cross-holes, flats, keyways, eccentric features, milled pockets, or rear-side machining, a mill-turn strategy can consolidate operations that would otherwise require multiple machines.

For engineers and buyers, the key question is not how many axes a machine has. It is whether the machining strategy can produce the required geometry, tolerances, and feature relationships efficiently and consistently.

What Is CNC Turning Machining?

CNC turning machining is highly efficient for producing rotational features such as diameters, bores, shoulders, grooves, and threads. For complex parts, however, the challenge begins when these features must be combined with cross-holes, flats, keyways, eccentric features, milled pockets, or back-side machining.

This is where mill-turn machining extends conventional turning by integrating live tooling, C-axis control, Y-axis movement, and sub-spindle capabilities to complete more features with fewer setups.

For a detailed introduction to basic turning principles, see our [What is cnc turning].

How Live Tooling Expands CNC Turning

Live tooling uses powered rotating tools in the turning center turret. Instead of relying only on stationary turning tools, the machine can perform operations such as:

· Cross and axial drilling

· Tapping

· Slot and keyway milling

· Flat or hex milling

· Bolt-hole patterns

· Small pockets and contours

For example, consider a shaft with bearing diameters, an external thread, two wrench flats, and a radial hole.

A conventional process may require turning first and secondary milling afterward. With suitable live tooling, these features can be machined in the same production sequence.

The main benefit is not simply faster machining. It is reducing part transfers while maintaining the relationship between turned and milled features.

What Does the C-Axis Do?

The C-axis provides controlled angular positioning or programmed rotation of the spindle.

During conventional turning, the spindle rotates continuously to generate cutting speed. With C-axis control, the machine can position the workpiece at defined angles or coordinate spindle movement with live-tool operations.

A shaft requiring four radial holes 90° apart, for example, can be indexed through the C-axis without transferring the part to another fixture.

This is valuable when the angular position of a drilled or milled feature must remain related to a turned diameter, shoulder, or other datum.

Why Is a Y-Axis Important?

C-axis control handles angular positioning, but some geometries require the cutting tool to move away from the spindle centerline.

This is the role of Y-axis turning.

The Y-axis supports:

· Eccentric holes

· Offset slots

· Off-center pockets

· Keyways

· Asymmetric flats

· Complex milled features

In practical terms:

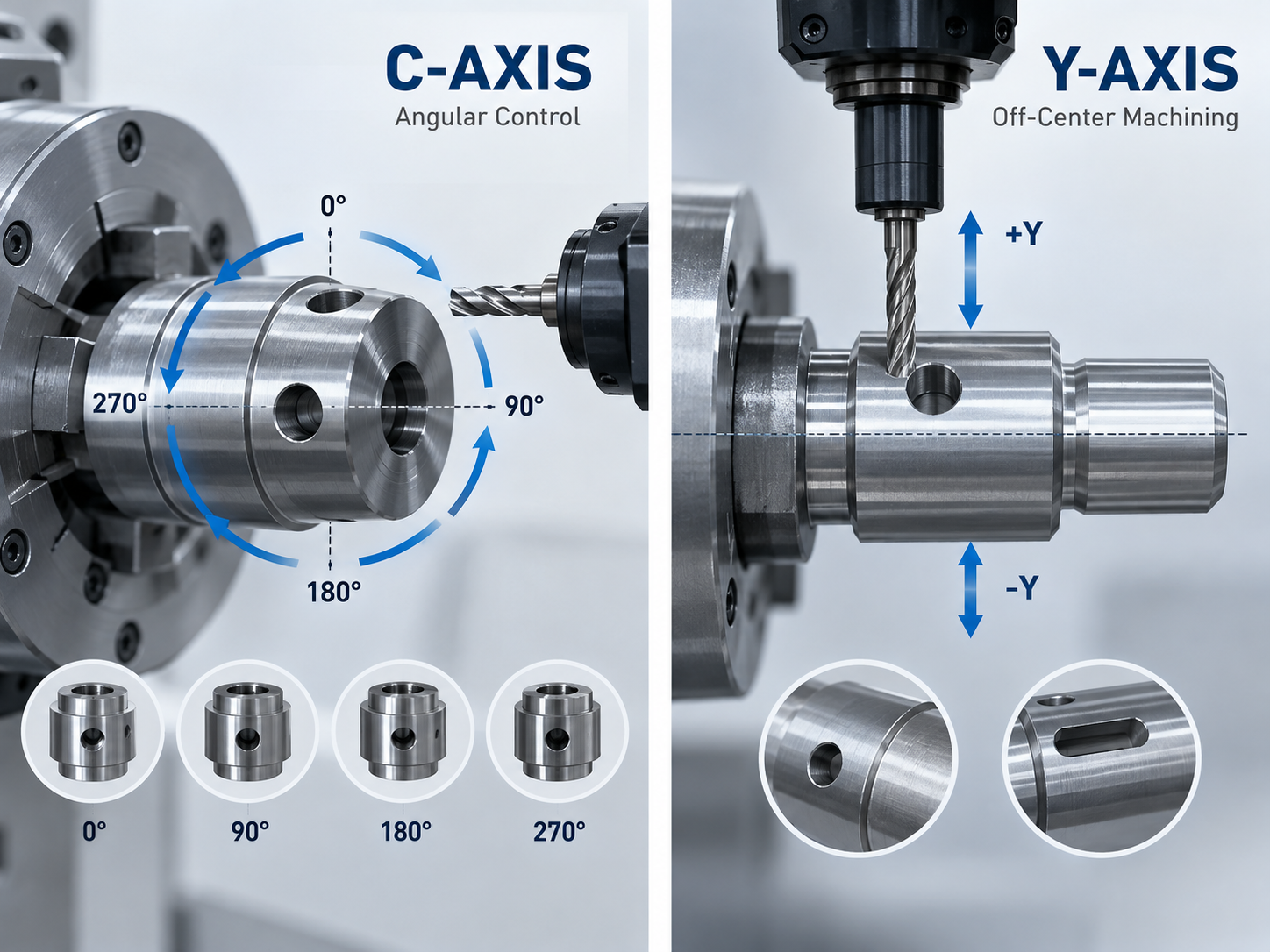

C-axis = angular control of the workpiece

Y-axis = off-center positioning of the cutting tool

Not every eccentric feature automatically requires a Y-axis; the correct machine configuration depends on the required tool centerline and geometry. But when true off-center movement is necessary, combining the Y-axis with C-axis control and live tooling significantly expands turn-mill capability.

What Does a Sub-Spindle Add?

Complex turned parts often require machining on both ends. Rechucking the component manually can introduce another datum transfer and additional handling.

A sub-spindle allows the secondary spindle to receive the component from the main spindle so rear-side operations can continue within the machining cycle.

A typical process is:

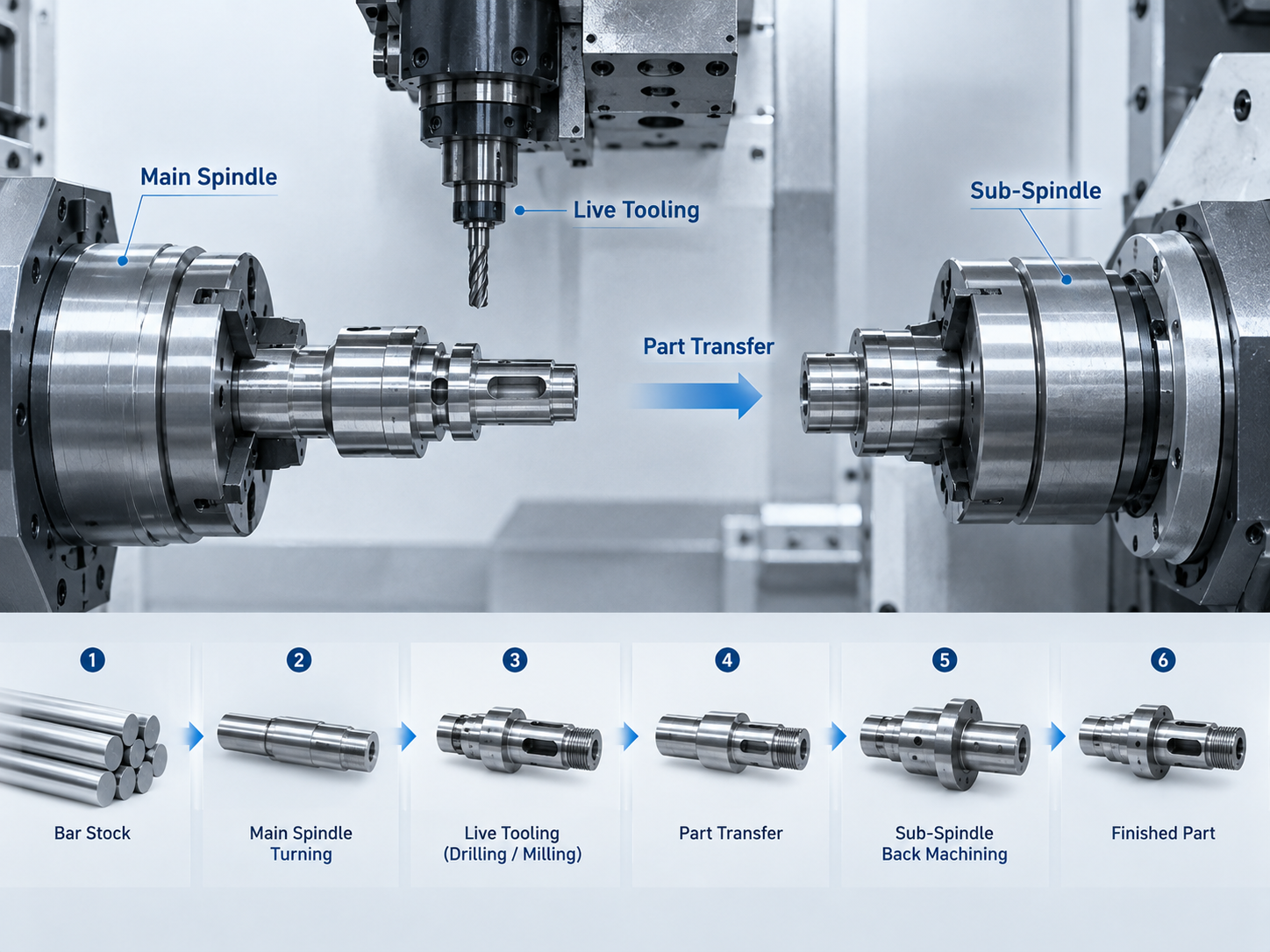

Bar Stock → Main-Spindle Turning → Live-Tool Machining → Sub-Spindle Transfer → Back Working → Finished Part

Back-working may include facing, turning, boring, drilling, threading, grooving, or milling.

For suitable components, this approach supports near-complete machining without a separate second setup.

CNC Turning vs. Mill-Turn Machining

Not every turned part needs an advanced multi-axis process.

For simple rotational components, conventional CNC turning can remain the most economical solution.

Mill-turn machining becomes more valuable when a predominantly cylindrical component combines turned, drilled, milled, angular, or back-side features with critical positional relationships.

Why Fewer Setups Matter for Complex Parts

One of the strongest reasons to use advanced CNC turning machining is datum control.

Suppose a component has a precision bearing diameter and a radial port whose position is specified relative to that diameter.

If the diameter is turned first and the port is machined in another fixture, the second setup must recreate the original datum. Fixture alignment, chucking variation, runout, and part positioning can affect the final relationship.

Keeping related operations within the same machining sequence can reduce these transfer-related errors.

This is especially important for controlling:

· Concentricity and runout

· Hole-to-diameter position

· Angular orientation

· Shoulder-to-feature relationships

· Front-to-back alignment

Single-setup machining does not automatically guarantee accuracy. Tool deflection, thermal drift, workholding distortion, tool offsets, and sub-spindle transfer must still be controlled through a stable manufacturing and inspection process.

Key Challenges in Complex CNC Turning Machining

Tool Access and Interference

Live tools, turrets, chuck jaws, sub-spindles, and the workpiece occupy the same machining envelope. Complex toolpaths increase interference and collision risk.

Technical solution: Use CAM simulation and collision checking, optimize tool orientation, and minimize unnecessary tool overhang.

Chatter and Part Deflection

Long complex shafts can deflect under cutting forces, causing taper, chatter, poor finish, or dimensional variation.

Technical solution: Reduce unsupported length, use tailstock or steady-rest support where appropriate, select rigid tooling, and balance cutting depth, feed, and spindle speed with workpiece rigidity.

Heat and Dimensional Drift

Long machining cycles generate heat in the workpiece, spindle, tooling, and machine structure.

Technical solution: Use stable coolant delivery, separate heavy roughing from critical finishing where practical, maintain consistent finishing stock, and apply offset or thermal compensation when required.

Chip Evacuation

Deep bores, grooves, pockets, and intersecting holes can trap chips and damage finished surfaces.

Technical solution: Match chipbreaker geometry, cutting parameters, coolant delivery, and toolpaths to the material and feature geometry.

Sub-Spindle Transfer

Poor transfer strategy can introduce runout or damage finished surfaces.

Technical solution: Define suitable gripping surfaces during DFM, control clamping pressure and engagement length, and verify critical front-to-back relationships during first-article inspection.

Process Parameters for Stable Mill-Turn Machining

There is no universal feed, speed, or depth of cut for CNC turning machining. Parameters depend on material, cutting tool, machine rigidity, feature geometry, tolerance, and workholding.

For roughing, prioritize stable chip formation and predictable material removal.

For finishing, leave consistent stock so the tool experiences stable cutting forces.

For live-tool milling, control cutter engagement, tool stick-out, spindle speed, feed, and chip evacuation. Small driven tools may require very different cutting conditions from turning inserts.

For slender shafts, cutting parameters should be selected around deflection risk rather than maximum material-removal rate.

Generic machining charts are useful starting points, but production parameters should be validated against the actual material, geometry, tolerance, and machine configuration.

Tolerance Control for Complex Turned Parts

A multi-axis machine does not guarantee a capable process. Tolerance planning should start with the drawing's functional datums.

Critical characteristics may include:

· Bearing and bore diameters

· Runout and concentric relationships

· Hole true position

· Angular orientation

· Shoulder locations

· Thread geometry

· Milled-feature position

Where possible, critical features should be machined from consistent datums before the workpiece is released.

Inspection can include first-article inspection, CMM measurement, in-process probing, tool-offset compensation, surface-roughness measurement, and dedicated gauges depending on the drawing.

Avoid applying unnecessarily tight tolerances to non-critical features. Excessive tolerance requirements increase machining time, inspection cost, and scrap risk without improving part function.

Applications of Complex CNC Turning Machining

Complex shafts: Drive shafts, actuator shafts, and precision spindles often combine bearing seats, threads, grooves, flats, and cross-holes.

Robot joints: Precision diameters may need to align with mounting holes, encoder features, cable passages, or milled interfaces.

Fluidic components: Valves, fittings, nozzles, and hydraulic components often combine bores, sealing surfaces, threads, radial ports, and intersecting holes.

Automotive parts: Transmission components, sensor housings, shafts, and fittings can benefit from automated turning, live tooling, and sub-spindle machining.

Industrial assemblies: Couplings, connectors, actuator components, rollers, and precision hardware often combine rotational geometry with drilled or milled features.

When Should You Choose Mill-Turn Machining?

Consider a mill-turn process when a component:

· Is primarily cylindrical but contains milled features

· Requires radial or off-center holes

· Includes flats, slots, keyways, or pockets

· Has tight positional relationships between features

· Requires machining on both ends

· Is difficult to relocate accurately in secondary fixtures

· Benefits from bar-to-finished-part automation

The objective is not to use the most complex machine available. It is to select the simplest machining route that reliably meets geometry, tolerance, quality, and production requirements.
