Precision Manufacturing of Orthopedic Implants: Bone Plates and Artificial Joints

Quick Answer

Orthopedic implant manufacturing combines precision CNC machining, medical-grade materials, dimensional control, surface finishing, cleanliness, and inspection. Bone plates, fixation components, artificial joints, and other orthopedic surgery devices often require complex geometries and tightly controlled functional features.

For complex anatomical components, 5-axis medical milling can reduce setups and improve positional consistency across curved surfaces, angled holes, and multi-face features. For custom artificial joints, manufacturing must also control functional interfaces, freeform geometry, and the required smooth finish.

For medical OEMs, a qualified CNC supplier should therefore be evaluated not only by machining capability, but also by material traceability, DFM support, inspection, cleanliness control, and medical-device quality management.

What Is Orthopedic Implant Manufacturing?

Orthopedic implant manufacturing is the precision production of components used to stabilize, repair, replace, or support the musculoskeletal system.

Typical applications include:

· Bone plates and fracture fixation systems

· Bone screws and pins

· Hip and knee implant components

· Custom artificial joints

· Spinal implants

· Trauma implants

· Patient-specific orthopedic components

Unlike conventional industrial parts, orthopedic implants may directly interact with bone, tissue, body fluids, or articulating surfaces. Manufacturing must therefore control not only dimensions, but also material integrity, surface condition, cleanliness, and repeatability.

For bone plates, screw-hole position and anatomical contour can directly affect fixation and fit. For artificial joints, functional surfaces require controlled geometry, dimensional accuracy, and surface characteristics.

Key Challenges in Orthopedic Implant Machining

1. Complex Anatomical Geometry

Bone plates commonly contain anatomical curves, variable thicknesses, locking holes, countersinks, angled holes, pockets, and radiused edges.

Artificial joint components can involve even more complex freeform surfaces, tapers, bores, spherical geometries, and mating interfaces.

Multiple setups can introduce accumulated positioning errors, especially when critical features depend on different machining datums.

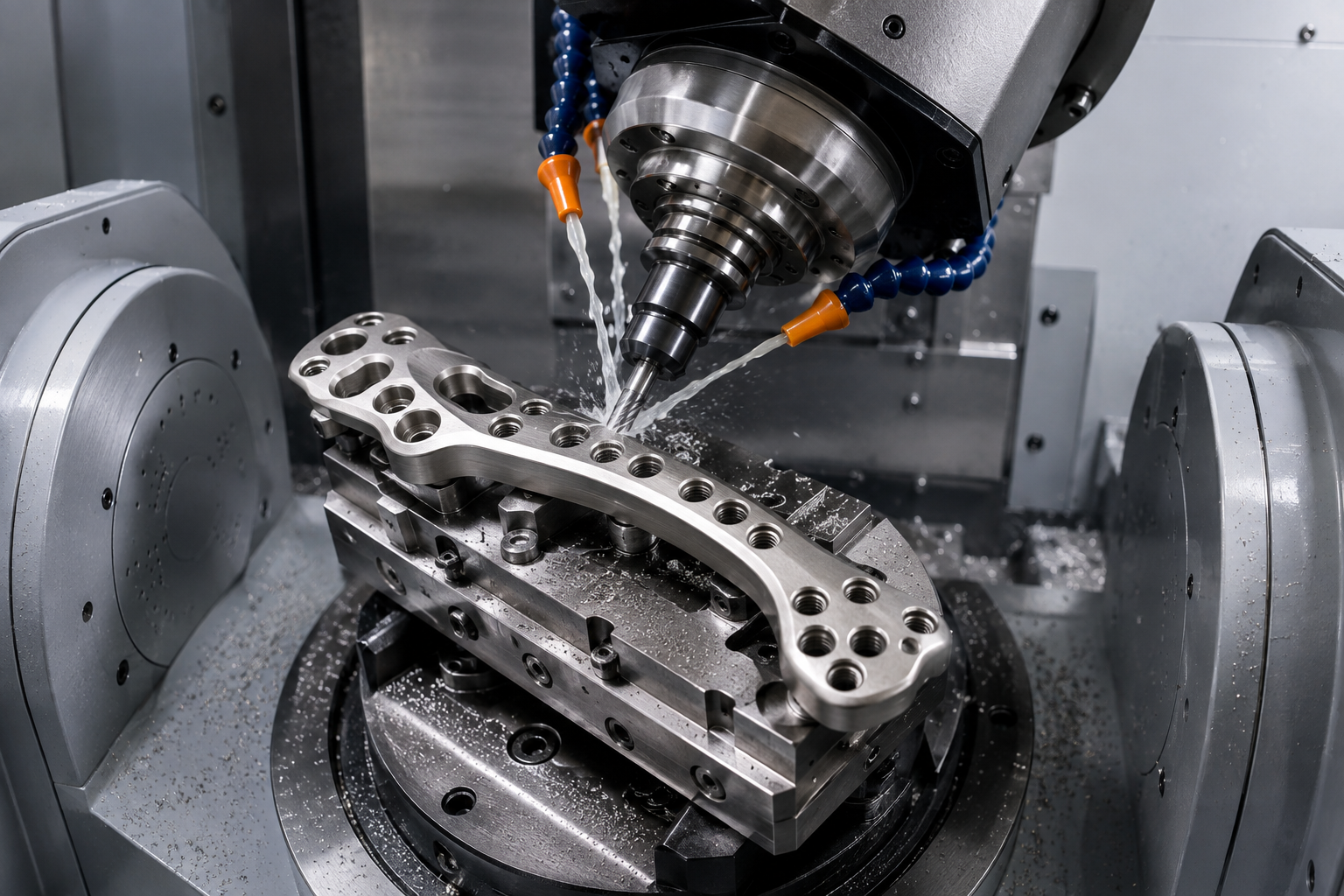

Why 5-Axis Medical Milling Helps

5-axis medical milling allows the cutting tool to approach complex surfaces from multiple orientations while maintaining a controlled workpiece reference.

Depending on the component, it can:

· Reduce machining setups

· Improve positional consistency

· Increase tool accessibility

· Reduce accumulated datum errors

· Improve surface quality on contoured features

· Reduce secondary machining

The appropriate strategy may be simultaneous 5-axis machining or indexed multi-axis machining. The decision should depend on geometry, tolerance requirements, tool access, fixture design, and production volume.

2. Titanium Requires Careful Process Control

Ti-6Al-4V and other medical titanium alloys are widely used in orthopedic applications because of their strength, corrosion resistance, and favorable strength-to-weight ratio.

However, titanium is challenging to machine. Its low thermal conductivity can concentrate heat near the cutting zone, increasing tool wear and affecting dimensional stability.

A controlled titanium machining process considers:

There is no universal cutting parameter for every orthopedic implant. Speeds, feeds, depths of cut, tooling, and coolant conditions should be selected according to the material grade, machine rigidity, cutting tool, and manufacturer's recommendations.

3. Thin Bone Plates Can Deform

Bone plates often combine lightweight structures with complex contours. As material is removed, reduced stiffness and internal stress can cause deformation during machining.

A controlled process may use:

Progressive roughing → balanced material removal → stable fixturing → controlled finishing → intermediate inspection

The goal is to maintain sufficient workpiece support while avoiding excessive cutting forces in thin sections.

Fixture design should therefore be considered during DFM rather than after the machining process has been defined.

Tolerance Control: Precision Should Follow Function

Not every dimension on an orthopedic implant requires the same tolerance.

A better approach is functional tolerance allocation.

Critical features may include:

· Screw-hole diameter and true position

· Locking threads

· Precision bores

· Tapered interfaces

· Bearing surfaces

· Mating features

· Anatomical profiles

These features may require tighter dimensional or geometric control than non-functional features.

For example, a screw hole can have the correct diameter but still create a functional problem if its true position or orientation is incorrect.

This is why GD&T, datum selection, and inspection strategy should be considered during DFM.

Actual tolerances should always be established from the approved engineering drawing and functional requirements rather than applying a generic “medical CNC tolerance.”

Surface Finish and Cleanliness

Dimensional accuracy alone does not define the quality of an orthopedic implant.

Functional surfaces may require a controlled smooth finish to support specific friction, wear, mating, or surface-interaction requirements.

However, lower surface roughness is not automatically better for every feature. The target finish should be defined according to the function of the individual surface and verified during inspection.

Depending on the design and material, finishing may include:

· Precision CNC finishing

· Deburring

· Polishing

· Passivation

· Electropolishing

· Specified surface treatments

· Ultrasonic cleaning

Cleanliness is equally important. Machining debris, coolant residue, polishing compounds, and foreign particles must be controlled throughout the manufacturing process.

A typical workflow is:

CNC machining → Deburring → Surface treatment → Cleaning → Inspection → Controlled handling → Packaging

This makes contamination control a manufacturing-process requirement rather than simply a final cleaning step.

Orthopedic Implant Manufacturing Process

1. DFM and Engineering Review

Before machining, engineers should review the STEP model and PDF drawing for:

· Material grade

· Critical dimensions

· GD&T

· Datum structure

· Tool accessibility

· Thin sections

· Fixturing requirements

· Surface-finish requirements

· Inspection requirements

Early DFM can identify manufacturing risks before production.

2. Material Verification

The specified material grade, certification, and production lot should be verified before machining.

For medical components, “titanium” alone is not a sufficient material specification. The required alloy, condition, applicable standard, and traceability requirements should be clearly defined.

3. CNC Roughing and Multi-Axis Machining

Roughing establishes the basic geometry while preserving sufficient stock for finishing.

Complex anatomical surfaces, angled holes, pockets, and multi-face features can then be machined using an appropriate multi-axis strategy.

4. Precision Finishing

Finishing establishes final dimensions, profiles, edge conditions, and surface characteristics.

For custom artificial joints, stable tool engagement and controlled tool orientation are particularly important when machining complex functional surfaces.

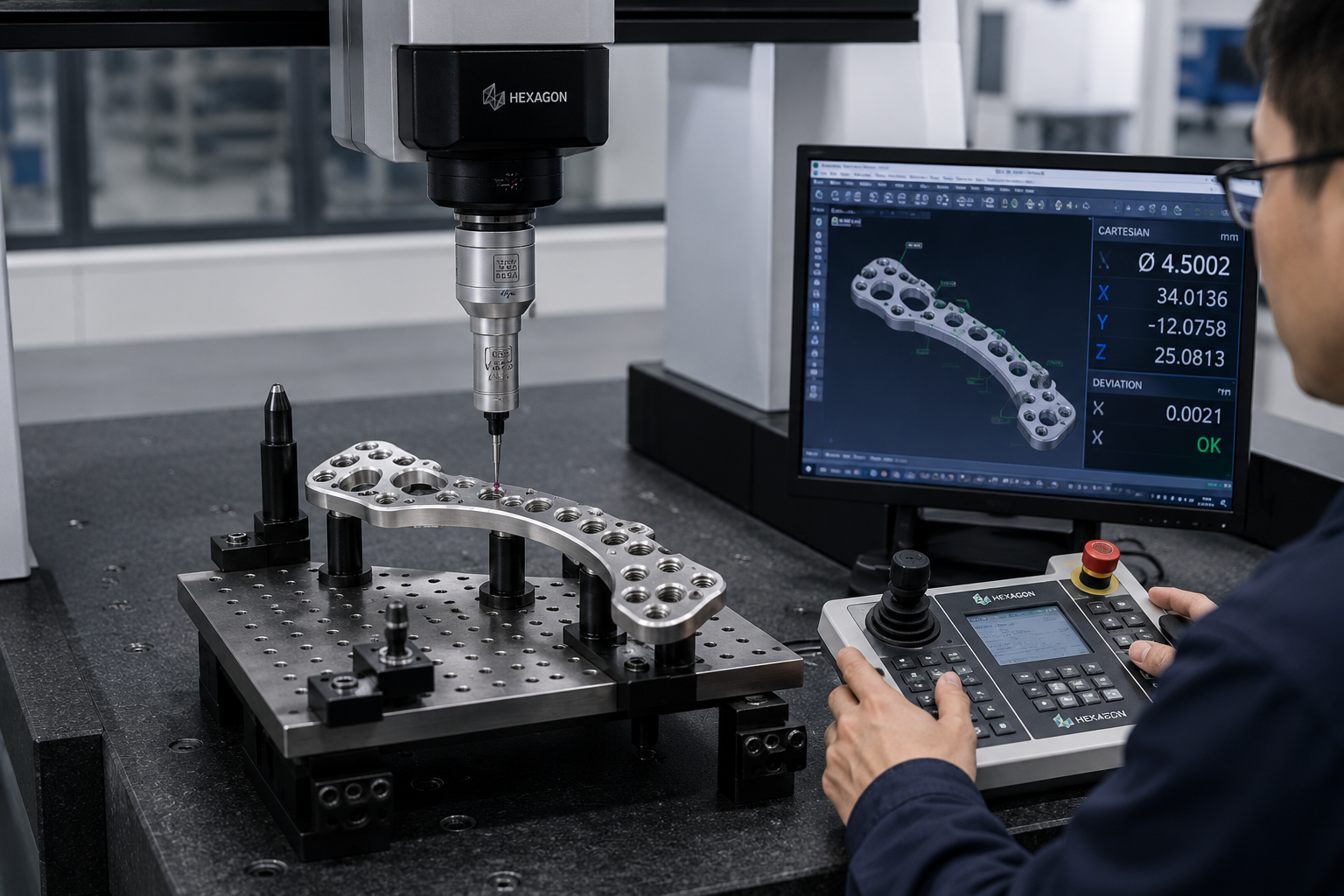

5. Cleaning and Inspection

After machining and specified surface treatment, components are cleaned and inspected using appropriate methods such as:

· CMM measurement

· Optical inspection

· Surface roughness measurement

· Thread inspection

· Visual inspection

· Material verification

Quality Management for Medical OEMs

For medical-device manufacturers, supplier quality management is an important part of the sourcing decision.

An ISO 13485-certified manufacturing system can provide a structured framework for controlling processes, documentation, traceability, and quality activities.

For U.S. medical-device companies, the FDA's Quality Management System Regulation (QMSR) became effective on February 2, 2026, incorporating ISO 13485:2016 by reference into the U.S. medical-device quality framework.

When evaluating an orthopedic implant machining supplier, procurement and engineering teams should consider:

· Material traceability

· Inspection documentation

· DFM capability

· Surface-finish verification

· Cleanliness controls

· Equipment and measurement capability

· Production repeatability

· Quality-system scope

Why DFM Matters Before Production

A component may be technically machinable but still unnecessarily expensive or difficult to produce.

A professional DFM review can identify:

· Excessively tight non-functional tolerances

· Difficult tool access

· Unstable clamping areas

· Thin-section deformation risks

· Unnecessary machining operations

· Difficult inspection datums

· Surface-finish conflicts

A small design adjustment before production can sometimes eliminate an additional setup or secondary operation without changing the functional design.

For engineers, this reduces manufacturing risk. For procurement teams, it can improve cost, lead time, and production repeatability.

From Prototype to Production

Orthopedic components often progress through:

Prototype → Design Validation → Design Freeze → Pilot Production → Production

CNC machining is well suited to this development path because the same manufacturing principles can support prototype and repeat production.

Early communication between the product engineer and machining supplier allows teams to evaluate anatomical fit, hole alignment, functional interfaces, machining feasibility, surface finish, and inspection requirements before larger production commitments are made.

Frequently Asked Questions

Q1:What materials are commonly used for orthopedic implants?

Medical-grade titanium alloys, stainless steels, cobalt-chrome alloys, PEEK, and UHMWPE are commonly used depending on the device design and functional requirements.

Q2:Why use 5-axis CNC machining for orthopedic implants?

5-axis machining provides access to complex anatomical surfaces from multiple orientations while reducing setups, which can improve positional consistency and surface quality.

Q3:What tolerance is required for bone plates?

There is no universal tolerance. Critical holes, threads, interfaces, and functional surfaces should be specified according to their engineering function and inspection requirements.

Q4:What surface finish is required for artificial joints?

The required finish depends on the specific functional surface. Articulating and mating areas generally require more controlled surface characteristics than non-functional areas.

Q5:Can orthopedic implant designs be reviewed before production?

Yes. A DFM review can identify issues related to tolerances, tool access, fixturing, thin sections, surface finish, and inspection before machining begins.
