Precision mold core making often requires both high-speed 5-axis milling and mirror EDM. 5-axis milling is efficient for roughing, semi-finishing, and complex freeform surfaces, while mirror EDM is better suited to hardened mold steel, deep narrow cavities, small internal features, and controlled cavity texture. For high-precision multi-cavity molds, combining both processes can improve feature accessibility, dimensional consistency, surface quality, and overall manufacturing efficiency.

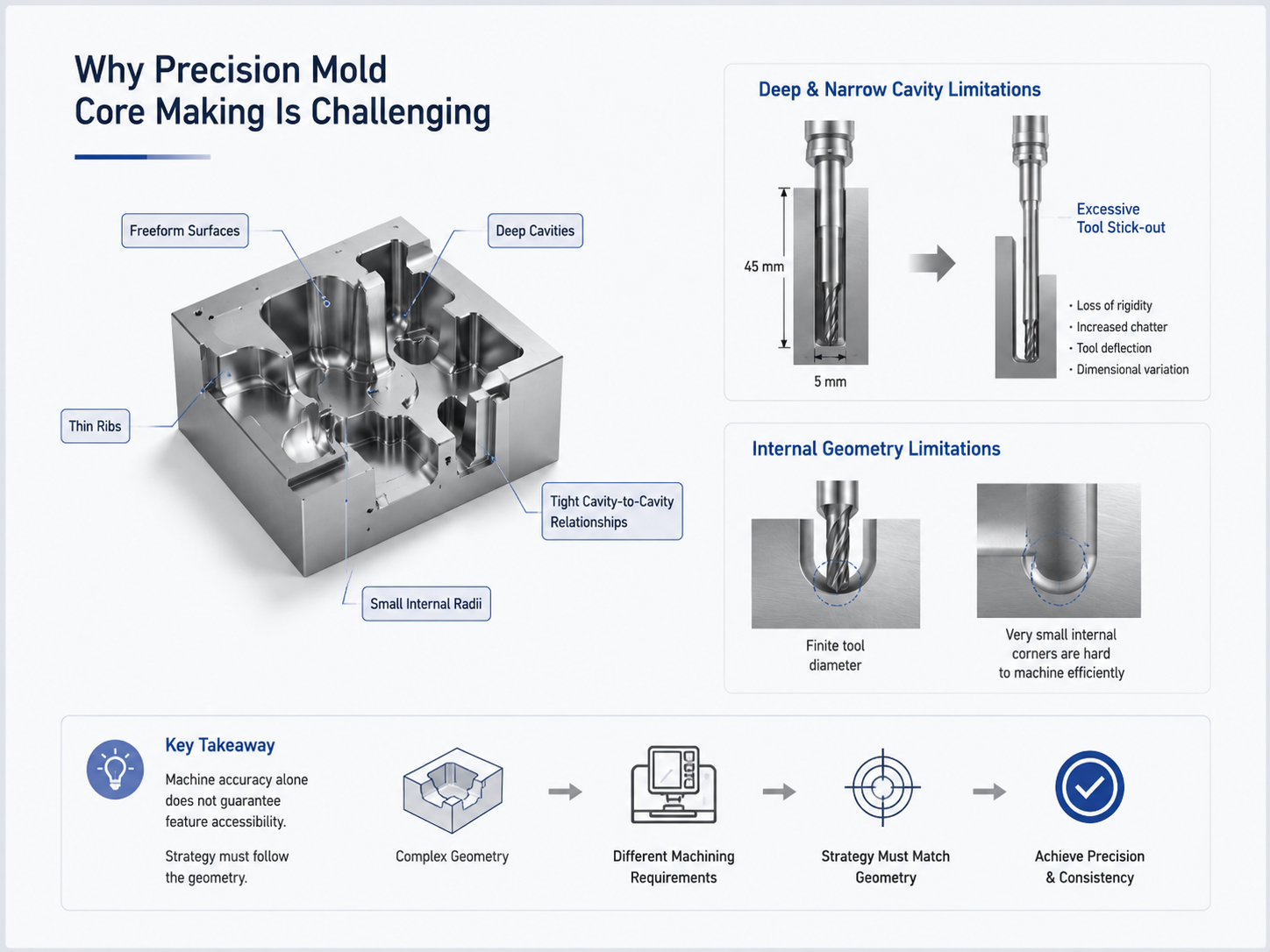

Precision mold cores often combine freeform surfaces, deep cavities, thin ribs, small internal radii, and tight cavity-to-cavity relationships. These features create different machining requirements within the same component.
A typical mold core may start from a steel blank with 10–15 mm machining allowance in selected areas. High-speed milling can efficiently remove most of this stock, but a 45 mm-deep cavity only 5 mm wide may require excessive tool stick-out. The resulting loss of rigidity can increase chatter, tool deflection, and dimensional variation.
Internal geometry creates another limitation. Milling cutters have a finite diameter and radius, making very small internal corners or narrow features difficult to machine efficiently.
This is why machine accuracy alone does not guarantee feature accessibility. The machining strategy must follow the geometry.

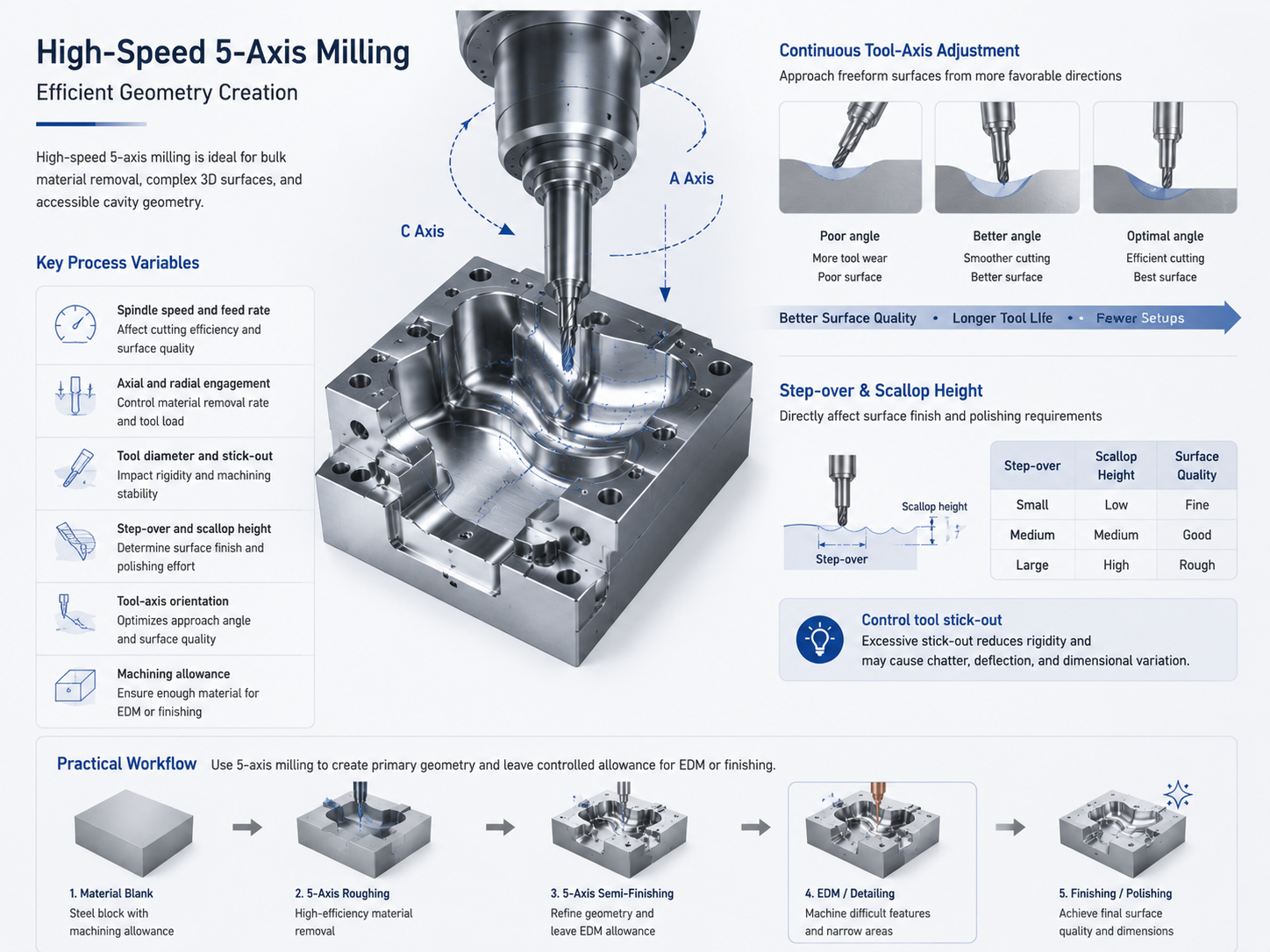

High-speed 5-axis milling is well suited to bulk material removal, complex 3D surfaces, and accessible cavity geometry. Continuous tool-axis adjustment allows the cutter to approach freeform surfaces from more favorable directions while reducing unnecessary setups.
Key process variables include:
Spindle speed and feed rate
Axial and radial engagement
Tool diameter and stick-out
Step-over and scallop height
Tool-axis orientation
Machining allowance
For mold-core finishing, step-over and scallop height directly affect surface quality and subsequent polishing requirements. Tool stick-out must also be controlled because excessive extension can reduce rigidity.
A practical workflow is to use 5-axis milling to establish the primary cavity geometry and leave a controlled allowance for subsequent EDM or finishing operations.
EDM removes electrically conductive material through controlled electrical discharges rather than conventional cutting. This makes it particularly useful when cutting-tool access, tool geometry, or material hardness becomes a limiting factor.
Mirror EDM can complement 5-axis milling in areas such as:
Hardened mold steel
Deep narrow cavities
Small internal features
Difficult-to-reach geometry
Fine cavity details
Controlled surface finishing
For example, after heat treatment, selected regions of a mold core may become less suitable for aggressive small-tool milling. Instead of using an excessively long cutter, engineers can allocate the difficult feature to EDM.
The EDM process must control discharge current, pulse-on time, pulse-off time, flushing, electrode wear, and finishing cycles. Rough EDM and mirror finishing should be treated as separate operations because their objectives and parameter windows differ.
Requirement | 5-Axis Milling | Mirror EDM |
Bulk material removal | Excellent | Limited |
Freeform surfaces | Excellent | Feature-dependent |
Hardened steel | More challenging | Well suited |
Deep narrow features | Tool-access limited | Strong |
Small internal details | Tool-size limited | Strong |
Fine cavity surface | Good | Excellent finishing option |
The practical answer is therefore not EDM vs. milling, but milling + EDM according to feature requirements.
A precision mold core may follow this process:
Material Preparation → Datum Establishment → 5-Axis Roughing → Heat Treatment → 5-Axis Semi-Finishing → Mirror EDM → Final Finishing → Inspection
During roughing, 5-axis milling removes the majority of the material. After heat treatment, the main cavity surfaces can be semi-finished while maintaining controlled EDM allowance.
Mirror EDM is then applied to deep, narrow, hardened, or difficult-to-access features. Final polishing or additional finishing follows according to the required cavity condition.
For high-precision multi-cavity molds, inspection should occur at key stages rather than only after final machining.
Multi-cavity molds require control of both individual cavity dimensions and the positional relationship between cavities.
During DFM review, engineers should identify:
Critical datums
Cavity-to-cavity tolerances
Internal radii
Wall thickness
Tool accessibility
EDM electrode requirements
Heat-treatment deformation
Surface-finish requirements
After roughing, machining allowance can be verified. After heat treatment, distortion should be checked. Following 5-axis finishing and EDM, critical dimensions and cavity relationships can be verified using CMM or other appropriate inspection methods.
This staged approach helps prevent a dimensional error from being carried into subsequent operations.
Cavity texture machining is particularly important when the mold surface directly determines the appearance or functional characteristics of the molded component.
Mirror EDM can provide a controlled fine surface condition, but the final result depends on electrode condition, discharge parameters, flushing, material, and finishing cycles.
For multi-cavity molds, the same EDM strategy should be applied consistently across cavities. Otherwise, small differences in surface condition may be transferred to the molded parts.
The strongest manufacturing strategy is to let each process handle the features it is best suited to manufacture.
5-axis milling: fast material removal, complex freeform surfaces, and accessible geometry.
Mirror EDM: hardened materials, deep narrow cavities, difficult internal features, and fine surface requirements.
This process division can reduce the need for excessively small or long milling tools while avoiding inefficient EDM removal of large material volumes.
Dawang Precision has 26 years of precision manufacturing experience and operates more than 400 advanced machine tools, including Röders and Mazak 5-axis machining centers.
For complex mold cores, our engineering team evaluates material, geometry, machining allowance, tolerance, tool accessibility, EDM requirements, and inspection strategy before production.
For high-precision multi-cavity molds, the objective is not simply to machine one cavity accurately, but to maintain consistent geometry and surface requirements across the complete mold.
The synergy of mirror EDM and high-speed 5-axis milling provides a practical solution for modern precision mold core making. 5-axis milling delivers efficient geometry creation, while mirror EDM addresses features limited by tool access, hardness, or internal geometry.
For complex multi-cavity molds, the best process is rarely a single technology. It is a controlled combination of processes based on the material, geometry, tolerance, surface requirements, and production objectives.
