A cracked clutch housing can keep a vehicle out of service even after the transmission has been repaired. For older models, specialist vehicles, and drivetrain conversions, finding a suitable replacement is often difficult. Original parts may be discontinued, used housings may have uncertain dimensional condition, and new casting tooling may be difficult to justify for a small order.

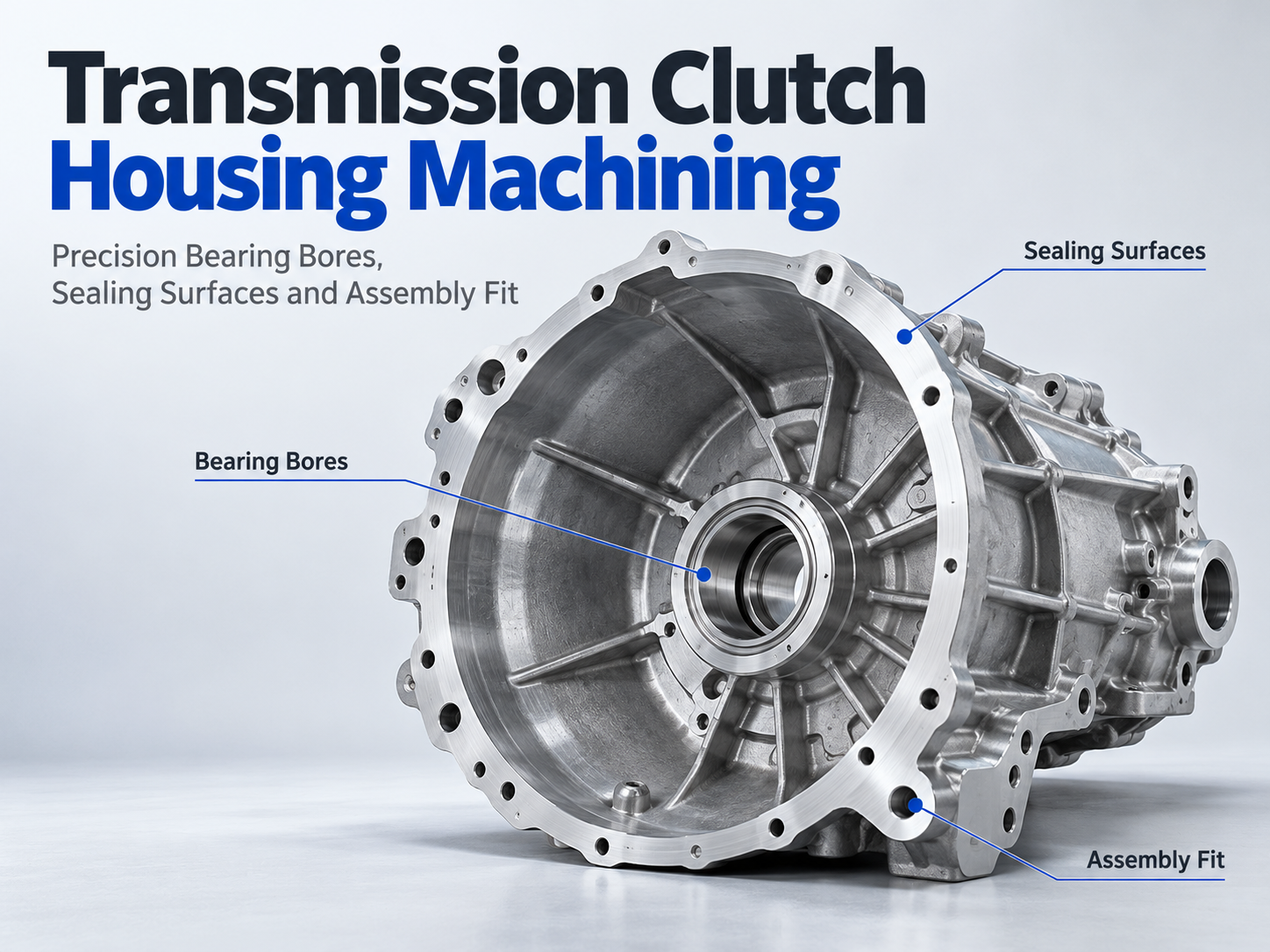

Transmission clutch housing machining offers a practical route for replacement components, interface modifications, and low-volume manufacturing. However, reproducing the external shape is only the beginning. The housing must locate mating components correctly, provide sufficient internal clearance, and maintain its geometry after machining and assembly.
For engineers, the priority is functional alignment. For procurement managers, it is repeatable quality, clear documentation, and predictable delivery.
Automotive repair businesses work across conventional manual transmissions, dual-clutch systems, hybrid powertrains, and custom drivetrain installations. These applications create different housing requirements, often at quantities that do not suit conventional mass production.
A restoration workshop may need one discontinued bellhousing. A motorsport team may require five housings with a revised transmission interface. An aftermarket supplier may want an initial batch before committing to a larger program.

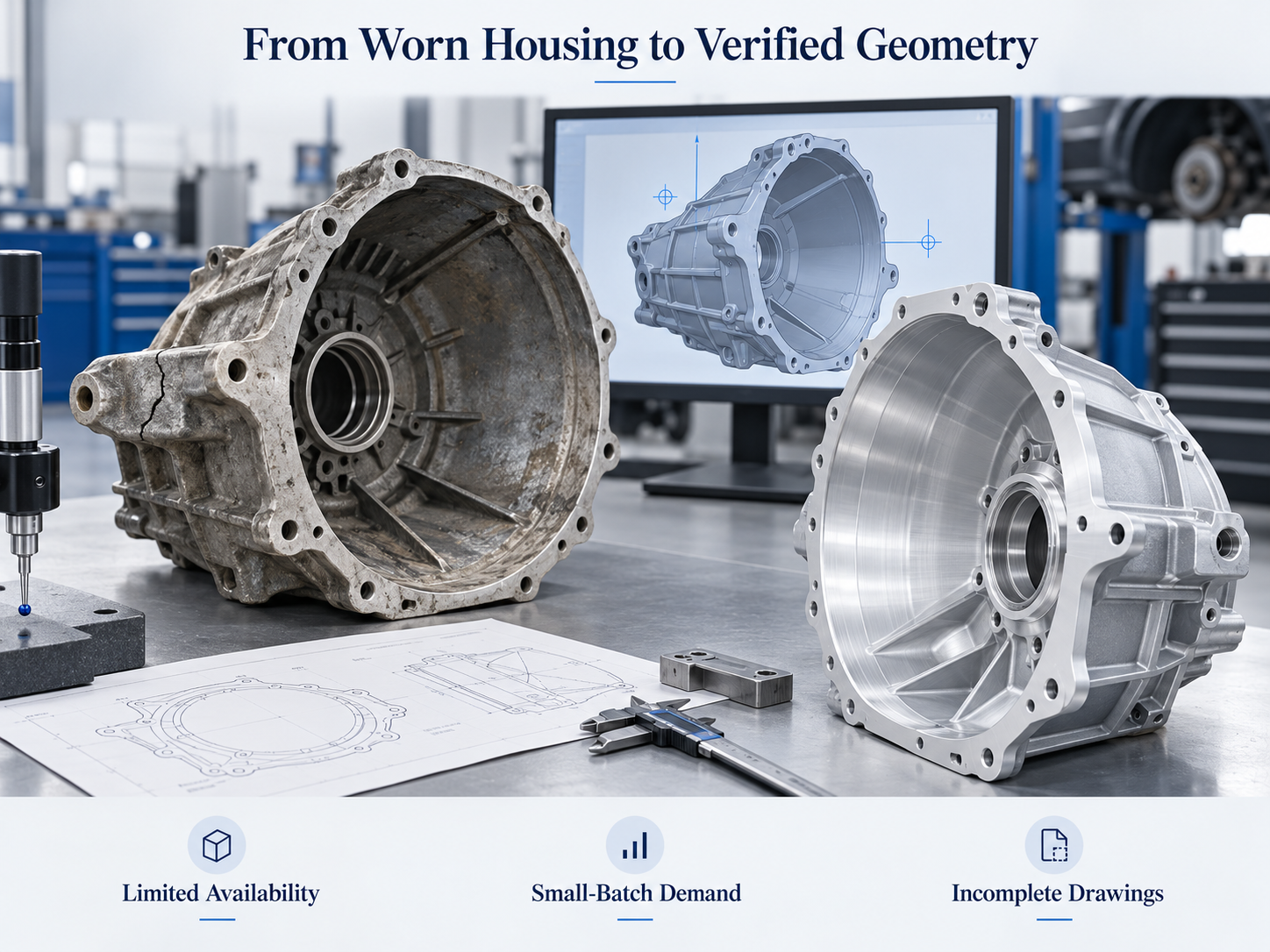

Several challenges appear repeatedly:
· Limited replacement availability: Original components may be unavailable, while used parts can have wear, cracks, or undocumented repairs.
· Uneconomical tooling investment: Small quantities may not justify dedicated casting tooling.
· Incomplete technical information: An existing sample rarely establishes original tolerances, material condition, or assembly datums.
CNC machining makes small-quantity replacement and design revision more accessible. Approved geometry can move into manufacturing without first developing a dedicated casting tool.
Reverse engineering still requires engineering judgment. Scanning can capture shape, but critical interfaces must be evaluated against mating components and functional requirements. Wear, damage, and previous repairs should not be reproduced unintentionally.

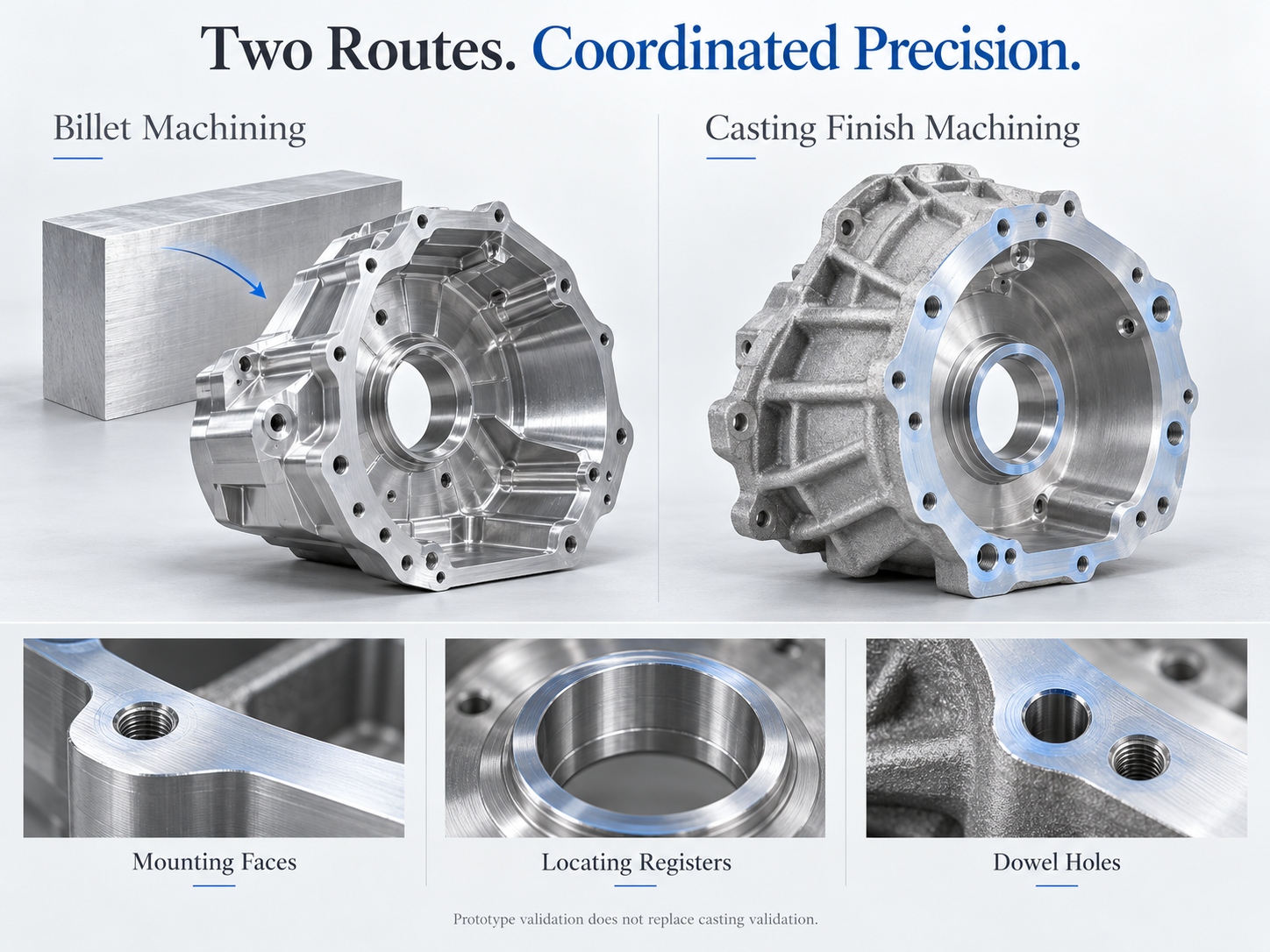

CNC clutch housing machining supports both complete billet components and the finish machining of castings.
Billet manufacturing is useful during development because engineers can evaluate functional interfaces before casting tooling becomes available. Register diameters, mounting bosses, starter clearances, and internal pockets can be revised through updated models and machining programs.
For mature designs with suitable castings, machining only the critical surfaces generally reduces material removal. The process can concentrate on mounting faces, bearing seats, locating registers, dowel holes, and threads.
A major advantage is coordinated control of these features. Reliable transmission housing assembly fit depends on their relationships, rather than individual dimensions alone.
A billet prototype does not necessarily reproduce the stiffness, material behavior, or thermal response of a production casting. Validation plans should therefore identify which functions the prototype can demonstrate and which require further testing.
Precision clutch housing manufacturing covers several component types, each with different functional priorities.
Typical component | Main machined features | Application |
Manual transmission bellhousing | Engine flange, transmission register, dowel holes, starter opening | Repair, restoration, drivetrain conversion |
Dual-clutch transmission housing | Bearing seats, clutch-module interfaces, sealing faces | Development and replacement programs |
Hybrid disconnect-clutch housing | Module locating features, mounting faces, seal interfaces | Hybrid powertrain development |
Motorsport clutch housing | Lightweight pockets, reinforced bosses, custom interfaces | Competition and specialist vehicles |
Engine-to-transmission adapter plate | Locating registers, bolt patterns, dowel locations | Powertrain conversions |
Clutch actuator mounting component | Mounting pads, guide bores, threaded holes | Actuation-system integration |
Not every clutch housing contains bearing seats or requires fluid-tight sealing. A dry bellhousing may primarily provide enclosure and alignment, while another design also supports bearings or contains lubricated components. Manufacturing requirements must follow the actual architecture.
The most demanding features usually determine alignment, support rotating components, or establish contact between mating parts.
Functional feature | Main machining challenge | Assembly implication |
Bearing seats | Diameter, cylindricity, shoulder geometry, axis alignment | Bearing fit and support |
Transmission register | Position relative to engine-side references | Engine-to-transmission alignment |
Mounting flange | Clamping deformation and movement after material removal | Mating contact and face relationships |
Sealing interface | Flatness, texture, waviness, local defects | Joint sealing conditions |
Dowel holes | Diameter and pattern position | Assembly location and interchangeability |
Clutch housing bearing bore machining requires more than diameter control. A bore can meet its size tolerance while remaining tapered, out-of-round, or incorrectly aligned.
The bearing fit must reflect the selected bearing, loading, housing material, and operating temperature. H7 should not be applied automatically to every bearing seat.
Aluminum clutch housing machining also requires distortion control. Deep-pocket machining can release residual stress, while excessive clamping can temporarily flatten a flexible flange. The housing may move after release.
Deep cavities create tooling challenges as well. Extended cutters can deflect or chatter, affecting wall geometry and surface finish. Five-axis positioning may improve access where it permits shorter tools, subject to fixture clearance and collision review.
Clutch housing sealing surface machining must match the joint design. Gaskets, liquid sealants, and O-rings require different surface conditions. Roughness alone cannot establish sealing performance; joint stiffness, fastener loading, and seal compression also contribute.
The following engineering example uses illustrative dimensions, tolerances, and quantities. It is not a verified Dawang customer case and should only be presented as one after actual project records are available.
An aftermarket engineering team needs a dry clutch bellhousing for an engine-to-transmission conversion. The initial requirement is five prototypes for assembly evaluation, with a potential follow-up order of twenty units.
The proposed housing is machined from 6061-T651 aluminum billet. Its overall envelope is approximately 340 × 310 × 185 mm, with nominal 6 mm walls and reinforced mounting bosses.
This design has no integrated bearing seat. A transmission locating register establishes alignment, while the engine-side mounting face and dowel arrangement provide the assembly references.
Feature | Illustrative acceptance target |
Engine-side mounting face | Flatness ≤0.05 mm |
Transmission locating register | Ø120 H7: 120.000–120.035 mm |
Register axis location | Position Ø0.05 mm to the defined datum system |
Transmission mounting face | Parallelism 0.05 mm to the engine-side face |
Mounting-face separation | 165.00 ±0.05 mm |
Engine-side dowel holes | Two Ø12 H7 holes; position Ø0.03 mm to specified datums |
Functional mounting surfaces | Ra ≤3.2 μm |
These targets require confirmation against the mating components, installation method, and operating conditions.
The proposed process begins by establishing temporary locating features and rough-machining the cavity while retaining support around the mounting interfaces.
An initial allowance of approximately 0.5 mm per functional face and 0.3 mm radially on the register is reserved for finishing. These allowances would be adjusted after reviewing first-piece movement and cutting behavior.
After substantial material removal, the housing is released and checked. Semi-finishing then establishes stable references before coordinated finishing of the mounting faces, dowel holes, and register.
Clamping forces act through reinforced regions. Adjustable supports stabilize the flange without lifting the component from its locators or forcing it into shape.
Cutting parameters must suit the actual tool and setup. For illustration, a 12 mm three-flute cutter at approximately 7,960 rpm and 0.05 mm per tooth gives a calculated feed of approximately 1,190 mm/min. These are trial reference values, not a production recipe. Tool supplier guidance and cutting trials must establish suitable engagement and operating conditions.
The first housing receives a complete dimensional inspection before the remaining prototypes proceed through critical finishing. Calibrated internal measurement verifies register size, while CMM inspection evaluates the register axis, dowel pattern, and mounting-face relationships.
Assembly evaluation checks dowel engagement, register fit, fastener access, and clearance around the clutch, starter, and release mechanism. Bolts should not be used to pull misaligned interfaces into position.
Dimensional acceptance confirms drawing compliance. Structural suitability and vehicle operating performance require separate validation.
Dawang Precision brings 27 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machines.
For clutch housing projects, this equipment base supports selecting a manufacturing route around geometry, quantity, access, and inspection requirements.
Supply efficiency also depends on resolving technical questions early. A complete quotation review should establish material condition, functional datums, critical tolerances, surface treatment, documentation, and delivery requirements.
For clutch housing prototype machining, assembly feedback should inform the approved drawing and production process. Before low volume clutch housing production begins, the fixture and inspection plan should reflect those findings.
Inspection conditions also need agreement. Free-state measurements may differ from measurements under assembly restraint. Where restrained inspection is required, the fixture, fastener sequence, and tightening conditions should be defined.
Temperature matters when checking aluminum components. Using an approximate expansion coefficient of 23 μm/m/°C, a 200 mm dimension changes by about 0.023 mm across a 5°C temperature difference. Parts and measuring equipment should stabilize before close-tolerance acceptance checks.
Clear requirements, controlled revisions, and agreed inspection criteria help reduce clarification cycles and support realistic production scheduling.
Whether the project involves a discontinued replacement, a conversion housing, or a small development batch, reliable manufacturing starts with clearly defined functional interfaces.
