Views: 0 Author: Lee Publish Time: 2026-10-22 Origin: Site
Endoscope handles bring steering mechanisms, valves, cables, and imaging interfaces together in a compact assembly. The housing must support these components while remaining comfortable to hold and practical to assemble. Moving one button or changing an internal mechanism can require revisions to several surrounding features.
For hardware engineers, the challenge is validating those interfaces before committing to production tooling. For procurement managers, it is obtaining usable parts on schedule while avoiding unnecessary machining costs and repeated modifications.

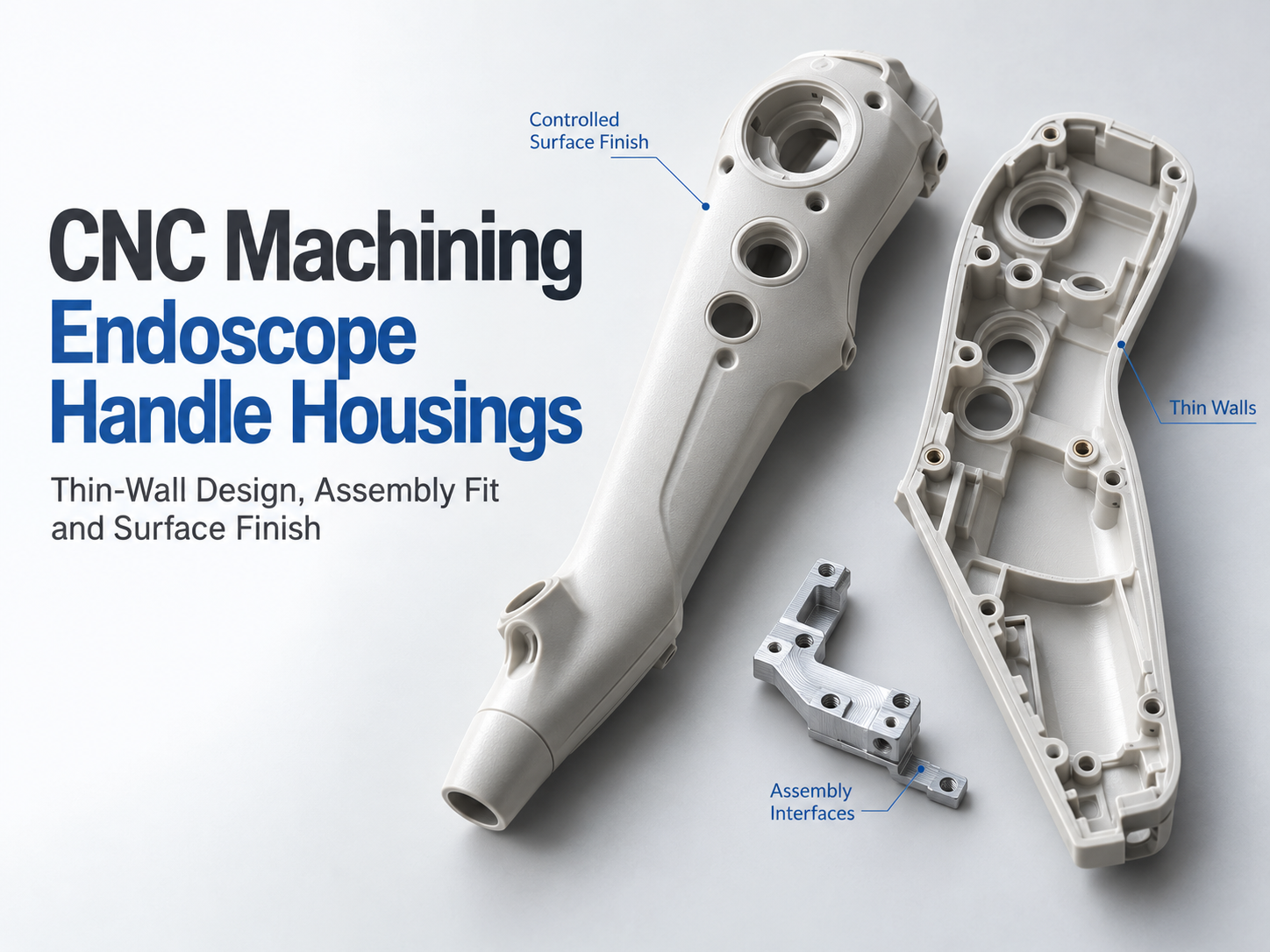

CNC machining endoscope handle housings provides a practical route to functional prototypes and selected low-volume components. Successful manufacturing depends on controlling the features that matter to assembly: thin walls, mating edges, mounting locations, control openings, and surface condition.

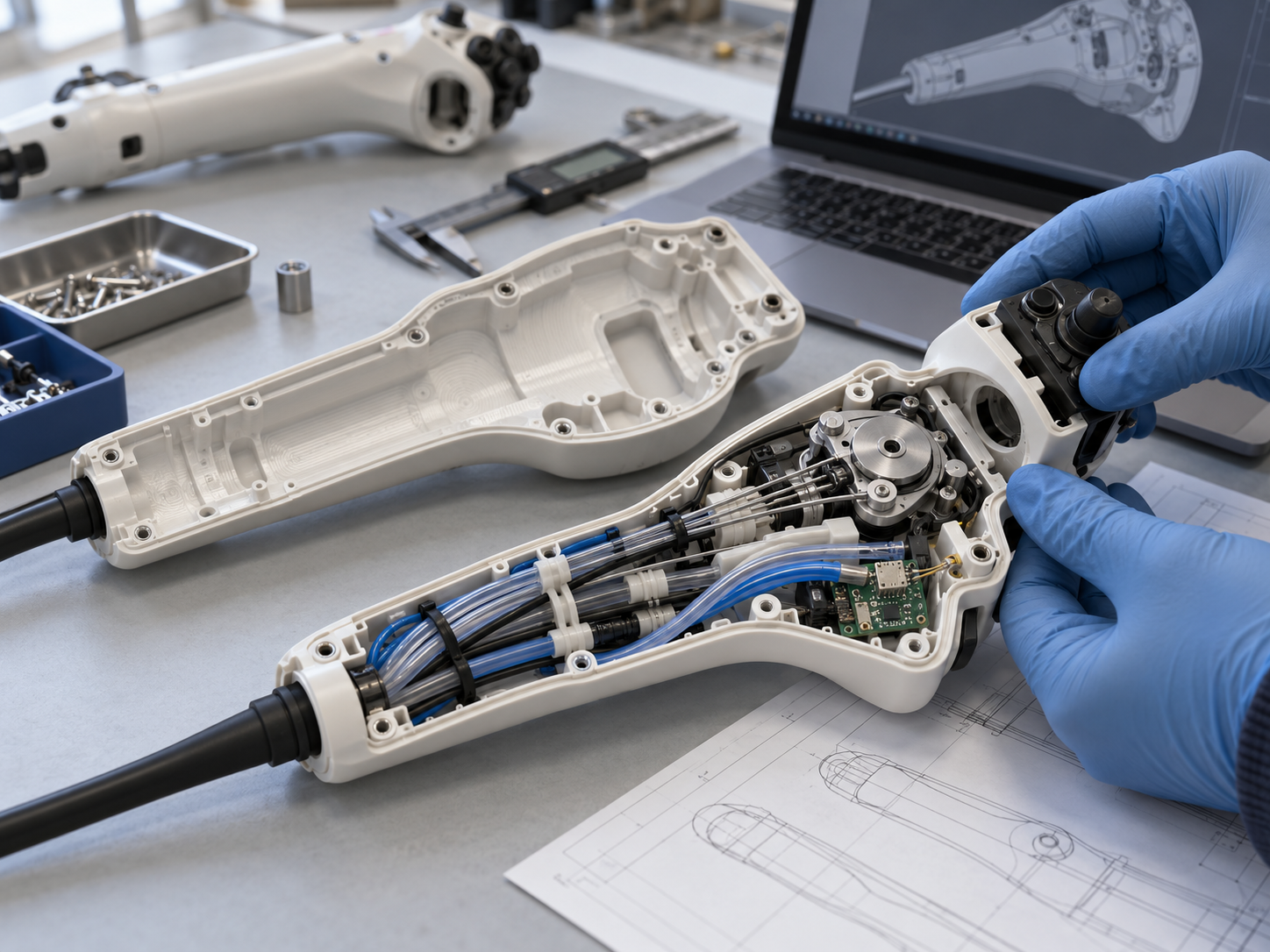

Medical device development requires manufacturers to balance product improvements, verification requirements, sourcing constraints, and development budgets. Within an endoscope handle, mechanical controls, cable passages, fluid connections, and electronic components compete for limited space.
This creates several recurring challenges.
Design changes affect multiple interfaces. Repositioning a control lever may require changes to its opening, internal support, and surrounding clearance. Discovering interference after mold construction begins can increase modification costs.
Appearance models provide limited functional evidence. A prototype may demonstrate grip comfort without adequately representing screw retention, local stiffness, mating-edge accuracy, or internal component alignment.
Early quantities rarely justify dedicated tooling. A development team may need a few housings for assembly trials, followed by another small batch incorporating revisions. Injection molding may be the intended production method, but tooling can be premature while the design remains unsettled.
Reusable designs introduce additional material and joint requirements. Materials, seams, and internal spaces must be assessed against the intended cleaning, disinfection, or sterilization process. FDA guidance emphasizes device-specific reprocessing validation; material selection alone cannot establish suitability.

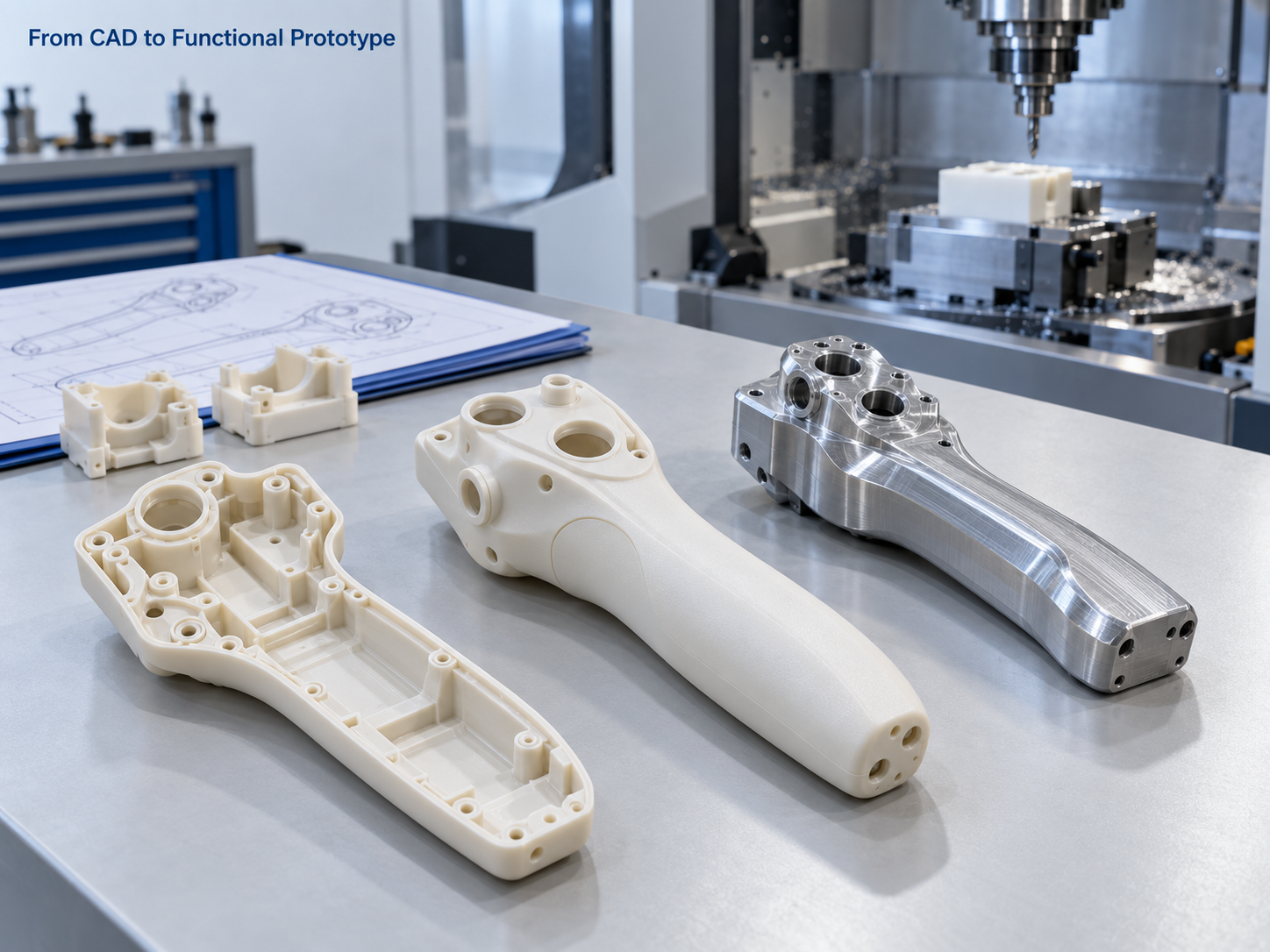

CNC machining helps teams investigate these issues earlier by producing functional parts directly from revised CAD data.
Endoscope handle housing machining is useful when engineers need defined assembly interfaces in a specified stock material.
Machining can produce housings from engineering plastic or aluminum stock, subject to material availability and geometry. Engineers can assess stiffness, component packaging, and mechanical fit before investing in production tooling.
Candidate polymers may include ABS, polycarbonate, PEI, PPSU, or PEEK. The appropriate choice depends on the material grade, application environment, documentation requirements, and development stage.
Mounting faces, locating holes, valve openings, and mating ledges can be machined within a coordinated datum system. This helps preserve the relationships that determine whether controls move freely and the housing closes correctly.
Changes to pockets, clearances, and mounting features can often be implemented through updated models and machining programs. Fixtures and tool access still require review, but early revisions can proceed without modifying a dedicated mold.
For single-use endoscope handle housings, CNC prototypes can support ergonomic evaluation, component layout, and assembly verification.
They do not reproduce molding shrinkage, weld lines, or molded snap-fit behavior. Those characteristics require confirmation through the intended production process.
CNC machining can support external shells and internal structural components.
Component | Typical machined features | Engineering purpose |
Split handle shells | Internal pockets, mating ledges, bosses, control openings | Enclose components and establish shell fit |
Control mechanism carriers | Locating bores, mounting faces, fastener holes | Position steering and actuation mechanisms |
Button and valve interface components | Bores, seats, mounting details | Support alignment and controlled movement |
Cable-entry housings | Passages, retention features, connection faces | Guide cables and support strain-relief assemblies |
Internal frames and brackets | Mounting patterns, clearance pockets, locating features | Maintain component positions |
Applications include flexible gastrointestinal endoscope control bodies, bronchoscope handles, video endoscope assemblies, and prototype single-use handles.
Machined plastic endoscope housings can support lightweight shell development. Aluminum endoscope handle housings or internal frames may suit designs requiring greater rigidity. Selection should follow the assembly requirements.
Removing the internal cavity reduces shell stiffness and may release residual stress. Cutting loads and fixture pressure can then displace the remaining walls.
A housing may measure correctly while clamped but change shape after release. Unsupported spans, deep pockets, and uneven stock removal increase this risk.
Endoscope housing assembly fit depends on relationships between features. A correctly sized button opening can still cause binding if it is misplaced relative to the internal support.
Errors along a mating ledge can also produce local interference, uneven closure, or a visible seam.
Curved housings frequently combine deep cavities with narrow spaces around bosses and ribs. Long tools can deflect, while small cutters may leave burrs or inconsistent surfaces.
Five-axis machining can improve access, but suitable corner radii, tool clearance, and stable workholding remain necessary.
In plastics, worn tools, rubbing, and trapped chips can generate localized heat. The result may be smeared surfaces, burrs, or dimensional movement.
Finishing can introduce further errors if polishing rounds mating edges or enlarges control openings.
Process planning should identify where supporting stock must remain.
Rough the cavity while retaining material around vulnerable sections. Finish critical internal interfaces before removing the remaining exterior stock. Use dedicated nests to support appropriate surfaces without forcing the shell into an artificial shape.
For engineering plastics, sharp tools and effective chip evacuation also help control heat and surface quality. Ensinger’s machining guidance similarly emphasizes adequate workpiece support and suitable tooling.
Cutting speed, cutter diameter, flute count, feed per tooth, engagement, and tool overhang must be considered together.
For illustration, a 6 mm, two-flute cutter at a cutting speed of 150 m/min requires approximately 8,000 rpm. At 0.03 mm feed per tooth, the corresponding feed rate is approximately 480 mm/min.
These figures illustrate a trial calculation, not a validated production recipe. Material grade, cutter geometry, pocket depth, cooling method, and wall support determine suitable settings. Trials should assess chip formation, temperature, surface condition, and dimensional movement.
Use datums that reflect how the housing locates in its assembly. Apply tighter controls to mounting features and control interfaces where the tolerance stack requires them.
Feature | Illustrative drawing-review target | Main consideration |
Internal mounting location | ±0.05 mm | Datum relationship and assembly stack-up |
Local mating ledge dimension | ±0.05–0.10 mm | Joint function and closure method |
Noncritical exterior dimension | ±0.10–0.20 mm | Appearance and ergonomic requirements |
Selected functional surface | Ra 0.8–1.6 µm | Material, function, and finishing allowance |
These are discussion targets requiring project-specific confirmation, rather than universal requirements or capability guarantees.
For flexible shells, specify free-state or restrained inspection conditions. Measurement fixtures and probing forces must not conceal deformation.
The following is a hypothetical engineering example. The customer background, quantities, dimensions, and development observations are illustrative and do not represent a verified Dawang customer project.
A medical device development company is preparing a video endoscope handle for functional testing. Its team needs to package a steering mechanism, button assemblies, and imaging cables inside a split housing.
The example project calls for 12 CNC-machined prototype sets, followed by design review before injection molding development. Each polycarbonate housing consists of two halves, with an assembled envelope of approximately 155 × 48 × 42 mm. Nominal wall thickness is 2.0 mm, reducing locally to 1.5 mm around clearance features.
Three areas require attention: deep internal pockets, alignment between button openings and internal supports, and the long mating edges between the shells.
The proposed sequence is:
1. Rough the cavity while retaining supporting stock.
2. Finish critical internal interfaces from consistent datums.
3. Support the shell in a shaped nest.
4. Complete the exterior and remaining thin sections.
The example drawing assigns ±0.05 mm to selected critical mounting dimensions and ±0.15 mm to general exterior dimensions, subject to feasibility review. Cosmetic finishing is limited to designated grip areas, protecting mating ledges and control openings.
In this scenario, the first assembly review identifies restricted clearance at a cable bend. The team revises the local pocket and checks cable routing and shell closure in the next iteration.
The lesson is practical: machined prototypes can expose packaging problems before tooling investment. Final molding behavior and device verification remain separate activities.
Dawang Precision has 26 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis machining centers.
This equipment base supports process planning for complex features and multiple machining orientations. Delivery schedules depend on material availability, geometry, finishing, inspection requirements, and quantity.
For endoscope handle prototypes and low-volume production, efficient supply begins with resolving key questions before machining:
· Which walls require additional support?
· Which dimensions determine assembly fit?
· Can tools reach every specified feature?
· Which surfaces require cosmetic finishing?
· What inspection records and material documentation are required?
Providing a complete drawing package reduces quotation assumptions and engineering clarification cycles. For repeat orders, agreed acceptance criteria and consistent revision control help maintain continuity.
Whether you are developing a new handle or revising an existing assembly, early manufacturing feedback can identify potential distortion, difficult tool access, and unnecessary tolerance costs.
